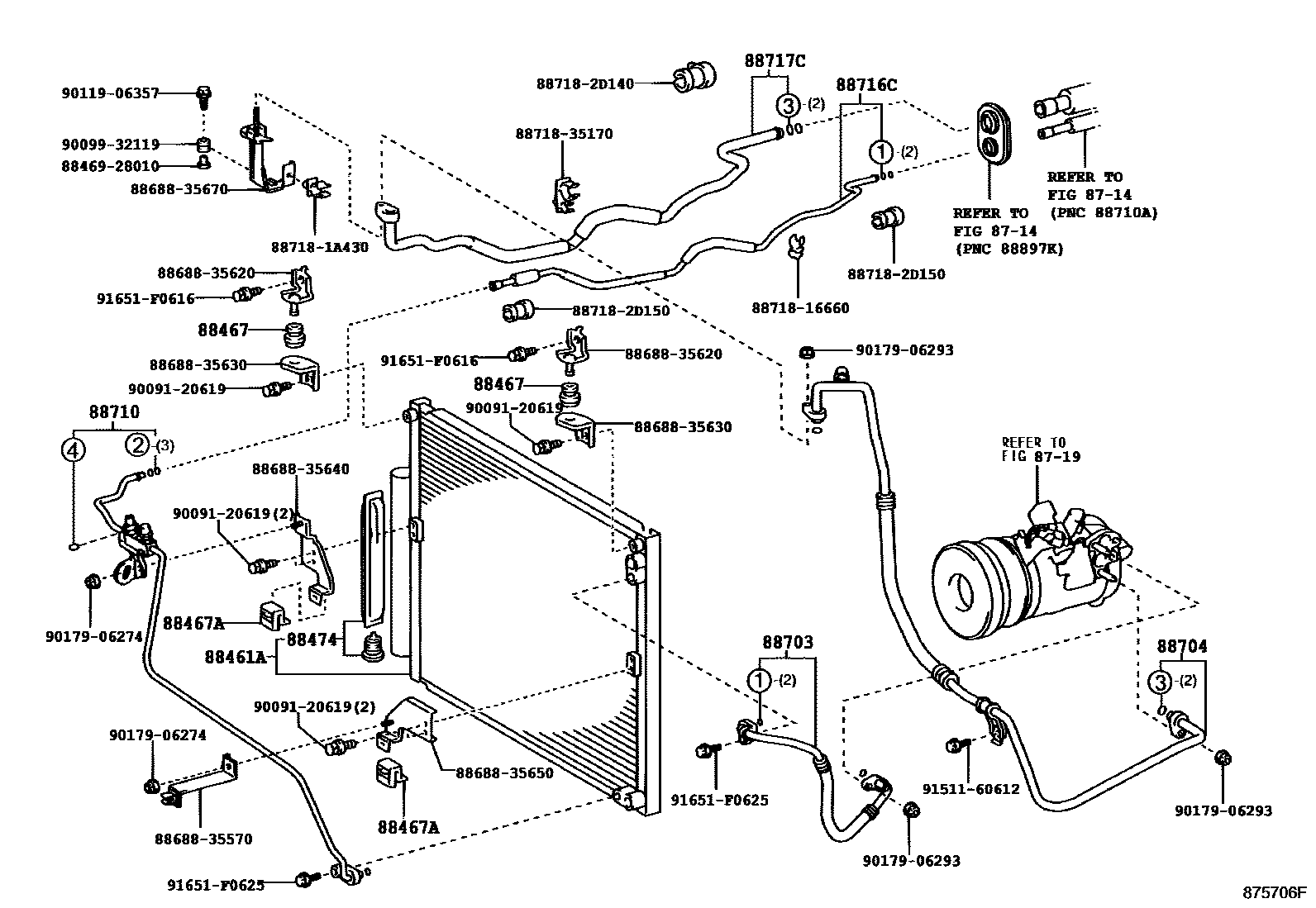

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88461ACORE, COOLER CONDENSER
88467CUSHION, COOLER CONDENSER, NO.1
88467ACUSHION, COOLER CONDENSER, NO.2
88474DRYER, COOLER
88703HOSE SUB-ASSY, DISCHARGE
88704HOSE SUB-ASSY, SUCTION
88710TUBE ASSY, AIR CONDITIONER
88716CPIPE, COOLER REFRIGERANT LIQUID, C
88717CPIPE, COOLER REFRIGERANT SUCTION, C
8846928010SWITCH, PRESSURE CONTROL
main88469-28010
8868835570BRACKET, COOLER DIAPHRAGM
main88688-35570
8868835620BRACKET, COOLER DIAPHRAGM
main88688-35620
8868835630BRACKET, COOLER DIAPHRAGM
main88688-35630
8868835640BRACKET, COOLER DIAPHRAGM
main88688-35640
8868835650BRACKET, COOLER DIAPHRAGM
main88688-35650
8868835670BRACKET, COOLER DIAPHRAGM
main88688-35670
8871816660PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-16660
887181A430PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-1A430
887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2D140
887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2D150
8871835170PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-35170
9009120619
main90091-20619
9009932119
main90099-32119
9011906357
main90119-06357
9017906274
main90179-06274
9017906293
main90179-06293
9151160612
main91511-60612
91651F0616
main91651-F0616
91651F0625
main91651-F0625
31 parts on this diagram · 4 diagrams in section
