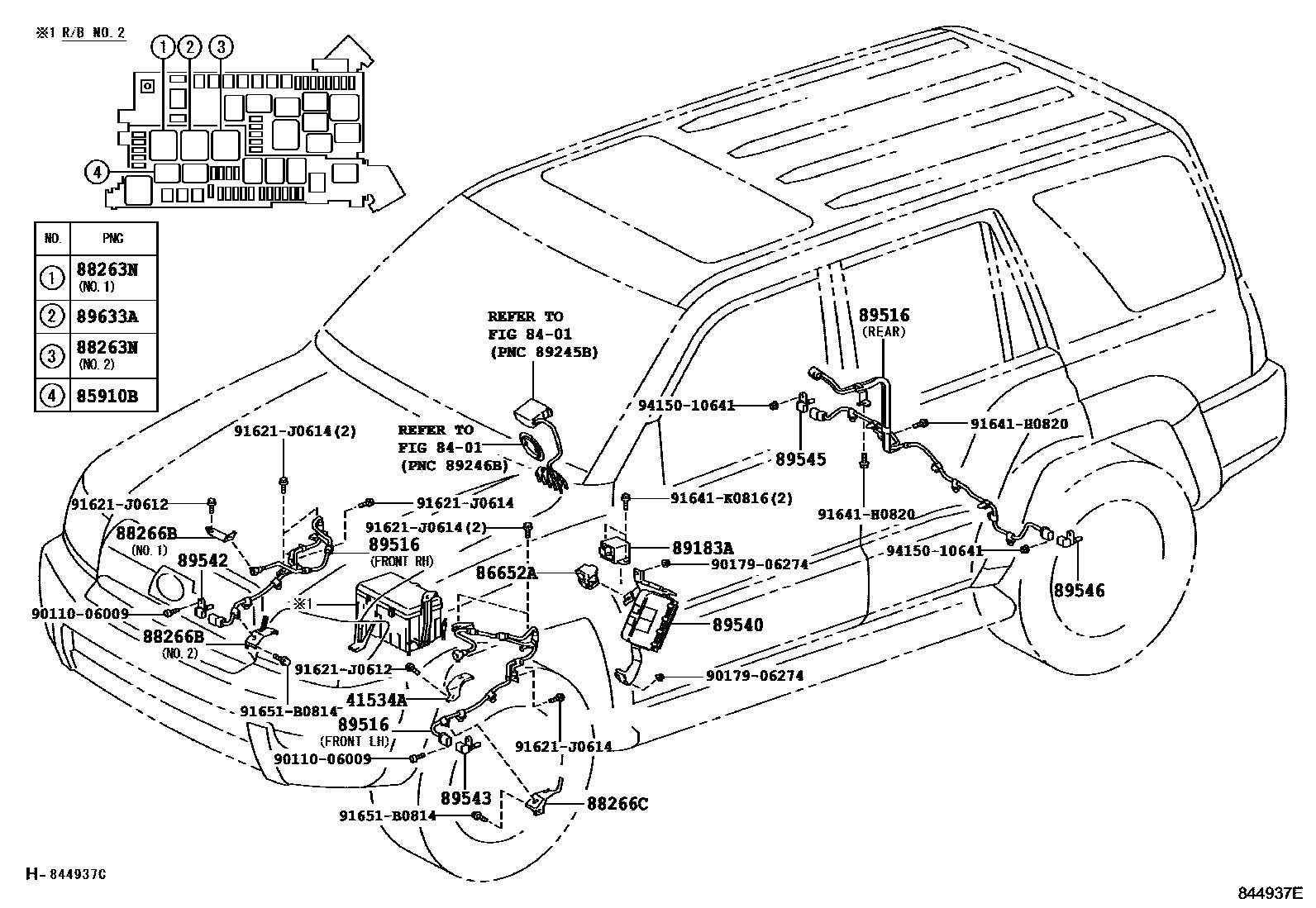

ABS & VSC
41534ABRACKET, FRONT DIFFERENTIAL BREATHER
8401
85910BRELAY ASSY, CIRCUIT OPENING (FOR ESC)
86652ABUZZER ASSY, SKID CONTROL
88263NRELAY, ABS MOTOR
NO.1
NO.2
88266BCLAMP, SKID CONTROL SENSOR, NO.1
NO.1
NO.2
NO.2
88266CCLAMP, SKID CONTROL SENSOR, NO.2
89183ASENSOR, YAWRATE
89516WIRE, SKID CONTROL SENSOR
FRONT RH
FRONT LH
REAR
89540COMPUTER ASSY, SKID CONTROL
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
89633ARELAY, TRACTION CONTROL OR VSC
9011006009
main90110-06009
9017906274
main90179-06274
91621J0612
main91621-J0612
91621J0614
main91621-J0614
91641H0820
main91641-H0820
91641K0816
main91641-K0816
91651B0814
main91651-B0814
9415010641
main94150-10641
23 parts on this diagram · 3 diagrams in section
