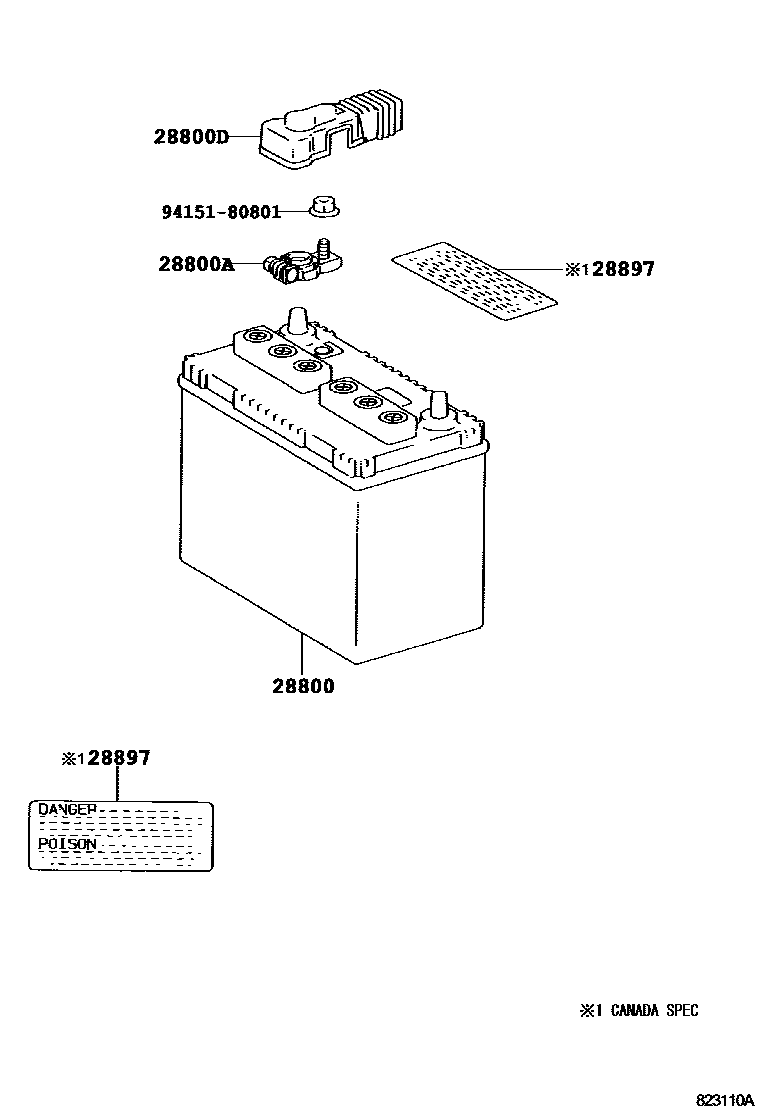

BATTERY & BATTERY CABLE

28800BATTERY

main28800-66021supersedes 28800-64132i1GRFE,2UZFE..GRN21#,UZN21#200208-200508

105D31L,BATTERY SIZE-105D31L(US CA),MATSUSHITA

sub28800-66022

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1GRFE,2UZFE..GRN21#,UZN21#200508

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-35020i1GRFE..GRN21#200208-200408

28897PLATE, BATTERY CAUTION

main28897-46020i1GRFE..GRN215200208-200408

CANADA SPEC

9415180801

main94151-80801

5 parts on this diagram · 1 diagram in section
