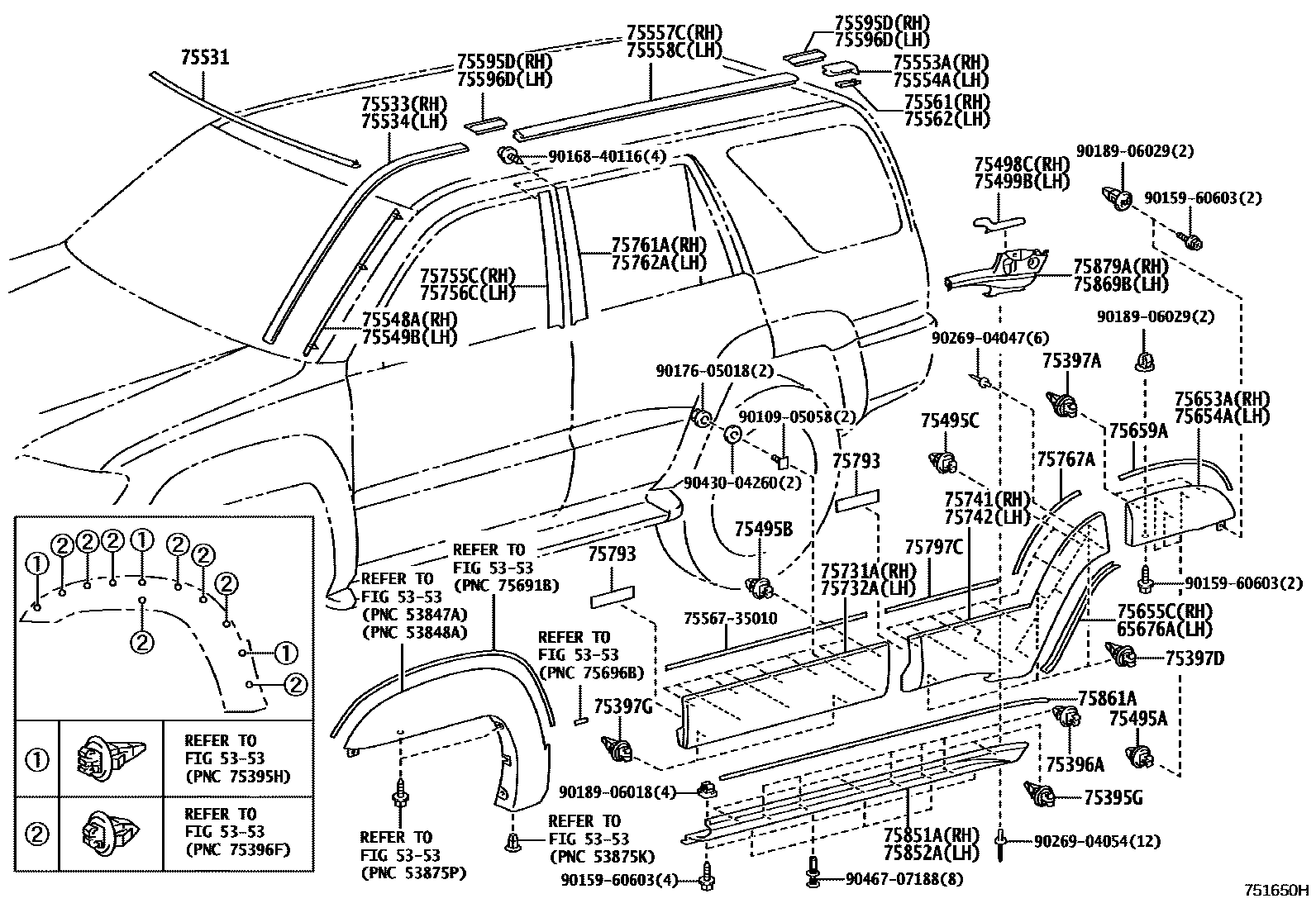

MOULDING
5353
65676ASEAL, WHEEL HOUSE, FRONT LH
75395GCLIP, OUTSIDE MOULDING, NO.1
75396ACLIP, OUTSIDE MOULDING, NO.2
75397ACLIP, OUTSIDE MOULDING, NO.3
75397DCLIP, OUTSIDE MOULDING, NO.3
75397GCLIP, OUTSIDE MOULDING, NO.3
75495ACLIP, OUTSIDE MOULDING, NO.4
75495BCLIP, OUTSIDE MOULDING, NO.4
75495CCLIP, OUTSIDE MOULDING, NO.4
75498CSEAL, OUTSIDE MOULDING, NO.2
75499BSEAL, OUTSIDE MOULDING, NO.3
75531MOULDING, WINDSHIELD, OUTER UPPER
NO PAINT REQ.
NO PAINT REQ.
75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75549BFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.2
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
75557CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH
75558CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH
75653AMOULDING, QUARTER, OUTSIDE REAR RH
WHITE,056
SILVER ME.,1D4
DK.GRAY M.M.,1E9
BLACK,202
DK. RED M.M.,3Q3
CHAMPAGNE M.M.,587
DK.BLUE MC.,8Q0
GRAYISH BLUE ME.,8R3
NO PAINT REQ.
WHITE,056
WHITE PEARL CS.,070
SILVER ME.,1D4
DK.GRAY M.M.,1E9
DK. GRAY M.M.,1F4
BLACK,202
DK. RED M.M.,3Q3
BRONZE M.M.,4S2
DK.BLUE MC.,8S6
75654AMOULDING, QUARTER, OUTSIDE REAR LH
WHITE,056
SILVER ME.,1D4
DK.GRAY M.M.,1E9
BLACK,202
DK. RED M.M.,3Q3
CHAMPAGNE M.M.,587
DK.BLUE MC.,8Q0
GRAYISH BLUE ME.,8R3
NO PAINT REQ.
WHITE,056
WHITE PEARL CS.,070
SILVER ME.,1D4
DK.GRAY M.M.,1E9
DK. GRAY M.M.,1F4
BLACK,202
DK. RED M.M.,3Q3
BRONZE M.M.,4S2
DK.BLUE MC.,8S6
75655CSEAL, WHEEL HOUSE, FRONT RH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
WHITE,056
SILVER ME.,1D4
DK.GRAY M.M.,1E9
BLACK,202
DK. RED M.M.,3Q3
CHAMPAGNE M.M.,587
DK.BLUE MC.,8Q0
GRAYISH BLUE ME.,8R3
NO PAINT REQ.
WHITE,056
WHITE PEARL CS.,070
SILVER ME.,1D4
DK.GRAY M.M.,1E9
DK. GRAY M.M.,1F4
BLACK,202
DK. RED M.M.,3Q3
BRONZE M.M.,4S2
DK.BLUE MC.,8S6
75732AMOULDING, FRONT DOOR, OUTSIDE LH
WHITE,056
SILVER ME.,1D4
DK.GRAY M.M.,1E9
BLACK,202
DK. RED M.M.,3Q3
CHAMPAGNE M.M.,587
DK.BLUE MC.,8Q0
GRAYISH BLUE ME.,8R3
NO PAINT REQ.
WHITE,056
WHITE PEARL CS.,070
SILVER ME.,1D4
DK.GRAY M.M.,1E9
DK. GRAY M.M.,1F4
BLACK,202
DK. RED M.M.,3Q3
BRONZE M.M.,4S2
DK.BLUE MC.,8S6
75741MOULDING, REAR DOOR, OUTSIDE RH
WHITE,056
SILVER ME.,1D4
DK.GRAY M.M.,1E9
BLACK,202
DK. RED M.M.,3Q3
CHAMPAGNE M.M.,587
DK.BLUE MC.,8Q0
GRAYISH BLUE ME.,8R3
NO PAINT REQ.
WHITE,056
WHITE PEARL CS.,070
SILVER ME.,1D4
DK.GRAY M.M.,1E9
DK. GRAY M.M.,1F4
BLACK,202
DK. RED M.M.,3Q3
BRONZE M.M.,4S2
DK.BLUE MC.,8S6
75742MOULDING, REAR DOOR, OUTSIDE LH
WHITE,056
SILVER ME.,1D4
DK.GRAY M.M.,1E9
BLACK,202
DK. RED M.M.,3Q3
CHAMPAGNE M.M.,587
DK.BLUE MC.,8Q0
GRAYISH BLUE ME.,8R3
NO PAINT REQ.
WHITE,056
WHITE PEARL CS.,070
SILVER ME.,1D4
DK.GRAY M.M.,1E9
DK. GRAY M.M.,1F4
BLACK,202
DK. RED M.M.,3Q3
BRONZE M.M.,4S2
DK.BLUE MC.,8S6
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75793PAD, FRONT DOOR OUTSIDE MOULDING, UPPER
GRAY,1D4 ,4S2
BLACK,1E9 ,1F4 ,202 ,3Q3 ,8S6
WHITE,056 ,070
WHITE,056
75797CPAD, REAR DOOR OUTSIDE MOULDING, UPPER
sub53853-42010
75851AMOULDING, ROCKER PANEL, FRONT RH
75852AMOULDING, ROCKER PANEL, FRONT LH
75861APROTECTOR, ROCKER PANEL MOULDING, NO.1
75869BRETAINER, QUARTER OPENING, LH
75879ARETAINER, QUARTER OPENING, RH
7556735010SEAL, ROOF DRIP SIDE FINISH MOULDING, NO.2
main75567-35010
9010905058
main90109-05058
9015960603
main90159-60603
9016840116
main90168-40116
9017605018
main90176-05018
9018906018
main90189-06018
9018906029
main90189-06029
9026904047
main90269-04047
9026904054
main90269-04054
9043004260
main90430-04260
9046707188
main90467-07188
56 parts on this diagram · 2 diagrams in section
