SEAT BELT

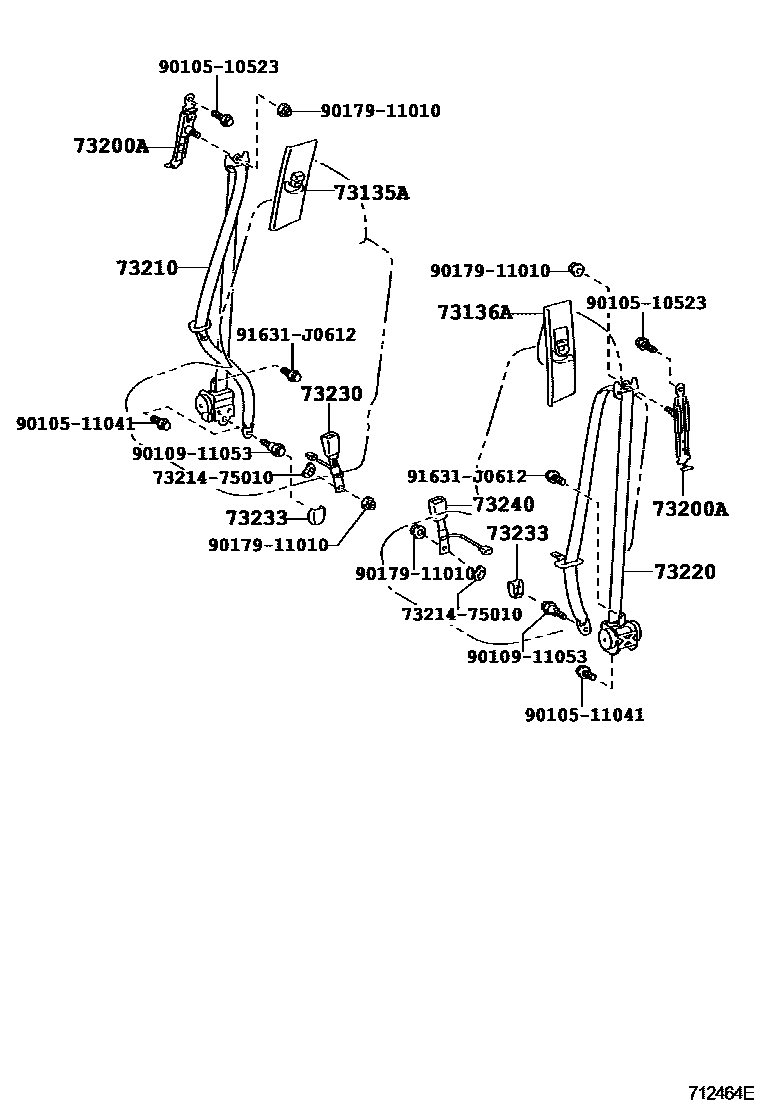

Parts diagram
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73023-35010-B0i200208-200508
STONE,TRIM12,13
sub73023-35010
main73023-35010-B0i200208-200908
STONE,TRIM1#
sub73023-35010
main73023-35010-E0i200208-200908
FAWN,TRIM4#
sub73023-35010
73136ACOVER, SHOULDER BELT ANCHOR, LH
main73024-35010-B0i200208-200908
STONE,TRIM1#
sub73024-35010
main73024-35010-B0i200208-200508
STONE,TRIM12,13
sub73024-35010
main73024-35010-E0i200208-200908
FAWN,TRIM4#
sub73024-35010
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-30080i200208-200301
main73200-60030i200301-200508
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-35880-B0i200208-200308
GRAY,TRIM1#
sub73210-35881
main73210-35880-B0i200208-200308
GRAY,TRIM12
sub73210-35881
main73210-35880-B1i200208-200308
GRAY,TRIM13
sub73210-35881
main73210-35880-E0i200208-200308
FAWN,TRIM4#
sub73210-35881
main73210-35881-B0i200308-200908
GRAY,TRIM1#
main73210-35881-B0i200308-200508
GRAY,TRIM12
main73210-35881-B1i200308-200508
GRAY,TRIM13
main73210-35881-B1i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,GRAY,TRIM13
main73210-35881-E0i200308-200908
FAWN,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-35710-B0i200308-200508
GRAY,TRIM12
main73220-35710-B0i200308-200908
GRAY,TRIM1#
main73220-35710-B1i200308-200508
GRAY,TRIM13
main73220-35710-B1i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,GRAY,TRIM13
main73220-35710-E0i200308-200908
FAWN,TRIM4#
main73220-35750-B0i200208-200308
GRAY,TRIM12
sub73220-35710
main73220-35750-B0i200208-200308
GRAY,TRIM1#
sub73220-35710
main73220-35750-B1i200208-200308
GRAY,TRIM13
sub73220-35710
main73220-35750-E0i200208-200308
FAWN,TRIM4#
sub73220-35710
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-35800-B0i200208-200408
STONE,TRIM1#
main73230-35800-E0i200208-200408
FAWN,TRIM4#
main73230-35810-B0i200508-200908
STONE,TRIM1#
main73230-35810-B0i200408-200508
STONE,TRIM12
main73230-35810-B1i200408-200508
DK.GRAY,TRIM13
main73230-35810-E0i200408-200908
FAWN,TRIM4#
main73230-35820-B0i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,STONE,TRIM12
main73230-35820-B0i200408-200908
STONE,TRIM1#
main73230-35820-B1i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,DK.GRAY,TRIM13
main73230-35820-E0i200408-200908
FAWN,TRIM4#
main73230-35820-E0i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,FAWN,TRIM4#
main73230-35840-B0i200208-200408
STONE,TRIM12
main73230-35840-B1i200208-200408
DK.GRAY,TRIM13
main73230-35840-E0i200208-200408
FAWN,TRIM4#
73233COVER, LAP BELT OUTER ANCHOR
main73233-60010-B0i200208-200508
STONE,TRIM12,13
main73233-60010-B0i200208-200908
STONE,TRIM1#
main73233-60010-E0i200208-200908
FAWN,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-35790-B0i200208-200408
STONE,TRIM1#
main73230-35790-E0i200208-200408
FAWN,TRIM4#
main73230-35830-B0i200208-200408
STONE,TRIM12
main73230-35830-B1i200208-200408
DK.GRAY,TRIM13
main73230-35830-E0i200208-200408
FAWN,TRIM4#
main73240-35490-B0i200508-200908
STONE,TRIM1#
main73240-35490-B0i200408-200508
STONE,TRIM12
main73240-35490-B1i200408-200508
DK.GRAY,TRIM13
main73240-35490-E0i200408-200908
FAWN,TRIM4#
main73240-35500-B0i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,STONE,TRIM12
main73240-35500-B0i200408-200908
STONE,TRIM1#
main73240-35500-B1i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,DK.GRAY,TRIM13
main73240-35500-E0i200408-200908
FAWN,TRIM4#
main73240-35500-E0i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,FAWN,TRIM4#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511041
main90105-11041
9010911053
main90109-11053
9017911010
main90179-11010
91631J0612
main91631-J0612

14 parts on this diagram · 3 diagrams in section
