EPC Data

SEAT & SEAT TRACK

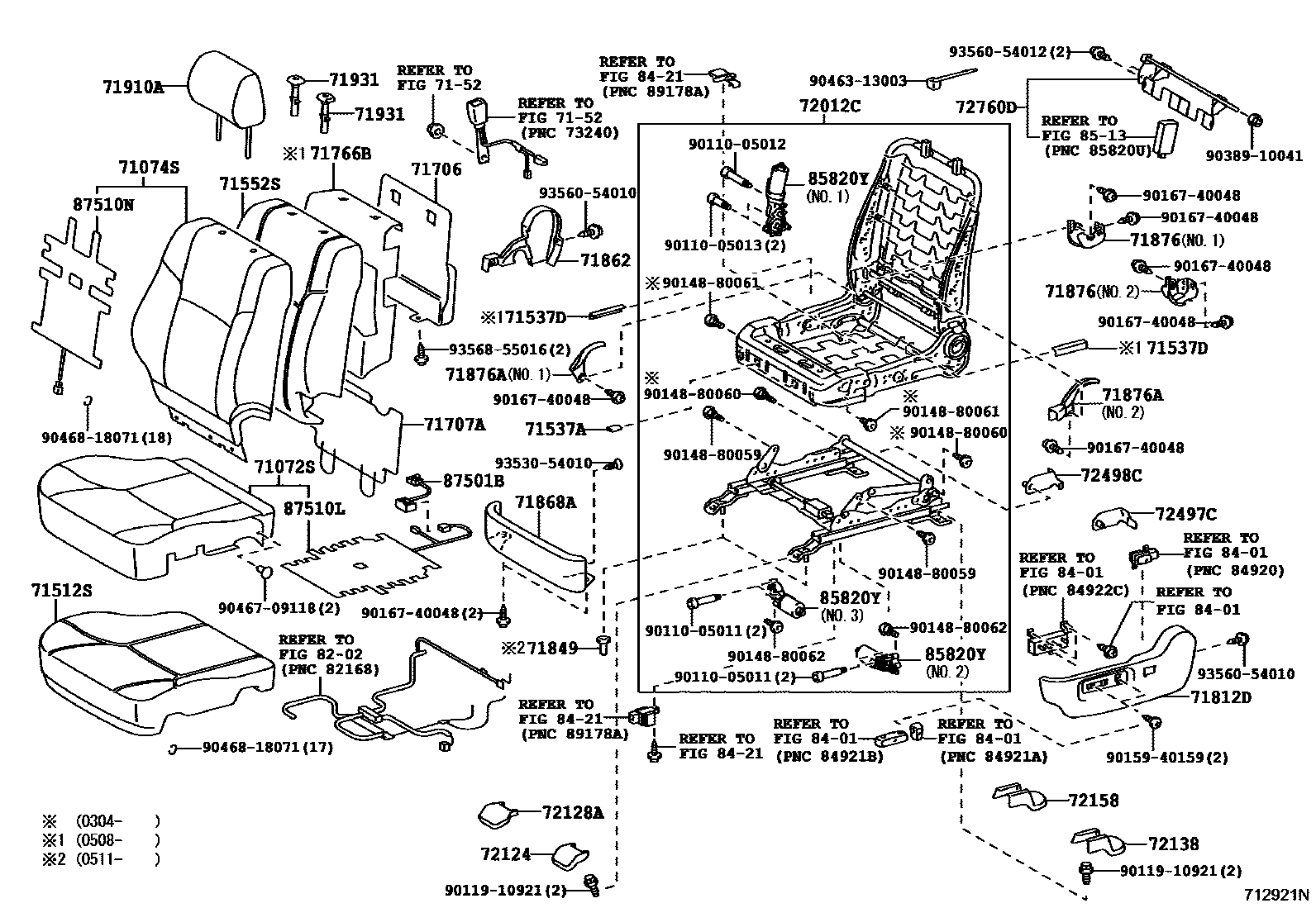

Parts diagram
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-35200-B2i200208-200508
STONE,TRIM12
sub71072-35200
sub71072-35203
main71072-35200-B3i200208-200508
DARK GRAY,TRIM13
sub71072-35200
sub71072-35203
main71072-35200-E1i200208-200508
FAWN,TRIM4#
sub71072-35200
sub71072-35203
main71072-35201-B6i200508-200908
STONE,TRIM1#
sub71072-35202
main71072-35201-E4i200508-200908
FAWN,TRIM4#
sub71072-35202
main71072-35210-B1i200208-200908
STONE,TRIM1#
sub71072-35210
main71072-35210-E1i200208-200908
FAWN,TRIM4#
sub71072-35210
main71072-35260-B1i200508-200608
STONE,TRIM1#
sub71072-35261
main71072-35260-E1i200508-200608
FAWN,TRIM4#
sub71072-35261
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-35A20-B1i200508-200707
STONE,TRIM1#
sub71073-35A21
main71073-35A20-E1i200508-200707
FAWN,TRIM4#
sub71073-35A21
main71073-35A30-B1i200508-200608
STONE,TRIM1#
sub71073-35A31
main71073-35A30-E1i200508-200608
FAWN,TRIM4#
sub71073-35A31
main71073-3G220-B2i200208-200508
STONE,TRIM12
sub71073-3G220
sub71073-3G222
main71073-3G220-B3i200208-200508
DARK GRAY,TRIM13
sub71073-3G220
sub71073-3G222
main71073-3G220-E1i200208-200508
FAWN,TRIM4#
sub71073-3G220
sub71073-3G222
main71073-3G420-B0i200208-200508
STONE,TRIM1#
main71073-3G420-E0i200208-200508
FAWN,TRIM4#
main71073-3G421-B1i200508-200707
STONE,TRIM1#
main71073-3G421-E1i200508-200707
FAWN,TRIM4#
main71074-35641-B2i200707-200908
STONE,TRIM1#
sub71074-35641
main71074-35641-E2i200707-200908
FAWN,TRIM4#
sub71074-35641
main71074-35650-B3i200707-200908
STONE,TRIM1#
sub71074-35650
sub71074-35651
main71074-35650-E3i200707-200908
FAWN,TRIM4#
sub71074-35650
sub71074-35651
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71501-35080i200208-200508
main71511-35100i200208-200508
main71511-35110i200508-200608
7152
71537APROTECTOR, FRONT SEAT CUSHION
main71537-26010i200208-200508
71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH
main71537-60050i200508
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-35100i200208-200408
main71551-35101i200408-200707
main71552-35040i200707-200908
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71705-35010-B0i200208-200908
STONE,TRIM1#
main71705-35010-E0i200208-200908
FAWN,TRIM4#
71707ACOVER SUB-ASSY, FRONT SEATBACK BOARD
main71707-35010-B0i200208-200908
STONE,TRIM1#
main71707-35010-E0i200208-200908
FAWN,TRIM4#
71766BPROTECTOR, FRONT SEATBACK, LH
main71765-60060i200408-200508
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-35180-B0i200508-200908
STONE,TRIM1#
sub71812-35180
main71812-35180-B0i200208-200508
STONE,TRIM12
sub71812-35180
main71812-35180-B1i200208-200508
DK.GRAY,TRIM13
sub71812-35180
main71812-35180-E0i200208-200908
FAWN,TRIM4#
sub71812-35180
main71812-35190-B0i200508-200908
APPEARANCE PACKAGE SPORT&FRONT SEAT-SEPARATE, 8WAY POWER,STONE,TRIM12
sub71812-35190
main71812-35190-B0i200508-200608
STONE,TRIM12
sub71812-35190
main71812-35190-B0i200208-200908
STONE,TRIM1#
sub71812-35190
main71812-35190-B0i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,STONE,TRIM12
sub71812-35190
main71812-35190-B1i200508-200608
DK.GRAY,TRIM13
sub71812-35190
main71812-35190-E0i200208-200908
FAWN,TRIM4#
sub71812-35190
main71812-35190-E0i200508-200908
APPEARANCE PACKAGE SPORT&FRONT SEAT-SEPARATE, 8WAY POWER,FAWN,TRIM4#
sub71812-35190
main71812-35190-E0i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,FAWN,TRIM4#
sub71812-35190
71849CAP, SEAT ADJUSTER COVER, LH
main71848-33010i200511
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-60100-B0i200508-200608
DK.GRAY,TRIM13
sub71862-60100
main71862-60100-B2i200508-200908
APPEARANCE PACKAGE SPORT&FRONT SEAT-SEPARATE, 8WAY POWER,STONE,TRIM12
sub71862-60100
main71862-60100-B2i200208-200908
STONE,TRIM1#
sub71862-60100
main71862-60100-B2i200508-200608
STONE,TRIM12
sub71862-60100
main71862-60100-B2i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,STONE,TRIM12
sub71862-60100
main71862-60100-E0i200208-200908
FAWN,TRIM4#
sub71862-60100
main71862-60100-E0i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,FAWN,TRIM4#
sub71862-60100
main71862-60100-E0i200508-200908
APPEARANCE PACKAGE SPORT&FRONT SEAT-SEPARATE, 8WAY POWER,FAWN,TRIM4#
sub71862-60100
main71862-60110-B2i200508-200908
STONE,TRIM1#
sub71862-60110
main71862-60110-B2i200208-200508
STONE,TRIM12
sub71862-60110
main71862-60110-B3i200208-200508
DK.GRAY,TRIM13
sub71862-60110
main71862-60110-E0i200208-200908
FAWN,TRIM4#
sub71862-60110
71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
main71868-35010-B0i200208-200908
STONE,TRIM1#
sub71868-35010
main71868-35010-B0i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,STONE,TRIM12
sub71868-35010
main71868-35010-B0i200508-200608
STONE,TRIM12
sub71868-35010
main71868-35010-B0i200508-200908
APPEARANCE PACKAGE SPORT&FRONT SEAT-SEPARATE, 8WAY POWER,STONE,TRIM12
sub71868-35010
main71868-35010-B1i200508-200608
DK.GRAY,TRIM13
sub71868-35010
main71868-35010-E0i200208-200908
FAWN,TRIM4#
sub71868-35010
main71868-35010-E0i200508-200908
APPEARANCE PACKAGE SPORT&FRONT SEAT-SEPARATE, 8WAY POWER,FAWN,TRIM4#
sub71868-35010
main71868-35010-E0i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,FAWN,TRIM4#
sub71868-35010
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71875-58060i200408-200908
NO.1
main71875-58060-C0i200208-200408
BLACK,NO.1
sub71875-58060
main71875-60140i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,NO.1
main71875-60140i200508-200908
APPEARANCE PACKAGE SPORT&FRONT SEAT-SEPARATE, 8WAY POWER,NO.1
main71875-60140i200208-200908
NO.1
main71875-60160-B2i200508-200908
STONE,TRIM1#,NO.2
sub71875-60160
main71875-60160-B2i200208-200508
STONE,TRIM12,NO.2
sub71875-60160
main71875-60160-B3i200208-200508
DK.GRAY,TRIM13,NO.2
sub71875-60160
main71875-60160-E0i200208-200908
FAWN,TRIM4#,NO.2
sub71875-60160
main71876-58060i200408-200908
NO.3
main71876-58060-C0i200208-200408
BLACK,NO.3
sub71876-58060
main71876-60140i200208-200908
NO.2
main71876-60140i200508-200908
APPEARANCE PACKAGE SPORT&FRONT SEAT-SEPARATE, 8WAY POWER,NO.2
main71876-60140i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,NO.2
main71876-60160-B2i200208-200508
STONE,TRIM12,NO.4
sub71876-60160
main71876-60160-B2i200508-200908
STONE,TRIM1#,NO.4
sub71876-60160
main71876-60160-B3i200208-200508
DK.GRAY,TRIM13,NO.4
sub71876-60160
main71876-60160-E0i200208-200908
FAWN,TRIM4#,NO.4
sub71876-60160
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-60150-B0i200508-200608
DK.GRAY,TRIM13,NO.1
sub71876-60150
main71876-60150-B2i200208-200908
STONE,TRIM1#,NO.1
sub71876-60150
main71876-60150-B2i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,STONE,TRIM12,NO.1
sub71876-60150
main71876-60150-B2i200508-200908
APPEARANCE PACKAGE SPORT&FRONT SEAT-SEPARATE, 8WAY POWER,STONE,TRIM12,NO.1
sub71876-60150
main71876-60150-B2i200508-200608
STONE,TRIM12,NO.1
sub71876-60150
main71876-60150-E0i200208-200908
FAWN,TRIM4#,NO.1
sub71876-60150
main71876-60150-E0i200508-200908
APPEARANCE PACKAGE SPORT&FRONT SEAT-SEPARATE, 8WAY POWER,FAWN,TRIM4#,NO.1
sub71876-60150
main71876-60150-E0i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,FAWN,TRIM4#,NO.1
sub71876-60150
main71876-60170-B0i200508-200608
DK.GRAY,TRIM13,NO.2
sub71876-60170
main71876-60170-B2i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,STONE,TRIM12,NO.2
sub71876-60170
main71876-60170-B2i200208-200908
STONE,TRIM1#,NO.2
sub71876-60170
main71876-60170-B2i200508-200608
STONE,TRIM12,NO.2
sub71876-60170
main71876-60170-B2i200508-200908
APPEARANCE PACKAGE SPORT&FRONT SEAT-SEPARATE, 8WAY POWER,STONE,TRIM12,NO.2
sub71876-60170
main71876-60170-E0i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,FAWN,TRIM4#,NO.2
sub71876-60170
main71876-60170-E0i200208-200908
FAWN,TRIM4#,NO.2
sub71876-60170
main71876-60170-E0i200508-200908
APPEARANCE PACKAGE SPORT&FRONT SEAT-SEPARATE, 8WAY POWER,FAWN,TRIM4#,NO.2
sub71876-60170
71910AHEADREST ASSY, FRONT SEAT
main71910-35700-B0i200208-200508
STONE,TRIM12
main71910-35700-B1i200208-200508
DARK GRAY,TRIM13
main71910-35700-E0i200208-200508
FAWN,TRIM4#
main71910-35710-B1i200208-200908
STONE,TRIM1#
sub71910-35710
main71910-35710-E1i200208-200908
FAWN,TRIM4#
sub71910-35710
main71910-35740-B0i200508-200908
STONE,TRIM1#
sub71910-35820
main71910-35740-E0i200508-200908
FAWN,TRIM4#
sub71910-35820
71931SUPPORT, FRONT SEAT HEADREST
main71930-42020-B3i200208-200707
W(LOCK)&W(BUTTON),STONE,TRIM1#
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-B3i200208-200707
W(LOCK)&W(BUTTON),STONE,TRIM12
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-B4i200208-200707
W(LOCK)&W(BUTTON),DK.GRAY,TRIM13
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-E0i200208-200707
W(LOCK)&W(BUTTON),FAWN,TRIM4#
sub71930-52030
sub71930-42020
sub71930-44020
main71930-52030-B0i200707-200908
W(LOCK)&W(BUTTON),DK.GRAY,TRIM13
sub71930-52030
main71930-52030-B6i200707-200908
W(LOCK)&W(BUTTON),STONE,TRIM12,13
sub71930-52030
main71930-52030-B6i200707-200908
W(LOCK)&W(BUTTON),STONE,TRIM12
sub71930-52030
main71930-52030-B6i200707-200908
W(LOCK)&W(BUTTON),STONE,TRIM1#
sub71930-52030
main71930-52030-E3i200707-200908
W(LOCK)&W(BUTTON),FAWN,TRIM4#
sub71930-52030
main71931-42020-B3i200208-200908
W(LOCK)&W/O(BUTTON),STONE,TRIM1#
sub71931-42020
main71931-42020-B3i200208-200908
W(LOCK)&W/O(BUTTON),STONE,TRIM12
sub71931-42020
main71931-42020-B3i200508-200908
W(LOCK)&W/O(BUTTON),STONE,TRIM12,13
sub71931-42020
main71931-42020-B4i200208-200908
W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13
sub71931-42020
main71931-42020-E0i200208-200908
W(LOCK)&W/O(BUTTON),FAWN,TRIM4#
sub71931-42020
72012CADJUSTER SUB-ASSY, FRONT SEAT, LH
main71120-35020i200208-200310
sub71120-35190
main71120-35030i200208-200310
main71120-35071i200707-200908
main71120-35081i200707-200908
main71120-35150i200604-200607
FRONT SEAT-SEPARATE, 8WAY POWER
sub71120-35151
main71120-35150i200604-200607
FRONT SEAT-SEPARATE, 8WAY POWER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
sub71120-35151
main71120-35151i200607-200707
FRONT SEAT-SEPARATE, 8WAY POWER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
main71120-35151i200607-200707
FRONT SEAT-SEPARATE, 8WAY POWER
main71120-35151i200608-200707
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
main71120-35151i200310-200508
main71120-35180i200508-200604
FRONT SEAT-SEPARATE, 8WAY POWER
sub71120-35150
main71120-35180i200508-200604
FRONT SEAT-SEPARATE, 8WAY POWER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
sub71120-35150
main71120-35190i200508-200707
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
main71120-35190i200508-200707
FRONT SEAT-SEPARATE, 8WAY POWER
main71120-35190i200508-200608
FRONT SEAT-SEPARATE, 8WAY POWER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
main71120-35190i200310-200508
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72124-35010-B0i200208-200508
STONE,TRIM12,13
main72124-35010-B0i200508-200908
STONE,TRIM1#
main72124-35010-E0i200208-200908
FAWN,TRIM4#
main72124-35020-B0i200508-200908
3RD SEAT PACKAGE&FRONT SEAT-SEPARATE, 8WAY POWER,STONE,TRIM1#
main72124-35020-B0i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,STONE,TRIM1#
main72124-35020-B0i200208-200908
STONE,TRIM1#
main72124-35020-E0i200208-200908
FAWN,TRIM4#
main72124-35020-E0i200508-200908
3RD SEAT PACKAGE&FRONT SEAT-SEPARATE, 8WAY POWER,FAWN,TRIM4#
main72124-35020-E0i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,FAWN,TRIM4#
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72128-35010-B0i200208-200508
STONE,TRIM12,13
main72128-35010-B0i200508-200908
STONE,TRIM1#
main72128-35010-E0i200208-200908
FAWN,TRIM4#
main72128-35020-B0i200508-200908
3RD SEAT PACKAGE&FRONT SEAT-SEPARATE, 8WAY POWER,STONE,TRIM1#
main72128-35020-B0i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,STONE,TRIM1#
main72128-35020-B0i200208-200908
STONE,TRIM1#
main72128-35020-E0i200208-200908
FAWN,TRIM4#
main72128-35020-E0i200508-200908
3RD SEAT PACKAGE&FRONT SEAT-SEPARATE, 8WAY POWER,FAWN,TRIM4#
main72128-35020-E0i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,FAWN,TRIM4#
72138COVER, SEAT TRACK, OUTER LH
main72138-35050-B0i200508-200908
STONE,TRIM1#
main72138-35050-B0i200208-200508
STONE,TRIM12,13
main72138-35050-E0i200208-200908
FAWN,TRIM4#
main72138-35060-B0i200508-200908
3RD SEAT PACKAGE&FRONT SEAT-SEPARATE, 8WAY POWER,STONE,TRIM1#
main72138-35060-B0i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,STONE,TRIM1#
main72138-35060-B0i200208-200908
STONE,TRIM1#
main72138-35060-E0i200208-200908
FAWN,TRIM4#
main72138-35060-E0i200508-200908
3RD SEAT PACKAGE&FRONT SEAT-SEPARATE, 8WAY POWER,FAWN,TRIM4#
main72138-35060-E0i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,FAWN,TRIM4#
72158COVER, SEAT TRACK BRACKET, INNER LH
main72138-35050-B0i200508-200908
STONE,TRIM1#
main72138-35050-B0i200208-200508
STONE,TRIM12,13
main72138-35050-E0i200208-200908
FAWN,TRIM4#
main72158-35020-B0i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,STONE,TRIM1#
main72158-35020-B0i200208-200908
STONE,TRIM1#
main72158-35020-B0i200508-200908
3RD SEAT PACKAGE&FRONT SEAT-SEPARATE, 8WAY POWER,STONE,TRIM1#
main72158-35020-E0i200208-200908
FAWN,TRIM4#
main72158-35020-E0i200508-200908
3RD SEAT PACKAGE&FRONT SEAT-SEPARATE, 8WAY POWER,FAWN,TRIM4#
main72158-35020-E0i200508-200908
FRONT SEAT-SEPARATE, 8WAY POWER,FAWN,TRIM4#
72497CCOVER, VERTICAL ADJUSTER BRACKET, OUTER
main72497-58010i200508
APPEARANCE PACKAGE SPORT&FRONT SEAT-SEPARATE, 8WAY POWER
main72497-58010i200208-200608
main72497-58010i200508
FRONT SEAT-SEPARATE, 8WAY POWER
72498CCOVER, VERTICAL ADJUSTER BRACKET, INNER
main72498-58010i200208-200608
main72498-58010i200508
APPEARANCE PACKAGE SPORT&FRONT SEAT-SEPARATE, 8WAY POWER
main72498-58010i200508
FRONT SEAT-SEPARATE, 8WAY POWER
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-33060i200310-200908
main72760-60050i200208-200310
8202
8401
8421
8513
85820YMOTOR ASSY, POWER SEAT
main85801-58010i200508
APPEARANCE PACKAGE SPORT&FRONT SEAT-SEPARATE, 8WAY POWER,NO.2 RH
main85801-58010i200408-200608
NO.2 RH
main85801-58010i200508
FRONT SEAT-SEPARATE, 8WAY POWER,NO.2 RH
main85801-58020i200508
APPEARANCE PACKAGE SPORT&FRONT SEAT-SEPARATE, 8WAY POWER,NO.1 RH
main85801-58020i200508
FRONT SEAT-SEPARATE, 8WAY POWER,NO.1 RH
main85801-58020i200408-200608
NO.1 RH
main85801-60020i200508
FRONT SEAT-SEPARATE, 8WAY POWER,NO.1 LH
main85801-60020i200303-200608
NO.1 LH
main85801-60020i200508
APPEARANCE PACKAGE SPORT&FRONT SEAT-SEPARATE, 8WAY POWER,NO.1 LH
main85801-60030i200508
APPEARANCE PACKAGE SPORT&FRONT SEAT-SEPARATE, 8WAY POWER,NO.2 LH
main85801-60030i200508
FRONT SEAT-SEPARATE, 8WAY POWER,NO.2 LH
main85801-60030i200408-200608
NO.2 LH
main85801-60040i200508
FRONT SEAT-SEPARATE, 8WAY POWER,NO.3 LH
main85801-60040i200508
APPEARANCE PACKAGE SPORT&FRONT SEAT-SEPARATE, 8WAY POWER,NO.3 LH
main85801-60040i200408-200608
NO.3 LH
87501BCONTROL SUB-ASSY, SEAT HEATER, LH
main87501-60010i200208-200508
sub87501-60060
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-35050i200304-200508
main87510-60260i200208-200304
sub87510-60370
87510NHEATER ASSY, FRONT SEATBACK, LH
main87510-35060i200304-200508
main87510-60270i200208-200304
sub87510-60380
9011005011
main90110-05011
9011005012
main90110-05012
9011005013
main90110-05013
9011910921
main90119-10921
9014880059
main90148-80059
9014880060
main90148-80060
9014880061
main90148-80061
9014880062
main90148-80062
9015940159
main90159-40159
9016740048
main90167-40048
9038910041
main90389-10041
9046313003
main90463-13003
9046709118
main90467-09118
9046818071
main90468-18071
9353054010
main93530-54010
9356054010
main93560-54010
9356054012
main93560-54012
9356855016
main93568-55016

52 parts on this diagram · 13 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
