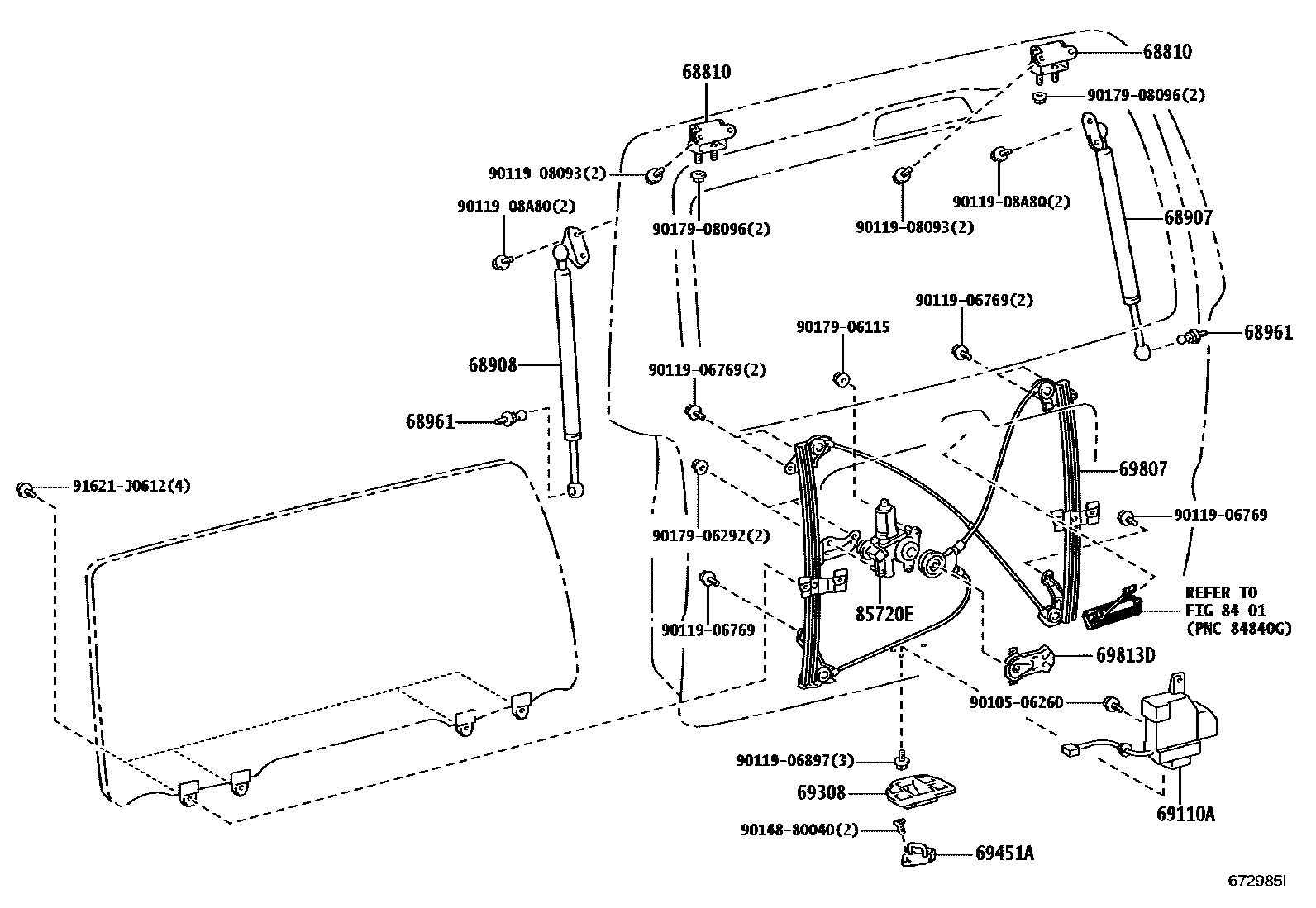

BACK DOOR LOCK & HINGE

0001 1 0002 1

68810HINGE ASSY, BACK DOOR, UPPER

main68810-21050iGRN21#200208-200908

68907STAY SUB-ASSY, BACK DOOR DAMPER, RH

main68907-35050iGRN21#,UZN21#200208-200401

main68907-39015iGRN21#,UZN21#200401-200508

68908STAY SUB-ASSY, BACK DOOR DAMPER, LH

main68908-35050iGRN21#,UZN21#200208-200401

main68908-39015iGRN21#,UZN21#200401-200508

68961BOLT, BACK DOOR STAY

main68961-35050iGRN21#,UZN21#200208-200508

69110ALOCK ASSY, BACK DOOR W/MOTOR

main69110-35060iGRN21#,UZN21#200208-200404

sub69110-35062

main69110-35062iGRN21#200404-200908

sub69110-35090

69308PROTECTOR SUB-ASSY, BACK DOOR LOCK

main69308-35010iGRN21#200208-200508

69451APLATE, DOOR LOCK STRIKER

main69410-35030iGRN21#200208-200508

69807REGULATOR SUB-ASSY, BACK DOOR POWER WINDOW

main69807-35020iGRN21#200208-200508

69813DPLATE, BACK DOOR WINDOW REGULATOR BASE, RH

main69813-33010iGRN21#200208-200508

8401

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-35150iGRN21#200208-200508

9010506260

main90105-06260

9011906769

main90119-06769

9011906897

main90119-06897

9011908093

main90119-08093

9011908A80

main90119-08A80

9014880040

main90148-80040

9017906115

main90179-06115

9017906292

main90179-06292

9017908096

main90179-08096

91621J0612

main91621-J0612

21 parts on this diagram · 2 diagrams in section
