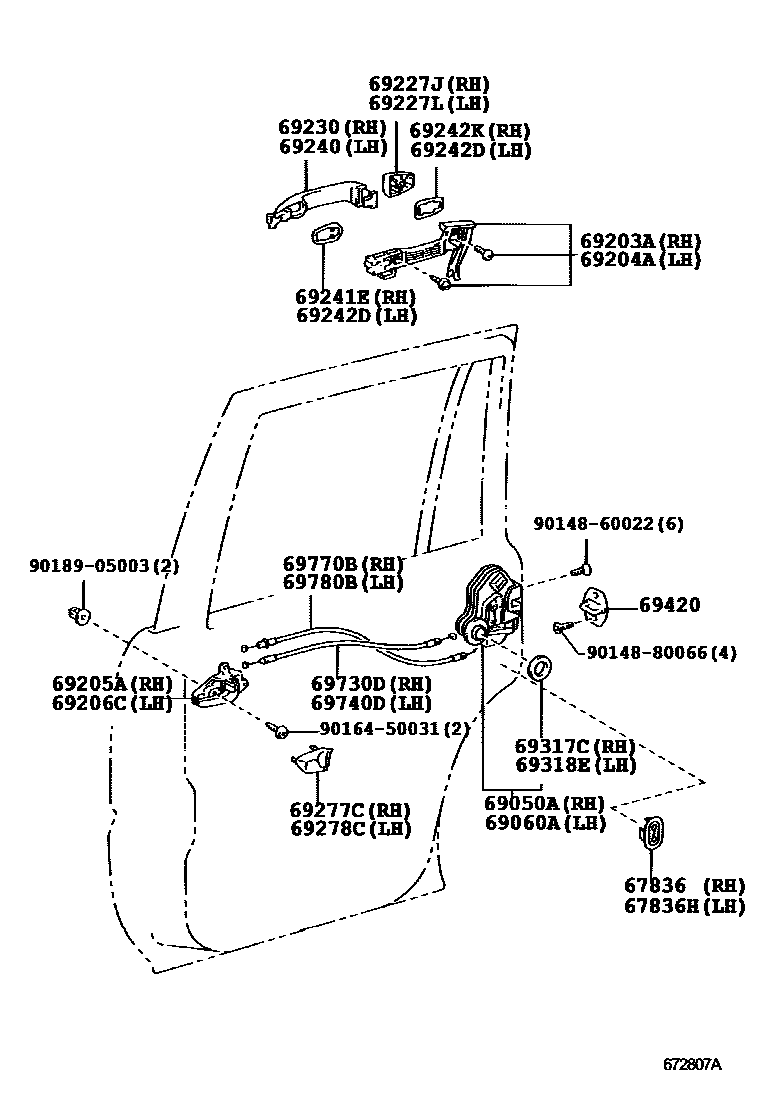

REAR DOOR LOCK & HANDLE

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12040iGRN21#,UZN21#..5FC200208-200508

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-12040iGRN21#,UZN21#..5FC200208-200508

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-60090iGRN21#200208-200609

sub69050-60091

main69050-60091iGRN21#,UZN21#200610

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-60090iGRN21#200208-200609

sub69060-60091

main69060-60091iGRN21#,UZN21#200610

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-60010iGRN21#200208-200508

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-60010iGRN21#,UZN21#..5FC200208-200508

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-44020-B1iGRN21#..LIMD200208-200908

DK.GRAY,TRIM1#,4#

sub69205-44020

main69205-44020-B1iGRN21#..LIMD200208-200508

DK.GRAY,TRIM12,13,4#

sub69205-44020

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-44020-B1iGRN21#,UZN21#..5FC..SR5200208-200908

DK.GRAY,TRIM1#,4#

sub69206-44020

main69206-44020-B1iGRN21#..LIMD200208-200508

DK.GRAY,TRIM12,13,4#

sub69206-44020

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-30070iGRN21#,UZN21#..SR5200508-200908

*CR

main69227-60020-A0iGRN21#200208-200908

WHITE,056

sub69227-60020

main69227-60020-A0iGRN21#,UZN21#..LIMD200508-200908

APPEARANCE PACKAGE SPORT,WHITE,056

sub69227-60020

main69227-60020-B0iGRN21#,UZN21#..SR5200508-200908

APPEARANCE PACKAGE SPORT,SILVER ME.,1D4

sub69227-60020

main69227-60020-B0iGRN21#200208-200908

SILVER ME.,1D4

sub69227-60020

main69227-60020-B1iGRN21#,UZN21#..5FC200208-200908

DK.GRAY M.M.,1E9

sub69227-60020

main69227-60020-B1iGRN21#,UZN21#..SR5200508-200908

APPEARANCE PACKAGE SPORT,DK.GRAY M.M.,1E9

sub69227-60020

main69227-60020-C0iGRN21#,UZN21#..5FC200208-200908

BLACK,202

sub69227-60020

main69227-60020-C0iGRN21#,UZN21#..LIMD200508-200908

APPEARANCE PACKAGE SPORT,BLACK,202

sub69227-60020

main69227-60020-D0iGRN21#..SR5200208-200508

RED M.M.,3P1

sub69227-60020

main69227-60020-D7iGRN21#,UZN21#..SR5200408-200908

DK. RED M.M.,3Q3

sub69227-60020

main69227-60020-D7iGRN21#,UZN21#..SR5200508-200908

APPEARANCE PACKAGE SPORT,DK. RED M.M.,3Q3

sub69227-60020

main69227-60020-E7iGRN21#,UZN21#..LIMD200508-200908

BRONZE M.M.,4S2

sub69227-60020

main69227-60020-E7iGRN21#,UZN21#..LIMD200508-200908

APPEARANCE PACKAGE SPORT,BRONZE M.M.,4S2

sub69227-60020

main69227-60020-F0iGRN21#,UZN21#..5FC200208-200508

CHAMPAGNE M.M.,587

sub69227-60020

main69227-60020-G0iGRN21#..SR5200208-200508

DK.GREEN MC.,6Q7

sub69227-60020

main69227-60020-J0iGRN21#,UZN21#..5FC200208-200508

DK.BLUE MC.,8Q0

sub69227-60020

main69227-60020-J1iGRN21#,UZN21#..5FC200208-200508

GRAYISH BLUE ME.,8R3

sub69227-60020

main69227-60020-P1iGRN21#,UZN21#..SR5200508-200908

DK. GRAY M.M.,1F4

sub69227-60020

main69227-60020-P1iGRN21#,UZN21#..LIMD200508-200908

APPEARANCE PACKAGE SPORT,DK. GRAY M.M.,1F4

sub69227-60020

main69227-60020-R4iGRN21#,UZN21#..LIMD200508-200908

DK.BLUE MC.,8S6

sub69227-60020

main69227-60020-R4iGRN21#,UZN21#..LIMD200508-200908

APPEARANCE PACKAGE SPORT,DK.BLUE MC.,8S6

sub69227-60020

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-30070iGRN21#,UZN21#..SR5200508-200908

*CR

main69227-60020-A0iGRN21#,UZN21#..SR5200208-200908

WHITE,056

sub69227-60020

main69227-60020-A0iGRN21#,UZN21#..SR5200508-200908

APPEARANCE PACKAGE SPORT,WHITE,056

sub69227-60020

main69227-60020-B0iGRN21#,UZN21#..LIMD200208-200908

SILVER ME.,1D4

sub69227-60020

main69227-60020-B0iGRN21#,UZN21#..SR5200508-200908

APPEARANCE PACKAGE SPORT,SILVER ME.,1D4

sub69227-60020

main69227-60020-B1iGRN21#,UZN21#..LIMD200208-200908

DK.GRAY M.M.,1E9

sub69227-60020

main69227-60020-B1iGRN21#,UZN21#..LIMD200508-200908

APPEARANCE PACKAGE SPORT,DK.GRAY M.M.,1E9

sub69227-60020

main69227-60020-C0iGRN21#200208-200908

BLACK,202

sub69227-60020

main69227-60020-C0iGRN21#,UZN21#..SR5200508-200908

APPEARANCE PACKAGE SPORT,BLACK,202

sub69227-60020

main69227-60020-D0iUZN21#..SR5200208-200508

RED M.M.,3P1

sub69227-60020

main69227-60020-D7iGRN21#,UZN21#200408-200908

DK. RED M.M.,3Q3

sub69227-60020

main69227-60020-D7iGRN21#,UZN21#..LIMD200508-200908

APPEARANCE PACKAGE SPORT,DK. RED M.M.,3Q3

sub69227-60020

main69227-60020-E7iGRN21#,UZN21#..LIMD200508-200908

BRONZE M.M.,4S2

sub69227-60020

main69227-60020-E7iGRN21#,UZN21#..SR5200508-200908

APPEARANCE PACKAGE SPORT,BRONZE M.M.,4S2

sub69227-60020

main69227-60020-F0iGRN21#200208-200508

CHAMPAGNE M.M.,587

sub69227-60020

main69227-60020-G0iGRN21#..SR5200208-200508

DK.GREEN MC.,6Q7

sub69227-60020

main69227-60020-J0iGRN21#,UZN21#..5FC200208-200508

DK.BLUE MC.,8Q0

sub69227-60020

main69227-60020-J1iGRN21#,UZN21#..5FC200208-200508

GRAYISH BLUE ME.,8R3

sub69227-60020

main69227-60020-P1iGRN21#,UZN21#..SR5200508-200908

DK. GRAY M.M.,1F4

sub69227-60020

main69227-60020-P1iGRN21#,UZN21#..LIMD200508-200908

APPEARANCE PACKAGE SPORT,DK. GRAY M.M.,1F4

sub69227-60020

main69227-60020-R4iGRN21#,UZN21#..LIMD200508-200908

DK.BLUE MC.,8S6

sub69227-60020

main69227-60020-R4iGRN21#,UZN21#..LIMD200508-200908

APPEARANCE PACKAGE SPORT,DK.BLUE MC.,8S6

sub69227-60020

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-58010iGRN21#,UZN21#..SR5200508-200908

PLATED

main69211-28070-A2iGRN21#,UZN21#..5FC200208-200908

WHITE,056

sub69211-28070

main69211-28070-A2iGRN21#,UZN21#..LIMD200508-200908

APPEARANCE PACKAGE SPORT,WHITE,056

sub69211-28070

main69211-28070-B0iGRN21#,UZN21#..LIMD200508-200908

APPEARANCE PACKAGE SPORT,SILVER ME.,1D4

sub69211-28070

main69211-28070-B0iGRN21#,UZN21#..LIMD200208-200908

SILVER ME.,1D4

sub69211-28070

main69211-28070-B4iGRN21#,UZN21#..SR5200508-200908

APPEARANCE PACKAGE SPORT,DK.GRAY M.M.,1E9

sub69211-28070

main69211-28070-B4iGRN21#200208-200908

DK.GRAY M.M.,1E9

sub69211-28070

main69211-28070-C1iGRN21#,UZN21#..5FC200208-200908

BLACK,202

sub69211-28070

main69211-28070-C1iGRN21#,UZN21#..LIMD200508-200908

APPEARANCE PACKAGE SPORT,BLACK,202

sub69211-28070

main69211-28070-D2iGRN21#..SR5200208-200508

RED M.M.,3P1

sub69211-28070

main69211-28070-D9iGRN21#,UZN21#200408-200908

DK. RED M.M.,3Q3

sub69211-28070

main69211-28070-D9iGRN21#,UZN21#..SR5200508-200908

APPEARANCE PACKAGE SPORT,DK. RED M.M.,3Q3

sub69211-28070

main69211-28070-E7iGRN21#,UZN21#..SR5200508-200908

BRONZE M.M.,4S2

sub69211-28070

main69211-28070-E7iGRN21#,UZN21#..LIMD200508-200908

APPEARANCE PACKAGE SPORT,BRONZE M.M.,4S2

sub69211-28070

main69211-28070-F2iGRN21#200208-200508

CHAMPAGNE M.M.,587

sub69211-28070

main69211-28070-G1iUZN21#..SR5200208-200508

DK.GREEN MC.,6Q7

sub69211-28070

main69211-28070-J1iGRN21#,UZN21#..5FC200208-200508

DK.BLUE MC.,8Q0

sub69211-28070

main69211-28070-J2iGRN21#,UZN21#..5FC200208-200508

GRAYISH BLUE ME.,8R3

sub69211-28070

main69211-28070-P5iGRN21#,UZN21#..SR5200508-200908

APPEARANCE PACKAGE SPORT,DK. GRAY M.M.,1F4

sub69211-28070

main69211-28070-P5iGRN21#,UZN21#..LIMD200508-200908

DK. GRAY M.M.,1F4

sub69211-28070

main69211-28070-R9iGRN21#,UZN21#..LIMD200508-200908

APPEARANCE PACKAGE SPORT,DK.BLUE MC.,8S6

sub69211-28070

main69211-28070-R9iGRN21#,UZN21#..LIMD200508-200908

DK.BLUE MC.,8S6

sub69211-28070

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-58010iGRN21#,UZN21#..SR5200508-200908

PLATED

main69211-28070-A2iGRN21#,UZN21#..LIMD200508-200908

APPEARANCE PACKAGE SPORT,WHITE,056

sub69211-28070

main69211-28070-A2iGRN21#,UZN21#200208-200908

WHITE,056

sub69211-28070

main69211-28070-B0iGRN21#,UZN21#..LIMD200508-200908

APPEARANCE PACKAGE SPORT,SILVER ME.,1D4

sub69211-28070

main69211-28070-B0iGRN21#,UZN21#..LIMD200208-200908

SILVER ME.,1D4

sub69211-28070

main69211-28070-B4iGRN21#,UZN21#..LIMD200208-200908

DK.GRAY M.M.,1E9

sub69211-28070

main69211-28070-B4iGRN21#,UZN21#..LIMD200508-200908

APPEARANCE PACKAGE SPORT,DK.GRAY M.M.,1E9

sub69211-28070

main69211-28070-C1iGRN21#,UZN21#..LIMD200208-200908

BLACK,202

sub69211-28070

main69211-28070-C1iGRN21#,UZN21#..LIMD200508-200908

APPEARANCE PACKAGE SPORT,BLACK,202

sub69211-28070

main69211-28070-D2iUZN21#..SR5;GRN21#..4FC..SR5200208-200508

RED M.M.,3P1

sub69211-28070

main69211-28070-D9iGRN21#,UZN21#..SR5200508-200908

APPEARANCE PACKAGE SPORT,DK. RED M.M.,3Q3

sub69211-28070

main69211-28070-D9iGRN21#,UZN21#..SR5200408-200908

DK. RED M.M.,3Q3

sub69211-28070

main69211-28070-E7iGRN21#,UZN21#..LIMD200508-200908

BRONZE M.M.,4S2

sub69211-28070

main69211-28070-E7iGRN21#,UZN21#..SR5200508-200908

APPEARANCE PACKAGE SPORT,BRONZE M.M.,4S2

sub69211-28070

main69211-28070-F2iGRN21#,UZN21#200208-200508

CHAMPAGNE M.M.,587

sub69211-28070

main69211-28070-G1iUZN21#..SR5;GRN21#..4FC..SR5200208-200508

DK.GREEN MC.,6Q7

sub69211-28070

main69211-28070-J1iGRN21#,UZN21#200208-200508

DK.BLUE MC.,8Q0

sub69211-28070

main69211-28070-J2iGRN21#,UZN21#200208-200508

GRAYISH BLUE ME.,8R3

sub69211-28070

main69211-28070-P5iGRN21#,UZN21#..SR5200508-200908

APPEARANCE PACKAGE SPORT,DK. GRAY M.M.,1F4

sub69211-28070

main69211-28070-P5iGRN21#,UZN21#..SR5200508-200908

DK. GRAY M.M.,1F4

sub69211-28070

main69211-28070-R9iGRN21#,UZN21#..LIMD200508-200908

APPEARANCE PACKAGE SPORT,DK.BLUE MC.,8S6

sub69211-28070

main69211-28070-R9iGRN21#,UZN21#..LIMD200508-200908

DK.BLUE MC.,8S6

sub69211-28070

69241EPAD, REAR DOOR OUTSIDE HANDLE, RH

main69241-28060iGRN21#,UZN21#..5FC200208-200508

main69241-28060iGRN21#,UZN21#..SR5200508

FRONT

main69241-28060iGRN21#,UZN21#..SR5200508

APPEARANCE PACKAGE SPORT

69242DPAD, REAR DOOR OUTSIDE HANDLE, LH

main69241-28060iGRN21#200208-200508

FRONT

main69242-33020iGRN21#,UZN21#200808

REAR

main69242-33030iGRN21#,UZN21#200704-200807

REAR

main69242-60030iGRN21#200208-200703

REAR

69242KPAD, REAR DOOR OUTSIDE HANDLE, RH

main69242-33020iGRN21#,UZN21#200808

main69242-33030iGRN21#,UZN21#200704-200807

main69242-60030iGRN21#,UZN21#200208-200703

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69297-30030-B2iGRN21#..LIMD200208-200908

DK.GRAY,TRIM1#,4#

sub69297-30030

main69297-30030-B2iGRN21#..LIMD200208-200508

DK.GRAY,TRIM12,13,4#

sub69297-30030

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69298-30030-B2iGRN21#..LIMD200208-200508

DK.GRAY,TRIM12,13,4#

sub69298-30030

main69298-30030-B2iGRN21#..SR5200208-200908

DK.GRAY,TRIM1#,4#

sub69298-30030

69317CSEAL, DOOR LOCK WIRING HARNESS, RH

main69318-51010iGRN21#,UZN21#200208-200508

69318ESEAL, DOOR LOCK WIRING HARNESS, LH

main69318-51010iGRN21#200208-200508

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-33010iGRN21#200208-200508

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-35020iGRN21#200208-200508

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-35020iGRN21#200208-200508

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-35010iGRN21#200208-200508

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-35010iGRN21#,UZN21#200208-200508

9014860022

main90148-60022

9014880066

main90148-80066

9016450031

main90164-50031

9018905003

main90189-05003

28 parts on this diagram · 1 diagram in section
