FRONT DOOR LOCK & HANDLE

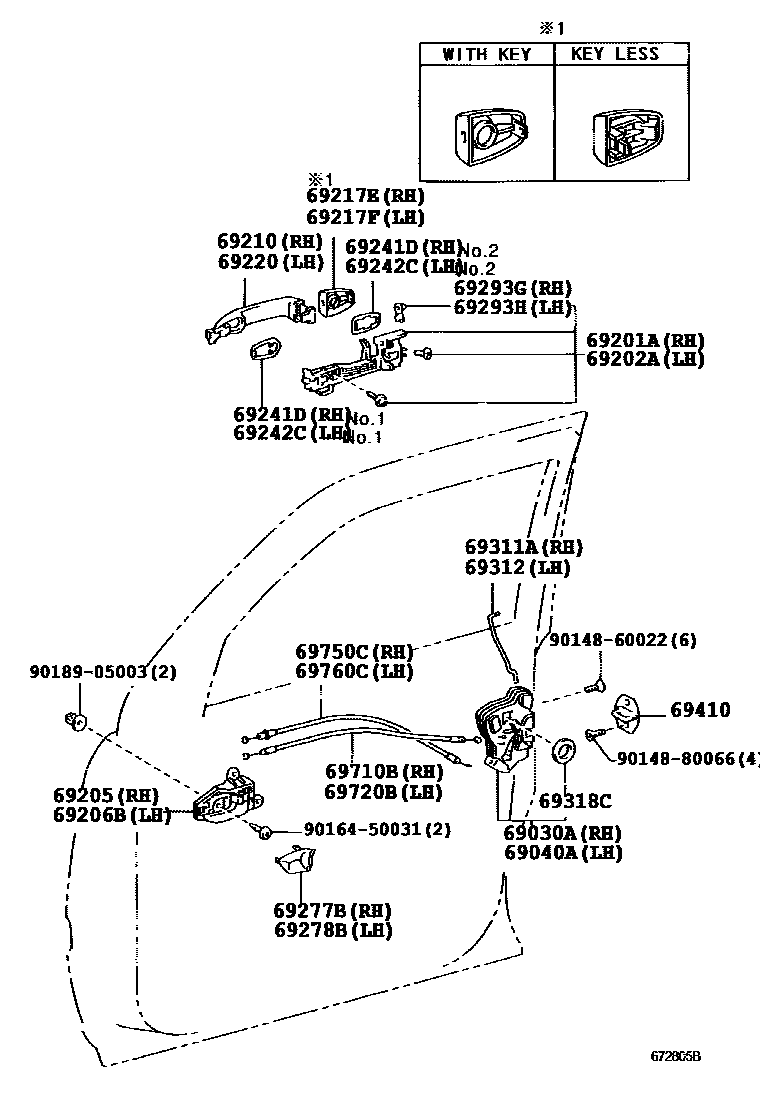

Parts diagram
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-33261i200208-200508
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-33221i200208-200508
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-28010i200208-200508
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-28010i200208-200508
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-20180-B0i200801-200908
URBAN RUNNER,DK.GRAY,TRIM1#
main69205-44020-B1i200208-200908
DK.GRAY,TRIM1#,4#
sub69205-44020
main69205-44020-B1i200208-200508
DK.GRAY,TRIM12,13,4#
sub69205-44020
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-20180-B0i200801-200908
URBAN RUNNER,DK.GRAY,TRIM1#
main69206-44020-B1i200208-200908
DK.GRAY,TRIM1#,4#
sub69206-44020
main69206-44020-B1i200208-200508
DK.GRAY,TRIM12,13,4#
sub69206-44020
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-58010i200508-200908
PLATED
main69211-28070-A2i200208-200908
WHITE,056
sub69211-28070
main69211-28070-A2i200801-200908
URBAN RUNNER,WHITE,056
sub69211-28070
main69211-28070-A2i200508-200908
APPEARANCE PACKAGE SPORT,WHITE,056
sub69211-28070
main69211-28070-A2i200808-200908
OFF ROAD PACKAGE,WHITE,056
sub69211-28070
main69211-28070-A3i200508-200908
APPEARANCE PACKAGE SPORT,WHITE PEARL CS.,070
sub69211-28070
main69211-28070-A3i200801-200908
URBAN RUNNER,WHITE PEARL CS.,070
sub69211-28070
main69211-28070-A3i200808-200908
OFF ROAD PACKAGE,WHITE PEARL CS.,070
sub69211-28070
main69211-28070-B0i200508-200908
APPEARANCE PACKAGE SPORT,SILVER ME.,1D4
sub69211-28070
main69211-28070-B0i200801-200908
URBAN RUNNER,SILVER ME.,1D4
sub69211-28070
main69211-28070-B0i200208-200908
SILVER ME.,1D4
sub69211-28070
main69211-28070-B0i200808-200908
OFF ROAD PACKAGE,SILVER ME.,1D4
sub69211-28070
main69211-28070-B4i200508-200908
APPEARANCE PACKAGE SPORT,DK.GRAY M.M.,1E9
sub69211-28070
main69211-28070-B4i200208-200908
DK.GRAY M.M.,1E9
sub69211-28070
main69211-28070-B4i200801-200908
URBAN RUNNER,DK.GRAY M.M.,1E9
sub69211-28070
main69211-28070-B4i200808-200908
OFF ROAD PACKAGE,DK.GRAY M.M.,1E9
sub69211-28070
main69211-28070-C1i200808-200908
OFF ROAD PACKAGE,BLACK,202
sub69211-28070
main69211-28070-C1i200208-200908
BLACK,202
sub69211-28070
main69211-28070-C1i200508-200908
APPEARANCE PACKAGE SPORT,BLACK,202
sub69211-28070
main69211-28070-C1i200801-200908
URBAN RUNNER,BLACK,202
sub69211-28070
main69211-28070-D2i200208-200508
RED M.M.,3P1
sub69211-28070
main69211-28070-D9i200408-200908
DK. RED M.M.,3Q3
sub69211-28070
main69211-28070-D9i200508-200908
APPEARANCE PACKAGE SPORT,DK. RED M.M.,3Q3
sub69211-28070
main69211-28070-D9i200801-200908
URBAN RUNNER,DK. RED M.M.,3Q3
sub69211-28070
main69211-28070-D9i200808-200908
OFF ROAD PACKAGE,DK. RED M.M.,3Q3
sub69211-28070
main69211-28070-E7i200508-200908
APPEARANCE PACKAGE SPORT,BRONZE M.M.,4S2
sub69211-28070
main69211-28070-E7i200508-200908
BRONZE M.M.,4S2
sub69211-28070
main69211-28070-E7i200801-200908
URBAN RUNNER,BRONZE M.M.,4S2
sub69211-28070
main69211-28070-E7i200808-200908
OFF ROAD PACKAGE,BRONZE M.M.,4S2
sub69211-28070
main69211-28070-F2i200208-200508
CHAMPAGNE M.M.,587
sub69211-28070
main69211-28070-G1i200208-200508
DK.GREEN MC.,6Q7
sub69211-28070
main69211-28070-J1i200208-200508
DK.BLUE MC.,8Q0
sub69211-28070
main69211-28070-J2i200208-200508
GRAYISH BLUE ME.,8R3
sub69211-28070
main69211-28070-P5i200808-200908
OFF ROAD PACKAGE,DK. GRAY M.M.,1F4
sub69211-28070
main69211-28070-P5i200801-200908
URBAN RUNNER,DK. GRAY M.M.,1F4
sub69211-28070
main69211-28070-P5i200508-200908
APPEARANCE PACKAGE SPORT,DK. GRAY M.M.,1F4
sub69211-28070
main69211-28070-P5i200508-200908
DK. GRAY M.M.,1F4
sub69211-28070
main69211-28070-R9i200508-200908
DK.BLUE MC.,8S6
sub69211-28070
main69211-28070-R9i200508-200908
APPEARANCE PACKAGE SPORT,DK.BLUE MC.,8S6
sub69211-28070
main69211-28070-R9i200801-200908
URBAN RUNNER,DK.BLUE MC.,8S6
sub69211-28070
main69211-28070-R9i200808-200908
OFF ROAD PACKAGE,DK.BLUE MC.,8S6
sub69211-28070
main69211-35080i200208-200408
SPORT PACKAGE
main69211-35080i200301-200305
APPEARANCE PACKAGE SPORT
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69217-30040i200508-200908
*CR
main69217-35020i200208-200408
SPORT PACKAGE
main69217-35020i200301-200305
APPEARANCE PACKAGE SPORT
main69217-60020-A0i200801-200908
URBAN RUNNER,WHITE,056
sub69217-60020
main69217-60020-A0i200508-200908
APPEARANCE PACKAGE SPORT,WHITE,056
sub69217-60020
main69217-60020-A0i200208-200908
WHITE,056
sub69217-60020
main69217-60020-A0i200808-200908
OFF ROAD PACKAGE,WHITE,056
sub69217-60020
main69217-60020-A1i200801-200908
URBAN RUNNER,WHITE PEARL CS.,070
sub69217-60020
main69217-60020-A1i200508-200908
APPEARANCE PACKAGE SPORT,WHITE PEARL CS.,070
sub69217-60020
main69217-60020-A1i200808-200908
OFF ROAD PACKAGE,WHITE PEARL CS.,070
sub69217-60020
main69217-60020-B0i200208-200908
SILVER ME.,1D4
sub69217-60020
main69217-60020-B0i200508-200908
APPEARANCE PACKAGE SPORT,SILVER ME.,1D4
sub69217-60020
main69217-60020-B0i200801-200908
URBAN RUNNER,SILVER ME.,1D4
sub69217-60020
main69217-60020-B0i200808-200908
OFF ROAD PACKAGE,SILVER ME.,1D4
sub69217-60020
main69217-60020-B1i200801-200908
URBAN RUNNER,DK.GRAY M.M.,1E9
sub69217-60020
main69217-60020-B1i200208-200908
DK.GRAY M.M.,1E9
sub69217-60020
main69217-60020-B1i200508-200908
APPEARANCE PACKAGE SPORT,DK.GRAY M.M.,1E9
sub69217-60020
main69217-60020-B1i200808-200908
OFF ROAD PACKAGE,DK.GRAY M.M.,1E9
sub69217-60020
main69217-60020-C0i200208-200908
BLACK,202
sub69217-60020
main69217-60020-C0i200508-200908
APPEARANCE PACKAGE SPORT,BLACK,202
sub69217-60020
main69217-60020-C0i200801-200908
URBAN RUNNER,BLACK,202
sub69217-60020
main69217-60020-C0i200808-200908
OFF ROAD PACKAGE,BLACK,202
sub69217-60020
main69217-60020-D0i200208-200508
RED M.M.,3P1
sub69217-60020
main69217-60020-D8i200508-200908
APPEARANCE PACKAGE SPORT,DK. RED M.M.,3Q3
sub69217-60020
main69217-60020-D8i200408-200908
DK. RED M.M.,3Q3
sub69217-60020
main69217-60020-D8i200801-200908
URBAN RUNNER,DK. RED M.M.,3Q3
sub69217-60020
main69217-60020-D8i200808-200908
OFF ROAD PACKAGE,DK. RED M.M.,3Q3
sub69217-60020
main69217-60020-E8i200508-200908
BRONZE M.M.,4S2
sub69217-60020
main69217-60020-E8i200801-200908
URBAN RUNNER,BRONZE M.M.,4S2
sub69217-60020
main69217-60020-E8i200508-200908
APPEARANCE PACKAGE SPORT,BRONZE M.M.,4S2
sub69217-60020
main69217-60020-E8i200808-200908
OFF ROAD PACKAGE,BRONZE M.M.,4S2
sub69217-60020
main69217-60020-F0i200208-200508
CHAMPAGNE M.M.,587
sub69217-60020
main69217-60020-G0i200208-200508
DK.GREEN MC.,6Q7
sub69217-60020
main69217-60020-J0i200208-200508
DK.BLUE MC.,8Q0
sub69217-60020
main69217-60020-J1i200208-200508
GRAYISH BLUE ME.,8R3
sub69217-60020
main69217-60020-P4i200508-200908
DK. GRAY M.M.,1F4
sub69217-60020
main69217-60020-P4i200508-200908
APPEARANCE PACKAGE SPORT,DK. GRAY M.M.,1F4
sub69217-60020
main69217-60020-P4i200801-200908
URBAN RUNNER,DK. GRAY M.M.,1F4
sub69217-60020
main69217-60020-P4i200808-200908
OFF ROAD PACKAGE,DK. GRAY M.M.,1F4
sub69217-60020
main69217-60020-R5i200508-200908
APPEARANCE PACKAGE SPORT,DK.BLUE MC.,8S6
sub69217-60020
main69217-60020-R5i200508-200908
DK.BLUE MC.,8S6
sub69217-60020
main69217-60020-R5i200801-200908
URBAN RUNNER,DK.BLUE MC.,8S6
sub69217-60020
main69217-60020-R5i200808-200908
OFF ROAD PACKAGE,DK.BLUE MC.,8S6
sub69217-60020
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
main69217-28010-A2i200808-200908
OFF ROAD PACKAGE,WHITE,056
sub69217-28010
main69217-28010-A2i200208-200908
WHITE,056
sub69217-28010
main69217-28010-A2i200508-200908
APPEARANCE PACKAGE SPORT,WHITE,056
sub69217-28010
main69217-28010-A2i200801-200908
URBAN RUNNER,WHITE,056
sub69217-28010
main69217-28010-A3i200801-200908
URBAN RUNNER,WHITE PEARL CS.,070
sub69217-28010
main69217-28010-A3i200808-200908
OFF ROAD PACKAGE,WHITE PEARL CS.,070
sub69217-28010
main69217-28010-A3i200508-200908
APPEARANCE PACKAGE SPORT,WHITE PEARL CS.,070
sub69217-28010
main69217-28010-B0i200208-200908
SILVER ME.,1D4
sub69217-28010
main69217-28010-B0i200508-200908
APPEARANCE PACKAGE SPORT,SILVER ME.,1D4
sub69217-28010
main69217-28010-B0i200801-200908
URBAN RUNNER,SILVER ME.,1D4
sub69217-28010
main69217-28010-B0i200808-200908
OFF ROAD PACKAGE,SILVER ME.,1D4
sub69217-28010
main69217-28010-B4i200208-200908
DK.GRAY M.M.,1E9
sub69217-28010
main69217-28010-B4i200801-200908
URBAN RUNNER,DK.GRAY M.M.,1E9
sub69217-28010
main69217-28010-B4i200808-200908
OFF ROAD PACKAGE,DK.GRAY M.M.,1E9
sub69217-28010
main69217-28010-B4i200508-200908
APPEARANCE PACKAGE SPORT,DK.GRAY M.M.,1E9
sub69217-28010
main69217-28010-C1i200208-200908
BLACK,202
sub69217-28010
main69217-28010-C1i200508-200908
APPEARANCE PACKAGE SPORT,BLACK,202
sub69217-28010
main69217-28010-C1i200801-200908
URBAN RUNNER,BLACK,202
sub69217-28010
main69217-28010-C1i200808-200908
OFF ROAD PACKAGE,BLACK,202
sub69217-28010
main69217-28010-D2i200208-200508
RED M.M.,3P1
sub69217-28010
main69217-28010-D9i200508-200908
APPEARANCE PACKAGE SPORT,DK. RED M.M.,3Q3
sub69217-28010
main69217-28010-D9i200408-200908
DK. RED M.M.,3Q3
sub69217-28010
main69217-28010-D9i200808-200908
OFF ROAD PACKAGE,DK. RED M.M.,3Q3
sub69217-28010
main69217-28010-D9i200801-200908
URBAN RUNNER,DK. RED M.M.,3Q3
sub69217-28010
main69217-28010-E8i200508-200908
APPEARANCE PACKAGE SPORT,BRONZE M.M.,4S2
sub69217-28010
main69217-28010-E8i200801-200908
URBAN RUNNER,BRONZE M.M.,4S2
sub69217-28010
main69217-28010-E8i200508-200908
BRONZE M.M.,4S2
sub69217-28010
main69217-28010-E8i200808-200908
OFF ROAD PACKAGE,BRONZE M.M.,4S2
sub69217-28010
main69217-28010-F2i200208-200508
CHAMPAGNE M.M.,587
sub69217-28010
main69217-28010-G1i200208-200508
DK.GREEN MC.,6Q7
sub69217-28010
main69217-28010-J1i200208-200508
DK.BLUE MC.,8Q0
sub69217-28010
main69217-28010-J2i200208-200508
GRAYISH BLUE ME.,8R3
sub69217-28010
main69217-28010-P6i200801-200908
URBAN RUNNER,DK. GRAY M.M.,1F4
sub69217-28010
main69217-28010-P6i200508-200908
DK. GRAY M.M.,1F4
sub69217-28010
main69217-28010-P6i200508-200908
APPEARANCE PACKAGE SPORT,DK. GRAY M.M.,1F4
sub69217-28010
main69217-28010-P6i200808-200908
OFF ROAD PACKAGE,DK. GRAY M.M.,1F4
sub69217-28010
main69217-28010-R9i200508-200908
DK.BLUE MC.,8S6
sub69217-28010
main69217-28010-R9i200801-200908
URBAN RUNNER,DK.BLUE MC.,8S6
sub69217-28010
main69217-28010-R9i200808-200908
OFF ROAD PACKAGE,DK.BLUE MC.,8S6
sub69217-28010
main69217-28010-R9i200508-200908
APPEARANCE PACKAGE SPORT,DK.BLUE MC.,8S6
sub69217-28010
main69217-35010i200208-200408
SPORT PACKAGE
main69217-35010i200301-200305
APPEARANCE PACKAGE SPORT
main69217-58010i200508-200908
*CR
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-58010i200508-200908
PLATED
main69211-28070-A2i200508-200908
APPEARANCE PACKAGE SPORT,WHITE,056
sub69211-28070
main69211-28070-A2i200208-200908
WHITE,056
sub69211-28070
main69211-28070-A2i200801-200908
URBAN RUNNER,WHITE,056
sub69211-28070
main69211-28070-A2i200808-200908
OFF ROAD PACKAGE,WHITE,056
sub69211-28070
main69211-28070-A3i200801-200908
URBAN RUNNER,WHITE PEARL CS.,070
sub69211-28070
main69211-28070-A3i200508-200908
APPEARANCE PACKAGE SPORT,WHITE PEARL CS.,070
sub69211-28070
main69211-28070-A3i200808-200908
OFF ROAD PACKAGE,WHITE PEARL CS.,070
sub69211-28070
main69211-28070-B0i200801-200908
URBAN RUNNER,SILVER ME.,1D4
sub69211-28070
main69211-28070-B0i200208-200908
SILVER ME.,1D4
sub69211-28070
main69211-28070-B0i200508-200908
APPEARANCE PACKAGE SPORT,SILVER ME.,1D4
sub69211-28070
main69211-28070-B0i200808-200908
OFF ROAD PACKAGE,SILVER ME.,1D4
sub69211-28070
main69211-28070-B4i200801-200908
URBAN RUNNER,DK.GRAY M.M.,1E9
sub69211-28070
main69211-28070-B4i200808-200908
OFF ROAD PACKAGE,DK.GRAY M.M.,1E9
sub69211-28070
main69211-28070-B4i200208-200908
DK.GRAY M.M.,1E9
sub69211-28070
main69211-28070-B4i200508-200908
APPEARANCE PACKAGE SPORT,DK.GRAY M.M.,1E9
sub69211-28070
main69211-28070-C1i200208-200908
BLACK,202
sub69211-28070
main69211-28070-C1i200508-200908
APPEARANCE PACKAGE SPORT,BLACK,202
sub69211-28070
main69211-28070-C1i200808-200908
OFF ROAD PACKAGE,BLACK,202
sub69211-28070
main69211-28070-C1i200801-200908
URBAN RUNNER,BLACK,202
sub69211-28070
main69211-28070-D2i200208-200508
RED M.M.,3P1
sub69211-28070
main69211-28070-D9i200508-200908
APPEARANCE PACKAGE SPORT,DK. RED M.M.,3Q3
sub69211-28070
main69211-28070-D9i200801-200908
URBAN RUNNER,DK. RED M.M.,3Q3
sub69211-28070
main69211-28070-D9i200408-200908
DK. RED M.M.,3Q3
sub69211-28070
main69211-28070-D9i200808-200908
OFF ROAD PACKAGE,DK. RED M.M.,3Q3
sub69211-28070
main69211-28070-E7i200508-200908
APPEARANCE PACKAGE SPORT,BRONZE M.M.,4S2
sub69211-28070
main69211-28070-E7i200508-200908
BRONZE M.M.,4S2
sub69211-28070
main69211-28070-E7i200801-200908
URBAN RUNNER,BRONZE M.M.,4S2
sub69211-28070
main69211-28070-E7i200808-200908
OFF ROAD PACKAGE,BRONZE M.M.,4S2
sub69211-28070
main69211-28070-F2i200208-200508
CHAMPAGNE M.M.,587
sub69211-28070
main69211-28070-G1i200208-200508
DK.GREEN MC.,6Q7
sub69211-28070
main69211-28070-J1i200208-200508
DK.BLUE MC.,8Q0
sub69211-28070
main69211-28070-J2i200208-200508
GRAYISH BLUE ME.,8R3
sub69211-28070
main69211-28070-P5i200808-200908
OFF ROAD PACKAGE,DK. GRAY M.M.,1F4
sub69211-28070
main69211-28070-P5i200508-200908
DK. GRAY M.M.,1F4
sub69211-28070
main69211-28070-P5i200508-200908
APPEARANCE PACKAGE SPORT,DK. GRAY M.M.,1F4
sub69211-28070
main69211-28070-P5i200801-200908
URBAN RUNNER,DK. GRAY M.M.,1F4
sub69211-28070
main69211-28070-R9i200801-200908
URBAN RUNNER,DK.BLUE MC.,8S6
sub69211-28070
main69211-28070-R9i200508-200908
APPEARANCE PACKAGE SPORT,DK.BLUE MC.,8S6
sub69211-28070
main69211-28070-R9i200508-200908
DK.BLUE MC.,8S6
sub69211-28070
main69211-28070-R9i200808-200908
OFF ROAD PACKAGE,DK.BLUE MC.,8S6
sub69211-28070
main69211-35080i200208-200408
SPORT PACKAGE
main69211-35080i200301-200305
APPEARANCE PACKAGE SPORT
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
main69241-28060i200208-200508
NO.1
main69242-33020i200808
NO.2
main69242-33030i200704-200807
NO.2
main69242-60030i200208-200703
NO.2
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
main69241-28060i200208-200508
NO.1
main69242-33020i200808
NO.2
main69242-33030i200704-200807
NO.2
main69242-60030i200208-200703
NO.2
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
main69297-30030-B2i200208-200508
DK.GRAY,TRIM12,13,4#
sub69297-30030
main69297-30030-B2i200208-200908
DK.GRAY,TRIM1#,4#
sub69297-30030
main69297-30030-B2i200801-200908
URBAN RUNNER,DK.GRAY,TRIM1#
sub69297-30030
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
main69298-30030-B2i200208-200908
DK.GRAY,TRIM1#,4#
sub69298-30030
main69298-30030-B2i200208-200508
DK.GRAY,TRIM12,13,4#
sub69298-30030
main69298-30030-B2i200801-200908
URBAN RUNNER,DK.GRAY,TRIM1#
sub69298-30030
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030i200208-200508
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i200208-200508
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-60040i200208-200508
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-60040i200208-200508
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i200208-200508
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-33010i200208-200508
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-35040i200208-200508
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-35040i200208-200508
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-35010i200208-200508
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-35010i200208-200508
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003

28 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
