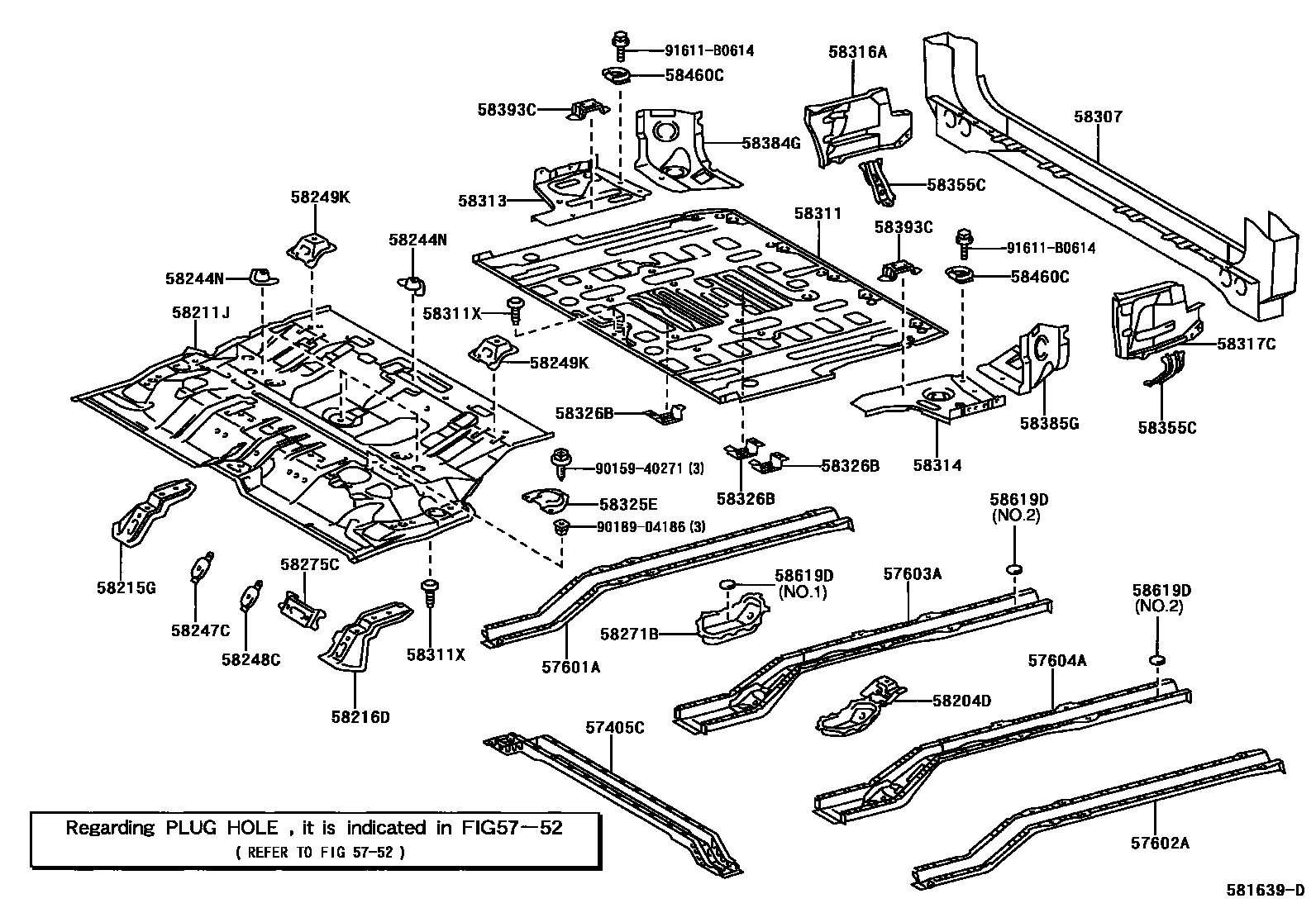

REAR FLOOR PANEL & REAR FLOOR MEMBER
5752
57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH
sub57601-35020
57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH
sub57601-35020
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
58211JPAN, CENTER FLOOR
58215GBRACKET, REAR SEAT MOUNTING, NO.1
58216DBRACKET, REAR SEAT MOUNTING, LH
58244NSTOPPER, REAR SEAT CUSHION BRACKET
58247CREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248CREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58249KBRACKET, CENTER FLOOR BOARD SUPPORT
58271BPLATE, FLOOR SIDE, REAR, RH
58275CBRACKET, WIRE HARNESS PROTECTOR
58307PANEL SUB-ASSY, BODY LOWER BACK
58311XBOLT, REAR FLOOR WELD
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
sub58314-60120
58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH
58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58326BBRACKET, FLEXIBLE HOSE MOUNTING
58355CBRACKET, REAR BUMPER ARM
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58393CSUPPORT, DECK BOARD SET
58460CSTRIKER ASSY, LUGGAGE HOLD BELT
TRUNK & DECK CARPET & MAT-FOR 3RD SEAT
58619DSHEET, CENTER FLOOR SILENCER SUB
NO.1
NO.2
9015940271
main90159-40271
9018904186
main90189-04186
91611B0614
main91611-B0614
34 parts on this diagram · 2 diagrams in section
