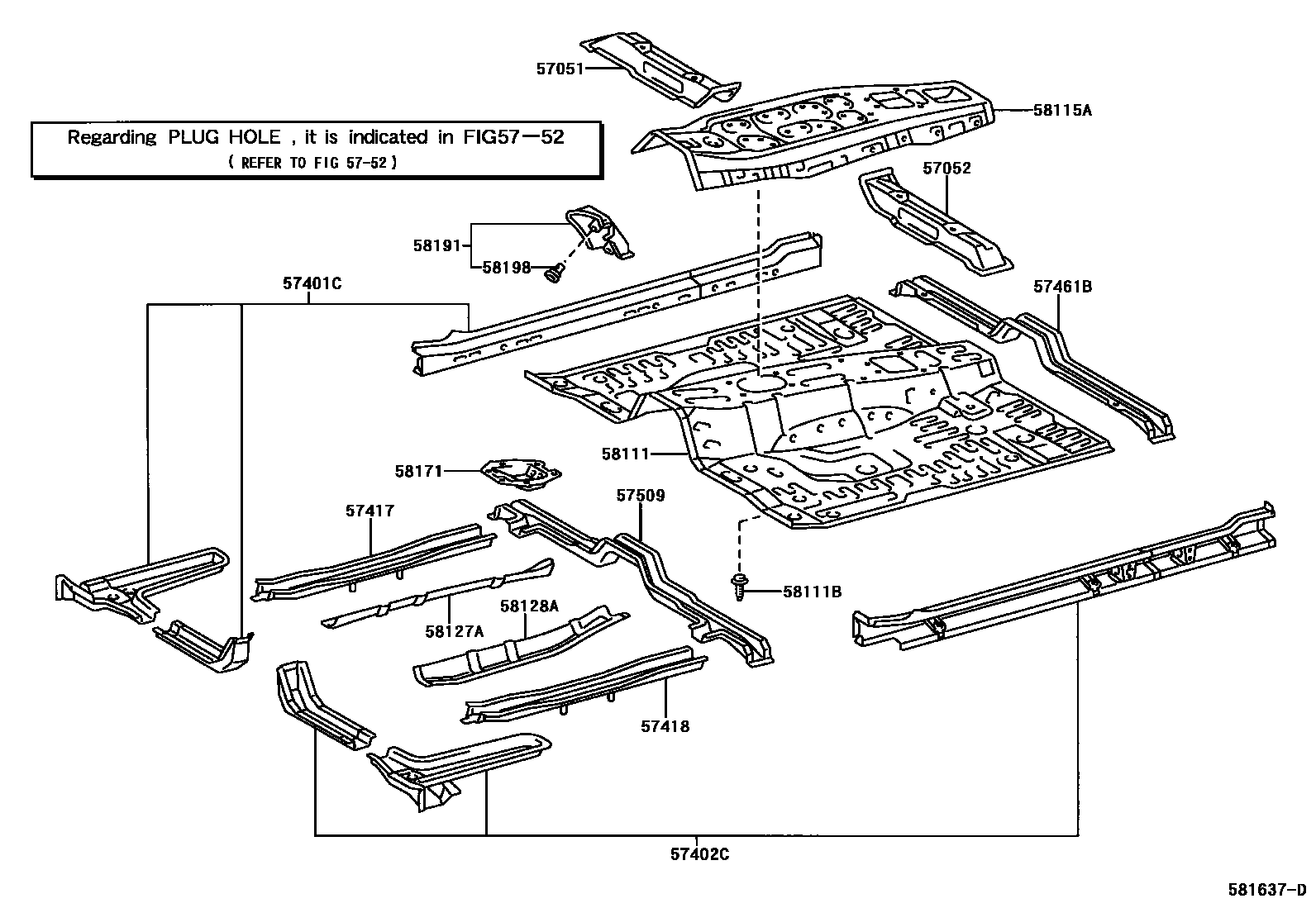

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1SIDE STEP

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-35050iGRN21#200208-200807

sub57051-35051

main57051-35051iGRN21#,UZN21#200808

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-35050iGRN21#200208-200807

sub57052-35051

main57052-35051iGRN21#,UZN21#200808

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-35905iGRN21#,UZN21#200208-200508

sub57401-35907

57402CMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-35906iGRN21#,UZN21#200208-200508

sub57402-35908

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-35050iGRN21#200208-200603

sub57417-35051

main57417-35051iGRN21#,UZN21#200604

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-35060iGRN21#200208-200603

sub57417-35061

main57417-35061iGRN21#,UZN21#200604

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57461-35020iGRN21#200208-200508

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-35010iGRN21#200208-200508

5752

58111PAN, FRONT FLOOR

main58111-35420iGRN21#200208-200503

sub58111-35421

main58111-35421iGRN21#,UZN21#200504-200807

sub58111-35422

main58111-35422iGRN21#,UZN21#200808

58111BBOLT, WELD(FOR FRONT FLOOR PAN)

main90115-06166iGRN21#200208-200908

58115AREINFORCEMENT, FRONT FLOOR PANEL

main58115-35010iGRN21#,UZN21#200208-200408

sub58115-35011

main58115-35011iGRN21#,UZN21#200408-200508

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-35010iGRN21#200208-200508

58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-35010iGRN21#200208-200603

sub58128-35011

main58128-35011iGRN21#,UZN21#200604

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-35030iGRN21#200208-200508

58191FOOTREST, FRONT FLOOR

main58190-35030iGRN21#200208-200508

sub58190-35031

58198CLIP, FOOTREST

main58198-20210iGRN21#200208-200508

17 parts on this diagram · 2 diagrams in section
