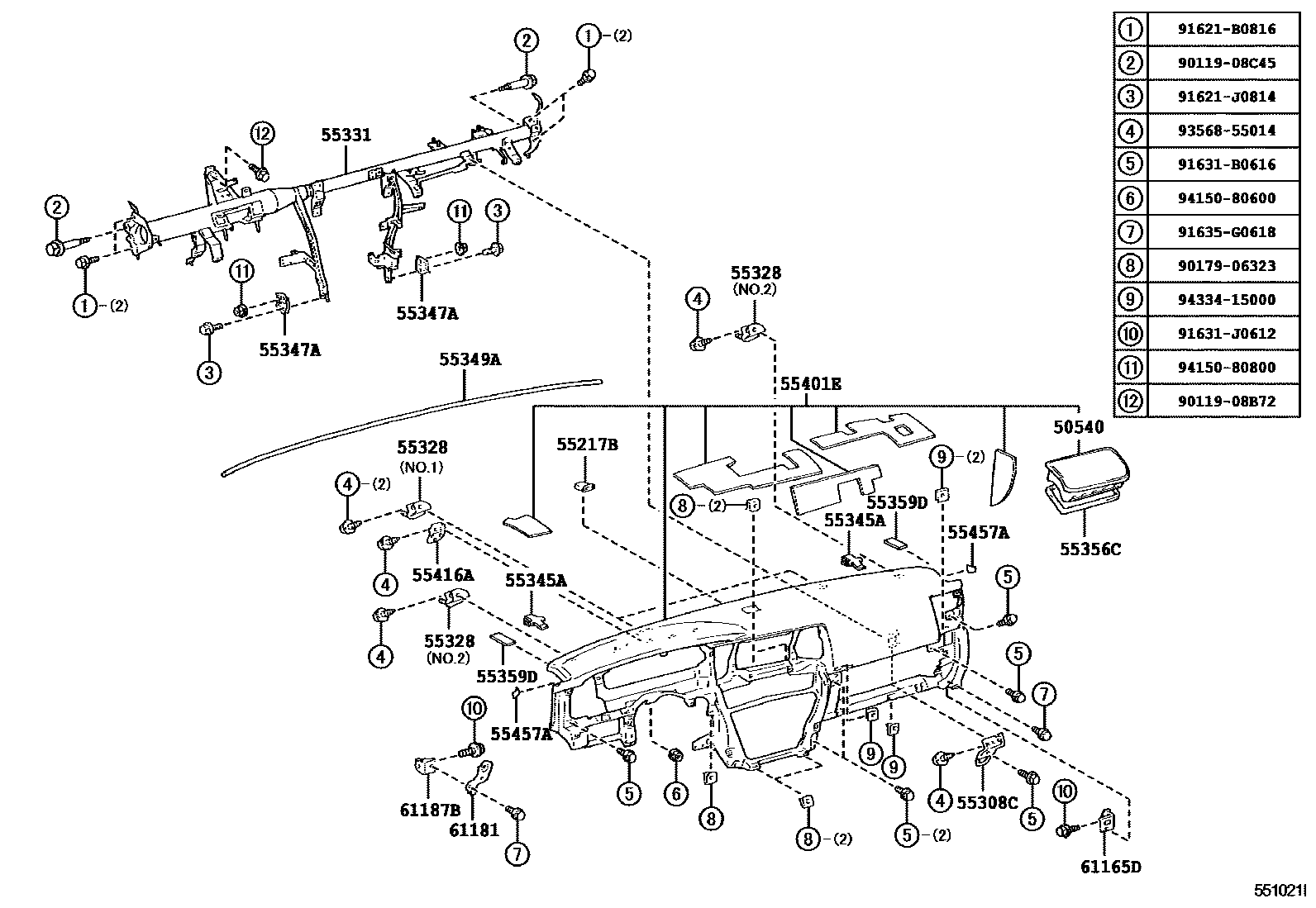

INSTRUMENT PANEL & GLOVE COMPARTMENT
50540DO0R ASSY, AIRBAG PASSENGER
55217BRETAINER, DASH PANEL SILENCER
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55328PIN, INSTRUMENT PANEL, NO.1
NO.1
NO.2
55345ACLIP, INSTRUMENT PANEL, NO.1
55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
55349ACUSHION, INSTRUMENT PANEL
55356CCUSHION, INSTRUMENT PANEL, NO.2
55359DCUSHION, INSTRUMENT PANEL, NO.5
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
STONE,TRIM12
STONE,TRIM12,13
FAWN,TRIM4#
DK.GRAY,TRIM1#
DK.GRAY,TRIM12,13
FAWN,TRIM4#
55416ARETAINER, METER HOOD, NO.1
55457ASPACER, INSTRUMENT PANEL SAFETY PAD
61165DBRACKET, INSTRUMENT PANEL TO COWL SIDE
61181BRACKET, INSTRUMENT PANEL SIDE
61187BBRACKET, INSTRUMENT PANEL SIDE, NO.4
9011908B72
main90119-08B72
9011908C45
main90119-08C45
9017906323
main90179-06323
91621B0816
main91621-B0816
91621J0814
main91621-J0814
91631B0616
main91631-B0616
91631J0612
main91631-J0612
91635G0618
main91635-G0618
9356855014
main93568-55014
9415080600
main94150-80600
9415080800
main94150-80800
9433415000
main94334-15000
28 parts on this diagram · 9 diagrams in section
