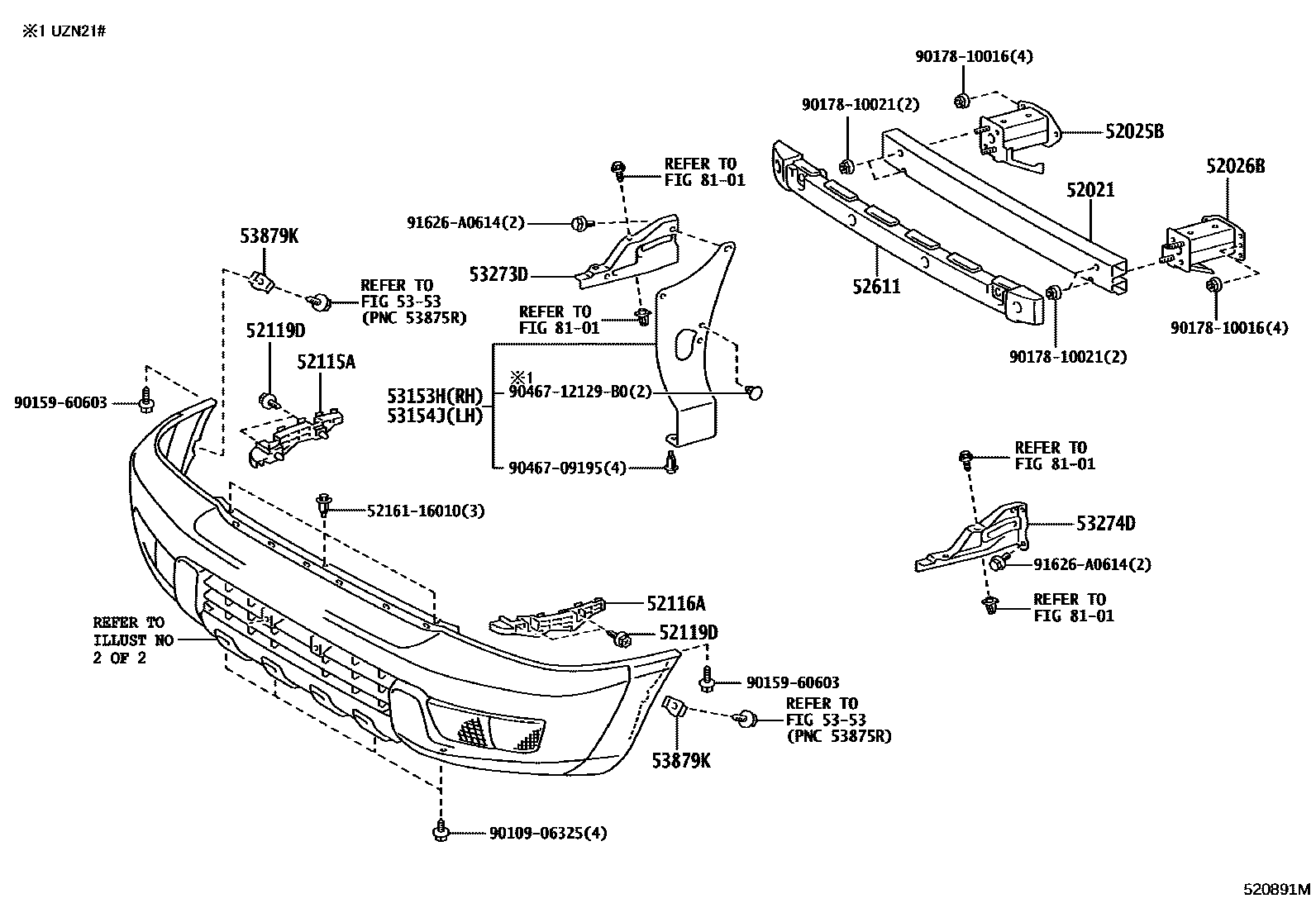

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0005 1 0007 1 0009 1APPEARANCE PACKAGE SPORT OR S0011 1APPEARANCE PACKAGE SPORT OR S0013 1 0014 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-35050iGRN21#,UZN21#200208-200508

main52021-35070iGRN21#,UZN21#200508-200908

52025BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH

main52025-35050iGRN21#,UZN21#200208-200508

52026BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH

main52026-35050iGRN21#,UZN21#200208-200508

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-35100iGRN21#,UZN21#200208-200508

main52115-35110iGRN21#,UZN21#200508

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-35090iGRN21#,UZN21#200208-200508

main52116-35100iGRN21#,UZN21#200508

52119DSCREW, NO.1

main90159-60431iGRN21#,UZN21#200208-200908

52611ABSORBER, FRONT BUMPER ENERGY

main52611-35010iGRN21#,UZN21#200208-200508

main52611-35020iGRN21#,UZN21#200508

53153HGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-35010iGRN21#200211-200508

main53153-35011iGRN21#200508

main53153-35020iUZN21#200208-200508

main53153-35021iUZN21#200508

53154JGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-35030iGRN21#200211-200508

main53154-35031iGRN21#200508

main53154-35040iUZN21#200208-200508

main53154-35041iUZN21#200508

53273DBRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-35070iGRN21#,UZN21#200208-200508

main53273-35080iGRN21#,UZN21#200508

53274DBRACKET, FRONT BUMPER ARM MOUNTING, LH

main53274-35050iGRN21#,UZN21#200208-200508

main53274-35060iGRN21#,UZN21#200508

5353

53879KRETAINER, FRONT FENDER LINER

main53879-58010iGRN21#,UZN21#..SR5200208-200705

main53879-58010iGRN21#,UZN21#..LIMD200508-200706

FRONT FOG LAMP-WITH

8101

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9010906325

main90109-06325

9015960603

main90159-60603

9017810016

main90178-10016

9017810021

main90178-10021

9046709195

main90467-09195

9046712129B0

main90467-12129B0

91626A0614

main91626-A0614

22 parts on this diagram · 8 diagrams in section
