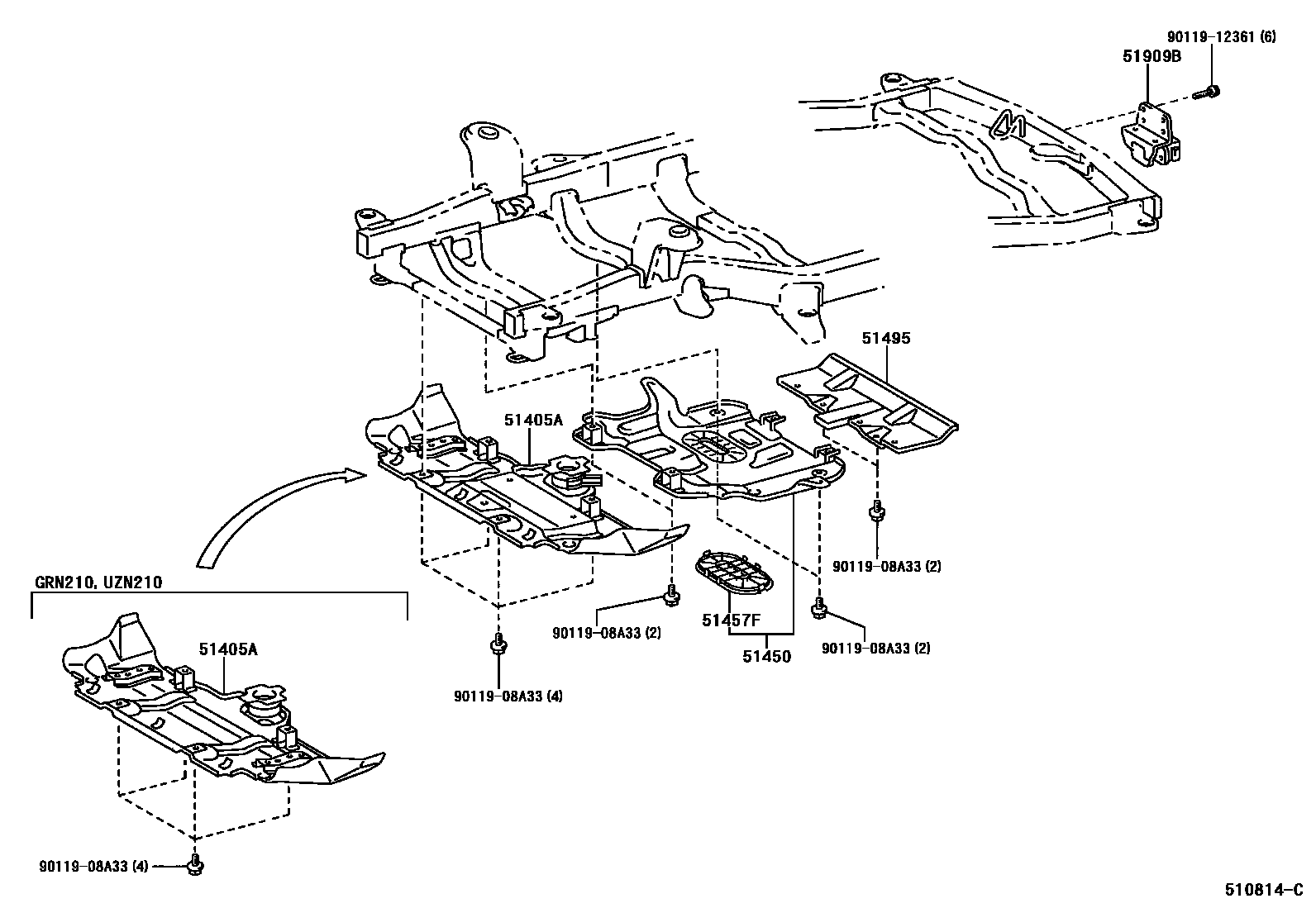

SUSPENSION CROSSMEMBER & UNDER COVER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-35100iGRN215,UZN215200208-200310

sub51405-35101

main51405-35101iGRN215,UZN215..5FC200310-200508

main51405-35140iGRN210200208-200508

51450COVER ASSY, ENGINE UNDER, REAR

main51450-35010iGRN21#200208-200508

51457FSEAL, ENGINE UNDER COVER

main51457-35030iGRN21#200208-200508

51495COVER, TRANSMISSION UNDER

main51495-35050iGRN215,UZN215..5FC200208-200508

51909BTUBE SUB-ASSY, PINTLE HOOK SUPPORT

main51909-35010iGRN21#,UZN21#200208-200402

TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH

sub51909-35011

main51909-35011iGRN21#200402-200508

TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH

main51909-35011iGRN21#,UZN21#200508

TOWING HITCH-WITHOUT

9011908A33

main90119-08A33

9011912361

main90119-12361

7 parts on this diagram · 1 diagram in section
