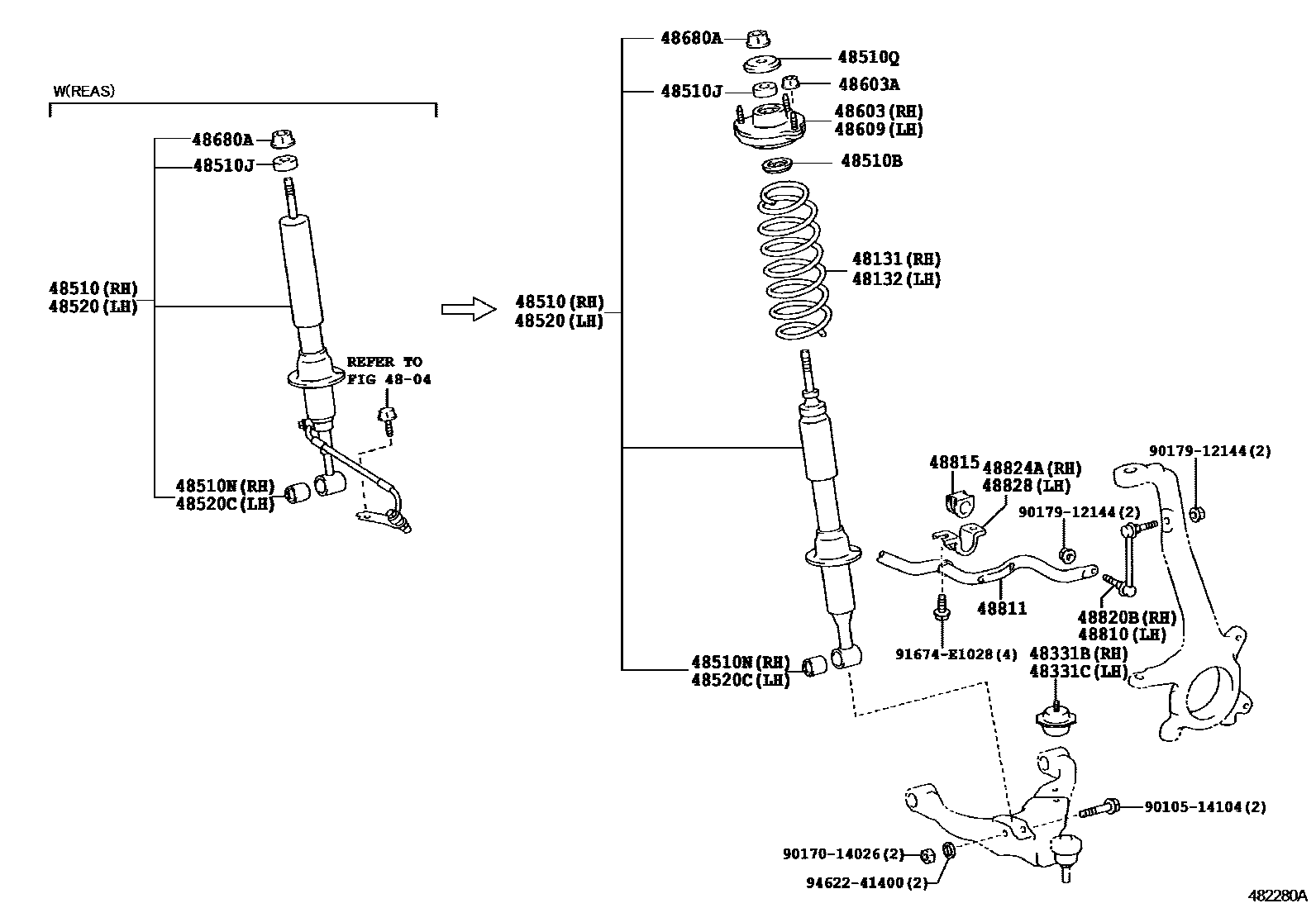

FRONT SPRING & SHOCK ABSORBER

4804

48131SPRING, FRONT COIL, RH

main48131-35450iGRN215200211-200610

sub48131-35451

main48131-35451iGRN215200611

main48131-35460iUZN215200208-200610

sub48131-35461

main48131-35461iUZN215200611

main48131-35500iGRN210200211-200610

sub48131-35501

main48131-35501iGRN210200611

main48131-35510iUZN210200208-200610

sub48131-35511

main48131-35511iUZN210200611

48132SPRING, FRONT COIL, LH

main48131-35470iGRN215200211-200610

sub48131-35471

main48131-35471iGRN215200611

main48131-35480iUZN215200208-200610

sub48131-35481

main48131-35481iUZN215200611

main48131-35520iGRN210200211-200610

sub48131-35521

main48131-35521iGRN210200611

main48131-35530iUZN210200208-200610

sub48131-35531

main48131-35531iUZN210200611

48331BBUMPER, FRONT SPRING, RH

main48304-60120iGRN215200208-200508

main48304-60130iGRN210200208-200508

48331CBUMPER, FRONT SPRING, LH

main48304-60120iGRN215200208-200508

main48304-60130iGRN210,UZN210..5FC200208-200508

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80086iGRN215,UZN215200208-200410

MARK 48510-35230

sub48510-80270

main48510-80087iGRN210,UZN210200208-200410

MARK 48510-35240

sub48510-80269

main48510-80269iGRN210,UZN210200410-200510

MARK 48510-35241

sub48510-80328

main48510-80270iGRN215,UZN215200410-200510

MARK 48510-35231

sub48510-80329

main48510-80328iGRN210,UZN210200510-200908

MARK 48510-35242

sub48510-80533

main48510-80329iGRN215,UZN215200510-200908

MARK 48510-35232

sub48510-69555

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02159iGRN21#200208-200508

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-01056iGRN21#200208-200508

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90903-89012iGRN21#,UZN21#200208-200508

W/REAS

main90903-89012iGRN21#,UZN21#200508-200908

SHOCK ABSORBER-W/REAS

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-02161iGRN21#200208-200508

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-80086iGRN215,UZN215200208-200410

MARK 48510-35230

sub48510-80270

main48510-80087iGRN210,UZN210200208-200410

MARK 48510-35240

sub48510-80269

main48510-80269iGRN210,UZN210200410-200510

MARK 48510-35241

sub48510-80328

main48510-80270iGRN215,UZN215200410-200510

MARK 48510-35231

sub48510-80329

main48510-80328iGRN210,UZN210200510-200908

MARK 48510-35242

sub48510-80533

main48510-80329iGRN215,UZN215200510-200908

MARK 48510-35232

sub48510-69555

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90903-89012iGRN21#,UZN21#200208-200508

W/REAS

main90903-89012iGRN21#,UZN21#200508-200908

SHOCK ABSORBER-W/REAS

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-60030iGRN21#200208-200508

sub48609-60100

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10212iGRN21#200208-200508

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-60030iGRN21#200208-200508

sub48609-60100

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94184-01241iGRN21#,UZN21#..5FC200208-200508

48810LINK ASSY, FRONT STABILIZER, LH

main48810-60040iGRN21#200208-200908

48811BAR, STABILIZER, FRONT

main48811-60230iGRN210,UZN210200208-200508

main48811-60240iGRN215,UZN215..5FC200208-200508

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-60180iGRN210200208-200508

sub48815-60350

main48815-60190iGRN215,UZN215..5FC200208-200508

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-60050iGRN21#200208-200908

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-60140iGRN21#200208-200508

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48829-60090iGRN21#200208-200508

9010514104

main90105-14104

9017014026

main90170-14026

9017912144

main90179-12144

91674E1028

main91674-E1028

9462241400

main94622-41400

27 parts on this diagram · 1 diagram in section
