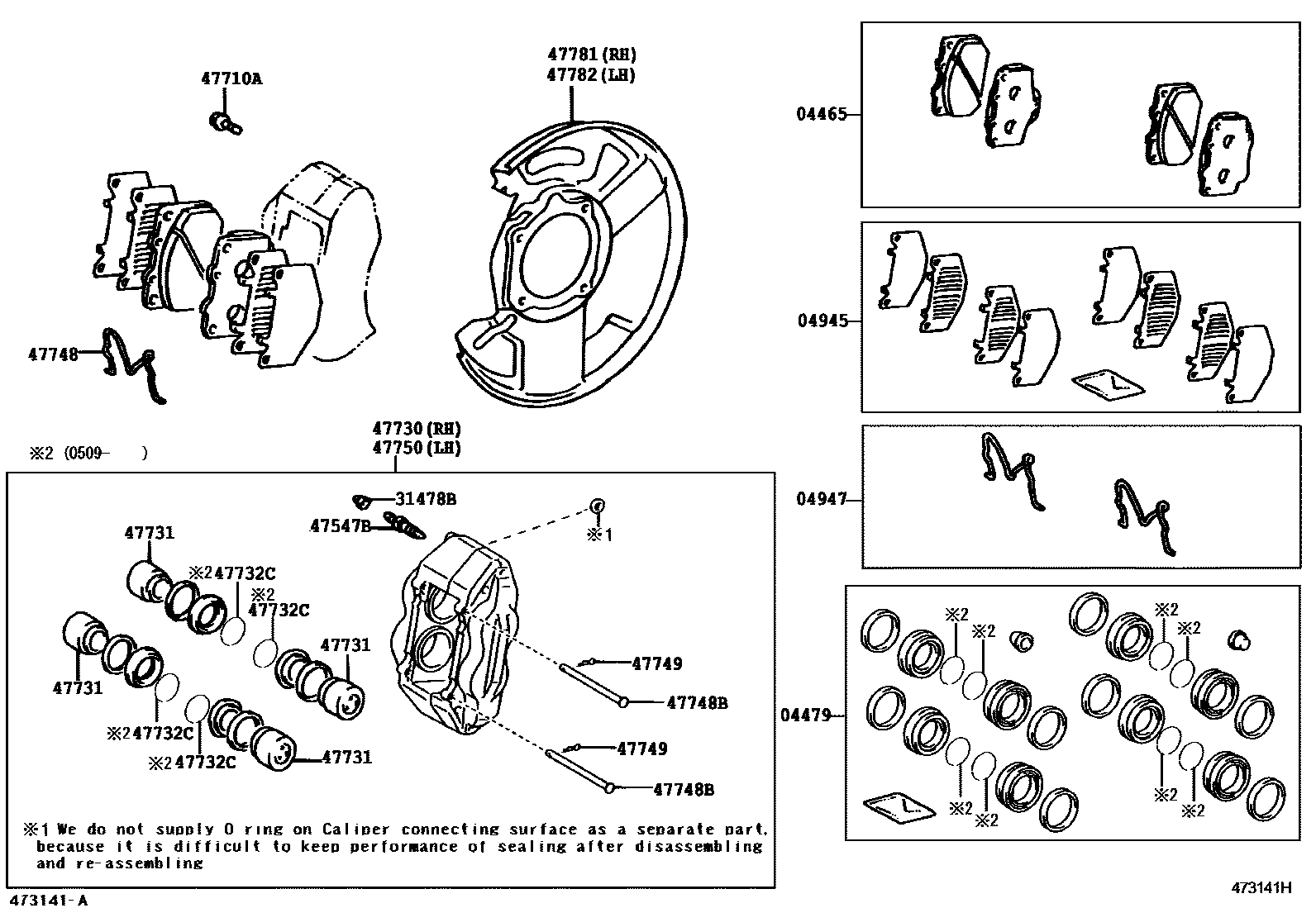

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
MARK SUMITOMO PS558H
04947FITTING KIT, DISC BRAKE, FRONT
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
*12-1.25PX35-27
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
sub47730-35411
FRONT WHEEL BRAKE-16 IN
FRONT WHEEL BRAKE-17 INCHES
47731PISTON, FRONT DISC BRAKE
47732CRING, SET, NO.2(FOR FRONT DISC BRAKE)
47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
47749CLIP, PIN HOLD
47781COVER, DISC BRAKE DUST, FRONT RH
FRONT WHEEL BRAKE-16 IN
APPEARANCE PACKAGE SPORT
WITH(17 INCHES FRONT WHEEL BRAKE)
SPORT PACKAGE
FRONT WHEEL BRAKE-17 INCHES
47782COVER, DISC BRAKE DUST, FRONT LH
FRONT WHEEL BRAKE-16 IN
SPORT PACKAGE
FRONT WHEEL BRAKE-17 INCHES
APPEARANCE PACKAGE SPORT
WITH(17 INCHES FRONT WHEEL BRAKE)
16 parts on this diagram · 1 diagram in section
