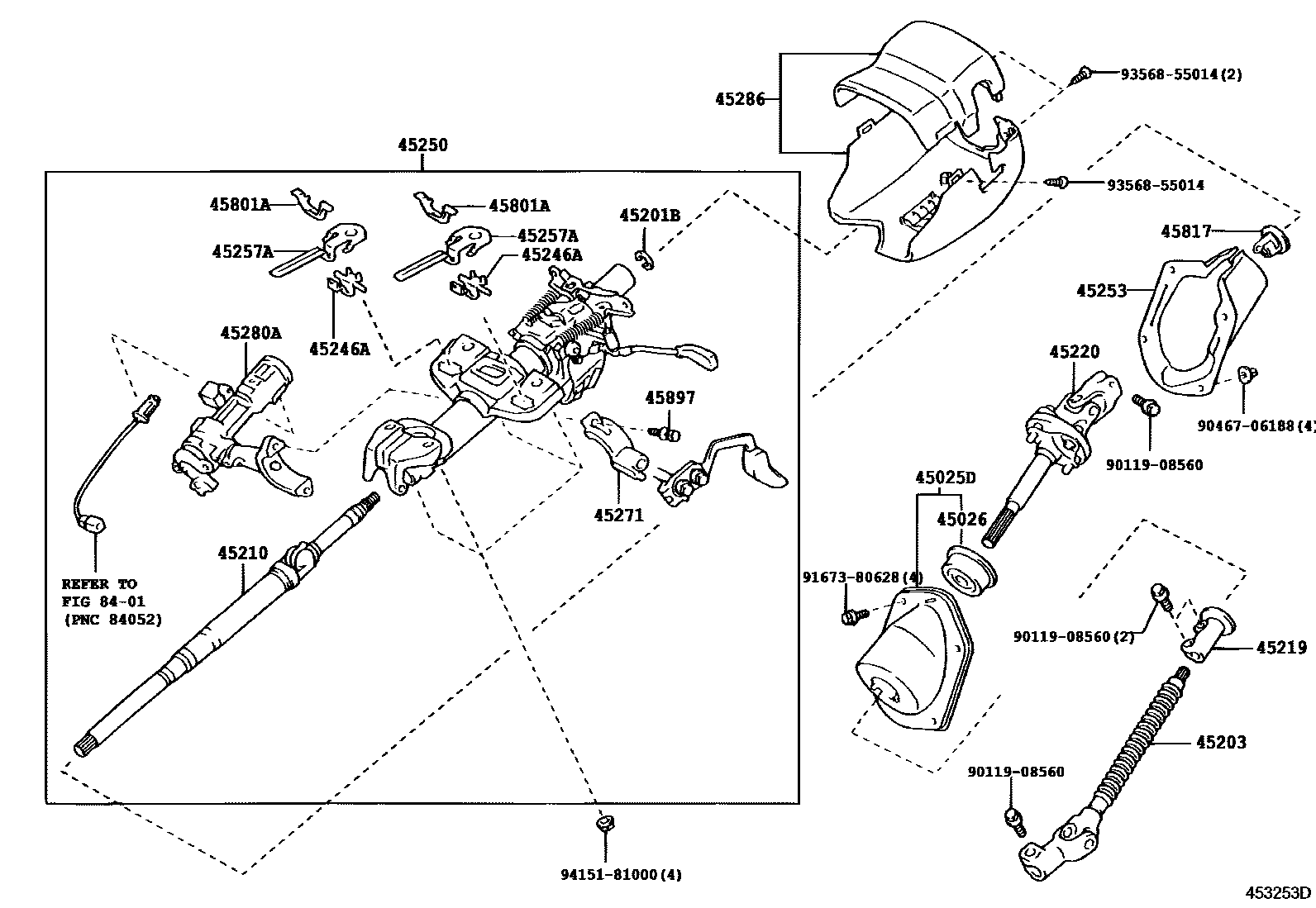

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45210SHAFT ASSY, STEERING MAIN
STEERING COLUMN-WITH TILT & TELESCOPIC
STEERING COLUMN-WITH(TILT & TELESCOPIC)
45219YOKE, STEERING SLIDING
45220SHAFT ASSY, STEERING INTERMEDIATE
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
45250COLUMN ASSY, STEERING
STEERING COLUMN-WITH TILT & TELESCOPIC
STEERING COLUMN-WITH(TILT & TELESCOPIC)
45253COVER, STEERING COLUMN HOLE
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45271CLAMP, STEERING COLUMN, UPPER
STEERING COLUMN-WITH(TILT & TELESCOPIC)
STEERING COLUMN-WITH TILT & TELESCOPIC
45280ABRACKET ASSY, STEERING COLUMN, UPPER
STEERING COLUMN-WITH TILT & TELESCOPIC
STEERING COLUMN-WITH(TILT & TELESCOPIC)
45286COVER, STEERING COLUMN
DK.GRAY,TRIM12,13,4#
DK.GRAY,TRIM1#,4#
STEERING COLUMN-WITH TILT & TELESCOPIC,DK.GRAY,TRIM12,13,4#
sub45286-35913
STEERING COLUMN-WITH(TILT & TELESCOPIC),DK.GRAY,TRIM1#,4#
sub45286-35913
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
45817STOPPER, STEERING SHAFT THRUST
45897BOLT, STEERING LOCK SET
8401
9011908560
main90119-08560
9046706188
main90467-06188
9167380628
main91673-80628
9356855014
main93568-55014
9415181000
main94151-81000
23 parts on this diagram · 1 diagram in section
