EPC Data

DISC WHEEL & WHEEL CAP

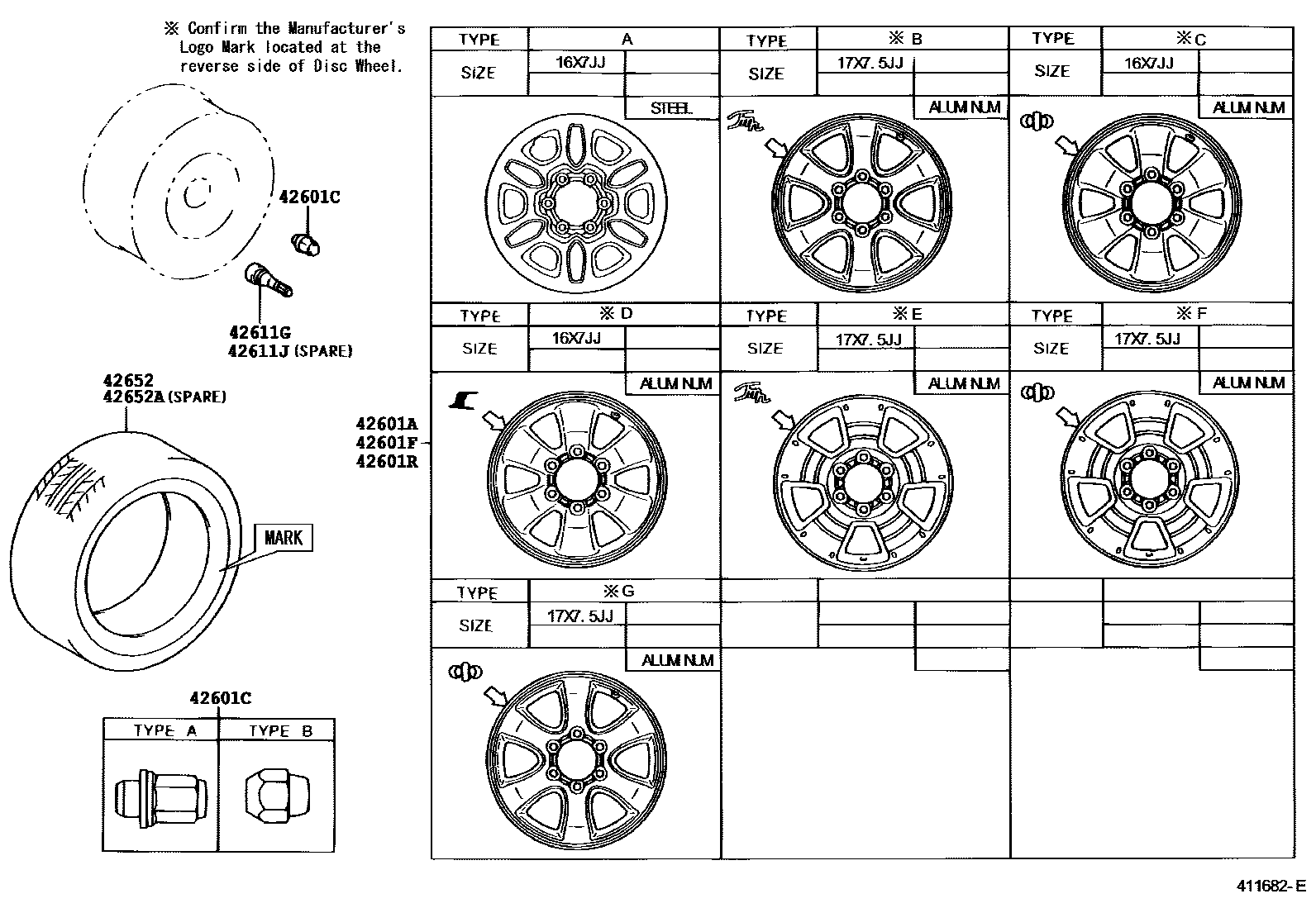

Parts diagram
42601AWHEEL, DISC (FOR SPARE)
main42611-35230i200208-200308
16X7JJ,TYPE A:REFER ILLUST.
sub42611-35231
main42611-35231i200308-200908
16X7JJ,TYPE A:REFER ILLUST.
main42611-35250i200208-200308
16X7JJ, #,TYPE C:REFER ILLUST.
sub42611-35251
main42611-35250i200208-200308
16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST.
sub42611-35251
main42611-35250i200208-200308
16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST.
sub42611-35251
main42611-35251i200308-200508
16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST.
main42611-35251i200508-200908
16X7JJ, #,MEXICO SPEC&TIRE & DISC WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST.
main42611-35251i200308-200508
16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST.
main42611-35251i200308-200508
16X7JJ, #,TYPE C:REFER ILLUST.
main42611-35251i200508-200908
16X7JJ, #,TIRE & DISC WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST.
main42611-35260i200208-200308
16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST.
sub42611-35261
main42611-35260i200208-200308
16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST.
sub42611-35261
main42611-35260i200208-200308
16X7JJ, #,TYPE D:REFER ILLUST.
sub42611-35261
main42611-35261i200308-200508
16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST.
sub42611-35251
main42611-35261i200308-200508
16X7JJ, #,TYPE D:REFER ILLUST.
sub42611-35251
main42611-35261i200308-200508
16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST.
sub42611-35251
main42611-35261i200508-200908
16X7JJ, #,MEXICO SPEC&TIRE & DISC WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST.
sub42611-35251
main42611-35261i200508-200908
16X7JJ, #,TIRE & DISC WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST.
sub42611-35251
main42611-35270i200208-200308
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.
sub42611-35271
main42611-35270i200208-200308
17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.
sub42611-35271
main42611-35271i200308-200508
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.
sub42611-35281
main42611-35271i200308-200508
17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.
sub42611-35281
main42611-35271i200308-200508
17X7.5JJ, #,REAR SUSPENSION-W/AIR SUSPENTION&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.
sub42611-35281
main42611-35271i200508-200908
17X7.5JJ, #,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A,TYPE E:REFER ILLUST.
sub42611-35281
main42611-35271i200508-200908
17X7.5JJ, #,MEXICO SPEC&TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A,TYPE E:REFERILLUST.
sub42611-35281
main42611-35280i200208-200308
17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.
sub42611-35281
main42611-35280i200208-200308
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.
sub42611-35281
main42611-35281i200308-200508
17X7.5JJ, #,REAR SUSPENSION-W/AIR SUSPENTION&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.
main42611-35281i200308-200508
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.
main42611-35281i200308-200508
17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.
main42611-35281i200508-200908
17X7.5JJ, #,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A,TYPE F:REFER ILLUST.
main42611-35281i200508-200908
17X7.5JJ, #,MEXICO SPEC&TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A,TYPE F:REFERILLUST.
main42611-35290i200508-200908
18X7.5J,TYPE I:REFER ILLUST.
main42611-35290i200801-200908
18X7.5J,USA 50 STATES SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM,TYPE I:REFERILLUST.
main42611-35290i200508-200908
18X7.5J,CANADA SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM,TYPE I:REFER ILLUST.
main42611-35300i200508-200803
17X7.5JJ, #,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-B,TYPE G:REFER ILLUST.
sub42611-35301
main42611-35300i200308-200508
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST.
sub42611-35301
main42611-35301i200804-200908
17X7.5JJ, #,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-B,TYPE G:REFER ILLUST.
sub42611-35302
main42611-35310i200308-200508
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST.
sub42611-35311
main42611-35310i200508-200803
17X7.5JJ, #,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-B,TYPE B:REFER ILLUST.
sub42611-35311
main42611-35311i200804-200908
17X7.5JJ, #,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-B,TYPE B:REFER ILLUST.
sub42611-35301
main42611-35320i200508-200908
18X7.5J,CANADA SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM,TYPE J:REFER ILLUST.
sub42611-35290
main42611-35320i200508-200908
18X7.5J,TYPE J:REFER ILLUST.
sub42611-35290
main42611-35320i200801-200908
18X7.5J,USA 50 STATES SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM,TYPE J:REFERILLUST.
sub42611-35290
main42611-35370i200808-200908
16X7J, #,USA 50 STATES SPEC&TIRE & DISC WHEEL-P265/70R16 7J OFFSET 15 ALMINUM,TYPEK:REFER ILLUST.
main42611-60390i200208-200308
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST.
sub42611-35300
main42611-60400i200208-200308
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST.
sub42611-35310
42601CNUT, HUB (FOR AXLE)
main90942-01058i200508-200908
TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A,TYPE A:REFER ILLUST.
main90942-01058i200208-200908
TYPE A:REFER ILLUST.
main90942-01058i200208-200508
TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE A:REFER ILLUST.
main90942-01058i200208-200508
TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE A:REFER ILLUST.
main90942-01058i200508-200908
TIRE & DISC WHEEL-P265/70R16 7JJ ALMINUM,TYPE A:REFER ILLUST.
main90942-01058i200508-200908
TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-B,TYPE A:REFER ILLUST.
main90942-01058i200508-200908
TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM,TYPE A:REFER ILLUST.
main90942-01058i200808-200908
TIRE & DISC WHEEL-P265/70R16 7J OFFSET 15 ALMINUM,TYPE A:REFER ILLUST.
main90942-01104i200208-200908
TYPE B:REFER ILLUST.
42601FWHEEL, DISC (FOR FRONT)
main42611-35230i200208-200308
16X7JJ,TYPE A:REFER ILLUST.
sub42611-35231
main42611-35231i200308-200508
16X7JJ,TYPE A:REFER ILLUST.
main42611-35250i200208-200308
16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST.
sub42611-35251
main42611-35250i200208-200308
16X7JJ, #,TYPE C:REFER ILLUST.
sub42611-35251
main42611-35250i200208-200308
16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST.
sub42611-35251
main42611-35251i200308-200508
16X7JJ, #,MEXICO SPEC,TYPE C:REFER ILLUST.
main42611-35251i200308-200508
16X7JJ, #,TYPE C:REFER ILLUST.
main42611-35251i200308-200508
16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST.
main42611-35251i200308-200508
16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST.
main42611-35251i200508
16X7JJ, #,TIRE & DISC WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST.
main42611-35251i200508
16X7JJ, #,MEXICO SPEC&TIRE & DISC WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST.
main42611-35260i200208-200308
16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST.
sub42611-35261
main42611-35260i200208-200308
16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST.
sub42611-35261
main42611-35260i200208-200308
16X7JJ, #,TYPE D:REFER ILLUST.
sub42611-35261
main42611-35261i200308-200508
16X7JJ, #,TYPE D:REFER ILLUST.
sub42611-35251
main42611-35261i200308-200508
16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST.
sub42611-35251
main42611-35261i200308-200508
16X7JJ, #,MEXICO SPEC,TYPE D:REFER ILLUST.
sub42611-35251
main42611-35261i200308-200508
16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST.
sub42611-35251
main42611-35261i200508
16X7JJ, #,MEXICO SPEC&TIRE & DISC WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST.
sub42611-35251
main42611-35261i200508
16X7JJ, #,TIRE & DISC WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST.
sub42611-35251
main42611-35270i200208-200308
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.
sub42611-35271
main42611-35270i200208-200308
17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.
sub42611-35271
main42611-35271i200508
17X7.5JJ, #,MEXICO SPEC&TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A,TYPE E:REFERILLUST.
sub42611-35281
main42611-35271i200508
17X7.5JJ, #,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A,TYPE E:REFER ILLUST.
sub42611-35281
main42611-35271i200308-200508
17X7.5JJ, #,REAR SUSPENSION-W/AIR SUSPENTION&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.
sub42611-35281
main42611-35271i200308-200508
17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.
sub42611-35281
main42611-35271i200308-200508
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.
sub42611-35281
main42611-35280i200208-200308
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.
sub42611-35281
main42611-35280i200208-200308
17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.
sub42611-35281
main42611-35281i200308-200508
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.
main42611-35281i200308-200508
17X7.5JJ, #,REAR SUSPENSION-W/AIR SUSPENTION&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.
main42611-35281i200308-200508
17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.
main42611-35281i200508
17X7.5JJ, #,MEXICO SPEC&TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A,TYPE F:REFERILLUST.
main42611-35281i200508
17X7.5JJ, #,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A,TYPE F:REFER ILLUST.
main42611-35290i200508
18X7.5J,CANADA SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM,TYPE I:REFER ILLUST.
main42611-35290i200508
18X7.5J,TYPE I:REFER ILLUST.
main42611-35290i200801
18X7.5J,USA 50 STATES SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM,TYPE I:REFERILLUST.
main42611-35300i200308-200508
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST.
sub42611-35301
main42611-35300i200508-200803
17X7.5JJ, #,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-B,TYPE G:REFER ILLUST.
sub42611-35301
main42611-35301i200804
17X7.5JJ, #,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-B,TYPE G:REFER ILLUST.
sub42611-35302
main42611-35310i200508-200803
17X7.5JJ, #,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-B,TYPE B:REFER ILLUST.
sub42611-35311
main42611-35310i200308-200508
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST.
sub42611-35311
main42611-35311i200804
17X7.5JJ, #,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-B,TYPE B:REFER ILLUST.
sub42611-35301
main42611-35320i200801
18X7.5J,USA 50 STATES SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM,TYPE J:REFERILLUST.
sub42611-35290
main42611-35320i200508
18X7.5J,TYPE J:REFER ILLUST.
sub42611-35290
main42611-35320i200508
18X7.5J,CANADA SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM,TYPE J:REFER ILLUST.
sub42611-35290
main42611-35370i200808
16X7J, #,USA 50 STATES SPEC&TIRE & DISC WHEEL-P265/70R16 7J OFFSET 15 ALMINUM,TYPEK:REFER ILLUST.
main42611-60390i200208-200308
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST.
sub42611-35300
main42611-60400i200208-200308
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST.
sub42611-35310
42601RWHEEL, DISC (FOR REAR)
main42611-35230i200208-200308
16X7JJ,TYPE A:REFER ILLUST.
sub42611-35231
main42611-35231i200308-200508
16X7JJ,TYPE A:REFER ILLUST.
main42611-35250i200208-200308
16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST.
sub42611-35251
main42611-35250i200208-200308
16X7JJ, #,TYPE C:REFER ILLUST.
sub42611-35251
main42611-35250i200208-200308
16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST.
sub42611-35251
main42611-35251i200308-200508
16X7JJ, #,TYPE C:REFER ILLUST.
main42611-35251i200308-200508
16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST.
main42611-35251i200308-200508
16X7JJ, #,MEXICO SPEC,TYPE C:REFER ILLUST.
main42611-35251i200308-200508
16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST.
main42611-35251i200508
16X7JJ, #,TIRE & DISC WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST.
main42611-35251i200508
16X7JJ, #,MEXICO SPEC&TIRE & DISC WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST.
main42611-35260i200208-200308
16X7JJ, #,TYPE D:REFER ILLUST.
sub42611-35261
main42611-35260i200208-200308
16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST.
sub42611-35261
main42611-35260i200208-200308
16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST.
sub42611-35261
main42611-35261i200308-200508
16X7JJ, #,TYPE D:REFER ILLUST.
sub42611-35251
main42611-35261i200308-200508
16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST.
sub42611-35251
main42611-35261i200308-200508
16X7JJ, #,MEXICO SPEC,TYPE D:REFER ILLUST.
sub42611-35251
main42611-35261i200308-200508
16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST.
sub42611-35251
main42611-35261i200508
16X7JJ, #,MEXICO SPEC&TIRE & DISC WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST.
sub42611-35251
main42611-35261i200508
16X7JJ, #,TIRE & DISC WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST.
sub42611-35251
main42611-35270i200208-200308
17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.
sub42611-35271
main42611-35270i200208-200308
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.
sub42611-35271
main42611-35271i200508
17X7.5JJ, #,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A,TYPE E:REFER ILLUST.
sub42611-35281
main42611-35271i200508
17X7.5JJ, #,MEXICO SPEC&TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A,TYPE E:REFERILLUST.
sub42611-35281
main42611-35271i200308-200508
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.
sub42611-35281
main42611-35271i200308-200508
17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.
sub42611-35281
main42611-35271i200308-200508
17X7.5JJ, #,REAR SUSPENSION-W/AIR SUSPENTION&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.
sub42611-35281
main42611-35280i200208-200308
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.
sub42611-35281
main42611-35280i200208-200308
17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.
sub42611-35281
main42611-35281i200308-200508
17X7.5JJ, #,REAR SUSPENSION-W/AIR SUSPENTION&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.
main42611-35281i200308-200508
17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.
main42611-35281i200508
17X7.5JJ, #,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A,TYPE F:REFER ILLUST.
main42611-35281i200308-200508
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.
main42611-35281i200508
17X7.5JJ, #,MEXICO SPEC&TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A,TYPE F:REFERILLUST.
main42611-35290i200508
18X7.5J,CANADA SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM,TYPE I:REFER ILLUST.
main42611-35290i200508
18X7.5J,TYPE I:REFER ILLUST.
main42611-35290i200801
18X7.5J,USA 50 STATES SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM,TYPE I:REFERILLUST.
main42611-35300i200508-200803
17X7.5JJ, #,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-B,TYPE G:REFER ILLUST.
sub42611-35301
main42611-35300i200308-200508
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST.
sub42611-35301
main42611-35301i200804
17X7.5JJ, #,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-B,TYPE G:REFER ILLUST.
sub42611-35302
main42611-35310i200308-200508
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST.
sub42611-35311
main42611-35310i200508-200803
17X7.5JJ, #,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-B,TYPE B:REFER ILLUST.
sub42611-35311
main42611-35311i200804
17X7.5JJ, #,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-B,TYPE B:REFER ILLUST.
sub42611-35301
main42611-35320i200508
18X7.5J,CANADA SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM,TYPE J:REFER ILLUST.
sub42611-35290
main42611-35320i200801
18X7.5J,USA 50 STATES SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM,TYPE J:REFERILLUST.
sub42611-35290
main42611-35320i200508
18X7.5J,TYPE J:REFER ILLUST.
sub42611-35290
main42611-35370i200808
16X7J, #,USA 50 STATES SPEC&TIRE & DISC WHEEL-P265/70R16 7J OFFSET 15 ALMINUM,TYPEK:REFER ILLUST.
main42611-60390i200208-200308
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST.
sub42611-35300
main42611-60400i200208-200308
17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST.
sub42611-35310
42611GVALVE (FOR TUBELESS TIRE)
main90942-05009i200208-200308
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i200208-200308
42652TIRE
main42652-35A00i200508-200908
P265/65R17,110S,*D/L,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-B
main42652-35A00i200505-200508
P265/65R17,110S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM
main42652-35A10i200505-200908
265/70R16,USA,*D/L
main42652-35A70i200508-200902
265/60R18,*B/S
sub42652-35A71
main42652-35A70i200508-200902
265/60R18,*B/S,CANADA SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM
sub42652-35A71
main42652-35A70i200801-200902
265/60R18,*B/S,USA 50 STATES SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM
sub42652-35A71
main42652-35A71i200903-200908
P265/60R18,*B/S
main42652-35A71i200903-200908
P265/60R18,*B/S,USA 50 STATES SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM
main42652-35A71i200903-200908
P265/60R18,*B/S,CANADA SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM
main42652-35A80i200508-200908
265/60R18,MICHELIN,CANADA SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM
main42652-35A80i200508-200908
265/60R18,MICHELIN
main42652-35A80i200801-200908
265/60R18,MICHELIN,USA 50 STATES SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM
main42652-35B90i200510-200908
265/70R16,*D/L,MEXICO SPEC&TIRE & DISC WHEEL-P265/70R16 7JJ ALMINUM
main42652-35B90i200510-200908
265/70R16,*D/L,MEXICO SPEC
main42652-35C10i200510-200908
265/70R16,MICHELIN
main42652-3D160i200505-200908
P265/70R16,111S,*D/L
main42652-3D170i200208-200505
P265/65R17,110S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM
main42652-3D180i200508-200908
P265/70R16,*D/L,MEXICO SPEC&TIRE & DISC WHEEL-P265/70R16 7JJ ALMINUM
main42652-3D180i200505-200908
P265/70R16,*D/L,MEXICO SPEC
main42652-3D180i200505-200508
P265/70R16,*D/L,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM
main42652-60640i200208-200402
P265/65R17 110S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM
sub42652-60641
main42652-60640i200308-200402
P265/65R17 110S,*B/S,REAR SUSPENSION-W/AIR SUSPENTION&TIRE & DISK WHEEL-P265/65R177.5JJ ALMINUM
sub42652-60641
main42652-60641i200505-200508
P265/65R17 110S,*B/S,REAR SUSPENSION-W/AIR SUSPENTION&TIRE & DISK WHEEL-P265/65R177.5JJ ALMINUM
sub42652-60642
main42652-60641i200505-200508
P265/65R17 110S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM
sub42652-60642
main42652-60641i200508-200908
P265/65R17 110S,*B/S,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A
sub42652-60642
main42652-60680i200211-200402
265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM
sub42652-60681
main42652-60681i200508-200908
265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A
sub42652-60682
main42652-60681i200505-200508
265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM
sub42652-60682
main42652-60A80i200510-200601
265/65R17,*D/L,MEXICO SPEC&TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A
sub42652-60A81
main42652-60A81i200602-200908
265/65R17,*D/L,MEXICO SPEC&TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A
sub42652-60A82
main42652-60A90i200510-200711
265/65R17,MICHELIN,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A
sub42652-60A91
main42652-60A91i200712-200908
265/65R17,MICHELIN,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A
main42652-6A040i200208-200402
P265/65R17 112S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM
sub42652-6A041
main42652-6A041i200505-200508
P265/65R17 112S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM
main42652-6A041i200508-200908
P265/65R17 112S,*D/L,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A
42652ATIRE (FOR SPARE)
main42652-35A00i200508-200908
P265/65R17,110S,*D/L,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-B
main42652-35A00i200308-200508
P265/65R17,110S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM
main42652-35A10i200308-200908
265/70R16,USA,*D/L
main42652-35A70i200508-200902
265/60R18,*B/S
sub42652-35A71
main42652-35A70i200508-200902
265/60R18,*B/S,CANADA SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM
sub42652-35A71
main42652-35A70i200801-200902
265/60R18,*B/S,USA 50 STATES SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM
sub42652-35A71
main42652-35A71i200903-200908
P265/60R18,*B/S
main42652-35A71i200903-200908
P265/60R18,*B/S,USA 50 STATES SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM
main42652-35A71i200903-200908
P265/60R18,*B/S,CANADA SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM
main42652-35A80i200508-200908
265/60R18,MICHELIN
main42652-35A80i200508-200908
265/60R18,MICHELIN,CANADA SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM
main42652-35A80i200801-200908
265/60R18,MICHELIN,USA 50 STATES SPEC&TIRE & DISC WHEEL-P265/60R18 7.5JJ ALMINUM
main42652-35B90i200510-200908
265/70R16,*D/L,MEXICO SPEC&TIRE & DISC WHEEL-P265/70R16 7JJ ALMINUM
main42652-35B90i200510-200908
265/70R16,*D/L,MEXICO SPEC
main42652-35C10i200510-200908
265/70R16,MICHELIN
main42652-3D160i200208-200908
P265/70R16,111S,*D/L
main42652-3D170i200208-200505
P265/65R17,110S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM
main42652-3D180i200211-200908
P265/70R16,*D/L,MEXICO SPEC
main42652-3D180i200211-200508
P265/70R16,*D/L,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM
main42652-3D180i200508-200908
P265/70R16,*D/L,MEXICO SPEC&TIRE & DISC WHEEL-P265/70R16 7JJ ALMINUM
main42652-60640i200308-200402
P265/65R17 110S,*B/S,REAR SUSPENSION-W/AIR SUSPENTION&TIRE & DISK WHEEL-P265/65R177.5JJ ALMINUM
sub42652-60641
main42652-60640i200208-200402
P265/65R17 110S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM
sub42652-60641
main42652-60641i200402-200508
P265/65R17 110S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM
sub42652-60642
main42652-60641i200402-200508
P265/65R17 110S,*B/S,REAR SUSPENSION-W/AIR SUSPENTION&TIRE & DISK WHEEL-P265/65R177.5JJ ALMINUM
sub42652-60642
main42652-60641i200508-200908
P265/65R17 110S,*B/S,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A
sub42652-60642
main42652-60680i200211-200402
265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM
sub42652-60681
main42652-60681i200402-200508
265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM
sub42652-60682
main42652-60681i200508-200908
265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A
sub42652-60682
main42652-60A80i200510-200601
265/65R17,*D/L,MEXICO SPEC&TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A
sub42652-60A81
main42652-60A81i200602-200908
265/65R17,*D/L,MEXICO SPEC&TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A
sub42652-60A82
main42652-60A90i200510-200711
265/65R17,MICHELIN,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A
sub42652-60A91
main42652-60A91i200712-200908
265/65R17,MICHELIN,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A
main42652-6A040i200208-200402
P265/65R17 112S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM
sub42652-6A041
main42652-6A041i200402-200508
P265/65R17 112S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM
main42652-6A041i200508-200908
P265/65R17 112S,*D/L,TIRE & DISC WHEEL-P265/65R17 7.5JJ ALMINUM-A

8 parts on this diagram · 5 diagrams in section

DISC WHEEL & WHEEL CAP — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
