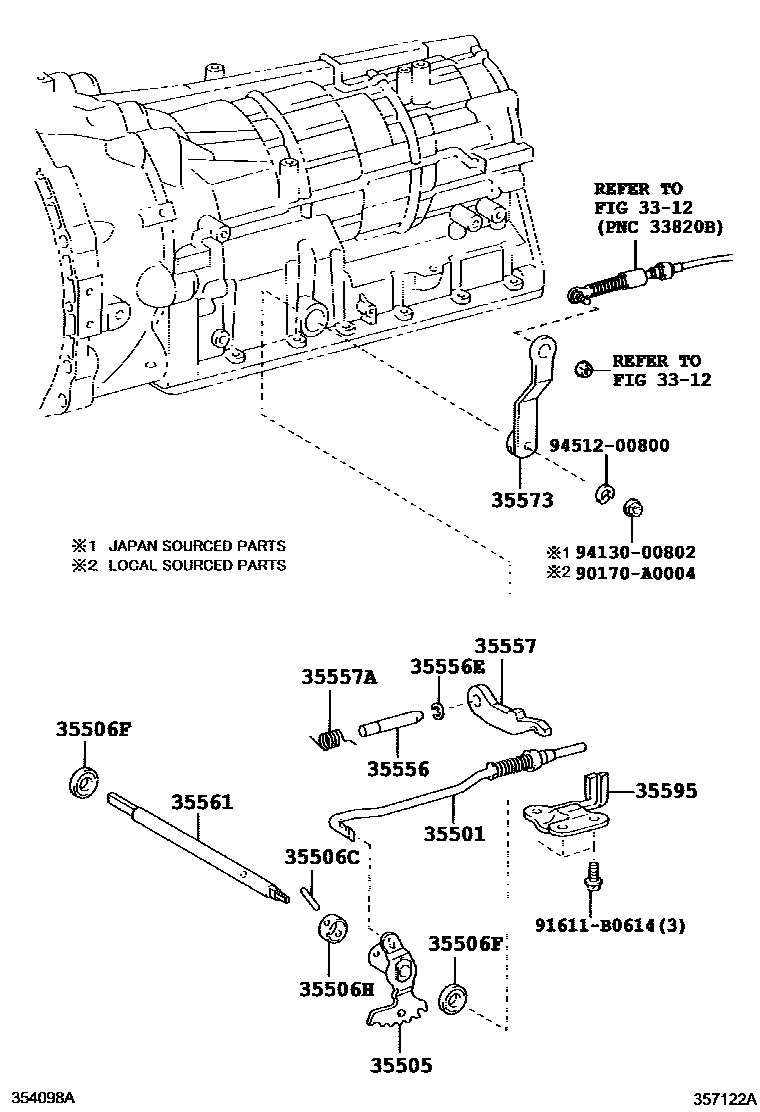

THROTTLE LINK & VALVE LEVER (ATM)

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-35020iUZN21#200208-200508

main35501-60010iGRN21#200211-200408

main35501-60020iUZN21#200505-200508

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-35010iGRN21#200208-200508

main35505-60030iGRN21#200211-200408

sub35505-26020

main35505-60040iUZN21#200505-200508

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGRN21#,UZN21#200208-200508

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iGRN21#200208-200908

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iGRN21#200211-200302

main90560-20025iGRN21#,UZN21#..5FC200208-200508

35556SHAFT, PARKING LOCK PAWL

main35556-30020iGRN21#200211-200408

main35556-60020iGRN21#,UZN21#..5FC200208-200508

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGRN21#,UZN21#200208-200508

35557PAWL, PARKING LOCK

main35557-60020iGRN21#200211-200408

main35557-60040iGRN21#,UZN21#..5FC200208-200508

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iGRN21#200211-200408

main90949-03123iUZN21#200505-200508

main90949-03130iGRN210200508

(J)

main90949-03130iUZN21#200208-200508

main90949-A3003iGRN215200811

(L)

sub90949-03130

35561SHAFT, MANUAL VALVE LEVER

main35561-35010iGRN21#200211-200408

main35561-60030iGRN21#,UZN21#..5FC200208-200908

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-60020iGRN21#200208-200908

35595BRACKET, PARKING LOCK PAWL

main35595-60010iGRN21#200211-200408

main35595-60030iGRN21#,UZN21#..5FC200208-200508

90170A0004

main90170-A0004

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

17 parts on this diagram · 1 diagram in section
