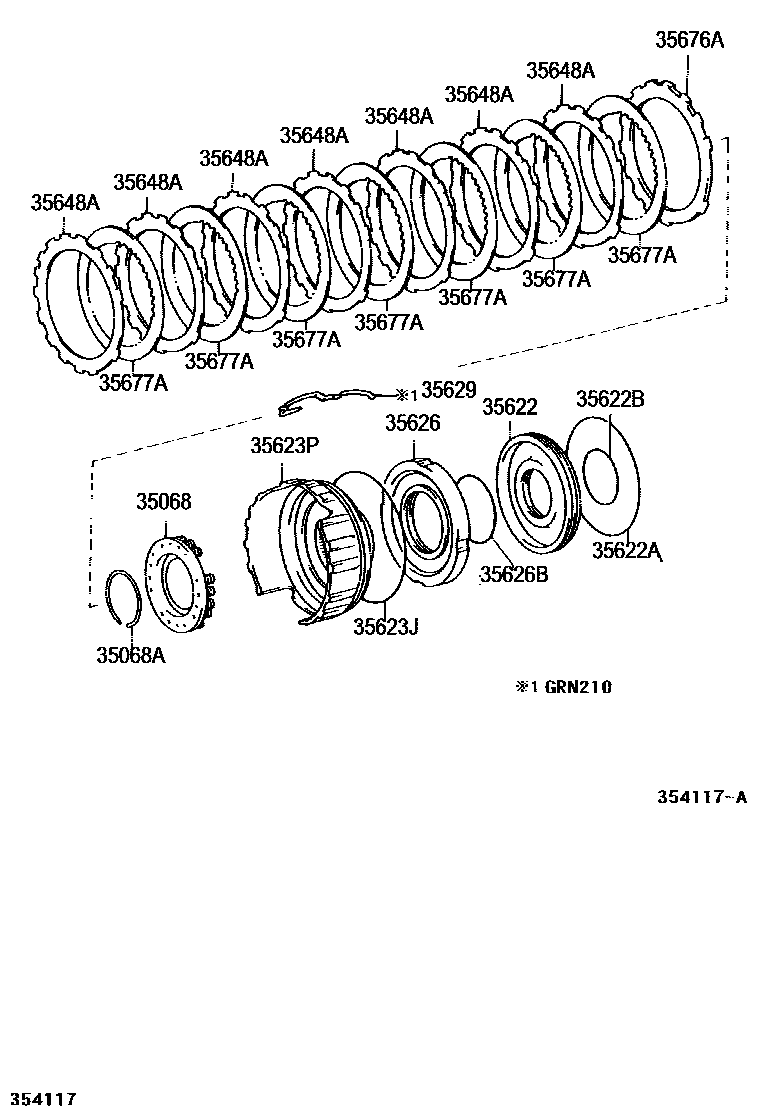

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
(L)
(J)
35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
35622PISTON, BRAKE, NO.2
35622ARING (FOR BRAKE PISTON OUTER)
35622BRING (FOR BRAKE PISTON INNER)
35623JRING, O (FOR 1ST & REVERSE BRAKE)
35623PPISTON, 1ST & REVERSE BRAKE, NO.2
35626SLEEVE, BRAKE REACTION
35626BRING (FOR BRAKE REACTION SLEEVE INNER)
35629SPRING (1ST & REVS BRAKE PLATE STOPPER)
35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)
T=5.2
T=5.4
T=5.0
T=4.8
T=4.6
T=4.4
T=4.2
T=4.0
35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
13 parts on this diagram · 2 diagrams in section
