ALTERNATOR

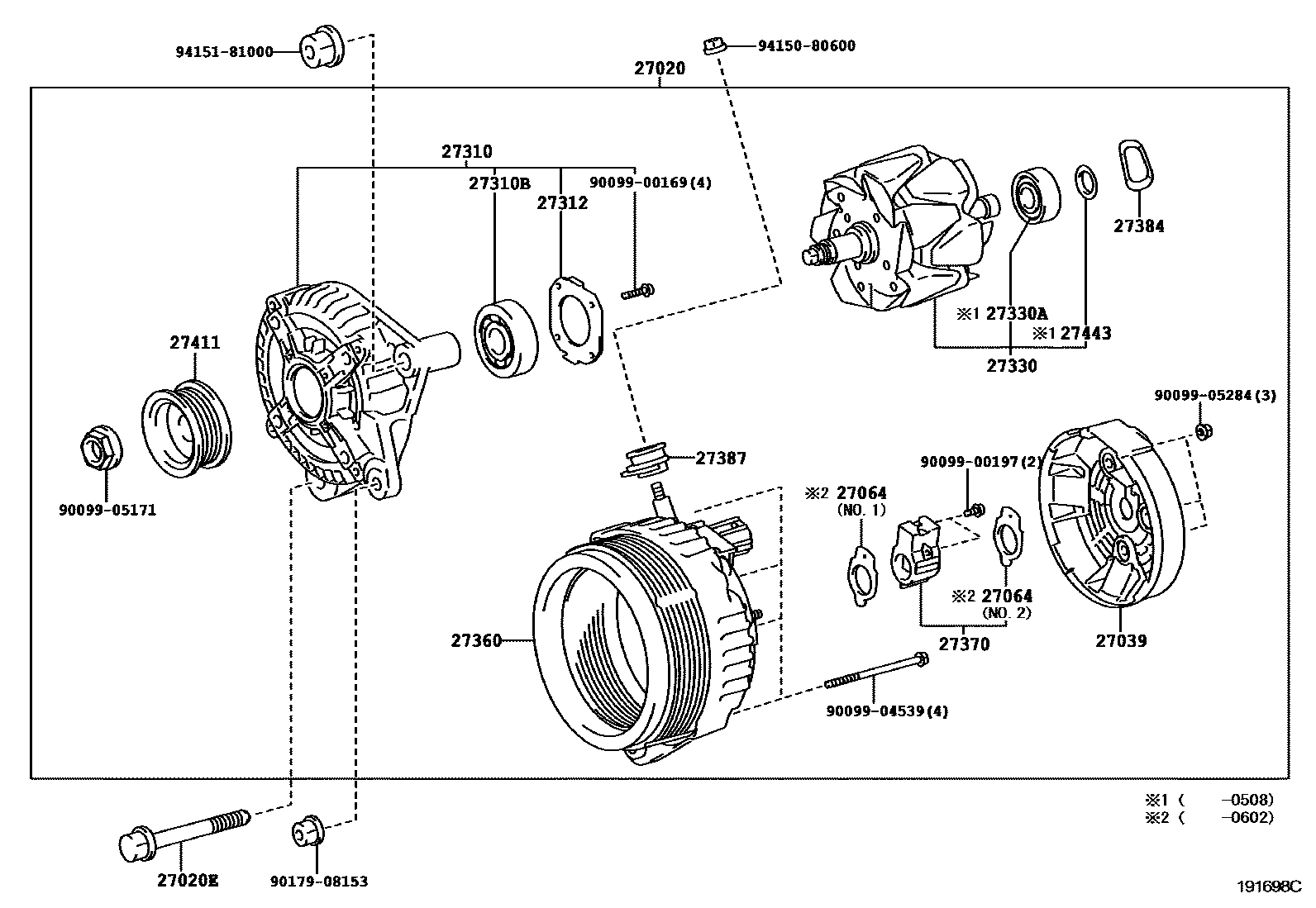

Parts diagram

27020ALTERNATOR ASSY

main27060-31020i200211-200412

12V 130A

main27060-31021i200501-200908

12V 130A

main27060-50320i200208-200608

12V 130A

main27060-50360i200608-200908

12V 130A

27020EBOLT(FOR ALTERNATOR)

main90119-10791i200208-200508

main91642-81065i200211-200508

27039COVER, ALTERNATOR REAR END

main27039-26170i200612-200906

main27039-27060i200208-200611

main27039-30080i200208-200602

main27039-31390i200906

main27039-50370i200602-200707

main27039-50430i200708

27064SEAL, ALTERNATOR PLATE

main27064-20130i200208-200602

NO.2

main27064-42010i200208-200602

NO.1

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-31210i200211-200508

main27310-50310i200208-200508

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10142i200208-200611

main90099-10223i200608

27312PLATE, RETAINER

main27312-72100i200208-200908

27330ROTOR ASSY, ALTERNATOR

main27330-20130i200208-200602

main27330-33090i200208-200908

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i200208-200508

27360COIL ASSY, ALTERNATOR

main27360-31211i200208-200908

main27360-50240i200602-200608

main27360-50350i200208-200602

main27360-50430i200608-200908

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-20130i200208-200602

main27370-31220i200208-200908

main27370-58460i200602-200908

27384WASHER

main27384-50030i200208-200508

27387INSULATOR, TERMINAL

main27387-20130i200208-200508

27411PULLEY, ALTERNATOR

main27411-31210i200211-200908

main27411-46080i200208-200908

27443COVER, ALTERNATOR BEARING

main27443-63020i200208-200508

9009900169

main90099-00169

9009900197

main90099-00197

9009904539

main90099-04539

9009905171

main90099-05171

9009905284

main90099-05284

9017908153

main90179-08153

9415080600

main94150-80600

9415181000

main94151-81000

23 parts on this diagram · 2 diagrams in section
