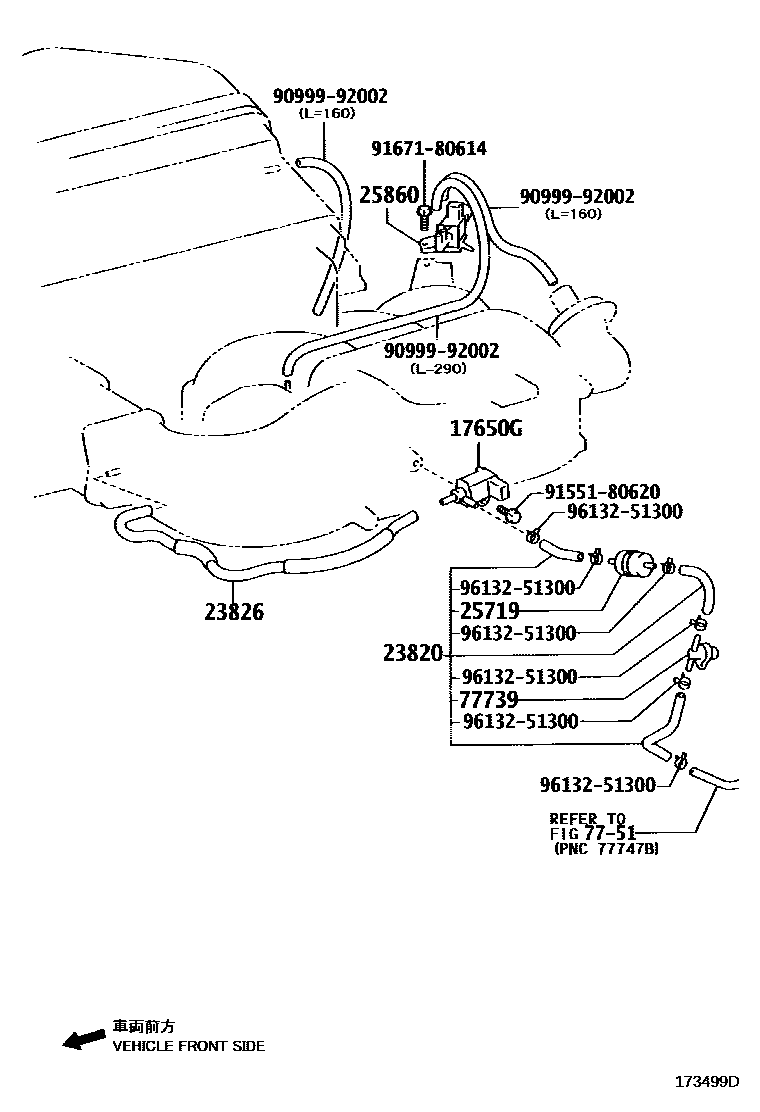

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17650VALVE ASSY, VACUUM SWITCHING

main25860-50170i2UZFE..UZN21#200411-200508

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12262i1GRFE..GRN21#..5FC200211-200508

23820HOSE ASSY, FUEL VAPOR FEED

main23820-31020i1GRFE..GRN21#..5FC200211-200508

sub23820-31021

main23820-31021i1GRFE..GRN21#200508

main23820-50140i2UZFE..UZN21#200208-200508

sub23820-50141

main23820-50141i2UZFE..UZN21#200508

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31010i1GRFE..GRN21#200211-200508

25719TANK, VACUUM SURGE

main25719-50040i1GRFE..GRN21#200208-200508

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31010i1GRFE..GRN21#200211-200508

main25860-46010i2UZFE..UZN21#200411-200508

NO.2

main25860-50160i2UZFE..UZN21#200411-200508

NO.1

main25860-50160i2UZFE..UZN21#200208-200411

7751

77739VALVE, EVAP SERVICE PORT

main77739-06010iGRN21#200208-200508

sub77739-33010

9099992002

main90999-92002

9155180620

main91551-80620

9167180614

main91671-80614

9613251300

main96132-51300

12 parts on this diagram · 6 diagrams in section
