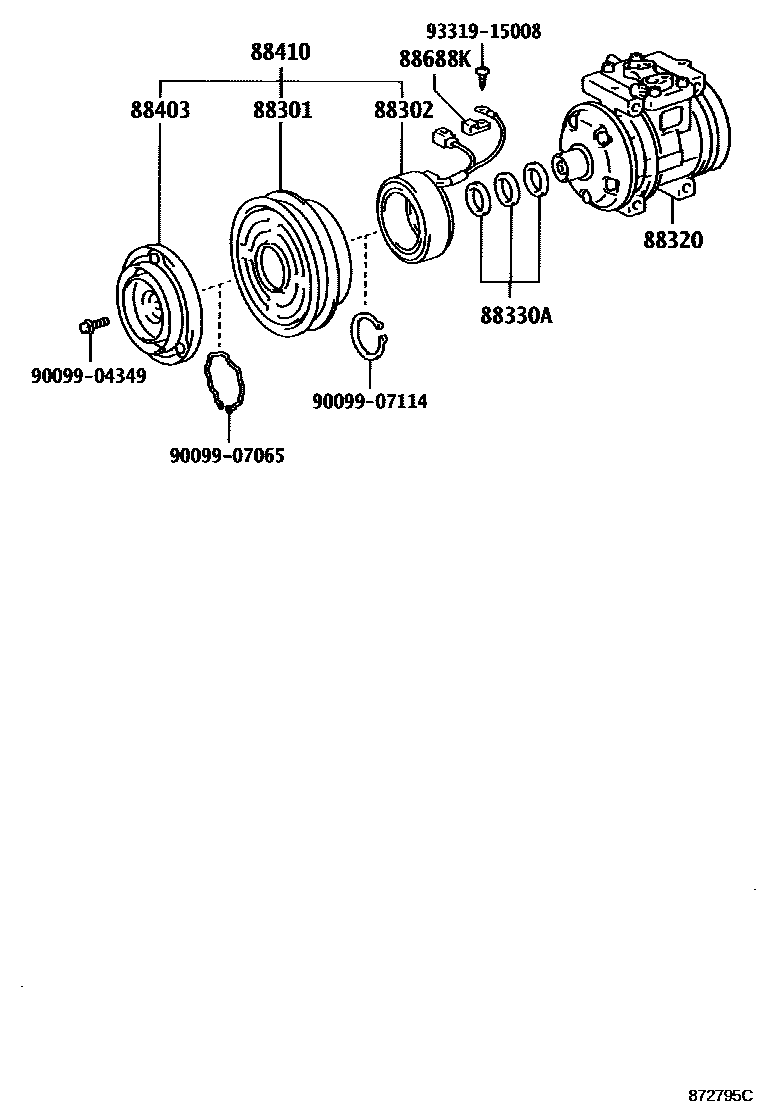

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12150iRZN18#199511-200008

main88412-35090iVZN18#199511-200208

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iRZN18#,VZN18#199511-199608

sub88411-2A030

main88411-2A030iRZN18#,VZN18#199608-200208

88320COMPRESSOR ASSY, COOLER

main88320-35450iRZN18#199511-200008

sub88320-26H91

main88320-35600iVZN18#199511-200208

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iRZN18#,VZN18#199511-199807

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iRZN18#,VZN18#199511-200008

main88403-50020iVZN18#199807-200208

DEALER OPTION

88410CLUTCH ASSY, MAGNET

main88410-34040iRZN18#199511-200008

main88410-35340iVZN18#199511-199807

main88410-35340iVZN18#..SR5V199807-200008

DEALER OPTION

main88410-35360iVZN18#199807-200208

88688KBRACKET, COOLER COMPRESSOR

main88688-2D770iVZN18#199708-199807

DEALER OPTION

main88688-35390iRZN18#199511-200008

main88688-37320iVZN18#199604-199807

MAKER OPTION

main88688-37320iVZN18#..SR5B,SR5V199807

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9331915008

main93319-15008

11 parts on this diagram · 3 diagrams in section
