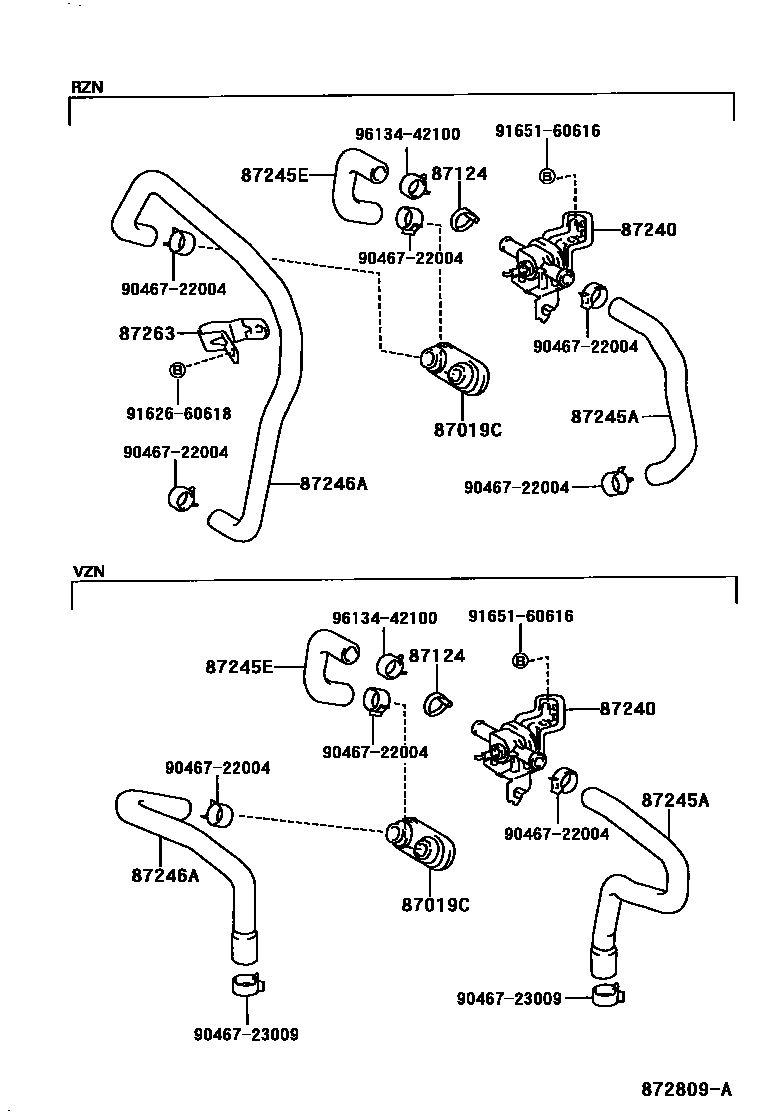

HEATING & AIR CONDITIONING - WATER PIPING

0001 1W/O(REAR HEATER) 0002 1W(REAR HEATER) 0003 1W(REAR HEATER)

87019CGROMMET, HEATER HOSE

main90480-01405iRZN18#,VZN18#199511

87124CLAMP, HEATER

main87124-28030iRZN18#,VZN18#199511-199610

W(REAR HEATER)

87240VALVE ASSY, HEATER WATER

main87240-35050iRZN18#,VZN18#199511-199807

main87240-35070iRZN18#,VZN18#199807

87245AHOSE, HEATER WATER, INLET A

main87245-35620iRZN18#199511-200008

W(REAR HEATER)

main87245-35660iRZN18#199511-200008

main87245-35680iVZN18#199511

W(REAR HEATER)

main87245-35720iVZN18#199511-200008

sub87245-3D230

main87245-3D230iVZN18#200008

87245EHOSE, HEATER WATER, INLET E

main87245-35670iRZN18#,VZN18#199511

87246AHOSE, HEATER WATER, OUTLET A

main87245-35430iRZN18#199511-199807

main87245-35730iVZN18#199511

main87245-3D150iRZN18#199807-200008

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-35020iRZN18#199511-200008

9046722004

main90467-22004

9046723009

main90467-23009

9162660618

main91626-60618

9165160616

main91651-60616

9613442100

main96134-42100

12 parts on this diagram · 3 diagrams in section
