EPC Data

SEAT & SEAT TRACK

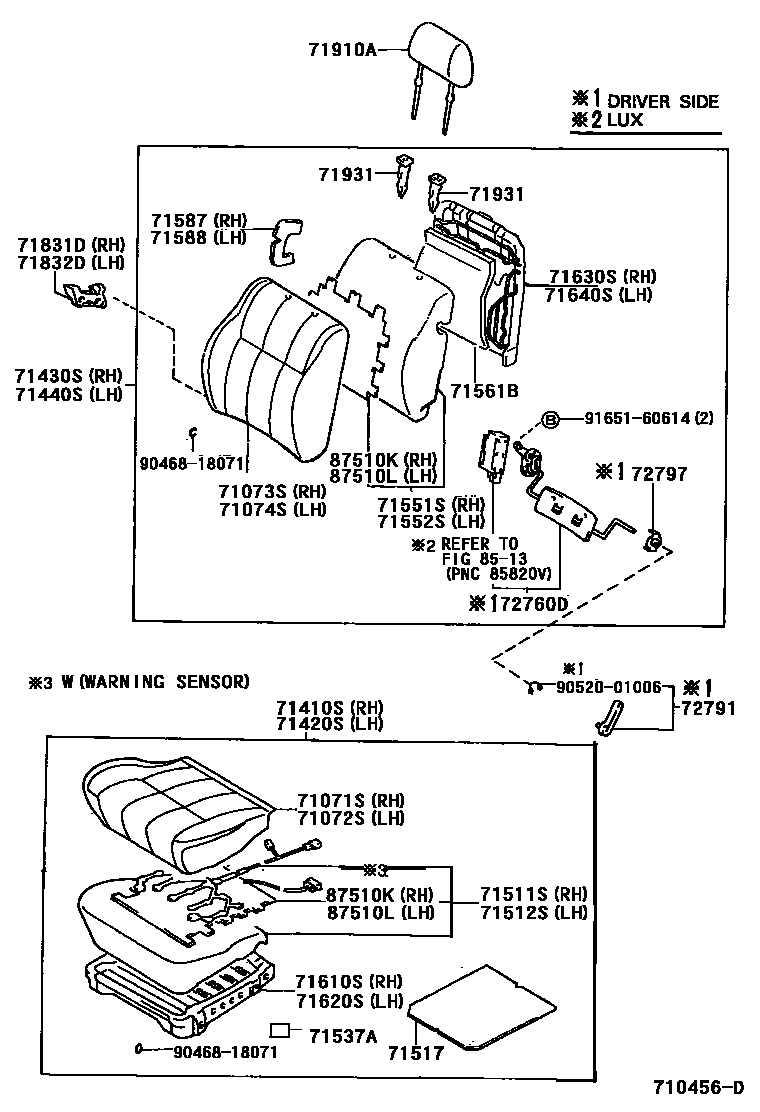

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-35540-B0i199511-199608
MOONMIST,TRIM1#
sub71071-3D440
main71071-35540-E0i199511-199608
MEDIUM OAK,TRIM4#
sub71071-3D440
main71071-35550-B0i199511-199608
SPORT SEAT(FW**),MOON MIST,TRIM1#
sub71071-3D450
main71071-35550-E0i199511-199608
SPORT SEAT(FW**),MEDIUM OAK,TRIM4#
sub71071-3D450
main71071-35670-E0i199511-199608
MEDIUM OAK,TRIM4#
sub71071-3D460
main71071-35670-E0i199511-199608
LEATHER SPORT SEAT(LG**),MEDIUM OAK,TRIM4#
sub71071-3D460
main71071-3D410-B1i199608-199708
HIGH FABRIC SEAT(YJ**),MOON MIST,TRIM1#
sub71071-3D760
main71071-3D410-E1i199608-199708
HIGH FABRIC SEAT(YJ**),MEDIUM OAK,TRIM4#
sub71071-3D760
main71071-3D440-B0i199608-199708
MOONMIST,TRIM1#
sub71071-3D740
main71071-3D440-E0i199608-199708
MEDIUM OAK,TRIM4#
sub71071-3D740
main71071-3D450-B0i199608-199708
SPORT SEAT(FW**),MOON MIST,TRIM1#
main71071-3D450-E0i199608-199708
SPORT SEAT(FW**),MEDIUM OAK,TRIM4#
main71071-3D460-E0i199608-199708
MEDIUM OAK,TRIM4#
sub71071-3D750
main71071-3D460-E0i199608-199708
LEATHER SPORT SEAT(LG**),MEDIUM OAK,TRIM4#
sub71071-3D750
main71071-3D550-B1i200008
SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM1#
sub71071-3D551
main71071-3D550-E1i200008
SEAT = TYPE E-*104,MEDIUM OAK,TRIM4#
sub71071-3D551
main71071-3D720-B1i199708-199807
SPORT SEAT(FW**),MOON MIST,TRIM1#
main71071-3D720-E1i199708-199807
SPORT SEAT(FW**),MEDIUM OAK,TRIM4#
main71071-3D740-B0i199708-199807
MOONMIST,TRIM1#
main71071-3D740-E0i199708-199807
MEDIUM OAK,TRIM4#
main71071-3D750-E0i199708-200008
LEATHER SPORT SEAT(LA**/LB**/LG**),MEDIUM OAK,TRIM4#
main71071-3D760-B0i199708-199807
HIGH FABRIC SEAT(YJ**),MOON MIST,TRIM1#
main71071-3D760-E0i199708-199807
HIGH FABRIC SEAT(YJ**),MEDIUM OAK,TRIM4#
main71071-3D800-B1i199807-200008
MOONMIST,TRIM1#
main71071-3D800-E1i199807-200008
MEDIUM OAK,TRIM4#
main71071-3D810-B0i199807-200008
MOONMIST,TRIM1#
main71071-3D810-E0i199807-200008
MEDIUM OAK,TRIM4#
main71071-3D820-B1i199807-200008
SPORT SEAT(FA**/FB**),MOONMIST,TRIM1#
main71071-3D820-E0i199807-200008
SPORT SEAT(FA**/FB**),MEDIUM OAK,TRIM4#
main71071-3G100-B1i200008
SEAT = TYPE D-*104,MEDIUM CHARCOAL,TRIM1#
sub71071-3G101
main71071-3G100-E1i200008
SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
sub71071-3G101
main71071-3G110-B0i200008-200107
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#,PLANT NO. A51-A54
sub71071-3G111
main71071-3G110-E0i200008-200107
SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#,PLANT NO. A51-A54
sub71071-3G111
main71071-3G111-B1i200107
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
sub71071-3G112
main71071-3G111-E1i200107
MEDIUM OAK,TRIM4#
sub71071-3G112
main71071-3G120-E0i200008
SEAT = TYPE A OR TYPE B-*104,MEDIUM OAK,TRIM4#
main71071-3G130-B0i200008-200107
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#,PLANT NO. P11
sub71071-3G131
main71071-3G130-E0i200008-200107
SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#,PLANT NO. P11
sub71071-3G131
main71071-3G161-B1i200107
SEAT = TYPE F-*104,CHARCOAL,TRIM1#
main71071-3G200-C0i200107-200207
BADLANDS(CANADA),BLACK,TRIM17
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-35540-B0i199511-199608
MOONMIST,TRIM1#
sub71071-3D440
main71071-35540-E0i199511-199608
MEDIUM OAK,TRIM4#
sub71071-3D440
main71071-35550-B0i199511-199608
SPORT SEAT(FW**),MOON MIST,TRIM1#
sub71071-3D450
main71071-35550-E0i199511-199608
SPORT SEAT(FW**),MEDIUM OAK,TRIM4#
sub71071-3D450
main71071-35670-E0i199511-199608
MEDIUM OAK,TRIM4#
sub71071-3D460
main71071-35670-E0i199511-199608
LEATHER SPORT SEAT(LG**),MEDIUM OAK,TRIM4#
sub71071-3D460
main71071-3D410-B1i199608-199708
HIGH FABRIC SEAT(YJ**),MOON MIST,TRIM1#
sub71071-3D760
main71071-3D410-E1i199608-199708
HIGH FABRIC SEAT(YJ**),MEDIUM OAK,TRIM4#
sub71071-3D760
main71071-3D440-B0i199608-199708
MOONMIST,TRIM1#
sub71071-3D740
main71071-3D440-E0i199608-199708
MEDIUM OAK,TRIM4#
sub71071-3D740
main71071-3D450-B0i199608-199708
SPORT SEAT(FW**),MOON MIST,TRIM1#
main71071-3D450-E0i199608-199708
SPORT SEAT(FW**),MEDIUM OAK,TRIM4#
main71071-3D460-E0i199608-199708
MEDIUM OAK,TRIM4#
sub71071-3D750
main71071-3D460-E0i199608-199708
LEATHER SPORT SEAT(LG**),MEDIUM OAK,TRIM4#
sub71071-3D750
main71071-3D550-B1i200008
SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM1#
sub71071-3D551
main71071-3D550-E1i200008
SEAT = TYPE E-*104,MEDIUM OAK,TRIM4#
sub71071-3D551
main71071-3D720-B1i199708-199807
SPORT SEAT(FW**),MOON MIST,TRIM1#
main71071-3D720-E1i199708-199807
SPORT SEAT(FW**),MEDIUM OAK,TRIM4#
main71071-3D740-B0i199708-199807
MOONMIST,TRIM1#
main71071-3D740-E0i199708-199807
MEDIUM OAK,TRIM4#
main71071-3D750-E0i199708-200008
LEATHER SPORT SEAT(LA**/LB**/LG**),MEDIUM OAK,TRIM4#
main71071-3D760-B0i199708-199807
HIGH FABRIC SEAT(YJ**),MOON MIST,TRIM1#
main71071-3D760-E0i199708-199807
HIGH FABRIC SEAT(YJ**),MEDIUM OAK,TRIM4#
main71071-3D800-B1i199807-200008
MOONMIST,TRIM1#
main71071-3D800-E1i199807-200008
MEDIUM OAK,TRIM4#
main71071-3D810-B0i199807-200008
MOONMIST,TRIM1#
main71071-3D810-E0i199807-200008
MEDIUM OAK,TRIM4#
main71071-3D820-B1i199807-200008
SPORT SEAT(FA**/FB**),MOONMIST,TRIM1#
main71071-3D820-E0i199807-200008
SPORT SEAT(FA**/FB**),MEDIUM OAK,TRIM4#
main71071-3G100-B1i200008
SEAT = TYPE D-*104,MEDIUM CHARCOAL,TRIM1#
sub71071-3G101
main71071-3G100-E1i200008
SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
sub71071-3G101
main71071-3G110-B0i200008-200107
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#,PLANT NO. A51-A54
sub71071-3G111
main71071-3G110-E0i200008-200107
SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#,PLANT NO. A51-A54
sub71071-3G111
main71071-3G111-B1i200107
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
sub71071-3G112
main71071-3G111-E1i200107
MEDIUM OAK,TRIM4#
sub71071-3G112
main71071-3G120-E0i200008
SEAT = TYPE A OR TYPE B-*104,MEDIUM OAK,TRIM4#
main71071-3G130-B0i200008-200107
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#,PLANT NO. P11
sub71071-3G131
main71071-3G130-E0i200008-200107
SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#,PLANT NO. P11
sub71071-3G131
main71071-3G161-B1i200107
SEAT = TYPE F-*104,CHARCOAL,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71027-35020-C0i200107-200207
BADLANDS(CANADA),BLACK,TRIM17
main71073-3D420-B0i199511-199708
MOONMIST,TRIM1#
main71073-3D420-E0i199511-199708
MEDIUM OAK,TRIM4#
main71073-3D440-B0i199511-199708
SPORT SEAT(FW**),MOON MIST,TRIM1#
main71073-3D440-E0i199511-199708
SPORT SEAT(FW**),MEDIUM OAK,TRIM4#
main71073-3D450-E0i199511-199708
LEATHER SPORT SEAT(LG**),MEDIUM OAK,TRIM4#
main71073-3D450-E0i199511-199708
MEDIUM OAK,TRIM4#
main71073-3D470-B1i199608-199708
HIGH FABRIC SEAT(YJ**),MOON MIST,TRIM1#
main71073-3D470-E1i199608-199708
HIGH FABRIC SEAT(YJ**),MEDIUM OAK,TRIM4#
main71073-3D740-B1i199708-199807
SPORT SEAT(FW**),MOON MIST,TRIM1#
main71073-3D740-E1i199708-199807
SPORT SEAT(FW**),MEDIUM OAK,TRIM4#
main71073-3D750-B0i199708-199807
MOONMIST,TRIM1#
main71073-3D750-E0i199708-199807
MEDIUM OAK,TRIM4#
main71073-3D760-B0i199708-199807
HIGH FABRIC SEAT(YJ**),MOON MIST,TRIM1#
main71073-3D760-E0i199708-199807
HIGH FABRIC SEAT(YJ**),MEDIUM OAK,TRIM4#
main71073-3D770-E0i199708-200008
LEATHER SPORT SEAT(LA**/LB**/LG**),MEDIUM OAK,TRIM4#
main71073-3D800-B1i199807-200008
MOONMIST,TRIM16
main71073-3D800-E1i199807-200008
MEDIUM OAK,TRIM45
main71073-3D810-B1i199807-200008
MOONMIST,TRIM1#
main71073-3D810-E1i199807-200008
MEDIUM OAK,TRIM4#
main71073-3D820-B0i199807-200008
(FC**,FD**),MOONMIST,TRIM1#
main71073-3D820-E0i199807-200008
(FC**,FD**),MEDIUM OAK,TRIM4#
main71073-3D840-B0i199807-200008
SPORT SEAT(FA**/FB**),MOONMIST,TRIM1#
main71073-3D840-E0i199807-200008
SPORT SEAT(FA**/FB**),MEDIUM OAK,TRIM4#
main71073-3G140-B0i200008
SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM1#
main71073-3G140-E0i200008
SEAT = TYPE E-*104,MEDIUM OAK,TRIM4#
main71073-3G150-B0i200008
SEAT = TYPE D-*104,MEDIUM CHARCOAL,TRIM1#
main71073-3G150-E0i200008
SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
main71073-3G170-B0i200008-200107
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
sub71073-3G171
main71073-3G170-E0i200008-200107
SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#
sub71073-3G171
main71073-3G171-B1i200107
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
main71073-3G171-E1i200107
MEDIUM OAK,TRIM4#
main71073-3G180-E0i200008
SEAT = TYPE A OR TYPE B-*104,MEDIUM OAK,TRIM4#
main71073-3G211-B1i200107
SEAT = TYPE F-*104,CHARCOAL,TRIM1#
main71073-3G370-B0i200010-200107
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM17
sub71073-3G170
main71073-3G370-E0i200010
SEAT = TYPE C-*104,MEDIUM OAK,TRIM45
sub71073-3G170
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71027-35030-C0i200107-200207
BADLANDS(CANADA),BLACK,TRIM17
main71073-3D420-B0i199511-199807
MOONMIST,TRIM1#
main71073-3D420-E0i199511-199807
MEDIUM OAK,TRIM4#
main71073-3D470-B1i199608-199807
HIGH FABRIC SEAT(YJ**),MOON MIST,TRIM1#
main71073-3D470-E1i199608-199807
HIGH FABRIC SEAT(YJ**),MEDIUM OAK,TRIM4#
main71073-3D800-B1i199807-200008
MOONMIST,TRIM1#
main71073-3D800-E1i199807-200008
MEDIUM OAK,TRIM4#
main71073-3G130-B0i200008
SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM1#
main71073-3G130-E0i200008
SEAT = TYPE E-*104,MEDIUM OAK,TRIM4#
main71073-3G180-E0i200008
SEAT = TYPE A OR TYPE B-*104,MEDIUM OAK,TRIM4#
main71074-35340-B0i199511-199708
SPORT SEAT(FW**),MOON MIST,TRIM1#
sub71073-3D440
main71074-35340-E0i199511-199708
SPORT SEAT(FW**),MEDIUM OAK,TRIM4#
sub71073-3D440
main71074-35350-E0i199511-199708
LEATHER SPORT SEAT(LG**),MEDIUM OAK,TRIM4#
sub71074-35400
main71074-35360-E0i199511-199708
MEDIUM OAK,TRIM4#
sub71074-35420
main71074-35390-B1i199708-199807
SPORT SEAT(FW**),MOON MIST,TRIM1#
main71074-35390-E1i199708-199807
SPORT SEAT(FW**),MEDIUM OAK,TRIM4#
main71074-35400-E0i199708-200008
LEATHER SPORT SEAT(LA**/LB**/LG**),MEDIUM OAK,TRIM4#
main71074-35420-E0i199708-200008
MEDIUM OAK,TRIM4#
main71074-35430-B0i199807-200008
(FC**,FD**),MOONMIST,TRIM1#
main71074-35430-E0i199807-200008
(FC**,FD**),MEDIUM OAK,TRIM4#
main71074-35450-B0i199807-200008
SPORT SEAT(FA**/FB**),MOONMIST,TRIM1#
main71074-35450-E0i199807-200008
SPORT SEAT(FA**/FB**),MEDIUM OAK,TRIM4#
main71074-35510-B0i200008
SEAT = TYPE D-*104,MEDIUM CHARCOAL,TRIM1#
main71074-35510-E0i200008
SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
main71074-35520-B0i200008-200107
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
sub71074-35521
main71074-35520-E0i200008-200107
SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#
sub71074-35521
main71074-35521-B1i200107
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
main71074-35521-E1i200107
MEDIUM OAK,TRIM4#
main71074-35540-E0i200008
SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#
main71074-35580-B0i200010-200107
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM17
sub71074-35520
main71074-35580-E0i200010
SEAT = TYPE C-*104,MEDIUM OAK,TRIM45
sub71074-35520
main71074-35601-B1i200107
SEAT = TYPE F-*104,CHARCOAL,TRIM1#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-3D200-B0i199511-199807
MOONMIST,TRIM1#
main71410-3D200-E0i199511-199807
MEDIUM OAK,TRIM4#
main71410-3D210-B0i199511-199708
SPORT SEAT(FW**),MOON MIST,TRIM1#
main71410-3D210-E0i199511-199708
SPORT SEAT(FW**),MEDIUM OAK,TRIM4#
main71410-3D220-E0i199511-199807
MEDIUM OAK,TRIM4#
main71410-3D220-E0i199511-199807
LEATHER SPORT SEAT(LG**),MEDIUM OAK,TRIM4#
main71410-3D260-B1i199608-199807
HIGH FABRIC SEAT(YJ**),MOON MIST,TRIM1#
main71410-3D260-E1i199608-199807
HIGH FABRIC SEAT(YJ**),MEDIUM OAK,TRIM4#
main71410-3D590-B1i199708-199807
SPORT SEAT(FW**),MOON MIST,TRIM1#
main71410-3D590-E1i199708-199807
SPORT SEAT(FW**),MEDIUM OAK,TRIM4#
main71410-3D710-B1i199807-200008
SPORT SEAT(FA**/FB**),MOONMIST,TRIM1#
main71410-3D710-E0i199807-200008
SPORT SEAT(FA**/FB**),MEDIUM OAK,TRIM4#
main71420-35510-B1i199807-200008
MOONMIST,TRIM1#
main71420-35510-E1i199807-200008
MEDIUM OAK,TRIM4#
main71420-35520-B0i199807-200008
(FC**,FD**),MOONMIST,TRIM1#
main71420-35520-E0i199807-200008
(FC**,FD**),MEDIUM OAK,TRIM4#
main71420-35530-B1i199807-200008
MOONMIST,TRIM1#
main71420-35530-E0i199807-200008
MEDIUM OAK,TRIM4#
main71420-35540-E0i199807-200008
LEATHER SPORT SEAT(LA**/LB**),MEDIUM OAK,TRIM4#
main71420-35600-B1i200008
SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM1#
main71420-35600-E1i200008
SEAT = TYPE E-*104,MEDIUM OAK,TRIM4#
main71420-35610-B1i200008
SEAT = TYPE D-*104,MEDIUM CHARCOAL,TRIM1#
main71420-35610-E1i200008
SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
main71420-35620-B0i200008-200107
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
sub71420-35621
main71420-35620-E0i200008-200107
SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#
sub71420-35621
main71420-35621-B1i200107
***,SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
main71420-35621-E1i200107
MEDIUM OAK,TRIM4#
main71420-35630-E0i200008
SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#
main71420-35640-E0i200008
SEAT = TYPE A-*104,MEDIUM OAK,TRIM4#
main71420-35701-B1i200107
***,SEAT = TYPE F-*104,CHARCOAL,TRIM1#
main71420-35710-C0i200107-200207
BADLANDS(CANADA),BLACK,TRIM17
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71410-3D200-B0i199511-199807
MOONMIST,TRIM1#
main71410-3D200-E0i199511-199807
MEDIUM OAK,TRIM4#
main71410-3D210-B0i199511-199708
SPORT SEAT(FW**),MOON MIST,TRIM1#
main71410-3D210-E0i199511-199708
SPORT SEAT(FW**),MEDIUM OAK,TRIM4#
main71410-3D220-E0i199511-200008
MEDIUM OAK,TRIM4#
main71410-3D220-E0i199511-200008
LEATHER SPORT SEAT(LA**/LB**/LG**),MEDIUM OAK,TRIM4#
main71410-3D260-B1i199608-199807
HIGH FABRIC SEAT(YJ**),MOON MIST,TRIM1#
main71410-3D260-E1i199608-199807
HIGH FABRIC SEAT(YJ**),MEDIUM OAK,TRIM4#
main71410-3D440-B1i200008
SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM1#
main71410-3D440-E1i200008
SEAT = TYPE E-*104,MEDIUM OAK,TRIM4#
main71410-3D590-B1i199708-199807
SPORT SEAT(FW**),MOON MIST,TRIM1#
main71410-3D590-E1i199708-199807
SPORT SEAT(FW**),MEDIUM OAK,TRIM4#
main71410-3D680-B1i199807-200008
MOONMIST,TRIM1#
main71410-3D680-E1i199807-200008
MEDIUM OAK,TRIM4#
main71410-3D700-B0i199807-200008
(FC**,FD**),MOONMIST,TRIM1#
main71410-3D700-E0i199807-200008
(FC**,FD**),MEDIUM OAK,TRIM4#
main71410-3D710-B1i199807-200008
MOONMIST,TRIM1#
main71410-3D710-E0i199807-200008
MEDIUM OAK,TRIM4#
main71410-3D880-B1i200008
SEAT = TYPE D-*104,MEDIUM CHARCOAL,TRIM1#
main71410-3D880-E1i200008
SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
main71410-3D890-B0i200008-200107
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
sub71410-3D891
main71410-3D890-E0i200008-200107
SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#
sub71410-3D891
main71410-3D891-B1i200107
***,SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
main71410-3D891-E1i200107
MEDIUM OAK,TRIM4#
main71410-3G010-E0i200008
SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#
main71410-3G020-E0i200008
SEAT = TYPE A-*104,MEDIUM OAK,TRIM4#
main71410-3G061-B1i200107
***,SEAT = TYPE F-*104,CHARCOAL,TRIM1#
main71410-3G090-C0i200107-200207
BADLANDS(CANADA),BLACK,TRIM17
main71420-35530-B1i199807-200008
SPORT SEAT(FA**/FB**),MOONMIST,TRIM1#
main71420-35530-E0i199807-200008
SPORT SEAT(FA**/FB**),MEDIUM OAK,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71040-35030-B1i199708-199807
SPORT SEAT(FW**),MOON MIST,TRIM1#
main71040-35030-E1i199708-199807
SPORT SEAT(FW**),MEDIUM OAK,TRIM4#
main71040-35060-B0i199708-199807
MOONMIST,TRIM1#
main71040-35060-E0i199708-199807
MEDIUM OAK,TRIM4#
main71040-35070-E0i199708-200008
LEATHER SPORT SEAT(LA**/LB**/LG**),MEDIUM OAK,TRIM4#
main71040-35080-B0i199708-199807
HIGH FABRIC SEAT(YJ**),MOON MIST,TRIM1#
main71040-35080-E0i199708-199807
HIGH FABRIC SEAT(YJ**),MEDIUM OAK,TRIM4#
main71040-35100-B1i199807-200008
MOONMIST,TRIM1#
main71040-35100-E1i199807-200008
MEDIUM OAK,TRIM4#
main71040-35120-B0i199807-200008
MOONMIST,TRIM1#
main71040-35120-E0i199807-200008
MEDIUM OAK,TRIM4#
main71040-35140-B0i199807-200008
SPORT SEAT(FA**/FB**),MOONMIST,TRIM1#
main71040-35140-E0i199807-200008
SPORT SEAT(FA**/FB**),MEDIUM OAK,TRIM4#
main71040-35470-C0i200107-200207
BADLANDS(CANADA),BLACK,TRIM17
main71430-3D720-B0i199511-199708
MOONMIST,TRIM1#
main71430-3D720-E0i199511-199708
MEDIUM OAK,TRIM4#
main71430-3D730-B0i199511-199708
SPORT SEAT(FW**),MOON MIST,TRIM1#
main71430-3D730-E0i199511-199708
SPORT SEAT(FW**),MEDIUM OAK,TRIM4#
main71430-3D740-E0i199511-199708
MEDIUM OAK,TRIM4#
main71430-3D740-E0i199511-199708
LEATHER SPORT SEAT(LG**),MEDIUM OAK,TRIM4#
main71430-3D810-B2i199608-199708
HIGH FABRIC SEAT(YJ**),MOON MIST,TRIM1#
main71430-3D810-E2i199608-199708
HIGH FABRIC SEAT(YJ**),MEDIUM OAK,TRIM4#
main71430-3D840-B0i200008
SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM1#
main71430-3D840-E0i200008
SEAT = TYPE E-*104,MEDIUM OAK,TRIM4#
main71430-3D860-B0i200008
SEAT = TYPE D-*104,MEDIUM CHARCOAL,TRIM1#
main71430-3D860-E0i200008
SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
main71430-3G350-B0i200008-200107
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
sub71430-3G351
main71430-3G350-E0i200008-200107
SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#
sub71430-3G351
main71430-3G351-B1i200107
***,SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
main71430-3G351-E1i200107
MEDIUM OAK,TRIM4#
main71430-3G380-E0i200008
SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#
main71430-3G390-E0i200008
SEAT = TYPE A-*104,MEDIUM OAK,TRIM4#
main71430-3G421-B1i200107
***,SEAT = TYPE F-*104,CHARCOAL,TRIM1#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71040-35110-B2i199807-200008
(FP**,FQ**,FU**,FV**),MOONMIST,TRIM1#
main71040-35110-E1i199807-200008
(FP**,FQ**,FU**,FV**),MEDIUM OAK,TRIM4#
main71040-35130-B0i199807-200008
(FC**,FD**),MOONMIST,TRIM1#
main71040-35130-E0i199807-200008
(FC**,FD**),MEDIUM OAK,TRIM4#
main71040-35140-B0i199807-200008
(FB**),MOONMIST,TRIM1#
main71040-35140-E0i199807-200008
(FB**),MEDIUM OAK,TRIM4#
main71040-35480-C0i200107-200207
BADLANDS(CANADA),BLACK,TRIM17
main71430-3D720-B0i199511-199807
(YA**,YB**),MOONMIST,TRIM1#
main71430-3D720-B0i199511-199807
(FV**),MOONMIST,TRIM1#
main71430-3D720-E0i199511-199807
(FV**),MEDIUM OAK,TRIM4#
main71430-3D720-E0i199511-199807
(YA**,YB**),MEDIUM OAK,TRIM4#
main71430-3D810-B2i199608-199807
HIGH FABRIC SEAT(YJ**),MOON MIST,TRIM1#
main71430-3D810-E2i199608-199807
HIGH FABRIC SEAT(YJ**),MEDIUM OAK,TRIM4#
main71430-3G360-B0i200008
SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM1#
sub71430-3G360
main71430-3G360-E1i200008
SEAT = TYPE E-*104,MEDIUM OAK,TRIM4#
sub71430-3G360
main71430-3G370-B0i200008
SEAT = TYPE D-*104,MEDIUM CHARCOAL,TRIM1#
main71430-3G370-E0i200008
SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
main71440-35650-B0i199511-199708
SPORT SEAT(FW**),MOON MIST,TRIM1#
main71440-35650-E0i199511-199708
SPORT SEAT(FW**),MEDIUM OAK,TRIM4#
main71440-35660-E0i199807-200008
(LE**,LF**),MEDIUM OAK,TRIM4#
main71440-35660-E0i199608-199807
(LL**),MEDIUM OAK,TRIM4#
main71440-35670-E0i199511-200008
LEATHER SPORT SEAT(LA**/LB**/LG**),MEDIUM OAK,TRIM4#
main71440-35740-B1i199708-199807
SPORT SEAT(FW**),MOON MIST,TRIM1#
main71440-35740-E1i199708-199807
SPORT SEAT(FW**),MEDIUM OAK,TRIM4#
main71440-35770-B0i199807-200008
SPORT SEAT(FA**/FB**),MOONMIST,TRIM1#
main71440-35770-E0i199807-200008
SPORT SEAT(FA**/FB**),MEDIUM OAK,TRIM4#
main71440-35830-B0i200008-200107
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
sub71440-35831
main71440-35830-E0i200008-200107
SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#
sub71440-35831
main71440-35831-B1i200107
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
main71440-35831-E1i200107
SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#
main71440-35840-E0i200008
SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#
main71440-35850-E0i200008
SEAT = TYPE A-*104,MEDIUM OAK,TRIM4#
main71440-3D011-B1i200107
SEAT = TYPE F-*104,CHARCOAL,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-35020i200008
LEATHER SPORT SEAT & W(WARNING SENSOR)
main71501-35030i200008
W(WARNING SENSOR)
main71501-35040i200008
W(LUMBAR SUPPORT)
main71501-35050i199807-200008
main71501-35060i199807-200008
SPORT SEAT
main71511-35040i199511-199807
main71511-35050i199511-199807
LEATHER SPORT SEAT(LG**) OR SPORT SEAT(FW**)
main71511-35050i199511-199807
LEATHER SPORT SEAT(LG**)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71501-35010i200008
W(VERTICAL SEAT AJDUSTER)
main71501-35050i199807-200008
main71501-35060i199807-200008
SPORT SEAT
main71511-35040i199511-199807
main71511-35050i199511-199807
LEATHER SPORT SEAT(LG**)
main71511-35050i199511-199807
LEATHER SPORT SEAT(LG**) OR SPORT SEAT(FW**)
71517CLOTH, FRONT SEAT CUSHION UNDER
main71517-34060i199807-200008
550 X 420
main71517-35060i199807-200008
200 X 420
main71517-35060i199511
71537APROTECTOR, FRONT SEAT CUSHION
main71537-35020i199807-200008
100X70
main71537-35030i199807-200008
120X70
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71505-35010i200008
W(POWER SEAT)
main71551-35040i199511
main71551-35050i199511-200008
LEATHER SPORT SEAT(LG**) OR SPORT SEAT(FW**)
main71551-35050i199511-200008
LEATHER SPORT SEAT(LG**)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71505-35010i200008
W(POWER SEAT)
main71551-35040i199511
main71551-35050i199511
LEATHER SPORT SEAT(LG**) OR SPORT SEAT(FW**)
main71551-35050i199511
LEATHER SPORT SEAT(LG**)
main71551-35050i199511-200008
71561BPAD, FRONT SEATBACK, UPPER
main71561-35100i199807-200009
PLANT NO. A51-A54
main71561-35110i199807-200009
PLANT NO. P11
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-60080i199612
71588PROTECTOR, FRONT SEATBACK EDGE, NO.2
main71588-60030i199612
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-35060i199511-199708
main71610-35110i199708
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71610-35060i199511-199708
main71610-35110i199708
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-35110i199511
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71630-35100i199511
LEATHER SPORT SEAT(LG**)
main71630-35100i199511
LEATHER SPORT SEAT(LG**) OR SPORT SEAT(FW**)
main71630-35100i200008
main71630-35110i199511
main71640-35030i199511-200008
71831DCOVER, FRONT SEAT HINGE, RH
main71831-35050i199511
71832DCOVER, FRONT SEAT HINGE, LH
main71832-35050i199511
71910AHEADREST ASSY, FRONT SEAT
main71910-35250-B0i199511-199807
MOONMIST,TRIM1#
main71910-35250-E0i199511-199807
MEDIUM OAK,TRIM4#
main71910-35260-B0i199511-199807
SPORT SEAT(FW**),MOON MIST,TRIM1#
main71910-35260-E0i199511-199807
SPORT SEAT(FW**),MEDIUM OAK,TRIM4#
main71910-35270-E0i199511-199708
LEATHER SPORT SEAT(LG**),MEDIUM OAK,TRIM4#
sub71910-35450
main71910-35270-E0i199511-199708
MEDIUM OAK,TRIM4#
sub71910-35450
main71910-35320-B1i199608-199807
HIGH FABRIC SEAT(YJ**),MOON MIST,TRIM1#
main71910-35320-E2i199608-199807
HIGH FABRIC SEAT(YJ**),MEDIUM OAK,TRIM4#
main71910-35450-E0i199708
MEDIUM OAK,TRIM4#
main71910-35450-E0i199708
LEATHER SPORT SEAT(LA**/LB**/LG**),MEDIUM OAK,TRIM4#
main71910-35470-B1i199807-200008
MOONMIST,TRIM1#
main71910-35470-E1i199807-200008
MEDIUM OAK,TRIM4#
main71910-35480-B3i199807-200008
(FC**,FD**),MOONMIST,TRIM1#
main71910-35480-E1i199807-200008
(FC**,FD**),MEDIUM OAK,TRIM4#
main71910-35490-B3i199807-200008
SPORT SEAT(FA**/FB**),MOONMIST,TRIM1#
main71910-35490-E1i199807-200008
SPORT SEAT(FA**/FB**),MEDIUM OAK,TRIM4#
main71910-35540-B0i200008
SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM1#
main71910-35540-E0i200008
SEAT = TYPE E-*104,MEDIUM OAK,TRIM4#
main71910-35550-B0i200008
SEAT = TYPE D-*104,MEDIUM CHARCOAL,TRIM1#
main71910-35550-E0i200008
SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
main71910-35560-B0i200008
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
main71910-35560-E0i200008
SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#
main71910-35670-B0i200107
SEAT = TYPE F-*104,CHARCOAL,TRIM1#
main71910-35680-C0i200107-200207
BADLANDS(CANADA),BLACK,TRIM17
71931SUPPORT, FRONT SEAT HEADREST
main71930-13030-B0i200008-200208
W(LOCK),MD.CHARCOAL,TRIM1#
sub71930-13030
main71930-13030-B2i199708-200008
W(LOCK),BLUE GRAY,TRIM1#
sub71930-13030
main71930-13030-C0i200107-200207
W(LOCK),BADLANDS(CANADA),BLACK,TRIM17
sub71930-13030
main71930-13030-E0i199708-200208
W(LOCK),MD.OAK,TRIM4#
sub71930-13030
main71930-32020-B2i199511-199708
W(LOCK),BLUE GRAY,TRIM1#
sub71930-32020
main71930-32020-E6i199511-199708
W(LOCK),MD.OAK,TRIM4#
sub71930-32020
main71931-12040-C0i200107-200207
W/O(LOCK),BADLANDS(CANADA),BLACK,TRIM17
sub71931-12040
sub71931-10020
main71931-12040-E8i199612-200208
W/O(LOCK),OAK,TRIM4#
sub71931-12040
sub71931-10020
main71931-12040-P6i199612-200008
W/O(LOCK),BLUE GRAY,TRIM1#
sub71931-12040
sub71931-10020
main71931-12040-P9i200008-200208
W/O(LOCK),MD.CHARCOAL,TRIM1#
sub71931-12040
sub71931-10020
main71931-32020-B2i199511-199612
W/O(LOCK),BLUE GRAY,TRIM1#
sub71931-32020
main71931-32020-E6i199511-199612
W/O(LOCK),MD.OAK,TRIM4#
sub71931-32020
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-35010i199511
main72760-35020i199511
LEATHER SPORT SEAT(LG**) OR SPORT SEAT(FW**)
72791LEVER, LUMBAR SUPPORT
main72791-12010-B3i199511-200008
LEATHER SPORT SEAT(LG**) OR SPORT SEAT(FW**),MD.MOON MIST,TRIM1#
sub72791-12010
main72791-12010-B3i199608-200008
LEATHER SPORT SEAT(LA**/LB**/LG**) OR SPORT SEAT(FA**/FB**/FW**),MD.MOON MIST,TRIM1#
sub72791-12010
main72791-12010-B9i200008
LEATHER SPORT SEAT(LG**) OR SPORT SEAT(FW**),MD.CHARCOAL,TRIM1#
sub72791-12010
main72791-12010-B9i200008
LEATHER SPORT SEAT(LA**/LB**/LG**) OR SPORT SEAT(FA**/FB**/FW**),MD.CHARCOAL,TRIM1#
sub72791-12010
main72791-12010-E2i199511
MD.OAK,TRIM4#
sub72791-12010
main72791-12010-E2i199511
LEATHER SPORT SEAT(LA**/LB**/LG**) OR SPORT SEAT(FA**/FB**/FW**),MD.OAK,TRIM4#
sub72791-12010
72797SPACER, LUMBAR SUPPORT
main72797-50010i199511
8513
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-35030i200008
SEAT CUSHION
main87510-35040i200008
SEAT BACK
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-35030i200008
SEAT CUSHION
main87510-35040i200008
SEAT BACK
9046818071
main90468-18071
9052001006
main90520-01006
9165160614
main91651-60614

34 parts on this diagram · 5 diagrams in section
