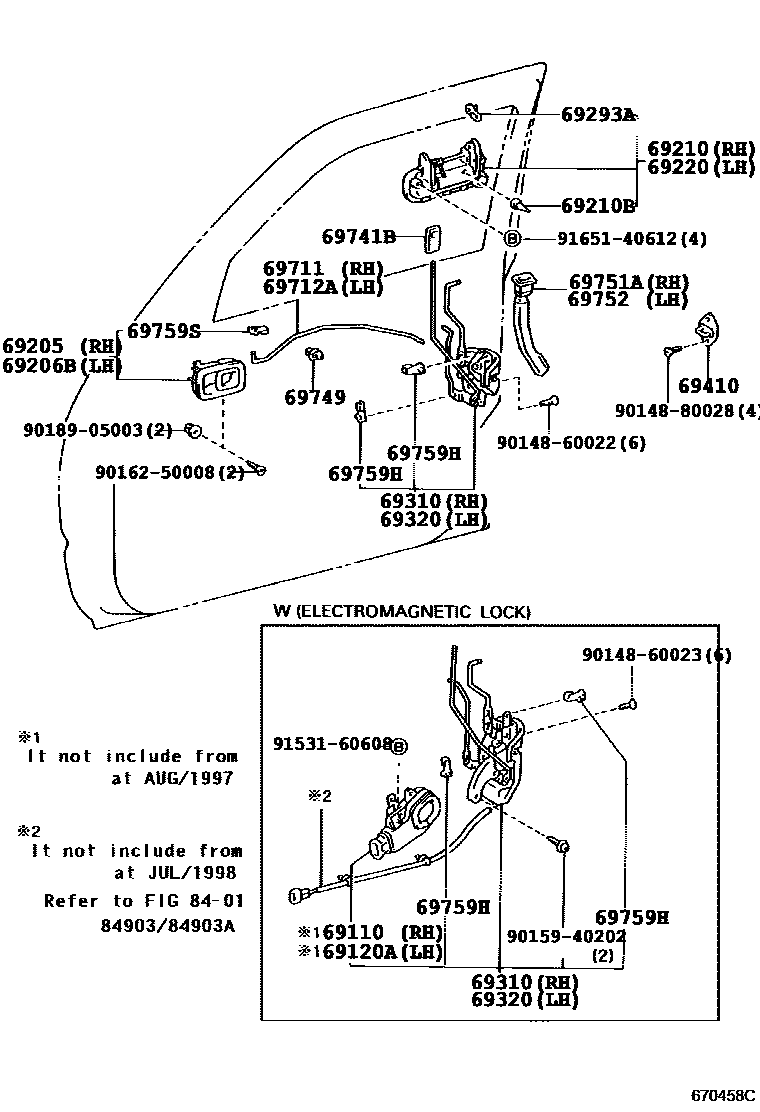

FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
W(ELECTROMAGNETIC LOCK)
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
W(ELECTROMAGNETIC LOCK)
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE,056
DK BROWNISH GRAY MM,1A1
WARM GRAY PEARL ME,1A5
BLACK,202
RED,3H7
RED MM,3K4
RED,3L5
DK.TEAL GREEN MC.,751
LT.BLUE M.M.,8L6
DK.BLUE M.M.,8L7
GRAYISH PURPLE M.M.,926
NO PAINT REQ.
WHITE,056
DK BROWNISH GRAY MM,1A1
WARM GRAY PEARL ME.,1A5
BLACK,202
RED MM,3K4
RED,3L5
DK.TEAL GREEN MC.,751
LT.BLUE M.M.,8L6
DK.BLUE M.M.,8L7
GRAYISH PURPLE ME.,926
NO PAINT REQ.
WHITE,K72 ,056
WHITE,056
LIMITED PEARL PAINT(USA),WHITE PM,KF7
WARM GRAY PEARL ME.,1A5
SILVER ME.,1C0
SILVER ME.,K73 ,1C0
GRAY ME.,KF9 ,1D2
BADLANDS(CANADA),GRAY ME.,KF9
BLACK,202
BLACK,KA3 ,202
BADLANDS(CANADA),BLACK,KA3
RED MM,K89
RED MM,KG2
RED MM,KG2 ,3K4
RED MM,KG2 ,KH6 ,3K4
BADLANDS(CANADA),RED MM,KH6
RED,3L5
COPPER ME.,4P5
CHAMPAGNE M.M.,KG4 ,KG5
DK. GREEN MC.,6Q7
DK. GREEN MC.,KG6 ,6Q7
DK. GREEN MC.,KG6
DK. GREEN MC.,K79 ,6Q7
AQUA ME.,KG7
BADLANDS(CANADA),DK.BLUE M.M.,KH7
DK.BLUE M.M.,8L7
DK.BLUE M.M.,KG9 ,KH7 ,8L7
DK.BLUE M.M.,KG9 ,8L7
DK.BLUE M.M.,KG9
BLUE ME.,8N1
PLATED,CHROME PACKAGE(USA),GRAY ME.,1D2
PLATED,CHROME PACKAGE(USA),BLACK,202
PLATED,CHROME PACKAGE(USA),RED MM,3K4
PLATED,CHROME PACKAGE(USA),DK.BLUE M.M.,8L7
NO PAINT REQ.
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE,056
DK BROWNISH GRAY MM,1A1
WARM GRAY PEARL ME,1A5
BLACK,202
RED,3H7
RED MM,3K4
RED,3L5
DK.TEAL GREEN MC.,751
LT.BLUE M.M.,8L6
DK.BLUE M.M.,8L7
GRAYISH PURPLE M.M.,926
NO PAINT REQ.
WHITE,056
DK BROWNISH GRAY MM,1A1
WARM GRAY PEARL ME.,1A5
BLACK,202
RED MM,3K4
RED,3L5
DK.TEAL GREEN MC.,751
LT.BLUE M.M.,8L6
DK.BLUE M.M.,8L7
GRAYISH PURPLE ME.,926
NO PAINT REQ.
WHITE,K72 ,056
WHITE,056
LIMITED PEARL PAINT(USA),WHITE PM,KF7
WARM GRAY PEARL ME.,1A5
SILVER ME.,K73 ,1C0
SILVER ME.,1C0
BADLANDS(CANADA),GRAY ME.,KF9
GRAY ME.,KF9 ,1D2
BLACK,202
BADLANDS(CANADA),BLACK,KA3
BLACK,KA3 ,202
RED MM,K89
RED MM,KG2 ,3K4
RED MM,KG2
RED MM,KG2 ,KH6 ,3K4
BADLANDS(CANADA),RED MM,KH6
RED,3L5
COPPER ME.,4P5
CHAMPAGNE M.M.,KG4 ,KG5
DK. GREEN MC.,KG6 ,6Q7
DK. GREEN MC.,K79 ,6Q7
DK. GREEN MC.,KG6
DK. GREEN MC.,6Q7
AQUA ME.,KG7
DK.BLUE M.M.,8L7
DK.BLUE M.M.,KG9 ,8L7
BADLANDS(CANADA),DK.BLUE M.M.,KH7
DK.BLUE M.M.,KG9
DK.BLUE M.M.,KG9 ,KH7 ,8L7
BLUE ME.,8N1
*CR,CHROME PACKAGE(USA),GRAY ME.,1D2
*CR,CHROME PACKAGE(USA),BLACK,202
*CR,CHROME PACKAGE(USA),RED MM,3K4
*CR,CHROME PACKAGE(USA),DK.BLUE M.M.,8L7
NO PAINT REQ.
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
NATURAL,RH
RH
YELLOW,LH
LH
69310LOCK ASSY, FRONT DOOR, RH
W(ELECTROMAGNETIC LOCK)
W(ELECTROMAGNETIC LOCK)
W(ELECTROMAGNETIC LOCK)
69320LOCK ASSY, FRONT DOOR, LH
W(ELECTROMAGNETIC LOCK)
W(ELECTROMAGNETIC LOCK)
W(ELECTROMAGNETIC LOCK)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711LINK, FRONT SLIDE DOOR KEY CYLINDER
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69741BKNOB, FRONT DOOR LOCK CONTROL
69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)
69752HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
YELLOW
BROWN
NATURAL
BLUE
69759SSNAP, FRONT DOOR INSIDE HANDLE
GRAY
GREEN
9014860022
main90148-60022
9014860023
main90148-60023
9014880028
main90148-80028
9015940202
main90159-40202
9016250008
main90162-50008
9018905003
main90189-05003
9153160608
main91531-60608
9165140612
main91651-40612
27 parts on this diagram · 1 diagram in section
