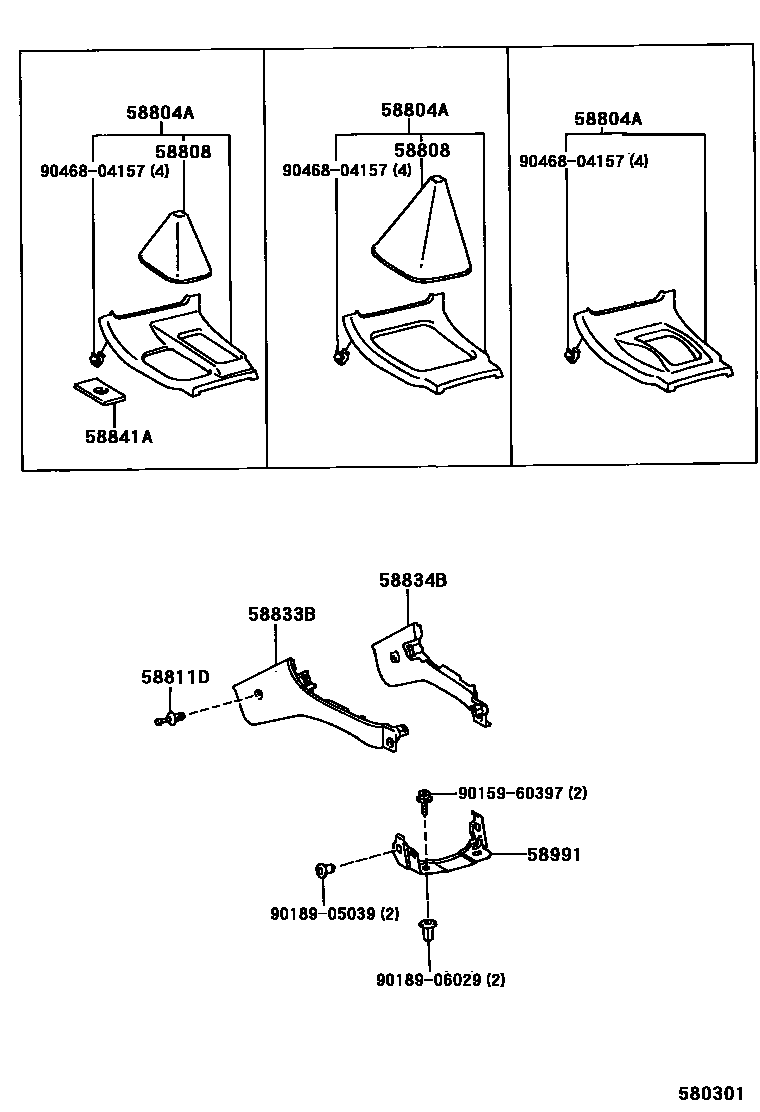

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-35020iVZN180..LULI200008

main58804-35050iVZN185..LULI199511-199807

sub58804-35070

main58804-35060iRZN185,VZN185..5F199511-200008

main58804-35070iRZN185,VZN185..4FC..(SR5B,SR5V)199511-200008

main58804-35080iRZN180..5F199511-200008

main58804-35090iRZN180,VZN180..4FC199511-199807

main58804-35140iVZN185..LULI199807-200008

sub58804-35220

main58804-35150iVZN180..LULI199807-200008

sub58804-35020

main58804-35200iVZN180..SR5V200008

METALLIC

main58804-35220iVZN185..LULI200008

main58804-35230iVZN185..SR5B200107-200207

BADLANDS(CANADA)

sub58804-35280

main58804-35230iVZN185..SR5V200008

METALLIC

sub58804-35280

main58804-35300iVZN185..SR5B,SR5V200008

BLACK

sub58804-35070

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-35110iRZN180..5F199511-200008

main58808-35140iRZN185,VZN185..5F199511-200008

main58808-35160iVZN185..LULI199511-200008

sub58808-35170

main58808-35170iRZN185,VZN185..4FC..(SR5B,SR5V)199511-200008

58811DCLIP(FOR CONSOLE BOX)

main90467-07041-B5iRZN18#,VZN18#..SR5B,SR5V199511-200008

MD.MOON MIST,TRIM1#

sub90467-07041

main90467-07041-B7iVZN18#..SR5B,SR5V200008

DK.CHARCOAL,TRIM1#

sub90467-07041

main90467-07041-E0iRZN18#,VZN18#199511

OAK,TRIM4#

sub90467-07041

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-35010-B0iRZN18#,VZN18#..SR5B,SR5V199511-200008

MD.MOON MIST,TRIM1#

sub58833-35010

main58833-35010-B1iVZN18#..SR5B,SR5V200008

DK.CHARCOAL,TRIM1#

sub58833-35010

main58833-35010-E0iRZN18#,VZN18#199511

OAK,TRIM4#

sub58833-35010

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-35010-B0iRZN18#,VZN18#..SR5B,SR5V199511-200008

MD.MOON MIST,TRIM1#

sub58834-35010

main58834-35010-B1iVZN18#..SR5B,SR5V200008

DK.CHARCOAL,TRIM1#

sub58834-35010

main58834-35010-E0iRZN18#,VZN18#199511

OAK,TRIM4#

sub58834-35010

58841ACOVER, SHIFTING HOLE

main58841-35010iRZN185,VZN185..4FC199511

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-35030iRZN180,VZN180;RZN185,VZN185..5F199511

9015960397

main90159-60397

9018905039

main90189-05039

9018906029

main90189-06029

9046804157

main90468-04157

11 parts on this diagram · 3 diagrams in section
