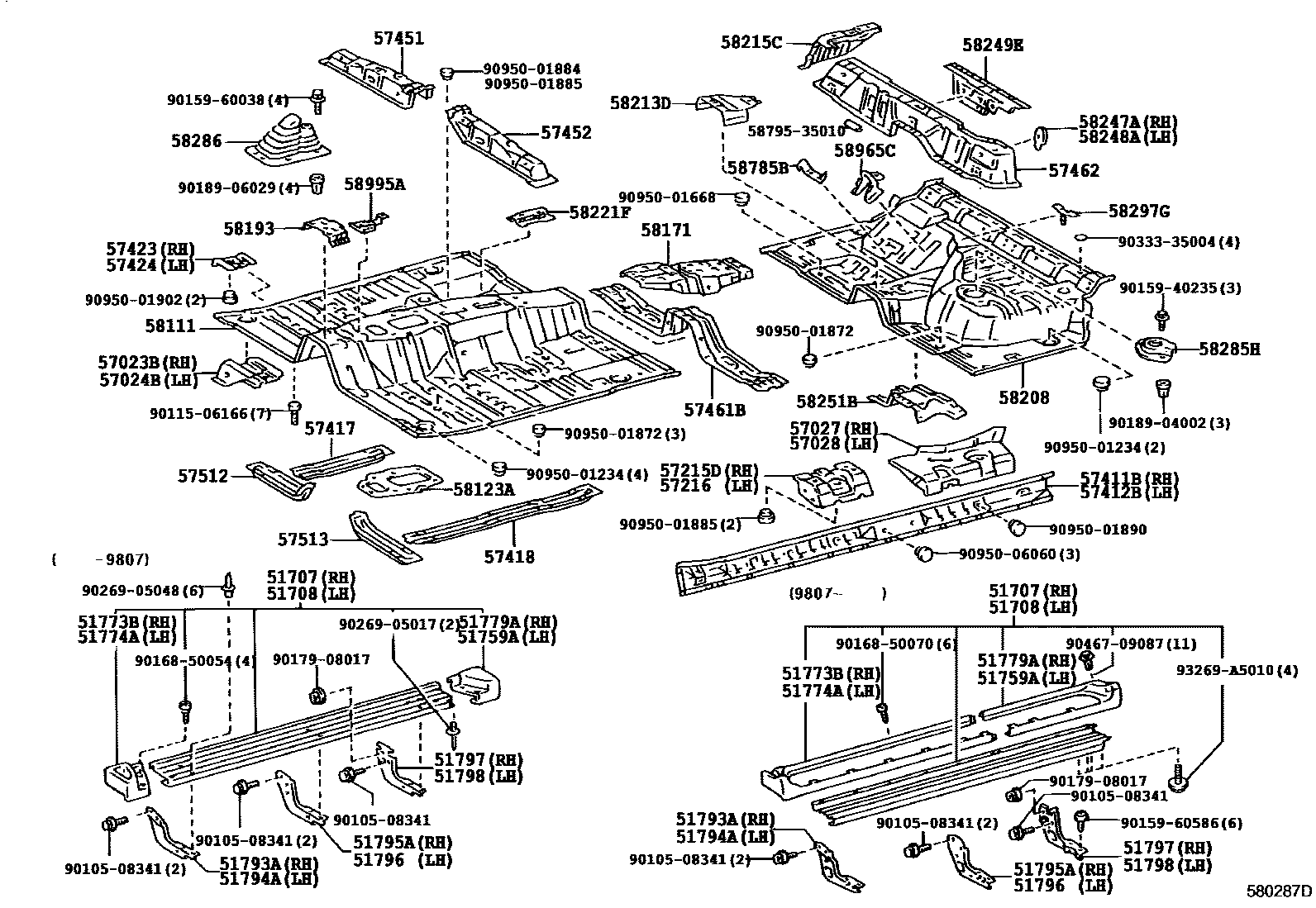

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51707STEP SUB-ASSY, RH
LT.GRAIGE ME.,K87 ,K89 ,K92
LT.GRAIGE ME.,K87 ,K89 ,K90 ,K92
SILVER ME.,K73
SILVER ME.,KG0 ,K72 ,K73
BL.SILVER ME,K82 ,K84 ,K85
GRAY ME.,KF8 ,KF9 ,KG1 ,KG2 ,KG5 ,KG6 ,KG7 ,KG9
CHAMPAGNE M.M.,KG4
DK. GREEN MC.,K79
51708STEP SUB-ASSY, LH
LT.GRAIGE ME.,K87 ,K89 ,K90 ,K92
LT.GRAIGE ME.,K87 ,K89 ,K92
SILVER ME.,KG0 ,K72 ,K73
SILVER ME.,K73
BL.SILVER ME,K82 ,K84 ,K85
GRAY ME.,KF8 ,KF9 ,KG1 ,KG2 ,KG5 ,KG6 ,KG7 ,KG9
CHAMPAGNE M.M.,KG4
DK. GREEN MC.,K79
51759ACOVER, SIDE DOOR STEP PLATE, REAR LH
LT.GRAIGE ME.,K87 ,K89 ,K90 ,K92
LT.GRAIGE ME.,K87 ,K89 ,K92
SILVER ME.,KG0 ,K72 ,K73
SILVER ME.,K73
BL.SILVER ME,K82 ,K84 ,K85
GRAY ME.,KF8 ,KF9 ,KG1 ,KG2 ,KG5 ,KG6 ,KG7 ,KG9
CHAMPAGNE M.M.,KG4
DK. GREEN MC.,K79
51773BCOVER, SIDE DOOR STEP PLATE, FRONT RH
LT.GRAIGE ME.,K87 ,K89 ,K92
LT.GRAIGE ME.,K87 ,K89 ,K90 ,K92
SILVER ME.,K73
SILVER ME.,KG0 ,K72 ,K73
BL.SILVER ME,K82 ,K84 ,K85
GRAY ME.,KF8 ,KF9 ,KG1 ,KG2 ,KG5 ,KG6 ,KG7 ,KG9
CHAMPAGNE M.M.,KG4
DK. GREEN MC.,K79
51774ACOVER, SIDE DOOR STEP PLATE, FRONT LH
LT.GRAIGE ME.,K87 ,K89 ,K90 ,K92
LT.GRAIGE ME.,K87 ,K89 ,K92
SILVER ME.,K73
SILVER ME.,KG0 ,K72 ,K73
BL.SILVER ME,K82 ,K84 ,K85
GRAY ME.,KF8 ,KF9 ,KG1 ,KG2 ,KG5 ,KG6 ,KG7 ,KG9
CHAMPAGNE M.M.,KG4
DK. GREEN MC.,K79
51779ACOVER, SIDE DOOR STEP PLATE, REAR RH
LT.GRAIGE ME.,K87 ,K89 ,K92
LT.GRAIGE ME.,K87 ,K89 ,K90 ,K92
SILVER ME.,K73
SILVER ME.,KG0 ,K72 ,K73
BL.SILVER ME,K82 ,K84 ,K85
GRAY ME.,KF8 ,KF9 ,KG1 ,KG2 ,KG5 ,KG6 ,KG7 ,KG9
CHAMPAGNE M.M.,KG4
DK. GREEN MC.,K79
51793ABRACKET, SIDE STEP, NO.1 RH
51794ABRACKET, SIDE STEP, NO.1 LH
51795ABRACKET, SIDE STEP, NO.2 RH
51796BRACKET, SIDE STEP, NO.2 LH
51797BRACKET, SIDE STEP, NO.3 RH
51798BRACKET, SIDE STEP, NO.3 LH
57023BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH
57024BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH
57027BRACKET SUB-ASSY, BODY MOUNTING, NO.4 RH
57028BRACKET SUB-ASSY, BODY MOUNTING, NO.4 LH
57215DBRACKET, BODY MOUNTING, NO.3 RH
57216BRACKET SUB-ASSY, BODY MOUNTING, NO.3 LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57423BRACKET, FRONT FLOOR REINFORCEMENT, RH
57424BRACKET, FRONT FLOOR REINFORCEMENT, LH
57451MEMBER, FRONT FLOOR CROSS
57452MEMBER, FRONT FLOOR CROSS, LH
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57462MEMBER, CENTER FLOOR CROSS, NO.2
57512REINFORCEMENT, FRONT FLOOR, RH
57513REINFORCEMENT, FRONT FLOOR, LH
58111PAN, FRONT FLOOR
sub58111-35081
sub58111-35082
sub58111-35101
sub58111-35102
sub58111-35121
sub58111-35122
sub58111-35131
sub58111-35132
W(REAR HEATER)
sub58111-35151
sub58111-35152
W(REAR HEATER)
58123ASUPPORT, SHIFT & SELECT LEVER
58208PAN, CENTER FLOOR
58213DREINFORCEMENT, CENTER FLOOR PANEL
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58221FREINFORCEMENT, FLOOR PANEL, FRONT RH
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58249EREINFORCEMENT, REAR SEAT MOUNTING
58251BBRACE, FLOOR PANEL, FRONT
58285HCOVER, CENTER FLOOR HOLE
58286BOOT, SHIFT & SELECT LEVER, NO.1
58297GRETAINER, FLOOR CLAMP
58785BBRACKET, TOOL BAG BAND
58965CHOLDER, JACK
W(3RD SEAT)
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
5879535010BAND, JACK CLAMP, NO.1
main58795-35010
9010508341
main90105-08341
9011506166
main90115-06166
9015940235
main90159-40235
9015960038
main90159-60038
9015960586
main90159-60586
9016850054
main90168-50054
9016850070
main90168-50070
9017908017
main90179-08017
9018904002
main90189-04002
9018906029
main90189-06029
9026905017
main90269-05017
9026905048
main90269-05048
9033335004
main90333-35004
9046709087
main90467-09087
9095001234
main90950-01234
9095001668
main90950-01668
9095001872
main90950-01872
9095001884
main90950-01884
9095001885
main90950-01885
9095001890
main90950-01890
9095001902
main90950-01902
9095006060
main90950-06060
93269A5010
main93269-A5010
72 parts on this diagram · 1 diagram in section
