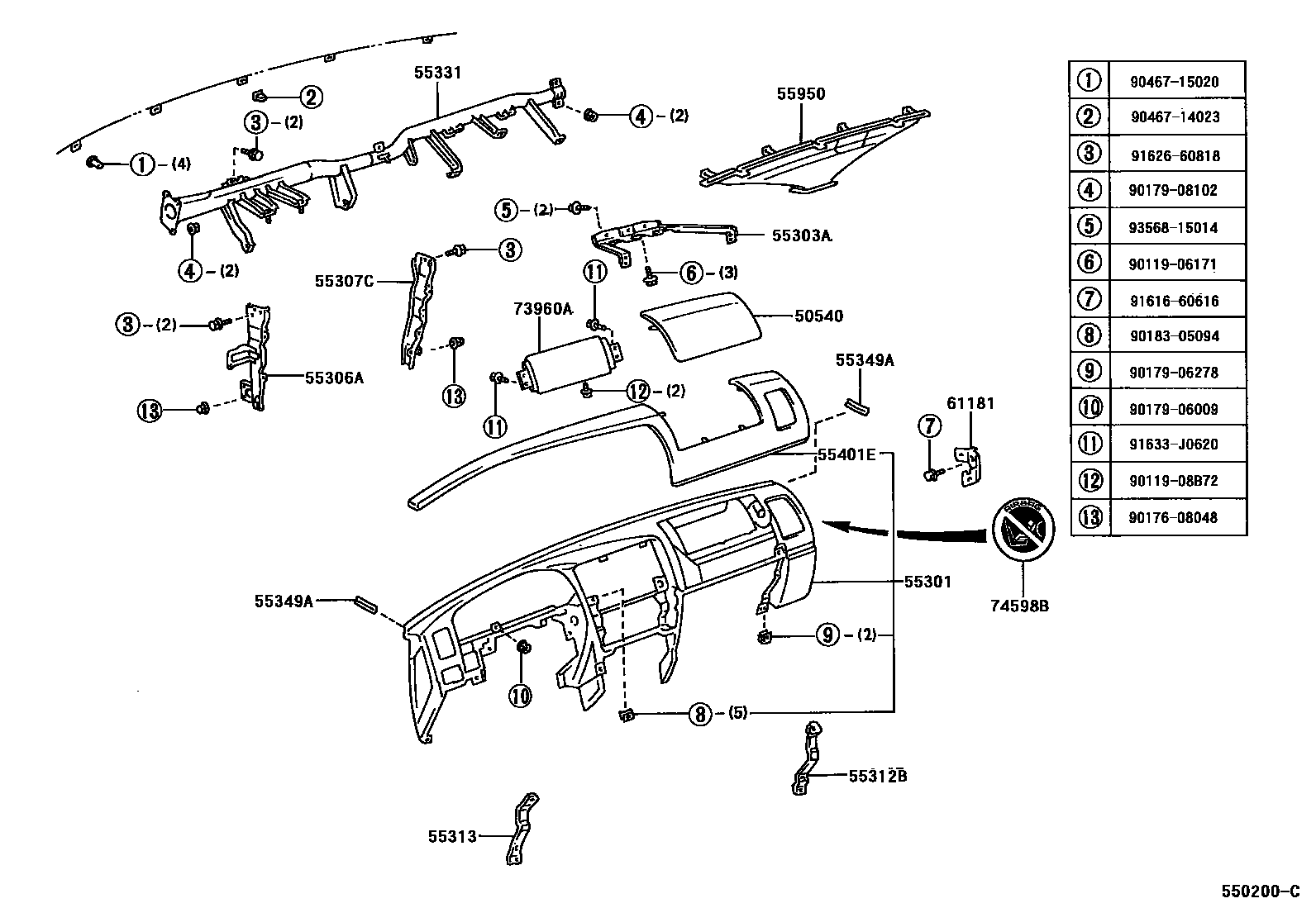

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

50540DO0R ASSY, AIRBAG PASSENGER

main50540-35010-B0iRZN18#,VZN18#..SR5B,SR5V199511-199807

MD.MOON MIST,TRIM1#

sub50540-35010

main50540-35010-E0iRZN18#,VZN18#199511-199807

OAK,TRIM4#

sub50540-35010

main50540-35030-B0iRZN18#,VZN18#..SR5B,SR5V199807-200008

MD.MOON MIST,TRIM1#

sub50540-35030

main50540-35030-B1iVZN18#..SR5B,SR5V200008

DK.CHARCOAL,TRIM1#

sub50540-35030

main50540-35030-E0iRZN18#,VZN18#199807

OAK,TRIM4#

sub50540-35030

55301PANEL SUB-ASSY, INSTRUMENT

main55301-35060-B0iRZN18#,VZN18#..SR5B,SR5V199511-199708

MD.MOON MIST,TRIM1#

sub55301-35061

sub55322-35021

main55301-35060-E0iRZN18#,VZN18#199511-199708

OAK,TRIM4#

sub55301-35061

sub55322-35021

main55301-35061-B0iRZN18#,VZN18#..SR5B,SR5V199708-199807

MD.MOON MIST,TRIM1#

sub55301-35190

sub90183-05094

main55301-35061-E0iRZN18#,VZN18#199708-199807

OAK,TRIM4#

sub55301-35190

sub90183-05094

main55301-35190-B0iRZN18#,VZN18#..SR5B,SR5V199807-200008

MD.MOON MIST,TRIM1#

main55301-35190-B1iVZN18#..SR5B,SR5V200008

DK.CHARCOAL,TRIM1#

main55301-35190-E0iRZN18#,VZN18#..SR5B,SR5V199807

OAK,TRIM4#

main55301-35200-E0iVZN18#..LULI199807

OAK,TRIM4#

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-35010iRZN18#,VZN18#199511

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-35020iRZN18#,VZN18#199511-199608

main55306-35021iRZN18#,VZN18#199608

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-35020iRZN18#,VZN18#199511-199608

main55307-35021iRZN18#,VZN18#199608

55312BPANEL, INSTRUMENT, LOWER RH

main55312-35010iRZN18#,VZN18#199511

55313PANEL, INSTRUMENT, LOWER LH

main55313-35010iRZN18#,VZN18#199511

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-35050iRZN18#,VZN18#199511-199608

sub55330-35H00

main55330-35051iRZN18#,VZN18#199608-199708

main55330-35052iRZN18#,VZN18#199708-199807

PLANT NO.A51-A54

sub55330-35110

main55330-35090iRZN18#,VZN18#199708-199807

PLANT NO.P11

sub55330-35110

main55330-35110iRZN18#,VZN18#199807-200008

sub55330-35130

main55330-35130iVZN18#200008

55349ACUSHION, INSTRUMENT PANEL

main55349-35010iRZN18#,VZN18#199511-199605

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-35030-B0iRZN18#,VZN18#..SR5B,SR5V199511-200008

MD.MOON MIST,TRIM1#

main55401-35030-B1iVZN18#..SR5B,SR5V200008

DK.CHARCOAL,TRIM1#

main55401-35030-E0iRZN18#,VZN18#199511

OAK,TRIM4#

55950NOZZLE ASSY, DEFROSTER

main55950-35020iRZN18#,VZN18#199511

61181BRACKET, INSTRUMENT PANEL SIDE

main61181-35010iRZN18#,VZN18#199511

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0W090iRZN18#,VZN18#199511-199708

main73960-0W130iRZN18#,VZN18#199807-199810

sub73960-35010

main73960-0W220iRZN18#,VZN18#199708-199807

main73960-35010iRZN18#,VZN18#199810-200008

main73960-35030iVZN18#200008

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-20010iRZN18#,VZN18#199511-199708

9011906171

main90119-06171

9011908B72

main90119-08B72

9017608048

main90176-08048

9017906009

main90179-06009

9017906278

main90179-06278

9017908102

main90179-08102

9018305094

main90183-05094

9046714023

main90467-14023

9046715020

main90467-15020

9161660616

main91616-60616

9162660818

main91626-60818

91633J0620

main91633-J0620

9356815014

main93568-15014

27 parts on this diagram · 2 diagrams in section
