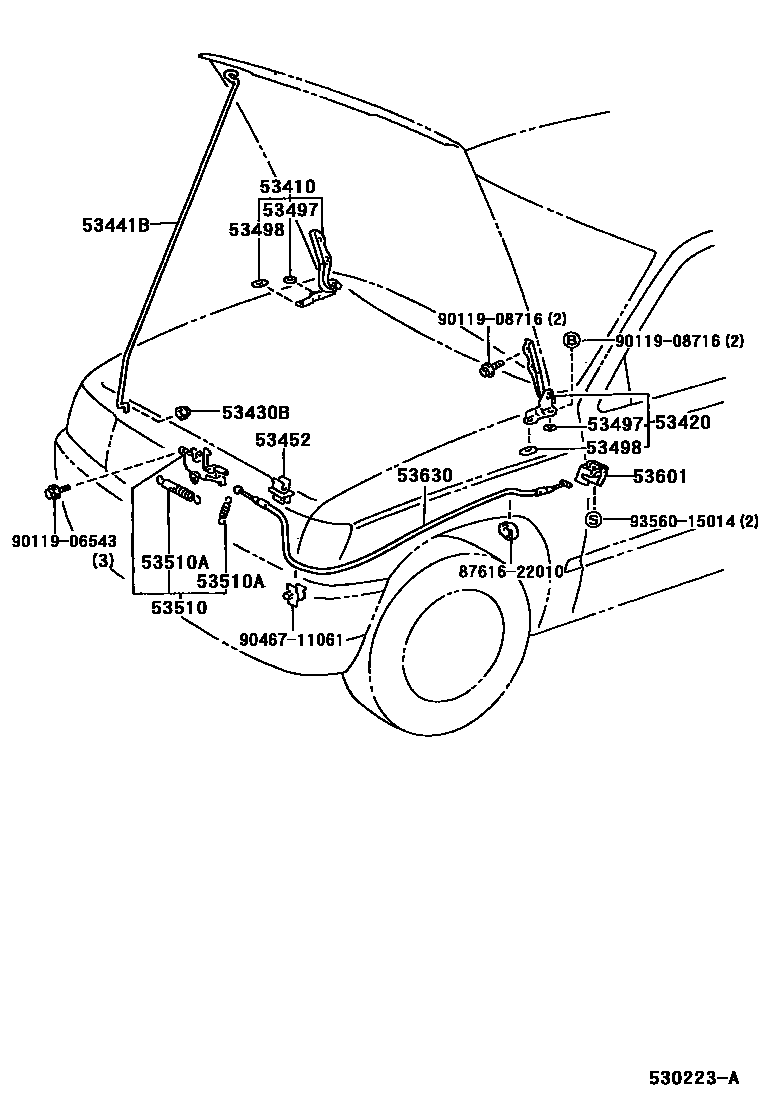

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-35020iRZN18#,VZN18#199511

53420HINGE ASSY, HOOD, LH

main53420-35020iRZN18#,VZN18#199511

53430BGROMMET(FOR HOOD SUPPORT)

main90480-15028iRZN18#,VZN18#199511

53441BSUPPORT, HOOD

main53441-35020iRZN18#,VZN18#199511-199906

sub53441-35021

main53441-35021iRZN18#,VZN18#199906

53452HOLDER, HOOD STAY

main53452-90351iRZN18#,VZN18#199511

53497PAD, HOOD HINGE, NO.1

main53497-35010iRZN18#,VZN18#199511

53498PAD, HOOD HINGE, NO.2

main53497-35010iRZN18#,VZN18#199511

53510LOCK ASSY, HOOD

main53510-35100iRZN18#,VZN18#199511-199807

sub53510-35170

main53510-35160iVZN18#..LULI199807

W(THEFT-DETERRENT SYSTEM)

main53510-35170iRZN18#,VZN18#..SR5B,SR5V199807

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iRZN18#,VZN18#199511

WD=0.9,CW=21

main90506-20008iRZN18#,VZN18#199511

WD=2.0,CW=17

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-10020-B3iRZN18#,VZN18#..SR5B,SR5V199511-200008

MD.MOON MIST,TRIM1#

sub53601-10020

sub53601-20060

main53601-10020-B4iVZN18#..SR5B,SR5V200008

DK.CHARCOAL,TRIM1#

sub53601-10020

sub53601-20060

main53601-10020-E3iRZN18#,VZN18#199511-199807

OAK,TRIM4#

sub53601-10020

sub53601-20060

main53601-10020-E6iRZN18#,VZN18#199807

SANDAL WOOD,TRIM4#

sub53601-10020

sub53601-20060

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-35020iRZN18#,VZN18#199511-199807

main53630-35060iRZN18#,VZN18#199807

8761622010CLAMP, COOLING UNIT CASE

main87616-22010

9011906543

main90119-06543

9011908716

main90119-08716

9046711061

main90467-11061

9356015014

main93560-15014

16 parts on this diagram · 1 diagram in section
