FRAME

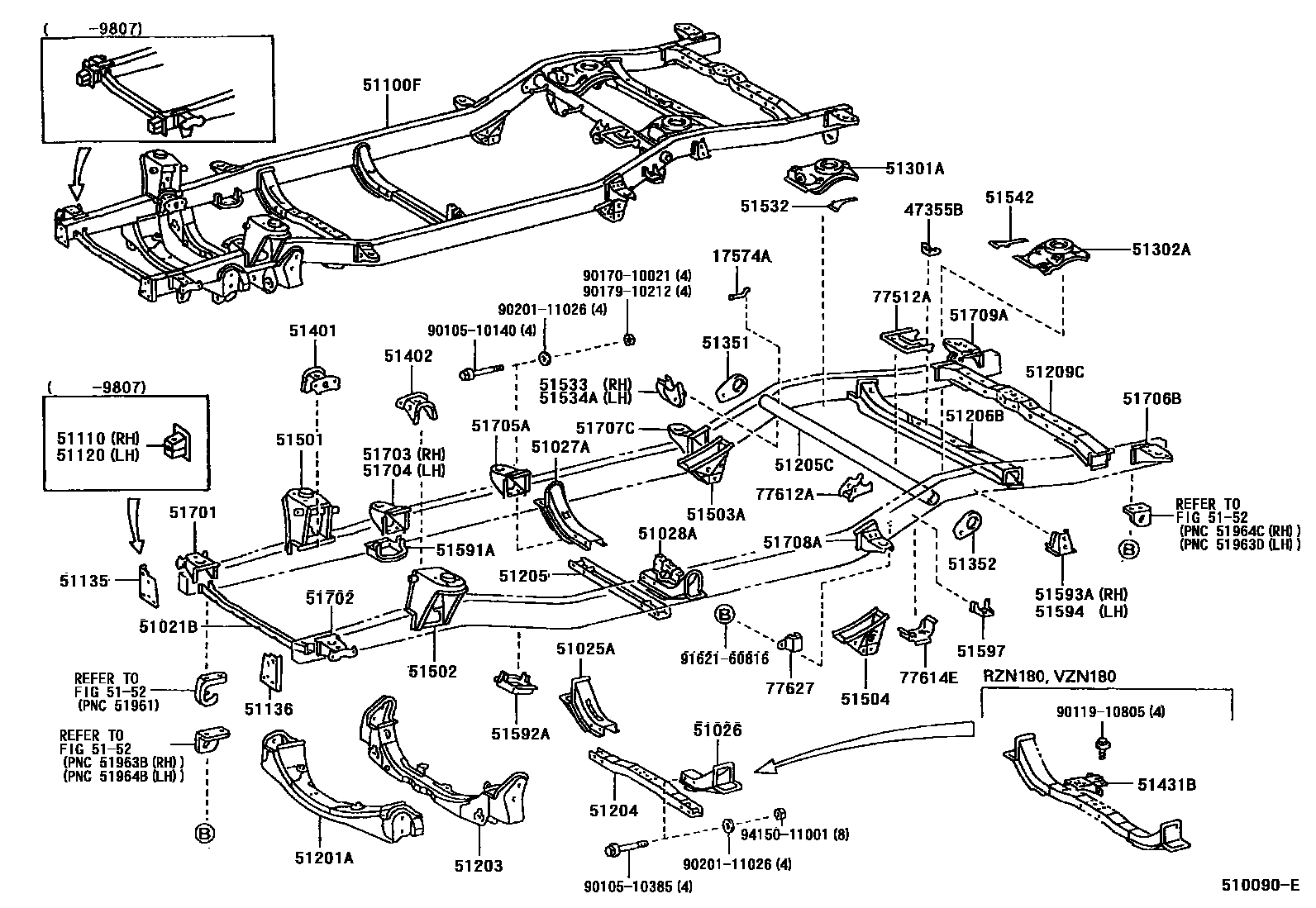

Parts diagram
17574ABRACKET, EXHAUST PIPE SUPPORT, NO.4
main17574-67010i199511-200208
47355BBRACKET, FLEXIBLE HOSE, NO.5
main47355-35100i199511-200004
main47355-35110i200004-200208
51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY
main51021-35040i199511-199710
sub51021-60010
main51021-60010i199710-200208
51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH
main51025-35020i199511-200208
51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH
main51026-35020i199511-200208
51027ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH
main51027-35010i199511-200208
51028ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH
main51028-35010i199511-200208
51100FFRAME SUB-ASSY
main51001-3G080i199511-199704
sub51001-3G082
sub52208-35041
main51001-3G081i199704-199710
sub51001-3G082
sub52208-35041
main51001-3G082i199710-199807
sub51001-3G084
sub17572-62080
sub52203-35250
sub52217-35110
sub90119-10805
sub90201-10100
main51001-3G090i199511-199704
sub51001-3G092
sub52208-35041
main51001-3G091i199704-199710
sub51001-3G092
sub52208-35041
main51001-3G092i199710-199807
sub51001-3G094
sub17572-62080
sub52203-35250
sub52217-35110
sub90119-10805
sub90201-10100
main51001-3G100i199511-199704
sub51001-3G102
sub52208-35041
main51001-3G101i199704-199710
sub51001-3G102
sub52208-35041
main51001-3G102i199710-199807
sub51001-3G104
sub17572-62080
sub52203-35250
sub52217-35110
sub90119-10805
sub90201-10100
main51001-3G110i199511-199704
sub51001-3G112
sub52208-35041
main51001-3G111i199704-199710
sub51001-3G112
sub52208-35041
main51001-3G112i199710-199807
sub51001-3G114
sub17572-62080
sub52203-35250
sub52217-35110
sub90119-10805
sub90201-10100
main51002-3G060i199807-199906
sub51002-3G061
sub52203-35250
sub52217-35110
sub90119-10805
sub90201-10100
main51002-3G061i199906-200008
main51002-3G070i199807-199906
sub51002-3G071
sub52203-35250
sub52217-35110
sub90119-10805
sub90201-10100
main51002-3G071i199906-200208
main51002-3G080i199807-199906
sub51002-3G081
sub52203-35250
sub52217-35110
sub90119-10805
sub90201-10100
main51002-3G081i199906-200008
main51002-3G090i199807-199906
sub51002-3G091
sub52203-35250
sub52217-35110
sub90119-10805
sub90201-10100
main51002-3G091i199906-200008
main51002-3G100i199807-199906
sub51002-3G101
sub52203-35250
sub52217-35110
sub90119-10805
sub90201-10100
main51002-3G101i199906-200208
main51003-3D780i199511-199704
sub51003-3D782
sub52208-35041
main51003-3D781i199704-199710
sub51003-3D782
sub52208-35041
main51003-3D782i199710-199807
sub51003-3D784
sub17572-62080
sub52203-35250
sub52217-35110
sub90119-10805
sub90201-10100
51110EXTENSION ASSY, SIDE RAIL, RH
main51110-35010i199511-199807
51120EXTENSION ASSY, SIDE RAIL, LH
main51120-35010i199511-199807
51135PLATE, FRAME SIDE RAIL, RH
main51135-35050i199807-200208
51136PLATE, FRAME SIDE RAIL, LH
main51136-35050i199807-200208
51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT
main51201-35261i199511-200208
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
main51202-35321i199511-200208
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
main51203-35320i199511-199708
sub51203-35321
main51203-35321i199708-200208
main51203-35350i199511-199708
sub51203-35351
main51203-35351i199708-200208
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
main51204-35530i199511-200208
51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5
main51251-35090i199511-200208
51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6
main51206-35040i199511-200004
sub51206-35050
sub47355-35110
main51206-35050i200004-200208
51209CCROSSMEMBER SUB-ASSY, FRAME, REAR
main51209-35170i199511-199906
sub51209-35171
main51209-35171i199906-200208
51301ABRACKET SUB-ASSY, REAR SPRING, REAR RH
main51301-35030i199511-200208
51302ABRACKET SUB-ASSY, REAR SPRING, REAR LH
main51302-35040i199511-200208
51351GUSSET, CROSSMEMBER, NO.5 RH
main51351-35020i199511-200208
51352GUSSET, CROSSMEMBER, NO.5 LH
main51351-35020i199511-200208
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
main51401-35310i199511-200208
main51401-35320i199511-200008
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
main51401-35310i199511-200208
main51401-35320i199511-200008
51431BBRACKET, ENGINE REAR MOUNTING
main51431-35190i199511
main51431-35200i199511-200008
main51431-35210i199511-200008
51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH
main51501-35100i199511-200208
51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH
main51502-35100i199511-200208
51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH
main51503-35020i199511-200208
51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH
main51504-35010i199511-200208
5152
51532REINFORCEMENT, REAR SPRING SUPPORT BRACKET, RH
main51532-35010i200107-200208
51533BRACKET, UPPER CONTROL LINK, RH
main51533-35020i199511-200208
51534ABRACKET, UPPER CONTROL LINK, LH
main51534-35020i199511-200208
51542REINFORCEMENT, REAR SPRING SUPPORT BRACKET, LH
main51542-35010i200107-200208
51591ASUPPORT, STABILIZER, RH
main51591-35060i199511-200208
51592ASUPPORT, STABILIZER, LH
main51592-35020i199511-200208
51593ABRACKET, REAR SPRING BUMPER, RH
main51593-35020i199511-200208
51594BRACKET, REAR SPRING BUMPER, LH
main51594-35020i199511-200208
51597BRACKET, REAR STABILIZER SUPPORT, FRONT
main51597-35010i199511-200208
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
main51701-35140i199511-200208
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
main51701-35140i199511-200208
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
main51703-35110i199511-199906
main51703-35160i199906-200208
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
main51703-35110i199511-199906
main51704-35150i199906-200208
51705ABRACKET SUB-ASSY, CAB MOUNTING, NO.3
main51705-35120i199608-199704
sub51705-35121
main51705-35160i199704-200208
51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
main51706-35030i199511-200208
51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH
main51707-35070i199511-199710
sub51707-35071
main51707-35071i199710-200208
51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH
main51708-35070i199511-199710
sub51708-35071
main51708-35071i199710-200208
51709ABRACKET SUB-ASSY, BODY REAR END MOUNTING
main51709-35030i199511-200208
77512ABRACKET, FUEL TANK, REAR
main77512-35080i199511-200208
77612ABRACKET, FUEL TANK BAND
main77612-35040i199511-200208
77614EBRACKET, FUEL TANK BAND, NO.2
main77614-35030i199511-200208
77627SPACER, FUEL TANK BAND
main77627-35010i199511-200208
9010510140
main90105-10140
9010510385
main90105-10385
9011910805
main90119-10805
9017010021
main90170-10021
9017910212
main90179-10212
9020111026
main90201-11026
9162160816
main91621-60816
9415011001
main94150-11001

61 parts on this diagram · 1 diagram in section
