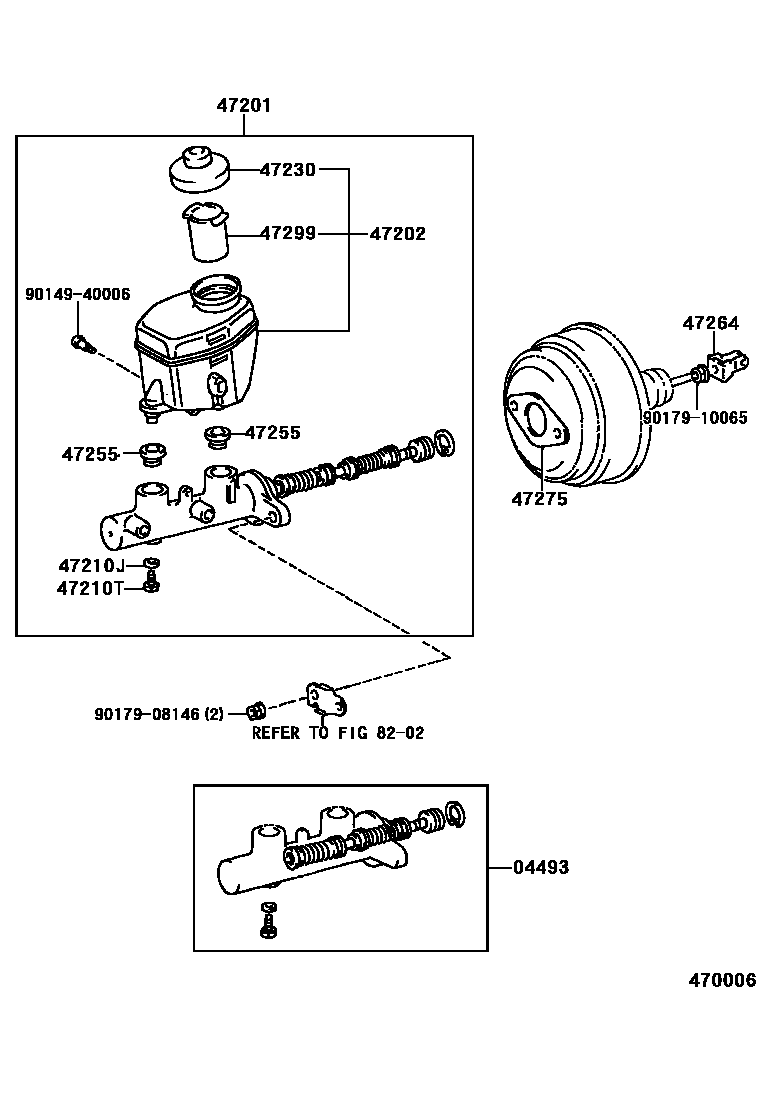

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

04493CYLINDER KIT, BRAKE MASTER

main04493-30230iRZN18#199511-199708

W(ABS)

sub04493-30232

main04493-30232iRZN18#,VZN18#199708-200008

W(ABS)

main04493-35340iVZN18#200008

main04493-60280iRZN18#199511-200008

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47025-35010iVZN18#200008

main47201-3D350iRZN18#199511-200008

main47201-3D380iRZN18#199511-200008

W(ABS)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-35040iRZN18#,VZN18#199511-200008

main47220-35050iVZN18#200008

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iRZN18#,VZN18#199705-200008

W(ABS)

main90029-43002iVZN18#200008

main90430-06104iRZN18#,VZN18#199511-200008

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90029-40010iVZN18#200008

main90109-06077iRZN18#,VZN18#199511-200008

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iRZN18#,VZN18#199511-200008

main47230-30130iVZN18#200008

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iRZN18#,VZN18#199511

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22050iVZN18#200008

main47264-28010iRZN18#,VZN18#199807-200008

main47264-50010iRZN18#,VZN18#199511-199807

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iRZN18#,VZN18#199511-200008

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iRZN18#,VZN18#199511-200008

8202

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

14 parts on this diagram · 3 diagrams in section
