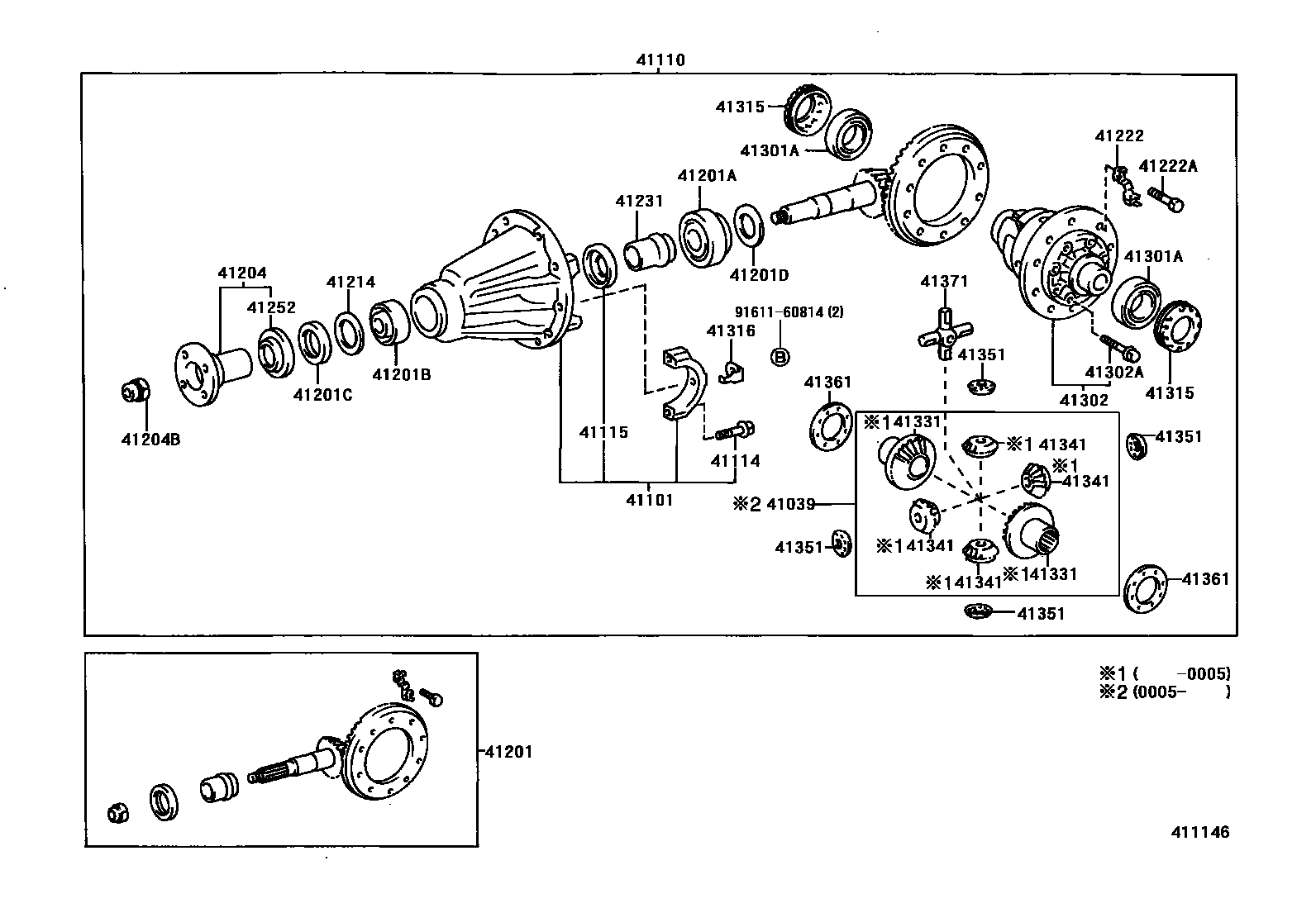

REAR AXLE HOUSING & DIFFERENTIAL
41039GEAR KIT, DIFFERENTIAL, REAR
W(REAR DIFFERENTIAL LOCK)
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41110CARRIER ASSY, DIFFERENTIAL, REAR
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41115RING, DIFFERENTIAL OIL STORAGE
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
OD=47,T=1.70
OD=47,T=1.73
OD=47,T=1.76
OD=47,T=1.79
OD=47,T=1.82
OD=47,T=1.85
OD=47,T=1.88
OD=47,T=1.91
OD=47,T=1.94
OD=47,T=1.97
OD=47,T=2.00
OD=47,T=2.03
OD=47,T=2.06
OD=47,T=2.09
OD=47,T=2.12
OD=47,T=2.15
OD=47,T=2.18
OD=47,T=2.21
OD=47,T=2.24,MARK 01
OD=47,T=2.27,MARK 02
OD=47,T=2.30,MARK 03
OD=47,T=2.33,MARK 04
41204BNUT (FOR REAR DRIVE PINION)
OD=39.5
OD=37
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
W(REAR DIFFERENTIAL LOCK)
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
sub41301-60061
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
W(REAR DIFFERENTIAL LOCK),RH
W(REAR DIFFERENTIAL LOCK),LH
41302CASE SUB-ASSY, REAR DIFFERENTIAL
sub41302-26010
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
sub90105-10570
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
W(REAR DIFFERENTIAL LOCK),RH
W(REAR DIFFERENTIAL LOCK),LH
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41331GEAR, REAR DIFFERENTIAL SIDE
41341PINION, REAR DIFFERENTIAL
sub41341-30050
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.9
T=1.0
T=1.1
T=1.2
T=1.3
T=0.90,W(REAR DIFFERENTIAL LOCK)
T=1.00,W(REAR DIFFERENTIAL LOCK)
T=1.10,W(REAR DIFFERENTIAL LOCK)
T=1.20,W(REAR DIFFERENTIAL LOCK)
T=1.30,W(REAR DIFFERENTIAL LOCK)
41371SPIDER, REAR DIFFERENTIAL
9161160814
main91611-60814
29 parts on this diagram · 3 diagrams in section
