ALTERNATOR

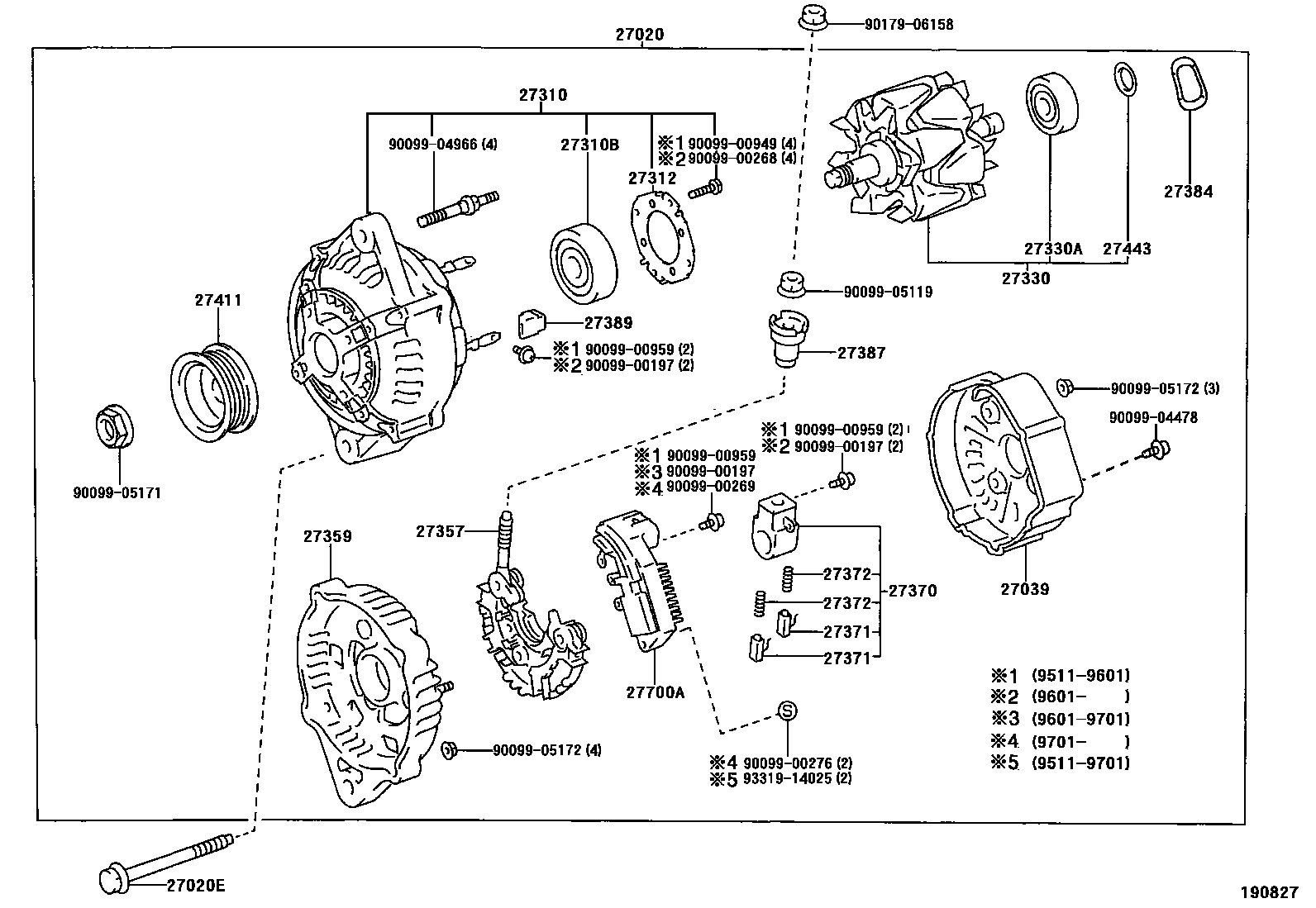

Parts diagram

27020ALTERNATOR ASSY

main27060-62160i199807

12V 80A

main27060-62180i199511-199708

12V 70A

main27060-62190i199708-199807

12V 70A

main27060-75150i199704-199906

12V 70A

main27060-75160i199906-200008

12V 80A

main27060-75170i199511-199704

12V 70A

27020EBOLT(FOR ALTERNATOR)

main90105-10101i199511

main90105-10221i199511-200008

27039COVER, ALTERNATOR REAR END

main27039-16380i199701-199704

main27039-55080i199807-200104

main27039-67100i199704-199906

main27039-70470i200104

main27039-73020i199511-199701

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-62140i199511-199708

main27310-62150i199807

main27310-62160i199708-199807

main27310-75110i199906-200008

main27310-75150i199511-199704

main27310-75160i199704-199906

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10178i199511-199708

main90099-10192i199807-199906

main90099-10199i199704-199906

27312PLATE, RETAINER

main27312-42010i199807-199906

main27312-70200i199511-199704

main27312-72100i199704-199906

27330ROTOR ASSY, ALTERNATOR

main27330-16390i200007-200008

main27330-64570i199511-199708

main27330-67100i199704-199906

main27330-72280i199807-200007

main27330-74550i200007-200008

main27330-76030i199906-200007

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i199511-199906

main90099-10216i199704-199906

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-13360i199701-199704

main27357-55080i199807-199906

main27357-63020i199511-199807

main27357-63060i199511-199701

main27357-67100i199704-199906

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16180i199511-199601

main27359-16181i199601-199701

main27359-16182i199701-199704

main27359-62150i199807

main27359-62160i199708-199807

main27359-65010i199511-199601

main27359-65011i199601-199708

main27359-72280i199906-200008

main27359-75160i199704-199906

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i199511-199906

main27370-75060i199807-199906

27371BRUSH, ALTERNATOR

main27371-70300i199511-199906

27372SPRING, ALTERNATOR BRUSH

main27372-63020i199511-199906

27384WASHER

main27384-16380i199601-199906

main27384-50030i199807-199906

27387INSULATOR, TERMINAL

main27387-42021i199807-199906

main27387-70170i199511-199709

main27387-70171i199709-199906

27389INSULATOR, TERMINAL

main27389-42010i199807-199906

main27389-63020i199511-199708

27411PULLEY, ALTERNATOR

main27411-16150i199511-199906

main27411-42010i199807-200208

main27411-42030i199906-200008

main27411-70200i199511-199807

27443COVER, ALTERNATOR BEARING

main27443-63020i199511

27700AREGULATOR ASSY, GENERATOR

main27700-50030i199511-199906

main27700-75020i199511-199906

9009900197

main90099-00197

9009900268

main90099-00268

9009900269

main90099-00269

9009900276

main90099-00276

9009900949

main90099-00949

9009900959

main90099-00959

9009904478

main90099-04478

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9017906158

main90179-06158

9331914025

main93319-14025

32 parts on this diagram · 4 diagrams in section
