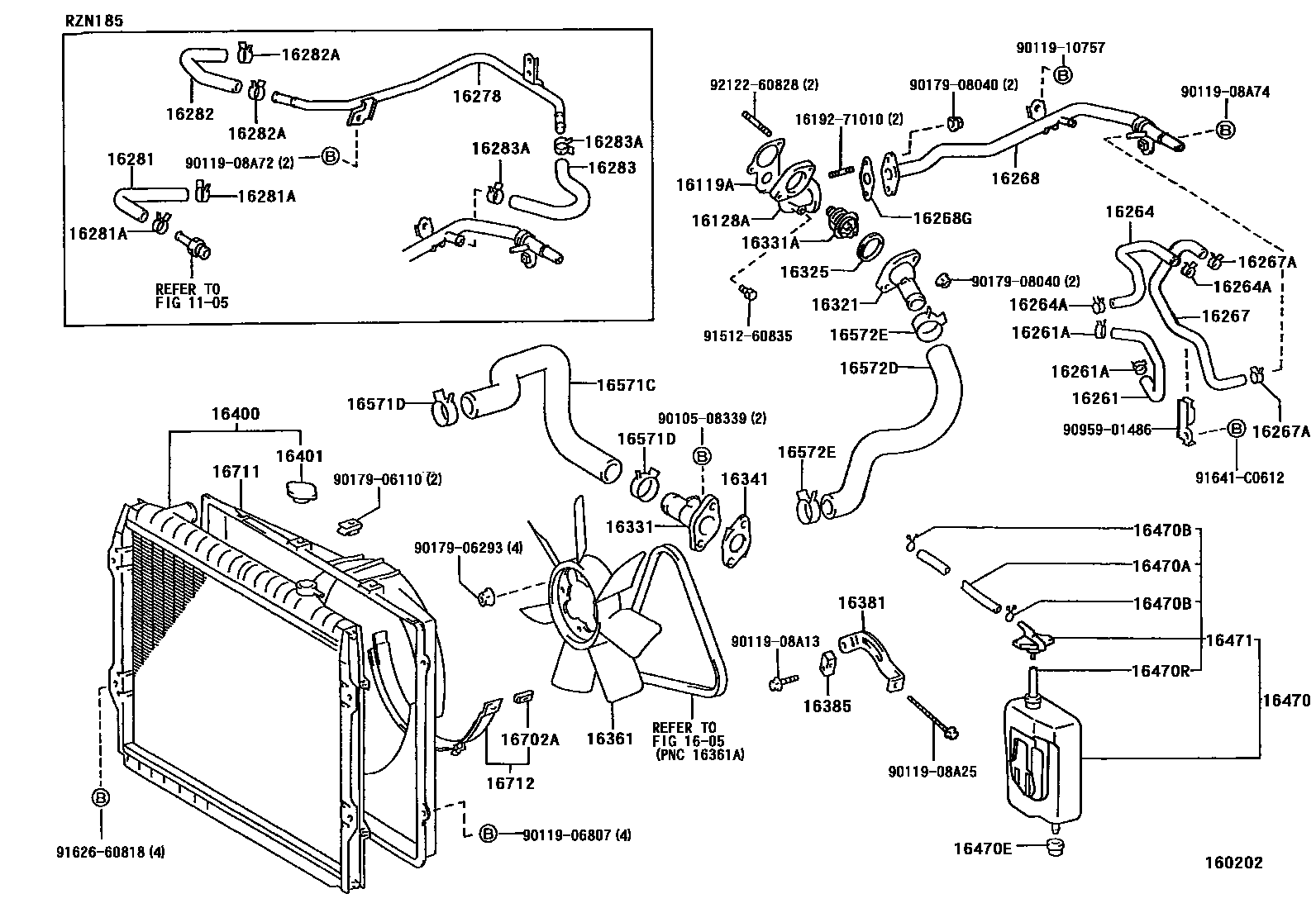

RADIATOR & WATER OUTLET
1105
1605
16119AGASKET, THERMOSTAT GUIDE
16128APLATE, WATER PUMP THERMOSTAT GUIDE
16261HOSE, WATER BY-PASS
CALIFORNIA SPEC
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
sub96135-51300
16264HOSE, WATER BY-PASS, NO.2
CALIFORNIA SPEC
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
sub96135-51300
16268GGASKET(FOR WATER BY-PASS PIPE)
16278PIPE, WATER BY-PASS, NO.2
16281ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
sub96134-41900
16282ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
sub96134-41900
16283HOSE, WATER BY-PASS, NO.6
16283ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
sub96134-41900
16325GASKET, WATER INLET HOUSING, NO.1
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95
16341GASKET, WATER OUTLET
16385SLIDER, FAN BELT ADJUSTING
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
*H,L=390
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470EGROMMET, RADIATOR RESERVE TANK HOSE
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
*H,L=240
16471CAP SUB-ASSY, RESERVE TANK
16571CHOSE, RADIATOR, NO.1
sub16571-75180
16702SHROUD SUB-ASSY, FAN, NO.2
16702ACLIP(FOR FAN SHROUD NO.2)
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
1619271010
main16192-71010
9010508339
main90105-08339
9011906807
main90119-06807
9011908A13
main90119-08A13
9011908A25
main90119-08A25
9011908A72
main90119-08A72
9011908A74
main90119-08A74
9011910757
main90119-10757
9017906110
main90179-06110
9017906293
main90179-06293
9017908040
main90179-08040
9095901486
main90959-01486
9151260835
main91512-60835
9162660818
main91626-60818
91641C0612
main91641-C0612
9212260828
main92122-60828
60 parts on this diagram · 4 diagrams in section
