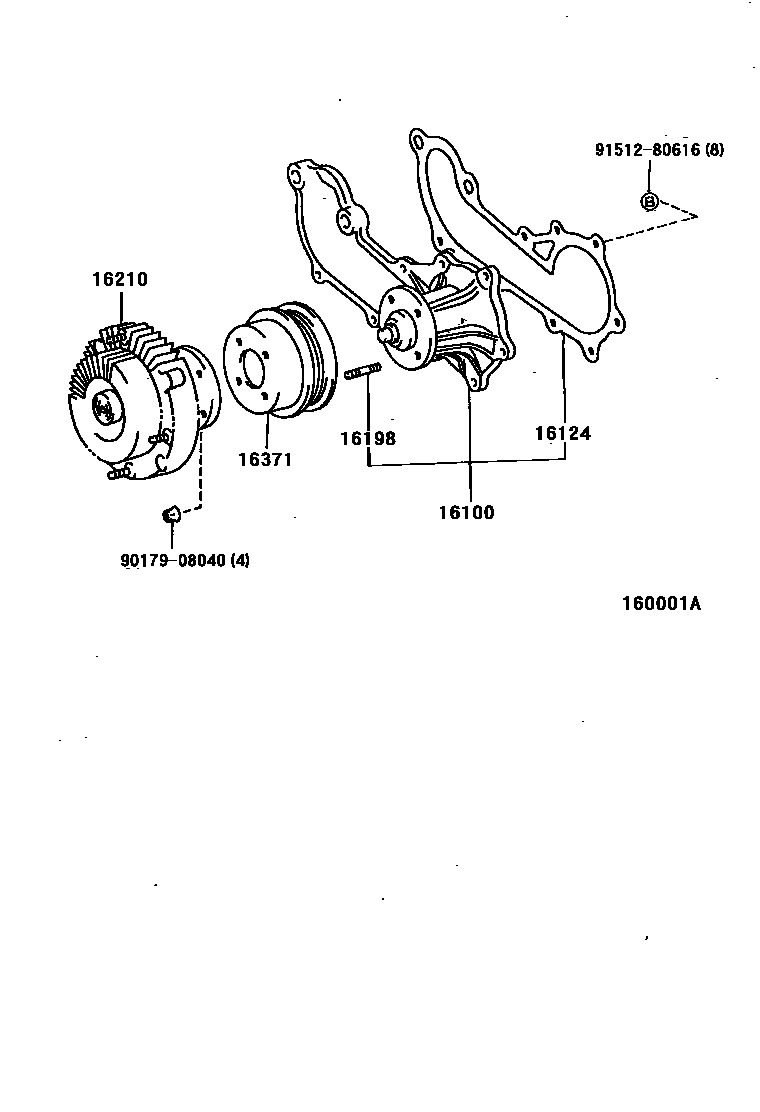

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-69395i5VZFE..VZN18#199511-200205

sub16100-69396

main16100-69396i5VZFE..VZN18#200205-200208

sub16100-69397

main16100-79255i3RZFE..RZN18#199511-200008

sub16100-79445

16124GASKET, WATER PUMP COVER

main16124-75030i3RZFE..RZN18#199511-200008

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main92122-60818i3RZFE..RZN18#199511-200008

16210COUPLING ASSY, FLUID

main16210-62011i5VZFE..VZN18#199511

main16210-75040i3RZFE..RZN18#199511-199608

sub16210-75060

main16210-75060i3RZFE..RZN18#199608-200008

16371PULLEY, FAN

main16371-62010i5VZFE..VZN18#199511

main16371-75030i3RZFE..RZN18#199511-200008

9017908040

main90179-08040

9151280616

main91512-80616

7 parts on this diagram · 2 diagrams in section
