HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MAKER OPTION 0002 1DEALER OPTION 0003 1MAKER OPTION

88482CAP, COOLER

main88482-60010iRN10#,110,13#,VZN10#,110,13#198808-199511

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-34010iRN10#,110,VZN100,110199401-199501

main88501-35010iRN13#,VZN13#199308-199412

sub88501-35011

main88501-35010iRN131,VZN131199412-199511

DEALER OPTION

sub88501-35011

main88501-35011iRN130,VZN130199412-199511

MAKER OPTION

main88501-89111iRN10#,110,VZN10#,110198808-199401

main88501-89113iRN13#,VZN13#198904-199308

sub88501-14230¥27,000

88510UNIT ASSY, COOLER

main88510-35110iVZN130..R199308-199511

W(AIR CONDITIONER)

sub88510-35270

sub88539-89113

sub88605-35080

sub88688-35220

sub88688-89143

main88510-35120iRN130199308-199511

W(AIR CONDITIONER)

sub88510-35290

sub88539-89113

sub88605-35090

sub88688-35220

sub88688-89143

main88510-35150iVZN130..4FC199308-199511

W(AIR CONDITIONER)

main88510-35270iVZN131199308-199511

W(DEALER OPTION AIR CONDITIONER)

main88510-35290iRN130199308-199511

W(DEALER OPTION AIR CONDITIONER)

main88510-35330iRN10#,110199401-199501

main88510-35360iVZN100,110199401-199501

main88510-89142iRN10#,110..USA198808-198908

W(MAKER OPTION AIR CONDITIONER)

sub88510-89151

sub88539-89113

sub88605-89152

sub88688-89126

sub88688-89128

main88510-89149iVZN10#,110..USA198808-198908

W(MAKER OPTION AIR CONDITIONER)

main88510-89151iRN10#,110..CND198808-199108

main88510-89151iRN10#,110..CND199108-199401

W(DEALER OPTION AIR CONDITIONER)

main88510-89157iVZN10#,110..USA198808-199008

main88510-89157iVZN100,110..CND199008-199401

W(DEALER OPTION AIR CONDITIONER)

main88510-89161iVZN130..R199108-199308

W(AIR CONDITIONER)

main88510-89161iVZN130..R198904-199108

main88510-89162iRN130199108-199308

W(AIR CONDITIONER)

main88510-89162iRN130198904-199108

W(MAKER OPTION AIR CONDITIONER)

main88510-89167iVZN131..4FC198908-199308

W(DEALER OPTION AIR CONDITIONER)

main88510-89168iRN130198904-199308

W(DEALER OPTION AIR CONDITIONER)

main88510-89168iRN131198904-199308

main88510-89175iVZN130..4FC199108-199308

W(AIR CONDITIONER)

main88510-89175iVZN130..4FC198908-199108

W(MAKER OPTION AIR CONDITIONER)

main88510-89176iVZN110..4FC..USA199108-199401

W(AIR CONDITIONER)

sub88510-89157

sub88539-89113

sub88605-35040

sub88630-14040

sub88688-89126

sub88688-89128

sub88688-89146

main88510-89176iVZN110..4FC..USA199008-199108

W(MAKER OPTION AIR CONDITIONER)

sub88510-89157

sub88539-89113

sub88605-35040

sub88630-14040

sub88688-89126

sub88688-89128

sub88688-89146

main88510-89177iVZN10#,110..R..USA199008-199108

W(MAKER OPTION AIR CONDITIONER)

main88510-89177iVZN10#,110..R..USA199108-199401

W(AIR CONDITIONER)

main88510-89178iRN10#,110..USA199108-199401

W(AIR CONDITIONER)

88510RGROMMET (FOR COOLER UNIT)

main90480-26003iRN131;RN10#,110,130,VZN10#,110,130..USA198808-199401

LIQUID

main90480-26027iRN13#,VZN13#¥240199308-199511

LIQUID

main90480-36003iRN10#,110,13#,VZN10#,110,13#198808-199401

SUCTION

main90480-36019iRN13#,VZN13#¥260199308-199511

SUCTION

88515VALVE, COOLER EXPANSION

main88515-14060iVZN13#¥10,600198904-199008

sub88515-14061¥10,600

main88515-14061iRN13#,VZN13#¥10,600198904-199108

sub88515-14062¥10,500

main88515-14062iRN131¥10,500198904-199308

sub88515-33010¥10,300

main88515-16040iRN10#,110;VZN10#..USA;VZN110..4FC;VZN110..R..USA¥7,100198808-199401

main88515-20100iRN13#,VZN13#¥10,300199308-199511

sub88515-22240¥10,200

main88515-34010iRN10#,110,VZN100,110¥7,000199401-199501

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-89113iRN10#,110,13#,VZN10#,110,130198808-199511

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-35030iVZN10#,110..R..CND198908-199501

main88605-35040iVZN105,110..4FC..USA198908-199501

main88605-35050iVZN131..4FC198908-199308

main88605-35060iVZN13#..R199101-199308

main88605-35080iVZN13#..R199308-199511

main88605-35090iRN13#199308-199511

main88605-35120iVZN13#..4FC199308-199511

main88605-35200iRN10#,110199401-199501

main88605-89152iRN10#,110,VZN10#,110198808-198908

main88605-89159iRN13#198904-199308

main88605-89170iVZN130..4FC198908-199101

sub88605-35050

main88605-89171iVZN105,110..4FC..USA198908-199101

sub88605-35040

main88605-89173iRN10#,110198908-199401

88625THERMISTOR, COOLER, NO.1

main88625-34010iRN10#,110,VZN100,110199401-199501

main88625-35020iRN13#,VZN13#199308-199511

main88625-89102iRN10#,110,VZN10#,110198808-199401

main88625-89103iVZN131..4FC;RN13#,VZN130198904-199308

88645GSWITCH, PRESSURE

main88645-10020iRN10#,110,131..CND;RN130,VZN10#,110,130198808-198908

W(DEALER OPTION AIR CONDITIONER)

main88645-10020iVZN10#..USA;RN13#,VZN130;VZN110..R..USA;VZN110,131..4FC198908-199401

main88645-16020iRN10#,110198908-199401

main88645-16020iRN10#,110..USA198808-198908

W(MAKER OPTION AIR CONDITIONER)

main88645-20050iRN13#,VZN13#199308-199511

main88645-34010iRN10#,110,VZN100,110199401-199501

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-89106iRN131;RN10#,110,130..USA198808-199511

main88650-89110iVZN10#,110,130..USA198808-199108

main88650-89113iVZN10#,110,13#199108-199511

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-34010iRN10#,110,VZN100,110¥3,980199401-199501

main88716-89156iRN10#,110,VZN10#,110¥3,940198808-199401

88894GCONNECTOR, DRAIN HOSE

main88894-35030iVZN130199308-199511

W(MAKER OPTION AIR CONDITIONER)

sub88894-35040

sub88569-35080

main88894-35040iVZN131199308-199511

W(DEALER OPTION AIR CONDITIONER)

main88894-89108iVZN130198904-198908

main88894-89108iRN10#,110,130,VZN10#,110,130..USA198808-199511

W(MAKER OPTION AIR CONDITIONER)

main88894-89112iRN10#,110,131,VZN100,110..CND198808-199511

W(DEALER OPTION AIR CONDITIONER)

8868889126BRACKET, COOLER DIAPHRAGM

main88688-89126

8868889128BRACKET, COOLER DIAPHRAGM

main88688-89128

9009914056

main90099-14056

9015960213

main90159-60213¥80

9017906026

main90179-06026¥70

9048026022

main90480-26022¥0

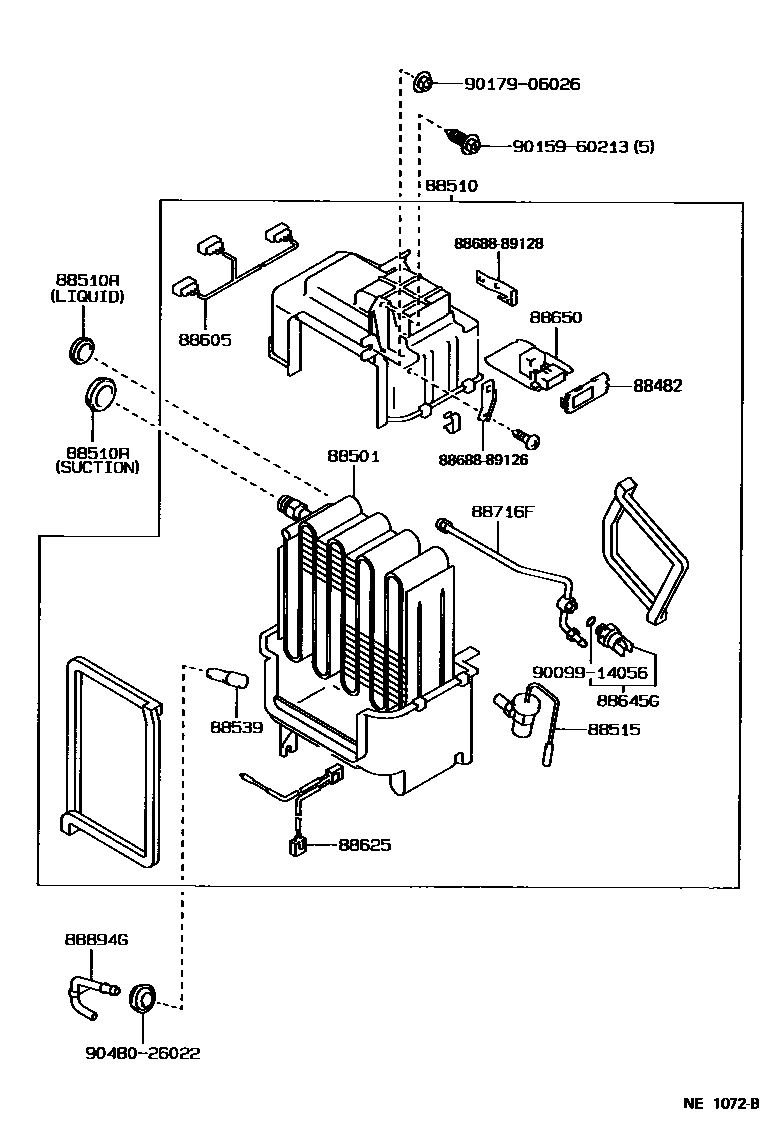

18 parts on this diagram · 3 diagrams in section
