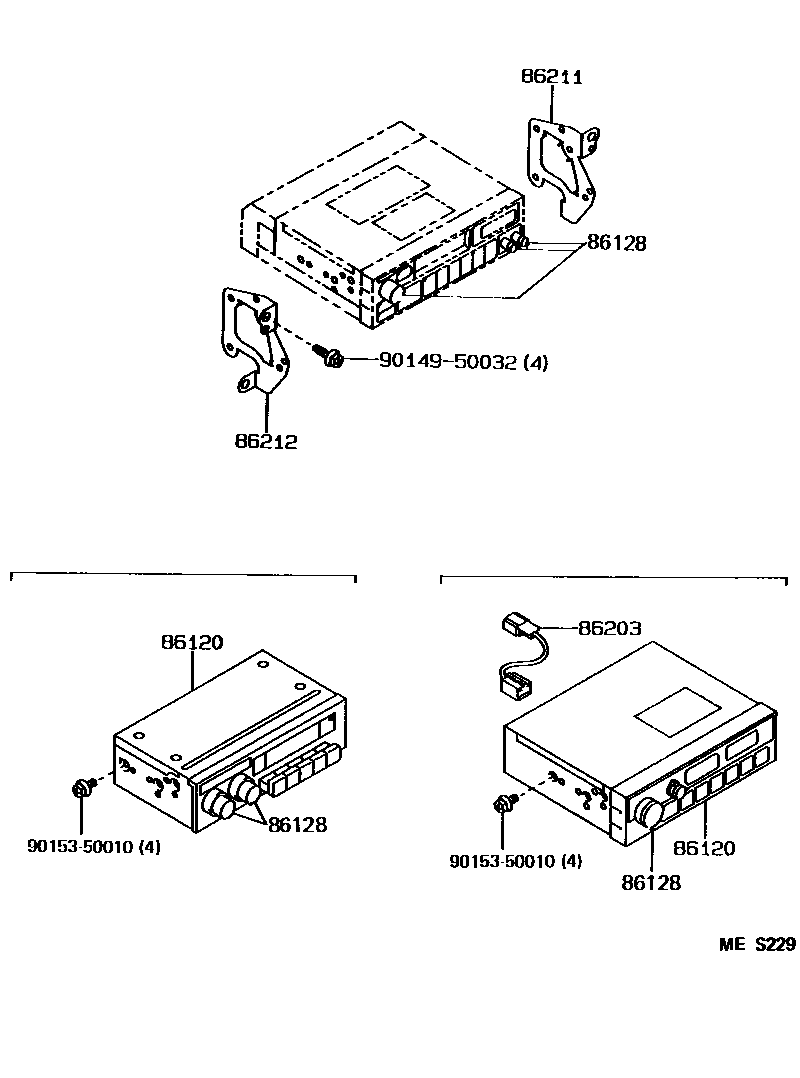

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-02090iRN13#199309-199408

AM/FM MPX ETR CASSETTE 1DIN,W(4-SPEAKER),AMERICA MATUSITA

main86120-02100iRN110,VZN110199404-199501

AMERICA MATSUSHITA,AM/FM MPX ETR CASSETTE,W(4-SPEAKER),AMERICA MATSUSHITA

main86120-02140iVZN13#199408-199511

MATSUSHITA, ID=51403,AM/FM MPX ETR CASSETTE 1DIN,W(4-SPEAKER)

main86120-0W050iRN13#,VZN13#199408-199511

DELCO,AM/FM MPX ETR CASSETTE,W(4-SPEAKER)

main86120-12860iVZN110..SR5199108-199501

MATSUSHITA,AM/FM MPX ETR 1DIN,W(2-SPEAKER)

main86120-17260iVZN13#199008-199108

AM/FM MPX ETR CASSETTE 1DIN,W(4-SPEAKER)

main86120-17270iVZN13#199008-199108

AM/FM MPX ETR CASSETTE 1DIN,W(4-SPEAKER)

main86120-2B360iRN130;VZN130..4FC199408-199511

MATSUSHITA,ID=57400,BRAZIL SPEC & AM/FM MPX ETR CASSETTE,4-SP

main86120-32330iVZN100,110,13#..SR5198808-199008

MATSUSHITA,AM/FM MPX ETR ,W(2-SPEAKER)

sub86120-32331

main86120-32331iVZN100,110,13#..SR5198908-199108

AM/FM MPX ETR ,W(2-SPEAKER)

main86120-32331iVZN110..SR5199008-199108

AM/FM MPX ETR,W(2-SPEAKER)

main86120-32340iRN131,VZN131198904-199008

MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,W(4-SPEAKER)

main86120-32342iVZN13#199008-199108

MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,W(4-SPEAKER)

main86120-32350iVZN130198904-198908

MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,W(4-SPEAKER)

sub86120-32351

main86120-32351iVZN130198908-199008

MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,W(4-SPEAKER)

main86120-32380iRN110,13#,VZN110,13#198808-198908

MATSUSHITA,AM/FM MPX ETR CASSETTE,W(4-SPEAKER)

sub86120-32383

main86120-32382iRN110,13#,VZN110,13#198908-199008

MATSUSHITA,AM/FM MPX ETR CASSETTE,W(4-SPEAKER)

sub86120-32383

main86120-32383iRN110,13#,VZN110,13#199008-199108

MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,W(4-SPEAKER)

main86120-33030iVZN13#199408-199511

MATSUSHITA,ID=51706,AM/FM MPX ETR CASSETTE,1DIN,W(6-SPEATER)

main86120-33040iVZN13#199408-199511

MATSUSHITA,ID=56807,AM/FM MPX ETR CASSETTE,CD,1DIN,W(6SPEAKER)

sub86120-35170

main86120-33070iRN13#199108-199308

PANASONIC,AM/FM MPX ETR,CASSETTE 1DIN,W(4-SPEAKER)

main86120-33070iVZN13#199108-199308

PANASONIC,AM/FM MPX ETR CASSETTE 1DIN,W(4-SPEAKER)

main86120-33070iRN13#199308-199408

PANASONIC,AM/FM MPX ETR,CASSETTE 1DIN,W(4-SPEAKER),MATUSITA

main86120-33070iRN13#199308-199408

PANASONIC,AM/FM MPX ETR CASSETTE 1DIN,W(4-SPEAKER),MATUSITA

main86120-33080iRN110,13#,VZN110,13#199108-199404

MATSUSHITA,AM/FM MPX ETR CASSETTE,W(4-SPEAKER)

main86120-33080iRN110,VZN110199404-199501

MATSUSHITA,AM/FM MPX ETR CASSETTE,W(4-SPEAKER),MATSUSHITA

main86120-33090iVZN110..SR5199108-199501

PANASONIC,AM/FM MPX ETR CASSETTE 1DIN,W(4-SPEAKER)

main86120-33090iVZN13#199108-199408

PANASONIC,AM/FM MPX ETR CASSETTE,1DIN,W(6-SPEATER)

main86120-33100iVZN13#199108-199408

PANASONIC,AM/FM MPX ETR CASSETTE,CD,1DIN,W(6SPEAKER)

main86120-35030iVZN110..SR5199008-199108

MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,W(4-SPEAKER)

main86120-35040iRN10#,110,130,VZN10#,110,130..USA199008-199511

MATSUSHITA,AM/FM MPX ETR ,W(2-SPEAKER)

main86120-35070iRN10#,110,VZN10#,110199108-199501

AM/FM MPX ETR CASSETTE 1DIN,W(2-SPEAKER)

main86120-89141iRN110,VZN110;RN10#,VZN10#..DLX198808-198908

MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,W(2-SPEAKER)

sub86120-89151

main86120-89144iVZN110..SR5..USA198808-198908

MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,W(4-SPEAKER)

sub86120-89149

main86120-89145iVZN130198904-199008

MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,W(4-SPEAKER)

sub86120-17260

main86120-89148iRN110,VZN110;RN10#,VZN10#..DLX198908-199008

MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,W(2-SPEAKER)

main86120-89149iVZN110..SR5..USA198908-199008

MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,W(4-SPEAKER)

main86120-89150iVZN110..DLX;RN10#,110,13#,VZN10#199008-199107

PANASONIC,AM/FM MPX ETR ,W(2-SPEAKER)

main86120-89151iRN110,VZN110199008-199108

PANASONIC,AM/FM MPX ETR CASSETTE 1DIN,W(2-SPEAKER)

main86120-90K05iRN10#,110,130,VZN10#,110,130..USA198808-199008

FUJITSU TEN,AM/FM MPX ETR ,W(2-SPEAKER)

86128KNOB, RADIO RECEIVER

main86128-02010iVZN13#199408-199511

VOL

main86128-14030iRN10#,110,130,VZN10#,110,130..USA198808-199008

TONE,BAL

main86128-14070iRN10#,110,130,VZN10#,110,130..USA198808-199008

TUNE

main86128-14130iRN10#,110,130,VZN10#,110,130..USA198808-199008

PWR,VOL

main86128-14150iVZN100,110,13#..SR5198808-198908

PWR.VOL

main86128-14150iRN10#,110,130,VZN10#,110,130..USA199108-199511

PWR/VOL

main86128-14170iVZN100,110,13#..SR5198808-199511

BAL

main86128-14190iRN10#,110,130,VZN10#,110,130..USA198808-199511

TONE

main86128-17150iVZN110,130..SR5..USA198908-199008

PWR/VOL

main86128-17150iVZN110..SR5..USA198808-198908

PWR,VOL

main86128-17170iRN110,13#,VZN110,13#198808-198908

PWR,VOL

main86128-17170iRN110,13#,VZN110,13#198808-198908

BAL

main86128-17170iRN10#,VZN10#..DLX..USA198908-199108

PWR/VOL

main86128-17190iRN110..USA;VZN110..DLX..USA198908-199008

BAL/FADE,BASS/TREB

main86128-17190iRN110,13#,VZN110,13#198808-198908

BAL,FADE,BASS,TREB

main86128-17190iVZN13#199108-199511

BASS/MID/TREB

main86128-17190iVZN13#199408-199511

BASS,MID,TREB

main86128-17290iVZN110..SR5;RN10#,VZN100..CND199108-199501

PWR/VOL

main86128-17310iRN110,130,VZN110,13#199108-199501

VOLUME

main86128-17310iRN130;VZN130..4FC199408-199511

VOL

main86128-17330iRN131199108-199511

BASS/BAL

main86128-17350iVZN13#199108-199501

PWR/VOL

main86128-17370iVZN110..SR5199108-199501

FADE

main86128-17390iVZN13#199108-199408

VOLUME

main86128-17410iVZN110..SR5;RN10#,VZN100..CND199108-199501

TONE

main86128-17430iRN10#,VZN10#..USA;RN110,VZN110..DLX199108-199501

BAL

main86128-33010iVZN13#199408-199511

VOL

main86128-33030iVZN13#199408-199511

BAL

main86128-33050iVZN13#199408-199511

PWR/VOL

main86128-AC020iVZN13#199408-199511

BASS/TREB,BAL/FADE

main86128-AC040iRN13#,VZN13#199408-199511

VOL

main86128-AC050iRN13#,VZN13#199408-199511

BAL

main86128-AC060iRN13#,VZN13#199408-199511

TONE

86203WIRE, RADIO

main86203-35020iRN10#,110,130,VZN10#,110,130199108-199511

main86203-89105iVZN110..SR5198808-199108

86211BRACKET, RADIO, NO.1

main86211-35020iRN10#,110,VZN100,110..DLX199108-199501

main86211-89111iRN10#,110,13#,VZN10#,110,13#198808-199511

86212BRACKET, RADIO, NO.2

main86212-35020iRN10#,110,VZN100,110..DLX199108-199501

main86212-89111iRN10#,110,13#,VZN10#,110,13#198808-199511

9014950032

main90149-50032

9015350010

main90153-50010

7 parts on this diagram · 2 diagrams in section
