REAR WIPER

85010RMOTOR & LINK ASSY, RR WIPER

main85010-89133iRN13#,VZN13#198904-199108

sub85020-35010

main85020-35010iRN13#,VZN13#199108-199511

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iRN13#,VZN13#198904-199511

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-89108iRN13#,VZN13#198904-199511

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iRN13#,VZN13#198904-199511

85190RARM ASSY, REAR WIPER

main85190-89139iRN13#,VZN13#198904-198909

sub85190-89140

main85190-89140iRN13#,VZN13#198909-199406

85192RCOVER, REAR WIPER ARM

main85192-13060iRN13#,VZN13#198904-199511

85196ASLIDER, WIPER ARM

main85196-89139iRN13#,VZN13#198904-199511

85220RBLADE ASSY, REAR WIPER

main85220-22460iRN13#,VZN13#198904-198909

sub85220-22461

main85220-22461iRN13#,VZN13#198909-199511

85221RBLADE, REAR WIPER

main85221-16070iRN13#,VZN13#198904-199511

sub85214-12H90

85267ASTEP, LINEAR WIPER

main85267-89102iRN13#,VZN13#198904-199511

8537289105HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-89105

9009900925

main90099-00925

9016750041

main90167-50041

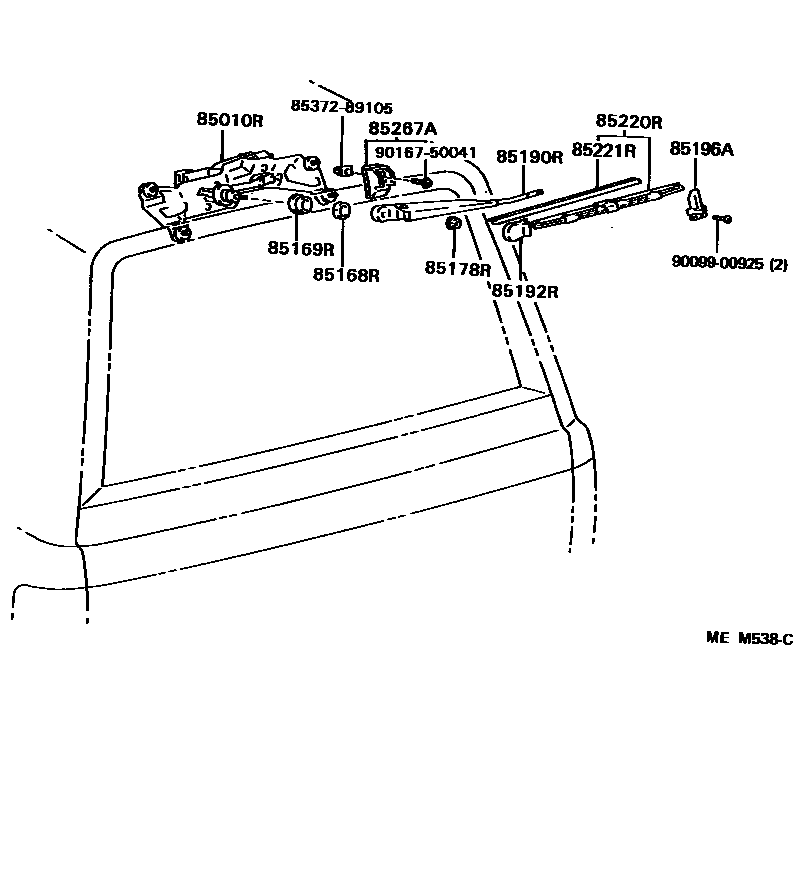

13 parts on this diagram · 1 diagram in section
