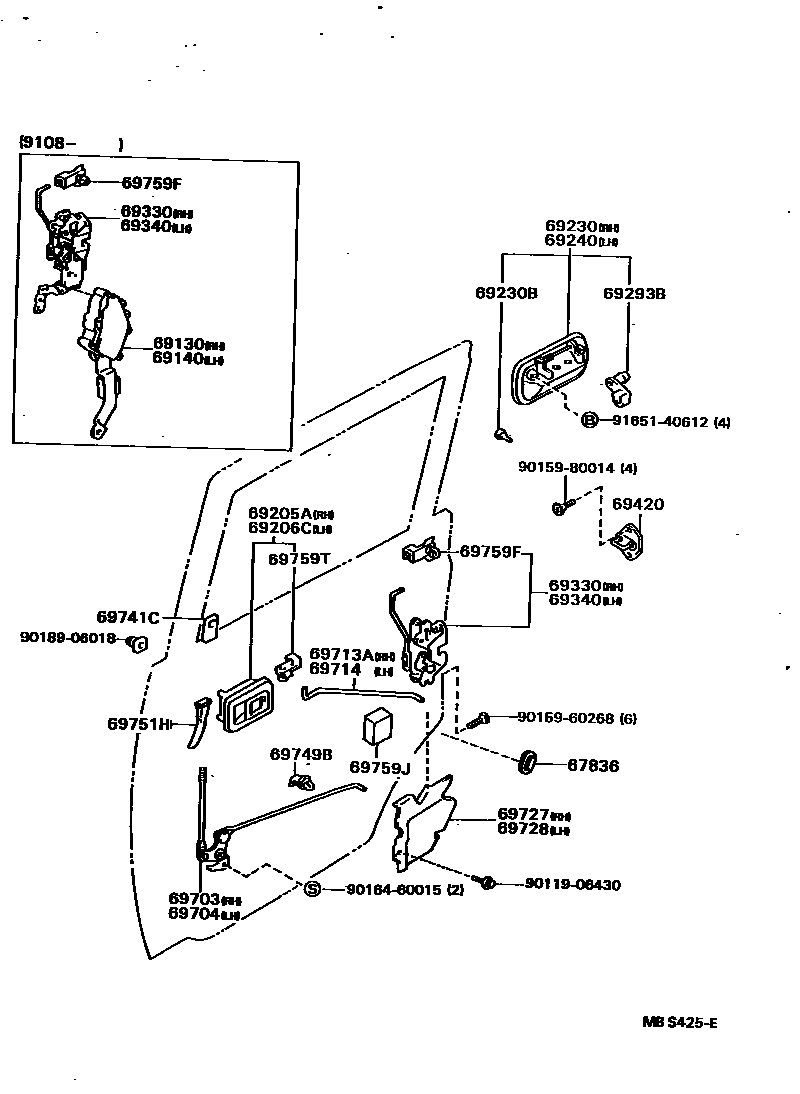

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
NO PAINT REQ.
PLATED
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
NO PAINT REQ.
PLATED
69293BSNAP, REAR DOOR OUTSIDE HANDLE
RH
LH
69330LOCK ASSY, REAR DOOR, RH
W(*PW)
W(*PW)
W(*PW)
69340LOCK ASSY, REAR DOOR, LH
W(*PW)
W(*PW)
W(*PW)
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH
69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH
69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH
69741CKNOB, REAR DOOR LOCK CONTROL
69749BCLAMP, REAR DOOR LOCK LINK
69751HHOLDER, REAR DOOR LOCK CONTRAL KNOB
69759FSNAP, REAR DOOR LOCK CONTROL LINK
YELLOW
BROWN
W(*PW),RED
W(*PW),NATURAL
69759JSILENCER, DOOR LOCK LINK
69759TSNAP, REAR DOOR INSIDE HANDLE
RH
LH
9011906430
main90119-06430
9015960268
main90159-60268
9015980014
main90159-80014
9016460015
main90164-60015
9018906018
main90189-06018
9165140612
main91651-40612
30 parts on this diagram · 1 diagram in section
