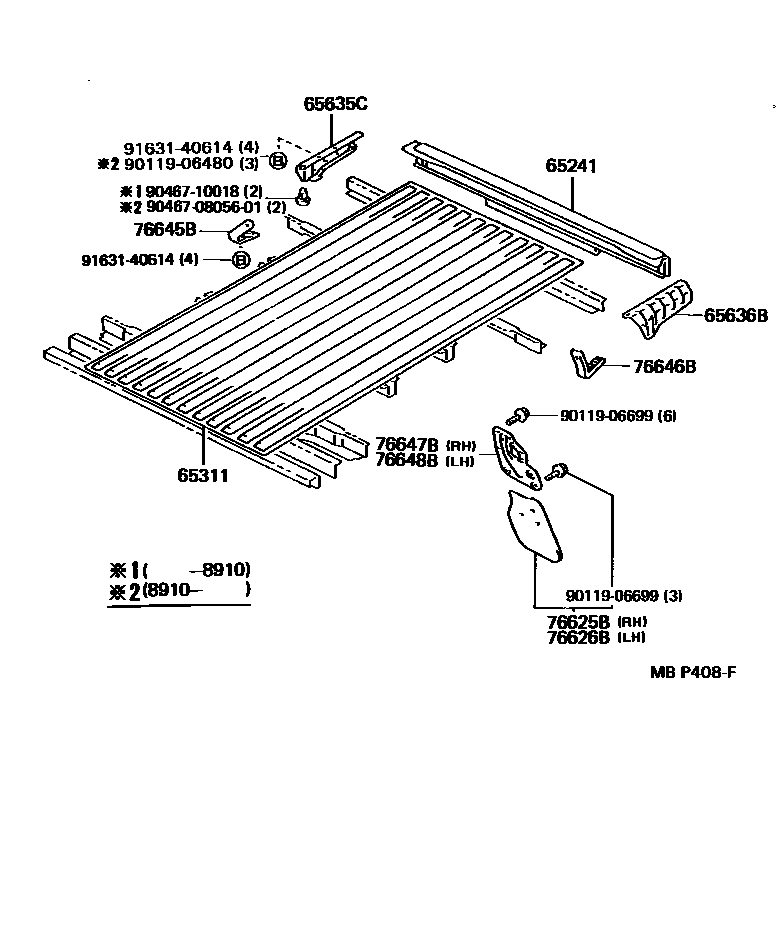

REAR BODY FLOOR & FENDER

65241SILL, REAR CROSS

main65240-89129iRN10#,110,VZN10#,110198808-199501

65311PANEL, FLOOR, CENTER

main65311-89128iRN101,110,VZN100,110198808-199501

main65311-89129iRN106,VZN105198808-199410

65635CPLATE, REAR WHEEL HOUSE, REAR RH

main65635-89111iRN106,VZN105198808-199410

main65635-89112iRN101,110,VZN100,110198808-199501

65636BPLATE, REAR WHEEL HOUSE, REAR LH

main65636-89110iRN106,VZN105198808-199410

main65636-89111iRN101,110,VZN100,110198808-199501

76625BMUDGUARD, REAR BODY, RH

main76625-39205iRN10#,110,VZN10#,110198808-199211

main76625-39206iRN10#,110,VZN100,110199211-199501

sub76625-39208

76626BMUDGUARD, REAR BODY, LH

main76626-39205iRN10#,110,VZN10#,110198808-199211

main76626-39206iRN10#,110,VZN100,110199211-199501

sub76626-39208

76645BBRACKET, REAR BODY MUDGUARD, RH

main76645-89101iRN10#,110,VZN10#,110198808-199501

76646BBRACKET, REAR BODY MUDGUARD, LH

main76646-89101iRN10#,110,VZN10#,110198808-199501

76647BSUPPORT, REAR BODY MUDGUARD, RH

main76647-89106iRN10#,110,VZN10#,110198808-198812

76648BSUPPORT, REAR BODY MUDGUARD, LH

main76648-89106iRN10#,110,VZN10#,110198808-198812

9011906480

main90119-06480

9011906699

main90119-06699

904670805601

main90467-0805601

9046710018

main90467-10018

9163140614

main91631-40614

15 parts on this diagram · 1 diagram in section
