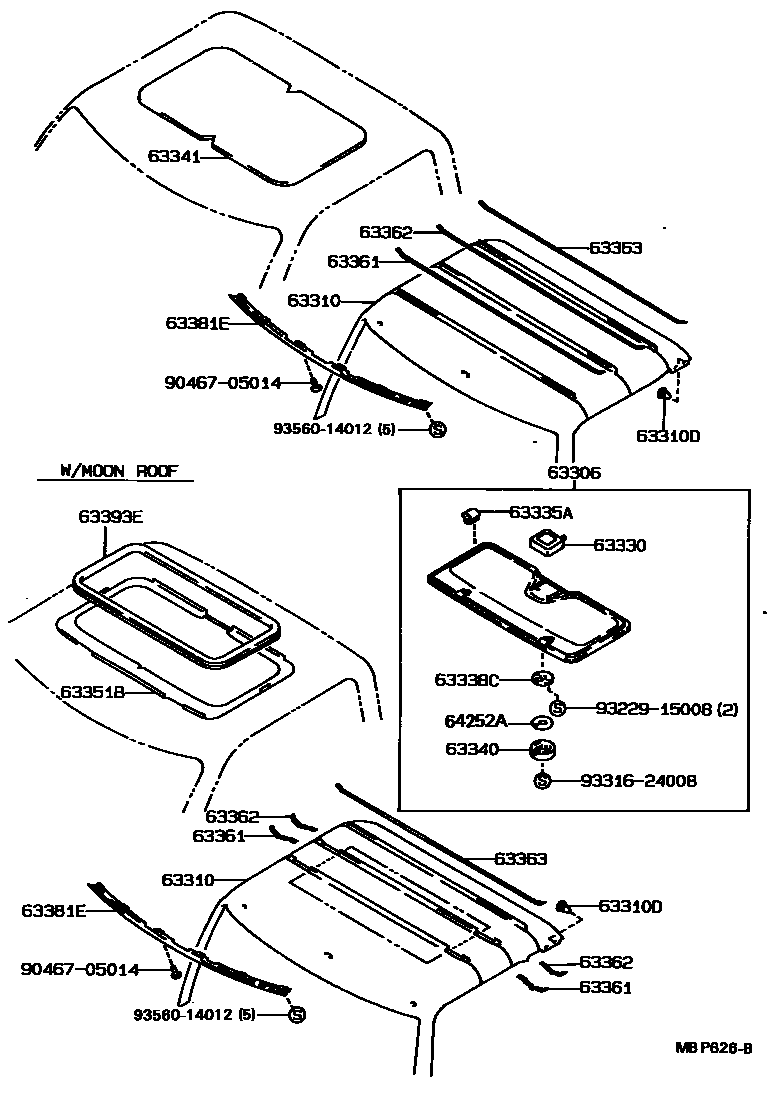

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1

63306TRIM SUB-ASSY, SUNSHADE

main63306-35010-B0iVZN110..SR5199108-199408

GRAY,TRIM1#

main63306-35010-J0iVZN110..SR5199108-199408

BLUE,TRIM8#

main63306-35030-B0iVZN110..SR5199408-199501

GRAY,TRIM1#

main63306-35030-J0iVZN110..SR5199408-199501

BLUE,TRIM8#

main63306-89102-02iRN101,110,VZN100,110..SR5198808-199108

RED,TRIM3#

sub63306-35010¥41,000

main63306-89102-03iRN101,110,VZN100,110..SR5198808-199108

GRAY,TRIM1#

sub63306-35010¥41,000

main63306-89102-04iRN101,110,VZN100,110..SR5198808-199108

BLUE,TRIM8#

sub63306-35010¥41,000

main63306-89102-06iRN101,110,VZN100,110..SR5198808-199108

BROWN,TRIM4#

sub63306-35010¥41,000

63310HEADLINING ASSY, ROOF

main63311-35060-B1iRN13#199408-199511

GRAY,TRIM1#

main63311-35060-E1iRN13#199408-199511

OAK,TRIM4#

main63311-35060-J1iRN13#199408-199511

BLUE,TRIM8#

main63311-35070-B1iVZN13#199408-199511

GRAY,TRIM1#

main63311-35070-B1iVZN13#199408-199511

W(MAP LAMP),GRAY,TRIM1#

main63311-35070-E1iRN13#199408-199511

W(MAP LAMP),OAK,TRIM4#

main63311-35070-E1iVZN13#199408-199511

OAK,TRIM4#

main63311-35070-J1iVZN13#199408-199511

BLUE,TRIM8#

main63311-35070-J1iVZN13#199408-199511

W(MAP LAMP),BLUE,TRIM8#

main63311-35090-B1iVZN13#199408-199511

W(MOON ROOF),GRAY,TRIM1#

main63311-35090-B1iVZN13#199408-199511

W(MOON ROOF & MAP LAMP),GRAY,TRIM1#

main63311-35090-E1iVZN13#199408-199511

W(MOON ROOF),OAK,TRIM4#

main63311-35090-E1iRN13#199408-199511

W(MOON ROOF & MAP LAMP),OAK,TRIM4#

main63311-35090-J1iVZN13#199408-199511

W(MOON ROOF),BLUE,TRIM8#

main63311-35090-J1iVZN13#199408-199511

W(MOON ROOF & MAP LAMP),BLUE,TRIM8#

main63311-89123-02iRN10#,VZN10#198808-199108

RED,TRIM3#

sub63311-89123¥8,700

main63311-89123-03iRN10#,VZN10#198808-199109

GRAY,TRIM1#

sub63311-89123¥8,700

main63311-89123-04iRN10#,VZN10#198808-199108

BLUE,TRIM8#

sub63311-89123¥8,700

main63311-89123-06iRN10#,VZN10#198808-199108

BROWN,TRIM4#

sub63311-89123¥8,700

main63311-89123-B0iRN10#,VZN10#199109-199501

SLATE GRAY,TRIM1#

sub63311-89123¥8,700

main63311-89123-J1iRN10#,VZN10#199108-199501

LIGHT BLUE,TRIM8#

sub63311-89123¥8,700

main63311-89125-02iRN101,VZN100..SR5198808-199008

W(MOON ROOF),RED,TRIM3#

main63311-89125-03iRN101,VZN100..SR5198808-199008

W(MOON ROOF),GRAY,TRIM1#

main63311-89125-04iRN101,VZN100..SR5198808-199008

W(MOON ROOF),BLUE,TRIM8#

main63311-89125-06iRN101,VZN100..SR5198808-199008

W(MOON ROOF),BROWN,TRIM4#

main63311-89128-02iRN110,VZN110198808-199108

RED,TRIM3#

sub63311-89128¥13,500

main63311-89128-03iRN110,VZN110198808-199303

GRAY,TRIM1#

sub63311-89128¥13,500

main63311-89128-04iRN110,VZN110198808-199108

BLUE,TRIM8#

sub63311-89128¥13,500

main63311-89128-06iRN110,VZN110198808-199108

BROWN,TRIM4#

sub63311-89128¥13,500

main63311-89128-B0iRN110,VZN110199303-199501

GRAY,TRIM1#

sub63311-89128¥13,500

main63311-89128-J1iRN110,VZN110199108-199501

BLUE,TRIM8#

sub63311-89128¥13,500

main63311-89129-02iRN110,VZN110..SR5198808-199108

W(MOON ROOF),RED,TRIM3#

sub63311-89129¥13,500

main63311-89129-03iRN110,VZN110..SR5198808-199501

W(MOON ROOF),GRAY,TRIM1#

sub63311-89129¥13,500

main63311-89129-04iRN110,VZN110..SR5198808-199108

W(MOON ROOF),BLUE,TRIM8#

sub63311-89129¥13,500

main63311-89129-06iRN110,VZN110..SR5198808-199108

W(MOON ROOF),BROWN,TRIM4#

sub63311-89129¥13,500

main63311-89129-J1iVZN110..SR5199108-199501

W(MOON ROOF),BLUE,TRIM8#

sub63311-89129¥13,500

main63311-89132-02iRN13#198904-199108

RED,TRIM3#

main63311-89132-03iRN13#198904-199408

GRAY,TRIM1#

main63311-89132-04iRN13#198904-199108

BLUE,TRIM8#

main63311-89132-06iRN13#198904-199108

BROWN,TRIM4#

main63311-89132-E0iRN13#199108-199308

TAN,TRIM4#

main63311-89132-E1iRN13#199308-199408

OAK,TRIM4#

main63311-89132-J0iRN13#199108-199408

BLUE,TRIM8#

main63311-89133-02iRN13#198904-199108

RED,TRIM3#

main63311-89133-02iRN13#198904-199108

W(MAP LAMP),RED,TRIM3#

main63311-89133-03iRN13#198904-199408

GRAY,TRIM1#

main63311-89133-03iVZN13#198904-199408

W(MAP LAMP),GRAY,TRIM1#

main63311-89133-04iRN13#198904-199108

W(MAP LAMP),BLUE,TRIM8#

main63311-89133-04iVZN13#198904-199108

BLUE,TRIM8#

main63311-89133-06iVZN13#198904-199108

BROWN,TRIM4#

main63311-89133-06iRN13#198904-199108

W(MAP LAMP),BROWN,TRIM4#

main63311-89133-E0iRN13#199108-199308

W(MAP LAMP),TAN,TRIM4#

main63311-89133-E0iVZN13#199108-199308

TAN,TRIM4#

main63311-89133-E1iVZN13#199308-199408

W(MAP LAMP),OAK,TRIM4#

main63311-89133-E1iRN13#199308-199408

OAK,TRIM4#

main63311-89133-J0iRN13#199108-199408

BLUE,TRIM8#

main63311-89133-J0iRN13#199108-199408

W(MAP LAMP),BLUE,TRIM8#

main63311-89135-02iRN13#198904-199108

W(MOON ROOF & MAP LAMP),RED,TRIM3#

sub63311-89134¥65,900

main63311-89135-02iVZN13#198904-199108

W(MOON ROOF),RED,TRIM3#

sub63311-89134¥65,900

main63311-89135-03iVZN13#198904-199408

W(MOON ROOF),GRAY,TRIM1#

sub63311-89134¥65,900

main63311-89135-03iRN13#198904-199408

W(MOON ROOF & MAP LAMP),GRAY,TRIM1#

sub63311-89134¥65,900

main63311-89135-04iRN13#198904-199108

W(MOON ROOF & MAP LAMP),BLUE,TRIM8#

sub63311-89134¥65,900

main63311-89135-04iVZN13#198904-199108

W(MOON ROOF),BLUE,TRIM8#

sub63311-89134¥65,900

main63311-89135-06iRN13#198904-199108

W(MOON ROOF),BROWN,TRIM4#

sub63311-89134¥65,900

main63311-89135-06iRN13#198904-199108

W(MOON ROOF & MAP LAMP),BROWN,TRIM4#

sub63311-89134¥65,900

main63311-89135-E0iRN13#199108-199308

W(MOON ROOF & MAP LAMP),TAN,TRIM4#

sub63311-89134¥65,900

main63311-89135-E0iVZN13#199108-199308

W(MOON ROOF),TAN,TRIM4#

sub63311-89134¥65,900

main63311-89135-E1iVZN13#199308-199408

W(MOON ROOF & MAP LAMP),OAK,TRIM4#

sub63311-89134¥65,900

main63311-89135-E1iRN13#199308-199408

W(MOON ROOF),OAK,TRIM4#

sub63311-89134¥65,900

main63311-89135-J0iVZN13#199108-199408

W(MOON ROOF & MAP LAMP),BLUE,TRIM8#

sub63311-89134¥65,900

main63311-89135-J0iRN13#199108-199408

W(MOON ROOF),BLUE,TRIM8#

sub63311-89134¥65,900

63310DCLIP, ROOF HEADLINING

main90467-09110-02iRN13#,VZN13#198904-199108

RED,TRIM3#

sub90467-09110¥230

main90467-09110-03iRN13#,VZN13#198904-199511

GRAY,TRIM1#

sub90467-09110¥230

main90467-09110-04iRN13#,VZN13#198904-199108

BLUE,TRIM8#

sub90467-09110¥230

main90467-09110-06iRN13#,VZN13#198904-199108

BROWN,TRIM4#

sub90467-09110¥230

main90467-09110-E0iRN13#,VZN13#199108-199308

TAN,TRIM4#

sub90467-09110¥230

main90467-09110-E1iRN13#,VZN13#199308-199511

OAK,TRIM4#

sub90467-09110¥230

main90467-09110-J0iRN13#,VZN13#199108-199511

BLUE,TRIM8#

sub90467-09110¥230

main90467-10044-02iRN10#,VZN10#198808-199108

RED,TRIM3#

sub90467-10044¥190

main90467-10044-14iRN10#,VZN10#198808-198901

BLUE,TRIM8#

sub90467-10044¥190

main90467-10044-16iRN110,VZN110198808-198901

BROWN,TRIM4#

sub90467-10044¥190

main90467-10044-33iRN110,VZN110198808-198901

GRAY,TRIM1#

sub90467-10044¥190

main90467-10044-B0iRN110,VZN110198901-199501

SLATE GRAY,TRIM1#

sub90467-10044¥190

main90467-10044-E0iRN110,VZN110198901-199108

LIGHT BROWN,TRIM4#

sub90467-10044¥190

main90467-10044-J0iRN10#,VZN10#198901-199108

LIGHT BLUE,TRIM8#

sub90467-10044¥190

main90467-10044-J1iRN110,VZN110199108-199501

LIGHT BLUE,TRIM8#

sub90467-10044¥190

63330LOCK ASSY, SUNSHADE TRIM

main63330-16010iVZN110..SR5¥5,400199408-199501

main63330-89101iRN101,110,VZN100,110..SR5¥5,900198808-199408

63335ACUSHION, SUNSHADE TRIM, NO.1

main63335-35010iVZN110..SR5¥250199108-199501

FRONT

main63335-35020iVZN110..SR5¥250199108-199501

REAR

main63335-89102iRN101,110,VZN100,110..SR5¥270198809-199108

63338CSTOPPER, SUNSHADE LOCK, NO.2

main63338-12010iRN101,110,VZN100,110..SR5¥1,460198808-199501

63340HANDLE ASSY, SUNSHADE TRIM LOCK

main63340-12010-02iRN101,110,VZN100,110..SR5198808-199108

RED,TRIM3#

sub63340-12010¥6,500

main63340-12010-04iRN101,110,VZN100,110..SR5198808-199108

BLUE,TRIM8#

sub63340-12010¥6,500

main63340-12010-06iRN101,110,VZN100,110..SR5198808-199108

BROWN,TRIM4#

sub63340-12010¥6,500

main63340-12010-23iRN101,110,VZN100,110..SR5198808-199408

GRAY,TRIM1#

sub63340-12010¥6,500

main63340-12010-J0iVZN110..SR5199108-199408

BLUE,TRIM8#

sub63340-12010¥6,500

main64251-16010-B1iVZN110..SR5199408-199501

GRAY,TRIM1#

sub64251-16010¥1,440

main64251-16010-J0iVZN110..SR5199408-199501

BLUE,TRIM8#

sub64251-16010¥1,440

63341PAD, ROOF SILENCER, NO.1

main63341-35050iRN13#,VZN13#¥2,010199411-199511

sub63341-22H92¥1,380

main63341-89116iRN10#,VZN10#¥870198808-199408

sub63341-22H92¥1,380

main63341-89121iRN110,VZN110¥1,090198808-199501

main63341-89122iRN13#,VZN13#¥2,010198904-199411

sub63341-22H92¥1,380

63351BPAD, ROOF HEADLINING

main63351-89107iRN101,110,VZN100,110..SR5¥4,770198808-199501

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-89113iRN101,110,VZN100,110..SR5¥510198808-199501

W(MOON ROOF)

main63361-89115iRN110,VZN110¥860198808-198812

main63361-89116iRN10#,VZN10#¥870198808-199501

63362SUPPORT, ROOF HEADLINING, NO.2

main63361-89113iRN101,110,VZN100,110..SR5¥510198808-199501

W(MOON ROOF)

main63361-89115iRN110,VZN110¥860198808-199501

main63361-89123iRN10#,VZN10#¥380198808-199501

63363SUPPORT, ROOF HEADLINING, NO.3

main63361-89115iRN110,VZN110¥860198808-199501

main63361-89123iRN10#,VZN10#¥380198808-199501

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main63381-89104iRN10#,110,VZN10#,110¥3,070198808-199501

63393ETRIM, ROOF HEADLINING

main63393-89104-02iRN101,110,VZN100,110..SR5198808-199108

RED,TRIM3#

sub63393-89104¥2,260

sub63393-89106¥1,420

main63393-89104-04iRN101,110,VZN100,110..SR5198808-199108

BLUE,TRIM8#

sub63393-89104¥2,260

sub63393-89106¥1,420

main63393-89104-06iRN101,110,VZN100,110..SR5198808-199108

BROWN,TRIM4#

sub63393-89104¥2,260

sub63393-89106¥1,420

main63393-89104-23iRN101,110,VZN100,110..SR5198808-199501

GRAY,TRIM1#

sub63393-89104¥2,260

sub63393-89106¥1,420

main63393-89104-J0iVZN110..SR5199108-199501

BLUE,TRIM8#

sub63393-89104¥2,260

sub63393-89106¥1,420

64252ASPACER, SUNSHADE TRIM LOCK

main64252-17010iRN101,110,VZN100,110..SR5¥440198808-199408

9046705014

main90467-05014¥110

9322915008

main93229-15008¥80

9331624008

main93316-24008¥120

9356014012

main93560-14012¥70

19 parts on this diagram · 3 diagrams in section
