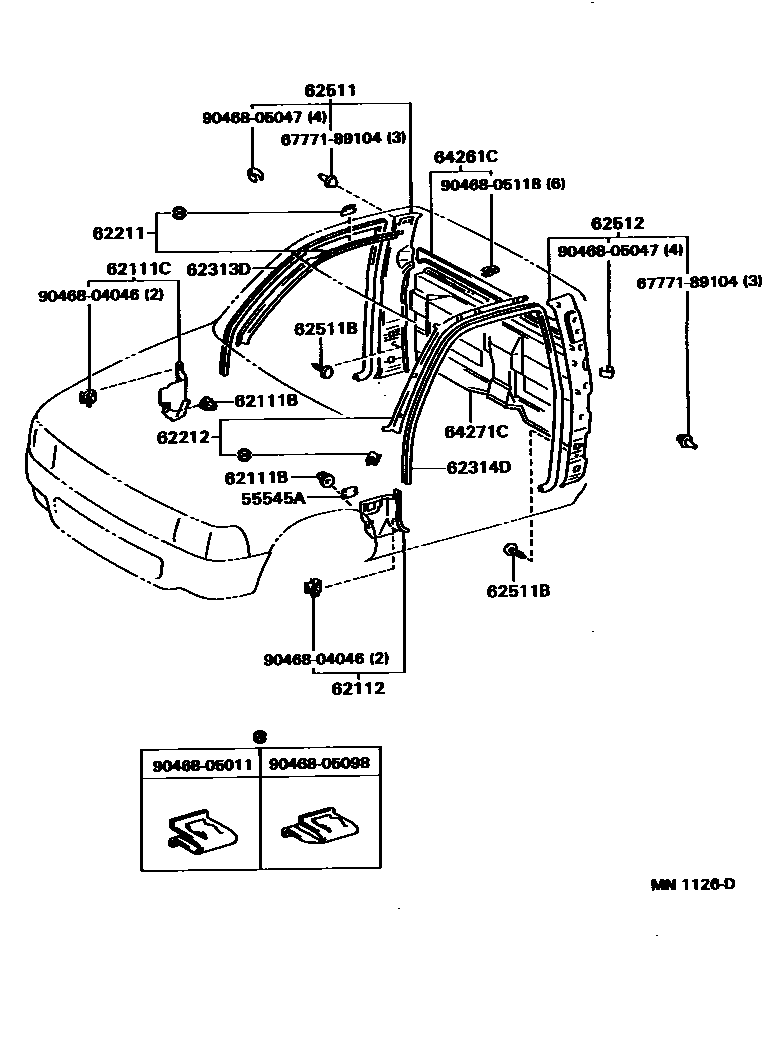

INSIDE TRIM BOARD

0001 1 0002 1 0003 1 0004 1

55545ACOVER, FUSE BOX OPENING

main55545-89102-02iRN10#,110,13#,VZN10#,110,13#198808-199108

RED,TRIM3#

sub55545-89102

main55545-89102-03iRN10#,110,VZN10#,110198808-198901

GRAY,TRIM1#

sub55545-89102

main55545-89102-04iRN10#,110,VZN10#,110198808-198901

BLUE,TRIM8#

sub55545-89102

main55545-89102-06iRN10#,110,VZN10#,110198808-198901

BROWN,TRIM4#

sub55545-89102

main55545-89102-B0iRN10#,110,13#,VZN10#,110,13#198901-199511

MEDIUM GRAY,TRIM1#

sub55545-89102

main55545-89102-E0iRN10#,110,13#,VZN10#,110,13#198901-199108

BROWN,TRIM4#

sub55545-89102

main55545-89102-E1iRN13#,VZN13#199108-199308

TAN,TRIM4#

sub55545-89102

main55545-89102-E2iRN13#,VZN13#199308-199511

OAK,TRIM4#

sub55545-89102

main55545-89102-J0iRN10#,110,13#,VZN10#,110,13#198901-199511

MEDIUM BLUE,TRIM8#

sub55545-89102

62111BCLIP(FOR COWL SIDE TRIM)

main90467-05051-02iRN10#,110,13#,VZN10#,110,13#198808-199108

RED,TRIM3#

sub90467-05051

main90467-05051-03iRN10#,110,VZN10#,110198808-198901

GRAY,TRIM1#

sub90467-05051

main90467-05051-04iRN10#,110,VZN10#,110198808-198901

BLUE,TRIM8#

sub90467-05051

main90467-05051-06iRN10#,110,VZN10#,110198808-198901

BROWN,TRIM4#

sub90467-05051

main90467-05051-B0iRN10#,110,13#,VZN10#,110,13#198901-199511

MEDIUM GRAY,TRIM1#

sub90467-05051

main90467-05051-E0iRN10#,110,13#,VZN10#,110,13#198901-199108

BROWN,TRIM4#

sub90467-05051

main90467-05051-E1iRN13#,VZN13#199108-199308

TAN,TRIM4#

sub90467-05051

main90467-05051-E2iRN13#,VZN13#199308-199511

OAK,TRIM4#

sub90467-05051

main90467-05051-J0iRN10#,110,13#,VZN10#,110,13#198901-199511

MEDIUM BLUE,TRIM8#

sub90467-05051

62111CBOARD, COWL SIDE TRIM, RH

main62111-89119-02iRN10#,110,13#,VZN10#,110,13#198808-199108

RED,TRIM3#

sub62111-89119

main62111-89119-03iRN10#,110,VZN10#,110198808-198901

GRAY,TRIM1#

sub62111-89119

main62111-89119-04iRN10#,110,VZN10#,110198808-198901

BLUE,TRIM8#

sub62111-89119

main62111-89119-06iRN10#,110,VZN10#,110198808-198901

BROWN,TRIM4#

sub62111-89119

main62111-89119-B0iRN10#,110,13#,VZN10#,110,13#198901-199511

MEDIUM GRAY,TRIM1#

sub62111-89119

main62111-89119-E0iRN10#,110,13#,VZN10#,110,13#198901-199108

BROWN,TRIM4#

sub62111-89119

main62111-89119-E1iRN13#,VZN13#199108-199308

TAN,TRIM4#

sub62111-89119

main62111-89119-E2iRN13#,VZN13#199308-199511

OAK,TRIM4#

sub62111-89119

main62111-89119-J0iRN10#,110,13#,VZN10#,110,13#198901-199511

MEDIUM BLUE,TRIM8#

sub62111-89119

62112BOARD, COWL SIDE TRIM, LH

main62112-89117-02iRN10#,110,13#,VZN10#,110,13#198808-199108

RED,TRIM3#

sub62112-89117

main62112-89117-03iRN10#,110,VZN10#,110198808-198901

GRAY,TRIM1#

sub62112-89117

main62112-89117-04iRN10#,110,VZN10#,110198808-198901

BLUE,TRIM8#

sub62112-89117

main62112-89117-06iRN10#,110,VZN10#,110198808-198901

BROWN,TRIM4#

sub62112-89117

main62112-89117-B0iRN10#,110,13#,VZN10#,110,13#198901-199511

MEDIUM GRAY,TRIM1#

sub62112-89117

main62112-89117-E0iRN10#,110,13#,VZN10#,110,13#198901-199108

BROWN,TRIM4#

sub62112-89117

main62112-89117-E1iRN13#,VZN13#199108-199308

TAN,TRIM4#

sub62112-89117

main62112-89117-E2iRN13#,VZN13#199308-199511

OAK,TRIM4#

sub62112-89117

main62112-89117-J0iRN10#,110,13#,VZN10#,110,13#198901-199511

MEDIUM BLUE,TRIM8#

sub62112-89117

62211GARNISH, FRONT PILLAR, RH

main62211-35010-B0iRN10#,110,VZN10#,110..DLX199108-199109

GRAY,TRIM1#

sub62211-35011

main62211-35010-J0iRN10#,110,VZN10#,110..DLX199108-199109

BLUE,TRIM8#

sub62211-35011

main62211-35011-B0iRN10#,110,VZN10#,110..DLX199109-199501

GRAY,TRIM1#

sub62211-35011

main62211-35011-J0iRN10#,110,VZN10#,110..DLX199109-199501

BLUE,TRIM8#

sub62211-35011

main62211-35020-B0iRN131,VZN110,13#..(2D,T1)..SR5199108-199109

GRAY,TRIM1#

sub62211-35021

main62211-35020-E0iRN131,VZN13#..2D199108-199109

TAN,TRIM4#

sub62211-35021

main62211-35020-J0iRN131,VZN110,13#..(2D,T1)..SR5199108-199109

BLUE,TRIM8#

sub62211-35021

main62211-35021-B0iRN131,VZN110,13#..(2D,T1)..SR5199109-199501

GRAY,TRIM1#

main62211-35021-E0iRN131,VZN13#..2D199109-199308

TAN,TRIM4#

main62211-35021-J0iRN131,VZN110,13#..(2D,T1)..SR5199109-199501

BLUE,TRIM8#

main62211-35030-B0iRN13#,VZN13#..4D199108-199109

GRAY,TRIM1#

sub62211-35031

main62211-35030-E0iRN13#,VZN13#..4D199108-199109

TAN,TRIM4#

sub62211-35031

main62211-35030-J0iRN13#,VZN13#..4D199108-199109

BLUE,TRIM8#

sub62211-35031

main62211-35031-B0iRN13#,VZN13#..4D199109-199511

GRAY,TRIM1#

sub62211-35031

main62211-35031-E0iRN13#,VZN13#..4D199109-199308

TAN,TRIM4#

sub62211-35031

main62211-35031-E1iRN13#,VZN13#199308-199511

OAK,TRIM4#

sub62211-35031

main62211-35031-J0iRN13#,VZN13#..4D199109-199511

BLUE,TRIM8#

sub62211-35031

main62211-89103-02iVZN100,110..DLX;RN10#,110,VZN105198808-199108

RED,TRIM3#

sub62211-89103

main62211-89103-03iVZN100,110..DLX;RN10#,110,VZN105198808-199108

GRAY,TRIM1#

sub62211-89103

main62211-89103-04iVZN100,110..DLX;RN10#,110,VZN105198808-199108

BLUE,TRIM8#

sub62211-89103

main62211-89103-06iVZN100,110..DLX;RN10#,110,VZN105198808-199108

BROWN,TRIM4#

sub62211-89103

main62211-89104-02iRN13#,VZN100,110,13#..(2D,T1)..SR5198808-199108

RED,TRIM3#

main62211-89104-03iRN13#,VZN100,110,13#..(2D,T1)..SR5198808-199108

GRAY,TRIM1#

main62211-89104-04iRN13#,VZN100,110,13#..(2D,T1)..SR5198808-199108

BLUE,TRIM8#

main62211-89104-06iRN13#,VZN100,110,13#..(2D,T1)..SR5198808-199108

BROWN,TRIM4#

main62211-89105-02iRN13#,VZN13#..4D198904-199108

RED,TRIM3#

main62211-89105-03iRN13#,VZN13#..4D198904-199108

GRAY,TRIM1#

main62211-89105-04iRN13#,VZN13#..4D198904-199108

BLUE,TRIM8#

main62211-89105-06iRN13#,VZN13#..4D198904-199108

BROWN,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62212-35010-B0iRN10#,110,VZN10#,110..DLX199108-199109

GRAY,TRIM1#

sub62212-35011

main62212-35010-J0iRN10#,110,VZN10#,110..DLX199108-199109

BLUE,TRIM8#

sub62212-35011

main62212-35011-B0iRN10#,110,VZN10#,110..DLX199109-199501

GRAY,TRIM1#

sub62212-35011

main62212-35011-J0iRN10#,110,VZN10#,110..DLX199109-199501

BLUE,TRIM8#

sub62212-35011

main62212-35020-B0iRN131,VZN110,13#..(2D,T1)..SR5199108-199109

GRAY,TRIM1#

sub62212-35021

main62212-35020-E0iRN131,VZN13#..2D199108-199109

TAN,TRIM4#

sub62212-35021

main62212-35020-J0iRN131,VZN110,13#..(2D,T1)..SR5199108-199109

BLUE,TRIM8#

sub62212-35021

main62212-35021-B0iRN131,VZN110,13#..(2D,T1)..SR5199109-199501

GRAY,TRIM1#

main62212-35021-E0iRN131,VZN13#..2D199109-199308

TAN,TRIM4#

main62212-35021-J0iRN131,VZN110,13#..(2D,T1)..SR5199109-199501

BLUE,TRIM8#

main62212-35030-B0iRN13#,VZN13#..4D199108-199109

GRAY,TRIM1#

sub62212-35031

main62212-35030-E0iRN13#,VZN13#..4D199108-199109

TAN,TRIM4#

sub62212-35031

main62212-35030-J0iRN13#,VZN13#..4D199108-199109

BLUE,TRIM8#

sub62212-35031

main62212-35031-B0iRN13#,VZN13#..4D199109-199511

GRAY,TRIM1#

sub62212-35031

main62212-35031-E0iRN13#,VZN13#..4D199109-199308

TAN,TRIM4#

sub62212-35031

main62212-35031-E1iRN13#,VZN13#199308-199511

OAK,TRIM4#

sub62212-35031

main62212-35031-J0iRN13#,VZN13#..4D199109-199511

BLUE,TRIM8#

sub62212-35031

main62212-89103-02iVZN100,110..DLX;RN10#,110,VZN105198808-199108

RED,TRIM3#

sub62212-89103

main62212-89103-03iVZN100,110..DLX;RN10#,110,VZN105198808-199108

GRAY,TRIM1#

sub62212-89103

main62212-89103-04iVZN100,110..DLX;RN10#,110,VZN105198808-199108

BLUE,TRIM8#

sub62212-89103

main62212-89103-06iVZN100,110..DLX;RN10#,110,VZN105198808-199108

BROWN,TRIM4#

sub62212-89103

main62212-89104-02iRN13#,VZN100,110,13#..(2D,T1)..SR5198808-199108

RED,TRIM3#

main62212-89104-03iRN13#,VZN100,110,13#..(2D,T1)..SR5198808-199108

GRAY,TRIM1#

main62212-89104-04iRN13#,VZN100,110,13#..(2D,T1)..SR5198808-199108

BLUE,TRIM8#

main62212-89104-06iRN13#,VZN100,110,13#..(2D,T1)..SR5198808-199108

BROWN,TRIM4#

main62212-89105-02iRN13#,VZN13#..4D198904-199108

RED,TRIM3#

main62212-89105-03iRN13#,VZN13#..4D198904-199108

GRAY,TRIM1#

main62212-89105-04iRN13#,VZN13#..4D198904-199108

BLUE,TRIM8#

main62212-89105-06iRN13#,VZN13#..4D198904-199108

BROWN,TRIM4#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-89113-03iRN10#,110,VZN10#,110198808-198901

GRAY,TRIM1#

sub62313-89116

sub62313-89113

main62313-89113-04iRN10#,110,VZN10#,110198808-198901

BLUE,TRIM8#

sub62313-89116

sub62313-89113

main62313-89113-06iRN10#,110,VZN10#,110198808-198901

BROWN,TRIM4#

sub62313-89116

sub62313-89113

main62313-89113-B0iRN10#,110,VZN10#,110198901-198904

MEDIUM GRAY,TRIM1#

sub62313-89116

sub62313-89113

main62313-89113-E0iRN10#,110,VZN10#,110198901-198904

BROWN,TRIM4#

sub62313-89116

sub62313-89113

main62313-89113-J0iRN10#,110,VZN10#,110198901-198904

MEDIUM BLUE,TRIM8#

sub62313-89116

sub62313-89113

main62313-89116-02iRN10#,110,13#,VZN10#,110,13#..2D,T1198904-199108

RED,TRIM3#

sub62313-89116

main62313-89116-03iRN10#,110,VZN10#,110198904-198907

GRAY,TRIM1#

sub62313-89116

main62313-89116-04iRN10#,110,VZN10#,110198904-198907

BLUE,TRIM8#

sub62313-89116

main62313-89116-06iRN10#,110,VZN10#,110198904-198907

BROWN,TRIM4#

sub62313-89116

main62313-89116-B0iRN10#,110,13#,VZN10#,110,13#..2D,T1198907-199501

MEDIUM GRAY,TRIM1#

sub62313-89116

main62313-89116-E0iRN10#,110,13#,VZN10#,110,13#..2D,T1198907-199108

BROWN,TRIM4#

sub62313-89116

main62313-89116-E2iRN131,VZN13#..2D199108-199308

TAN,TRIM4#

sub62313-89116

main62313-89116-J0iRN10#,110,13#,VZN10#,110,13#..2D,T1198907-199501

MEDIUM BLUE,TRIM8#

sub62313-89116

main62313-89117-02iRN13#,VZN13#..4D198904-199108

RED,TRIM3#

main62313-89117-03iRN13#,VZN13#..4D198904-199511

GRAY,TRIM1#

main62313-89117-04iRN13#,VZN13#..4D198904-199511

BLUE,TRIM8#

main62313-89117-06iRN13#,VZN13#..4D198904-199108

BROWN,TRIM4#

main62313-89117-E2iRN13#,VZN13#..4D199108-199308

TAN,TRIM4#

main62313-89117-E4iRN13#,VZN13#199308-199511

OAK,TRIM4#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-89113-03iRN10#,110,VZN10#,110198808-198901

GRAY,TRIM1#

sub62313-89116

sub62313-89113

main62313-89113-04iRN10#,110,VZN10#,110198808-198901

BLUE,TRIM8#

sub62313-89116

sub62313-89113

main62313-89113-06iRN10#,110,VZN10#,110198808-198901

BROWN,TRIM4#

sub62313-89116

sub62313-89113

main62313-89113-B0iRN10#,110,VZN10#,110198901-198904

MEDIUM GRAY,TRIM1#

sub62313-89116

sub62313-89113

main62313-89113-E0iRN10#,110,VZN10#,110198901-198904

BROWN,TRIM4#

sub62313-89116

sub62313-89113

main62313-89113-J0iRN10#,110,VZN10#,110198901-198904

MEDIUM BLUE,TRIM8#

sub62313-89116

sub62313-89113

main62313-89116-02iRN10#,110,13#,VZN10#,110,13#..2D,T1198904-199108

RED,TRIM3#

sub62313-89116

main62313-89116-03iRN10#,110,VZN10#,110198904-198907

GRAY,TRIM1#

sub62313-89116

main62313-89116-04iRN10#,110,VZN10#,110198904-198907

BLUE,TRIM8#

sub62313-89116

main62313-89116-06iRN10#,110,VZN10#,110198904-198907

BROWN,TRIM4#

sub62313-89116

main62313-89116-B0iRN10#,110,13#,VZN10#,110,13#..2D,T1198907-199501

MEDIUM GRAY,TRIM1#

sub62313-89116

main62313-89116-E0iRN10#,110,13#,VZN10#,110,13#..2D,T1198907-199108

BROWN,TRIM4#

sub62313-89116

main62313-89116-E2iRN131,VZN13#..2D199108-199308

TAN,TRIM4#

sub62313-89116

main62313-89116-J0iRN10#,110,13#,VZN10#,110,13#..2D,T1198907-199501

MEDIUM BLUE,TRIM8#

sub62313-89116

main62313-89117-02iRN13#,VZN13#..4D198904-199108

RED,TRIM3#

main62313-89117-03iRN13#,VZN13#..4D198904-199511

GRAY,TRIM1#

main62313-89117-04iRN13#,VZN13#..4D198904-199511

BLUE,TRIM8#

main62313-89117-06iRN13#,VZN13#..4D198904-199108

BROWN,TRIM4#

main62313-89117-E2iRN13#,VZN13#..4D199108-199308

TAN,TRIM4#

main62313-89117-E4iRN13#,VZN13#199308-199511

OAK,TRIM4#

62511BOARD, QUARTER INSIDE TRIM, RH

main62511-35030-B0iRN110,VZN110..DLX199208-199501

GRAY,TRIM1#

sub62511-89142

main62511-35030-J0iRN110,VZN110..DLX199208-199501

BLUE,TRIM8#

sub62511-89142

main62511-35040-B0iRN110,VZN110..DLX199208-199501

W(REAR JUMP SEAT),GRAY,TRIM1#

sub62511-89142

main62511-35040-J0iRN110,VZN110..DLX199208-199501

W(REAR JUMP SEAT),BLUE,TRIM8#

sub62511-89142

main62511-35050-B0iVZN110..SR5199208-199501

GRAY,TRIM1#

main62511-35050-J0iVZN110..SR5199208-199501

BLUE,TRIM8#

main62511-89133-02iVZN100..SR5198808-199008

RED,TRIM3#

main62511-89133-03iVZN100..SR5198808-199008

GRAY,TRIM1#

main62511-89133-04iVZN100..SR5198808-199008

BLUE,TRIM8#

main62511-89133-06iVZN100..SR5198808-199008

BROWN,TRIM4#

main62511-89137-02iRN110..SR5198808-199008

RED,TRIM3#

sub62511-89142

main62511-89137-02iRN110,VZN110..DLX198908-199108

W(REAR JUMP SEAT),RED,TRIM3#

sub62511-89142

main62511-89137-03iRN110,VZN110..DLX198808-199208

W(REAR JUMP SEAT),GRAY,TRIM1#

sub62511-89142

main62511-89137-03iRN110..SR5198808-199008

GRAY,TRIM1#

sub62511-89142

main62511-89137-04iRN110..SR5198808-199008

BLUE,TRIM8#

sub62511-89142

main62511-89137-04iRN110,VZN110..DLX198808-199208

W(REAR JUMP SEAT),BLUE,TRIM8#

sub62511-89142

main62511-89137-06iRN110..SR5198808-199008

BROWN,TRIM4#

sub62511-89142

main62511-89137-06iRN110,VZN110..DLX198808-199108

W(REAR JUMP SEAT),BROWN,TRIM4#

sub62511-89142

main62511-89138-02iVZN110..SR5198808-199108

RED,TRIM3#

main62511-89138-03iVZN110..SR5198808-199208

GRAY,TRIM1#

main62511-89138-04iVZN110..SR5198808-199208

BLUE,TRIM8#

main62511-89138-06iVZN110..SR5198808-199108

BROWN,TRIM4#

main62511-89140-02iRN110,VZN110..DLX198808-199108

RED,TRIM3#

main62511-89140-03iRN110,VZN110..DLX198808-199208

GRAY,TRIM1#

main62511-89140-04iRN110,VZN110..DLX198808-199208

BLUE,TRIM8#

main62511-89140-06iRN110,VZN110..DLX198808-199108

BROWN,TRIM4#

main62511-89141-02iVZN100..DLX;RN10#,VZN105198808-199108

RED,TRIM3#

sub62511-89141

main62511-89141-03iVZN100..DLX;RN10#,VZN105198808-199109

GRAY,TRIM1#

sub62511-89141

main62511-89141-04iVZN100..DLX;RN10#,VZN105198808-199109

BLUE,TRIM8#

sub62511-89141

main62511-89141-06iVZN100..DLX;RN10#,VZN105198808-199108

BROWN,TRIM4#

sub62511-89141

main62511-89141-B0iRN10#,VZN100..CND199109-199501

MEDIUM GRAY,TRIM1#

sub62511-89141

main62511-89141-J0iRN10#,VZN100..CND199109-199501

MEDIUM BLUE,TRIM8#

sub62511-89141

62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-06057-02iRN10#,VZN10#198808-199108

RED,TRIM3#

sub90467-06057

main90467-06057-03iRN10#,VZN10#198808-198901

GRAY,TRIM1#

sub90467-06057

main90467-06057-04iRN10#,VZN10#198808-198901

BLUE,TRIM8#

sub90467-06057

main90467-06057-06iRN10#,VZN10#198808-198901

BROWN,TRIM4#

sub90467-06057

main90467-06057-B4iRN10#,VZN10#198901-199501

MEDIUM GRAY,TRIM1#

sub90467-06057

main90467-06057-E4iRN10#,VZN10#198901-199108

BROWN,TRIM4#

sub90467-06057

main90467-06057-J2iRN10#,VZN10#198901-199501

MEDIUM BLUE,TRIM8#

sub90467-06057

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-35030-B0iRN110,VZN110..DLX199208-199501

GRAY,TRIM1#

sub62512-89142

main62512-35030-J0iRN110,VZN110..DLX199208-199501

BLUE,TRIM8#

sub62512-89142

main62512-35040-B0iRN110,VZN110..DLX199208-199501

W(REAR JUMP SEAT),GRAY,TRIM1#

sub62512-89142

main62512-35040-J0iRN110,VZN110..DLX199208-199501

W(REAR JUMP SEAT),BLUE,TRIM8#

sub62512-89142

main62512-35050-B0iVZN110..SR5199208-199501

GRAY,TRIM1#

main62512-35050-J0iVZN110..SR5199208-199501

BLUE,TRIM8#

main62512-89133-02iVZN100..SR5198808-199008

RED,TRIM3#

main62512-89133-03iVZN100..SR5198808-199008

GRAY,TRIM1#

main62512-89133-04iVZN100..SR5198808-199008

BLUE,TRIM8#

main62512-89133-06iVZN100..SR5198808-199008

BROWN,TRIM4#

main62512-89137-02iRN110,VZN110..DLX198908-199108

W(REAR JUMP SEAT),RED,TRIM3#

sub62512-89142

main62512-89137-02iRN110..SR5198808-199008

RED,TRIM3#

sub62512-89142

main62512-89137-03iRN110..SR5198808-199008

GRAY,TRIM1#

sub62512-89142

main62512-89137-03iRN110,VZN110..DLX198808-199208

W(REAR JUMP SEAT),GRAY,TRIM1#

sub62512-89142

main62512-89137-04iRN110,VZN110..DLX198808-199208

W(REAR JUMP SEAT),BLUE,TRIM8#

sub62512-89142

main62512-89137-04iRN110..SR5198808-199008

BLUE,TRIM8#

sub62512-89142

main62512-89137-06iRN110..SR5198808-199008

BROWN,TRIM4#

sub62512-89142

main62512-89137-06iRN110,VZN110..DLX198808-199108

W(REAR JUMP SEAT),BROWN,TRIM4#

sub62512-89142

main62512-89138-02iVZN110..SR5198808-199108

RED,TRIM3#

main62512-89138-03iVZN110..SR5198808-199208

GRAY,TRIM1#

main62512-89138-04iVZN110..SR5198808-199208

BLUE,TRIM8#

main62512-89138-06iVZN110..SR5198808-199108

BROWN,TRIM4#

main62512-89140-02iRN110,VZN110..DLX198808-199108

RED,TRIM3#

sub62512-89142

main62512-89140-03iRN110,VZN110..DLX198808-199208

GRAY,TRIM1#

sub62512-89142

main62512-89140-04iRN110,VZN110..DLX198808-199208

BLUE,TRIM8#

sub62512-89142

main62512-89140-06iRN110,VZN110..DLX198808-199108

BROWN,TRIM4#

sub62512-89142

main62512-89141-02iVZN100..DLX;RN10#,VZN105198808-199108

RED,TRIM3#

sub62512-89141

main62512-89141-03iVZN100..DLX;RN10#,VZN105198808-199109

GRAY,TRIM1#

sub62512-89141

main62512-89141-04iVZN100..DLX;RN10#,VZN105198808-199109

BLUE,TRIM8#

sub62512-89141

main62512-89141-06iVZN100..DLX;RN10#,VZN105198808-199108

BROWN,TRIM4#

sub62512-89141

main62512-89141-B0iRN10#,VZN100199109-199501

MEDIUM GRAY,TRIM1#

sub62512-89141

main62512-89141-J0iRN10#,VZN100..CND199109-199501

MEDIUM BLUE,TRIM8#

sub62512-89141

64261CGARNISH, BACK PANEL, UPPER

main64261-89101-02iRN10#,VZN10#198808-199108

RED,TRIM3#

sub64261-89101

main64261-89101-03iRN10#,VZN10#198808-198901

GRAY,TRIM1#

sub64261-89101

main64261-89101-04iRN10#,VZN10#198808-198901

BLUE,TRIM8#

sub64261-89101

main64261-89101-06iRN10#,VZN10#198808-198901

BROWN,TRIM4#

sub64261-89101

main64261-89101-B0iRN10#,VZN10#198901-199501

MEDIUM GRAY,TRIM1#

sub64261-89101

main64261-89101-E0iRN10#,VZN10#198901-199108

BROWN,TRIM4#

sub64261-89101

main64261-89101-J0iRN10#,VZN10#..DLX198901-199501

MEDIUM BLUE,TRIM8#

sub64261-89101

main64261-89102-02iRN110,VZN110198808-199108

RED,TRIM3#

sub64261-89102

main64261-89102-03iRN110,VZN110198808-199303

GRAY,TRIM1#

sub64261-89102

main64261-89102-04iRN110,VZN110198808-199303

BLUE,TRIM8#

sub64261-89102

main64261-89102-06iRN110,VZN110198808-199108

BROWN,TRIM4#

sub64261-89102

main64261-89102-B0iRN110,VZN110199303-199501

GRAY,TRIM1#

sub64261-89102

main64261-89102-J0iRN110,VZN110199303-199501

BLUE,TRIM8#

sub64261-89102

64271CTRIM, BACK PANEL

main64270-35010-B0iRN110,VZN110..DLX..CND199108-199303

W(SPLIT SEAT),GRAY,TRIM1#

sub64270-35010

main64270-35010-B0iRN110,VZN110..DLX..USA199108-199303

W(REAR JUMP SEAT),GRAY,TRIM1#

sub64270-35010

main64270-35010-B1iRN110,VZN110..DLX..CND199303-199408

W(SPLIT SEAT),GRAY,TRIM1#

sub64270-35010

main64270-35010-B1iRN110,VZN110..DLX..USA199303-199501

W(REAR JUMP SEAT),GRAY,TRIM1#

sub64270-35010

main64270-35010-J0iRN110,VZN110..DLX..CND199108-199303

W(SPLIT SEAT),BLUE,TRIM8#

sub64270-35010

main64270-35010-J0iRN110,VZN110..DLX..USA199108-199303

W(REAR JUMP SEAT),BLUE,TRIM8#

sub64270-35010

main64270-35010-J1iRN110,VZN110..DLX..CND199303-199408

W(SPLIT SEAT),BLUE,TRIM8#

sub64270-35010

main64270-35010-J1iRN110,VZN110..DLX..CND199303-199501

W(REAR JUMP SEAT),BLUE,TRIM8#

sub64270-35010

main64270-35020-B0iVZN110..SR5199108-199308

GRAY,TRIM1#

main64270-35020-J0iVZN110..SR5199108-199308

BLUE,TRIM8#

main64270-35030-B0iVZN110..SR5199308-199501

GRAY,TRIM1#

main64270-35030-J0iVZN110..SR5199308-199501

BLUE,TRIM8#

main64270-89105-02iRN110,VZN110..DLX198808-198908

W(REAR JUMP SEAT),RED,TRIM3#

main64270-89105-03iRN110,VZN110..DLX198808-198908

W(REAR JUMP SEAT),GRAY,TRIM1#

main64270-89105-04iRN110,VZN110..DLX198808-198908

W(REAR JUMP SEAT),BLUE,TRIM8#

main64270-89105-06iRN110,VZN110..DLX198808-198908

W(REAR JUMP SEAT),BROWN,TRIM4#

main64270-89106-02iRN110,VZN110..SR5198808-199008

RED,TRIM3#

main64270-89106-03iRN110,VZN110..SR5198808-199008

GRAY,TRIM1#

main64270-89106-04iRN110,VZN110..SR5198808-199008

BLUE,TRIM8#

main64270-89106-06iRN110,VZN110..SR5198808-199008

BROWN,TRIM4#

main64270-89107-02iRN110,VZN110..SR5198808-199008

W(SPORT SEAT),RED,TRIM3#

main64270-89107-03iRN110,VZN110..SR5198808-199008

W(SPORT SEAT),GRAY,TRIM1#

main64270-89107-04iRN110,VZN110..SR5198808-199008

W(SPORT SEAT),BLUE,TRIM8#

main64270-89107-06iRN110,VZN110..SR5198808-199008

W(SPORT SEAT),BROWN,TRIM4#

main64270-89108-02iRN110,VZN110..DLX198808-199108

RED,TRIM3#

sub64270-89108

main64270-89108-03iRN110,VZN110..DLX198808-199303

GRAY,TRIM1#

sub64270-89108

main64270-89108-04iRN110,VZN110..DLX198808-199303

BLUE,TRIM8#

sub64270-89108

main64270-89108-06iRN110,VZN110..DLX198808-199108

BROWN,TRIM4#

sub64270-89108

main64270-89108-R9iRN110,VZN110..DLX199303-199501

BLUE,TRIM8#

sub64270-89108

main64270-89108-S4iRN110,VZN110..DLX199303-199501

GRAY,TRIM1#

sub64270-89108

main64270-89110-02iRN110,VZN110..DLX198908-199108

W(REAR JUMP SEAT),RED,TRIM3#

main64270-89110-03iRN110,VZN110..DLX198908-199108

W(REAR JUMP SEAT),GRAY,TRIM1#

main64270-89110-04iRN110,VZN110..DLX198908-199108

W(REAR JUMP SEAT),BLUE,TRIM8#

main64270-89110-06iRN110,VZN110..DLX198908-199108

W(REAR JUMP SEAT),BROWN,TRIM4#

main64270-89111-02iVZN110..SR5199008-199108

RED,TRIM3#

main64270-89111-03iVZN110..SR5199008-199108

GRAY,TRIM1#

main64270-89111-04iVZN110..SR5199008-199108

BLUE,TRIM8#

main64270-89111-06iVZN110..SR5199008-199108

BROWN,TRIM4#

main64270-89112-02iVZN110..SR5199008-199108

W(SPORT SEAT),RED,TRIM3#

main64270-89112-03iVZN110..SR5199008-199501

W(SPORT SEAT),GRAY,TRIM1#

main64270-89112-04iVZN110..SR5199008-199108

W(SPORT SEAT),BLUE,TRIM8#

main64270-89112-06iVZN110..SR5199008-199108

W(SPORT SEAT),BROWN,TRIM4#

main64270-89112-J0iVZN110..SR5199108-199501

W(SPORT SEAT),BLUE,TRIM8#

main64271-89113-02iRN10#,VZN10#198808-199108

RED,TRIM3#

sub64271-89113

main64271-89113-03iRN10#,VZN10#198808-199109

GRAY,TRIM1#

sub64271-89113

main64271-89113-04iRN10#,VZN10#198808-199109

BLUE,TRIM8#

sub64271-89113

main64271-89113-06iRN10#,VZN10#198808-199108

BROWN,TRIM4#

sub64271-89113

main64271-89113-B1iRN10#,VZN10#199109-199501

MEDIUM GRAY,TRIM1#

sub64271-89113

main64271-89113-J1iRN10#,VZN10#199109-199501

MEDIUM BLUE,TRIM8#

sub64271-89113

6777189104WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-89104

9046804046

main90468-04046

9046805011

main90468-05011

9046805047

main90468-05047

9046805098

main90468-05098

9046805118

main90468-05118

19 parts on this diagram · 4 diagrams in section
