FLOOR MAT & SILENCER PAD

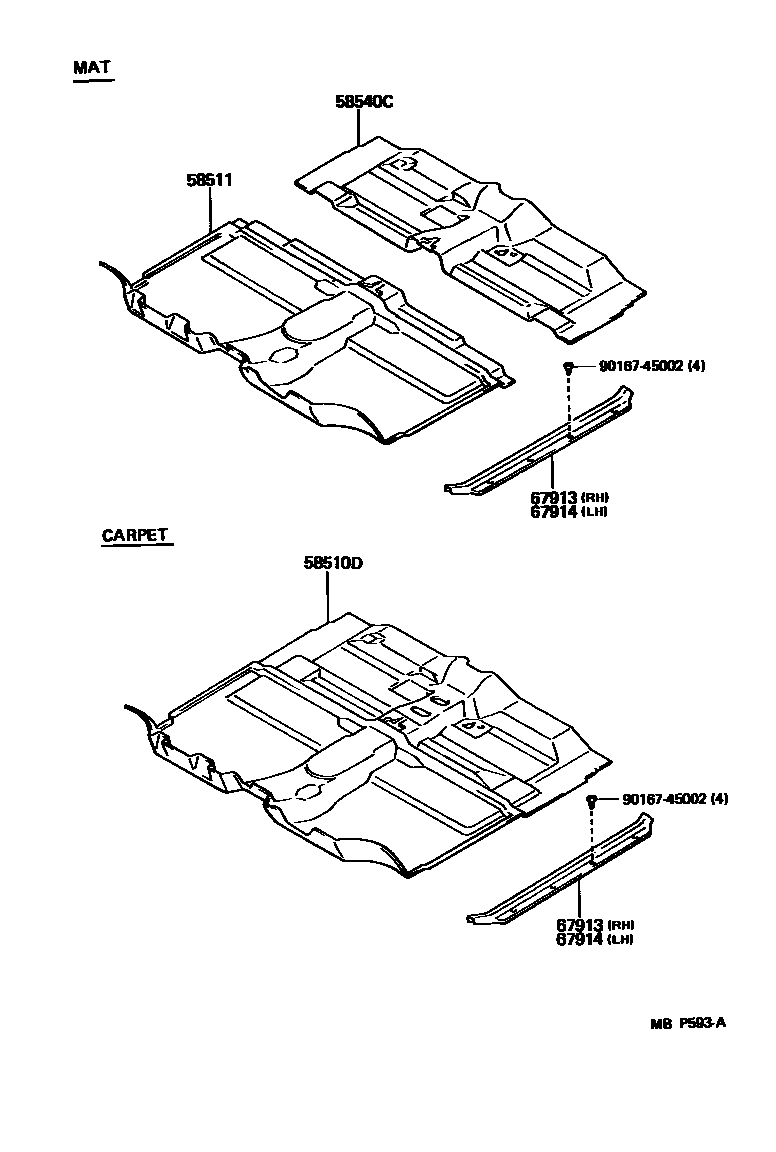

Parts diagram
58510DCARPET ASSY, FLOOR, FRONT
main58510-35040-02i199008-199108
W(CUT PILE CARPET),RED,TRIM3#
sub58510-3D230
main58510-35040-03i199008-199207
W(CUT PILE CARPET),GRAY,TRIM1#
sub58510-3D230
main58510-35040-04i199008-199207
W(CUT PILE CARPET),BLUE,TRIM8#
sub58510-3D230
main58510-35040-06i199008-199108
W(CUT PILE CARPET),BROWN,TRIM4#
sub58510-3D230
main58510-35250-B0i199108-199207
GRAY,TRIM1#
sub58510-35890
main58510-35250-J0i199108-199207
BLUE,TRIM8#
sub58510-35890
main58510-35270-B0i199108-199207
W(CUT PILE CARPET),GRAY,TRIM1#
sub58510-3D020
main58510-35270-B0i199108-199207
GRAY,TRIM1#
sub58510-3D020
main58510-35270-J0i199108-199207
BLUE,TRIM8#
sub58510-3D020
main58510-35270-J0i199108-199207
W(CUT PILE CARPET),BLUE,TRIM8#
sub58510-3D020
main58510-35300-B0i199201-199202
W(SEPARATE SEAT),GRAY,TRIM1#
sub58510-35300
sub58510-3D040
main58510-35300-B2i199202-199207
W(SEPARATE SEAT),MEDIUM GRAY,TRIM8#
sub58510-35300
sub58510-3D040
main58510-35300-J0i199201-199202
W(SEPARATE SEAT),BLUE,TRIM8#
sub58510-35300
sub58510-3D040
main58510-35300-J2i199202-199207
W(SEPARATE SEAT),MEDIUM BLUE,TRIM8#
sub58510-35300
sub58510-3D040
main58510-35310-B0i199201-199207
W(SEPARATE SEAT),GRAY,TRIM1#
sub58510-3D060
main58510-35310-B0i199108-199207
W(CUT PILE CARPET & SEPARATE SEAT),GRAY,TRIM1#
sub58510-3D060
main58510-35310-J0i199201-199207
W(SEPARATE SEAT),BLUE,TRIM8#
sub58510-3D060
main58510-35310-J0i199108-199207
W(CUT PILE CARPET & SEPARATE SEAT),BLUE,TRIM8#
sub58510-3D060
main58510-35540-B0i199201-199207
GRAY,TRIM1#
sub58510-35540
sub58510-3D300
main58510-35540-J0i199201-199207
BLUE,TRIM8#
sub58510-35540
sub58510-3D300
main58510-35550-B0i199201-199207
GRAY,TRIM1#
sub58510-35550
sub58510-3D310
main58510-35720-B0i199108-199511
GRAY,TRIM1#
sub58510-35720
main58510-35720-B0i199108-199207
W(REAR HEATER),GRAY,TRIM1#
sub58510-35720
main58510-35720-E0i199108-199308
TAN,TRIM4#
sub58510-35720
main58510-35720-E0i199108-199207
W(REAR HEATER),TAN,TRIM4#
sub58510-35720
main58510-35720-E1i199308-199511
OAK,TRIM4#
sub58510-35720
main58510-35720-J0i199108-199207
W(REAR HEATER),BLUE,TRIM8#
sub58510-35720
main58510-35720-J0i199108-199511
BLUE,TRIM8#
sub58510-35720
main58510-35730-B0i199207-199511
W(AIR CONDITIONER),GRAY,TRIM1#
sub58510-35720
main58510-35730-B0i199108-199207
W(REAR HEATER & AIR CONDITIONER);W(AIR CONDITIONER),GRAY,TRIM1#
sub58510-35720
main58510-35730-E0i199207-199308
W(AIR CONDITIONER),TAN,TRIM4#
sub58510-35720
main58510-35730-E0i199108-199207
W(REAR HEATER & AIR CONDITIONER);W(AIR CONDITIONER),TAN,TRIM4#
sub58510-35720
main58510-35730-E1i199308-199511
W(AIR CONDITIONER),OAK,TRIM4#
sub58510-35720
main58510-35730-J0i199108-199207
W(REAR HEATER & AIR CONDITIONER);W(AIR CONDITIONER),BLUE,TRIM8#
sub58510-35720
main58510-35730-J0i199207-199511
W(AIR CONDITIONER),BLUE,TRIM8#
sub58510-35720
main58510-35740-B0i199207-199402
GRAY,TRIM1#
sub58510-35720
main58510-35740-B0i199207-199402
W(REAR HEATER),GRAY,TRIM1#
sub58510-35720
main58510-35740-E0i199207-199308
W(REAR HEATER),TAN,TRIM4#
sub58510-35720
main58510-35740-E0i199207-199308
TAN,TRIM4#
sub58510-35720
main58510-35740-E1i199308-199402
W(REAR HEATER),OAK,TRIM4#
sub58510-35720
main58510-35740-E1i199308-199402
OAK,TRIM4#
sub58510-35720
main58510-35740-J0i199207-199402
BLUE,TRIM8#
sub58510-35720
main58510-35740-J0i199207-199402
W(REAR HEATER),BLUE,TRIM8#
sub58510-35720
main58510-35750-B0i199207-199402
W(REAR HEATER & AIR CONDITIONER),GRAY,TRIM1#
sub58510-35730
main58510-35750-E0i199207-199308
W(REAR HEATER & AIR CONDITIONER),TAN,TRIM4#
sub58510-35730
main58510-35750-E1i199308-199402
W(REAR HEATER & AIR CONDITIONER),OAK,TRIM4#
sub58510-35730
main58510-35750-J0i199207-199402
W(REAR HEATER & AIR CONDITIONER),BLUE,TRIM8#
sub58510-35730
main58510-35840-B0i199108-199308
GRAY,TRIM1#
main58510-35840-E0i199108-199308
TAN,TRIM4#
main58510-35840-J0i199108-199308
BLUE,TRIM8#
main58510-35850-B0i199108-199308
W(AIR CONDITIONER),GRAY,TRIM1#
sub58510-35840
main58510-35850-E0i199108-199308
W(AIR CONDITIONER),TAN,TRIM4#
sub58510-35840
main58510-35850-J0i199108-199308
W(AIR CONDITIONER),BLUE,TRIM8#
sub58510-35840
main58510-35860-B0i199108-199308
GRAY,TRIM1#
sub58510-35840
main58510-35860-B0i199108-199308
W(REAR HEATER),GRAY,TRIM1#
sub58510-35840
main58510-35860-E0i199108-199308
W(REAR HEATER),TAN,TRIM4#
sub58510-35840
main58510-35860-E0i199108-199308
TAN,TRIM4#
sub58510-35840
main58510-35860-J0i199108-199308
W(REAR HEATER),BLUE,TRIM8#
sub58510-35840
main58510-35860-J0i199108-199308
BLUE,TRIM8#
sub58510-35840
main58510-35870-B0i199108-199308
W(REAR HEATER & AIR CONDITIONER),GRAY,TRIM1#
sub58510-35860
main58510-35870-E0i199108-199308
W(REAR HEATER & AIR CONDITIONER),TAN,TRIM4#
sub58510-35860
main58510-35870-J0i199108-199308
W(REAR HEATER & AIR CONDITIONER),BLUE,TRIM8#
sub58510-35860
main58510-35890-B0i199207-199501
GRAY,TRIM1#
sub58510-35890
main58510-35890-J0i199207-199501
BLUE,TRIM8#
sub58510-35890
main58510-3D020-B0i199207-199501
GRAY,TRIM1#
sub58510-3D020
main58510-3D020-B0i199207-199209
W(CUT PILE CARPET),GRAY,TRIM1#
sub58510-3D020
main58510-3D020-J0i199207-199209
W(CUT PILE CARPET),BLUE,TRIM8#
sub58510-3D020
main58510-3D020-J0i199207-199501
BLUE,TRIM8#
sub58510-3D020
main58510-3D040-B1i199207-199501
W(SEPARATE SEAT),GRAY,GRAY,TRIM1#
sub58510-3D040
main58510-3D040-J1i199207-199501
W(SEPARATE SEAT),BLUE,TRIM8#
sub58510-3D040
main58510-3D060-B1i199207-199501
W(SEPARATE SEAT),GRAY,TRIM1#
sub58510-3D060
main58510-3D060-B1i199207-199209
W(CUT PILE CARPET & SEPARATE SEAT),GRAY,TRIM1#
sub58510-3D060
main58510-3D060-J1i199207-199209
W(CUT PILE CARPET & SEPARATE SEAT),BLUE,TRIM8#
sub58510-3D060
main58510-3D060-J1i199207-199501
W(SEPARATE SEAT),BLUE,TRIM8#
sub58510-3D060
main58510-3D170-B0i199207-199408
W(CUT PILE CARPET),GRAY,TRIM1#
sub58510-3D170
main58510-3D170-J0i199207-199408
W(CUT PILE CARPET),BLUE,TRIM8#
sub58510-3D170
main58510-3D180-B0i199108-199501
W(SPORT SEAT),GRAY,TRIM1#
sub58510-3D330
main58510-3D180-J0i199108-199501
W(SPORT SEAT),BLUE,TRIM8#
sub58510-3D330
main58510-3D230-B0i199207-199408
W(CUT PILE CARPET),GRAY,TRIM1#
sub58510-3D310
main58510-3D230-J0i199207-199408
W(CUT PILE CARPET),BLUE,TRIM8#
sub58510-3D310
main58510-3D250-B0i199108-199303
W(CUT PILE CARPET & SEPARATE SEAT),GRAY,TRIM1#
sub58510-3D250
main58510-3D250-B0i199108-199303
W(REAR JUMP SEAT),GRAY,TRIM1#
sub58510-3D250
main58510-3D250-B0i199108-199303
GRAY,TRIM1#
sub58510-3D250
main58510-3D250-B1i199303-199501
GRAY,TRIM1#
sub58510-3D250
main58510-3D250-B1i199303-199408
W(CUT PILE CARPET & SEPARATE SEAT),GRAY,TRIM1#
sub58510-3D250
main58510-3D250-B1i199303-199501
W(REAR JUMP SEAT),GRAY,TRIM1#
sub58510-3D250
main58510-3D250-J0i199108-199303
BLUE,TRIM8#
sub58510-3D250
main58510-3D250-J0i199108-199303
W(REAR JUMP SEAT),BLUE,TRIM8#
sub58510-3D250
main58510-3D250-J0i199108-199303
W(CUT PILE CARPET & SEPARATE SEAT),BLUE,TRIM8#
sub58510-3D250
main58510-3D250-J1i199303-199501
BLUE,TRIM8#
sub58510-3D250
main58510-3D250-J1i199303-199501
W(REAR JUMP SEAT),BLUE,TRIM8#
sub58510-3D250
main58510-3D250-J1i199303-199408
W(CUT PILE CARPET & SEPARATE SEAT),BLUE,TRIM8#
sub58510-3D250
main58510-3D270-B0i199207-199303
W(CUT PILE CARPET & SEPARATE SEAT),GRAY,TRIM1#
sub58510-3D270
main58510-3D270-B0i199207-199303
W(REAR JUMP SEAT),GRAY,TRIM1#
sub58510-3D270
main58510-3D270-B1i199303-199408
W(CUT PILE CARPET & SEPARATE SEAT),GRAY,TRIM1#
sub58510-3D270
main58510-3D270-B1i199408-199501
GRAY,TRIM1#
sub58510-3D270
main58510-3D270-B1i199303-199501
W(REAR JUMP SEAT),GRAY,TRIM1#
sub58510-3D270
main58510-3D270-J0i199207-199303
W(CUT PILE CARPET & SEPARATE SEAT),BLUE,TRIM8#
sub58510-3D270
main58510-3D270-J0i199207-199303
W(REAR JUMP SEAT),BLUE,TRIM8#
sub58510-3D270
main58510-3D270-J1i199303-199501
W(REAR JUMP SEAT),BLUE,TRIM8#
sub58510-3D270
main58510-3D270-J1i199303-199408
W(CUT PILE CARPET & SEPARATE SEAT),BLUE,TRIM8#
sub58510-3D270
main58510-3D270-J1i199408-199501
BLUE,TRIM8#
sub58510-3D270
main58510-3D300-B0i199201-199303
GRAY,TRIM1#
sub58510-3D300
sub58510-3D310
main58510-3D300-B1i199303-199501
GRAY,TRIM1#
sub58510-3D300
sub58510-3D310
main58510-3D300-J0i199201-199303
BLUE,TRIM8#
sub58510-3D300
sub58510-3D310
main58510-3D300-J1i199303-199501
BLUE,TRIM8#
sub58510-3D300
sub58510-3D310
main58510-3D310-B0i199201-199303
GRAY,TRIM1#
sub58510-3D310
main58510-3D310-B1i199303-199501
GRAY,TRIM1#
sub58510-3D310
main58510-3D310-J0i199201-199303
BLUE,TRIM8#
sub58510-3D310
main58510-3D310-J1i199303-199501
BLUE,TRIM8#
sub58510-3D310
main58510-3D350-B0i199209-199501
GRAY,TRIM1#
sub58510-3D350
main58510-3D350-J1i199209-199501
BLUE,TRIM8#
sub58510-3D350
main58510-3D490-B0i199408-199511
W(REAR HEATER),GRAY,TRIM1#
sub58510-35720
main58510-3D490-B0i199408-199511
GRAY,TRIM1#
sub58510-35720
main58510-3D490-E0i199408-199511
W(REAR HEATER),OAK,TRIM4#
sub58510-35720
main58510-3D490-E0i199408-199511
OAK,TRIM4#
sub58510-35720
main58510-3D490-J0i199408-199511
W(REAR HEATER),BLUE,TRIM8#
sub58510-35720
main58510-3D490-J0i199408-199511
BLUE,TRIM8#
sub58510-35720
main58510-3D500-B0i199408-199511
W(REAR HEATER & AIR CONDITIONER),GRAY,TRIM1#
sub58510-35730
main58510-3D500-E0i199408-199511
W(REAR HEATER & AIR CONDITIONER),OAK,TRIM4#
sub58510-35730
main58510-3D500-J0i199408-199511
W(REAR HEATER & AIR CONDITIONER),BLUE,TRIM8#
sub58510-35730
main58510-89338-02i198808-199108
RED,TRIM3#
sub58510-3D020
sub58510-89338
main58510-89338-02i199008-199108
W(CUT PILE CARPET),RED,TRIM3#
sub58510-3D020
sub58510-89338
main58510-89338-03i199008-199108
W(CUT PILE CARPET),GRAY,TRIM1#
sub58510-3D020
sub58510-89338
main58510-89338-03i198808-199108
GRAY,TRIM1#
sub58510-3D020
sub58510-89338
main58510-89338-04i198808-199108
BLUE,TRIM8#
sub58510-3D020
sub58510-89338
main58510-89338-04i199008-199108
W(CUT PILE CARPET),BLUE,TRIM8#
sub58510-3D020
sub58510-89338
main58510-89338-06i199008-199108
W(CUT PILE CARPET),BROWN,TRIM4#
sub58510-3D020
sub58510-89338
main58510-89338-06i198808-199108
BROWN,TRIM4#
sub58510-3D020
sub58510-89338
main58510-89339-02i198808-199008
W(SPORT SEAT),RED,TRIM3#
sub58510-3D040
main58510-89339-03i198808-199008
W(SPORT SEAT),GRAY,TRIM1#
sub58510-3D040
main58510-89339-04i198808-199008
W(SPORT SEAT),BLUE,TRIM8#
sub58510-3D040
main58510-89339-06i198808-199008
W(SPORT SEAT),BROWN,TRIM4#
sub58510-3D040
main58510-89344-02i198808-199108
W(SPORT SEAT),RED,TRIM3#
sub58510-3D180
main58510-89344-03i198808-199207
W(SPORT SEAT),GRAY,TRIM1#
sub58510-3D180
main58510-89344-04i198808-199207
W(SPORT SEAT),BLUE,TRIM8#
sub58510-3D180
main58510-89344-06i198808-199108
W(SPORT SEAT),BROWN,TRIM4#
sub58510-3D180
main58510-89361-02i198808-199008
RED,TRIM3#
sub58510-3D170
main58510-89361-02i199008-199108
W(CUT PILE CARPET),RED,TRIM3#
sub58510-3D170
main58510-89361-03i198808-199008
GRAY,TRIM1#
sub58510-3D170
main58510-89361-03i199008-199207
W(CUT PILE CARPET),GRAY,TRIM1#
sub58510-3D170
main58510-89361-04i199008-199207
W(CUT PILE CARPET),BLUE,TRIM8#
sub58510-3D170
main58510-89361-04i198808-199008
BLUE,TRIM8#
sub58510-3D170
main58510-89361-06i198808-199008
BROWN,TRIM4#
sub58510-3D170
main58510-89361-06i199008-199108
W(CUT PILE CARPET),BROWN,TRIM4#
sub58510-3D170
main58510-89374-02i198808-199108
RED,TRIM3#
sub58510-89374
sub58510-35890
main58510-89374-03i198808-199108
GRAY,TRIM1#
sub58510-89374
sub58510-35890
main58510-89374-04i198808-199108
BLUE,TRIM8#
sub58510-89374
sub58510-35890
main58510-89374-06i198808-199108
BROWN,TRIM4#
sub58510-89374
sub58510-35890
main58510-89376-02i198808-199008
W(SPLIT SEAT),RED,TRIM3#
main58510-89376-02i198808-199008
RED,TRIM3#
main58510-89376-03i198808-199008
W(SPLIT SEAT),GRAY,TRIM1#
main58510-89376-03i198808-199008
GRAY,TRIM1#
main58510-89376-04i198808-199008
BLUE,TRIM8#
main58510-89376-04i198808-199008
W(SPLIT SEAT),BLUE,TRIM8#
main58510-89376-06i198808-199008
W(SPLIT SEAT),BROWN,TRIM4#
main58510-89376-06i198808-199008
BROWN,TRIM4#
main58510-89380-02i198808-199108
RED,TRIM3#
sub58510-3D250
sub58510-89380
main58510-89380-02i199008-199108
W(CUT PILE CARPET & SEPARATE SEAT),RED,TRIM3#
sub58510-3D250
sub58510-89380
main58510-89380-02i198808-199008
W(SPLIT SEAT),RED,TRIM3#
sub58510-3D250
sub58510-89380
main58510-89380-03i198808-199207
GRAY,TRIM1#
sub58510-3D250
sub58510-89380
main58510-89380-03i198808-199008
W(SPLIT SEAT),GRAY,TRIM1#
sub58510-3D250
sub58510-89380
main58510-89380-03i199008-199207
W(CUT PILE CARPET & SEPARATE SEAT),GRAY,TRIM1#
sub58510-3D250
sub58510-89380
main58510-89380-03i199201-199207
W(REAR JUMP SEAT),GRAY,TRIM1#
sub58510-3D250
sub58510-89380
main58510-89380-04i198808-199008
W(SPLIT SEAT),BLUE,TRIM8#
sub58510-3D250
sub58510-89380
main58510-89380-04i198808-199207
BLUE,TRIM8#
sub58510-3D250
sub58510-89380
main58510-89380-04i199201-199207
W(REAR JUMP SEAT),BLUE,TRIM8#
sub58510-3D250
sub58510-89380
main58510-89380-04i199008-199207
W(CUT PILE CARPET & SEPARATE SEAT),BLUE,TRIM8#
sub58510-3D250
sub58510-89380
main58510-89380-06i199008-199108
W(CUT PILE CARPET & SEPARATE SEAT),BROWN,TRIM4#
sub58510-3D250
sub58510-89380
main58510-89380-06i198808-199008
W(SPLIT SEAT),BROWN,TRIM4#
sub58510-3D250
sub58510-89380
main58510-89380-06i198808-199108
BROWN,TRIM4#
sub58510-3D250
sub58510-89380
main58510-89408-02i199008-199108
W(CUT PILE CARPET & SEPARATE SEAT),RED,TRIM3#
sub58510-89408
sub58510-3D270
main58510-89408-02i198808-199108
RED,TRIM3#
sub58510-89408
sub58510-3D270
main58510-89408-03i198808-199201
GRAY,TRIM1#
sub58510-89408
sub58510-3D270
main58510-89408-03i199201-199207
W(REAR JUMP SEAT),GRAY,TRIM1#
sub58510-89408
sub58510-3D270
main58510-89408-03i199008-199207
W(CUT PILE CARPET & SEPARATE SEAT),GRAY,TRIM1#
sub58510-89408
sub58510-3D270
main58510-89408-04i199008-199207
W(CUT PILE CARPET & SEPARATE SEAT),BLUE,TRIM8#
sub58510-89408
sub58510-3D270
main58510-89408-04i198808-199201
BLUE,TRIM8#
sub58510-89408
sub58510-3D270
main58510-89408-04i199201-199207
W(REAR JUMP SEAT),BLUE,TRIM8#
sub58510-89408
sub58510-3D270
main58510-89408-06i198808-199108
BROWN,TRIM4#
sub58510-89408
sub58510-3D270
main58510-89408-06i199008-199108
W(CUT PILE CARPET & SEPARATE SEAT),BROWN,TRIM4#
sub58510-89408
sub58510-3D270
main58510-89413-02i198904-199108
RED,TRIM3#
main58510-89413-03i198904-199108
GRAY,TRIM1#
main58510-89413-04i198904-199108
BLUE,TRIM8#
main58510-89413-06i198904-199108
BROWN,TRIM4#
main58510-89415-02i198904-199108
RED,TRIM3#
sub58510-35840
main58510-89415-03i198904-199207
GRAY,TRIM1#
sub58510-35840
main58510-89415-04i198904-199207
BLUE,TRIM8#
sub58510-35840
main58510-89415-06i198904-199108
BROWN,TRIM4#
sub58510-35840
main58510-89415-E1i199108-199207
TAN,TRIM4#
sub58510-35840
main58510-89432-02i198904-199108
RED,TRIM3#
sub58510-89413
main58510-89432-02i198904-199108
W(REAR HEATER),RED,TRIM3#
sub58510-89413
main58510-89432-03i198904-199108
GRAY,TRIM1#
sub58510-89413
main58510-89432-03i198904-199108
W(REAR HEATER),GRAY,TRIM1#
sub58510-89413
main58510-89432-04i198904-199108
BLUE,TRIM8#
sub58510-89413
main58510-89432-04i198904-199108
W(REAR HEATER),BLUE,TRIM8#
sub58510-89413
main58510-89432-06i198904-199108
W(REAR HEATER),BROWN,TRIM4#
sub58510-89413
main58510-89432-06i198904-199108
BROWN,TRIM4#
sub58510-89413
main58510-89433-02i198904-199108
W(AIR CONDITIONER),RED,TRIM3#
sub58510-89413
main58510-89433-03i198904-199108
W(AIR CONDITIONER),GRAY,TRIM1#
sub58510-89413
main58510-89433-04i198904-199108
W(AIR CONDITIONER),BLUE,TRIM8#
sub58510-89413
main58510-89433-06i198904-199108
W(AIR CONDITIONER),BROWN,TRIM4#
sub58510-89413
main58510-89434-02i198904-199108
W(REAR HEATER & AIR CONDITIONER),RED,TRIM3#
sub58510-89432
main58510-89434-03i198904-199108
W(REAR HEATER & AIR CONDITIONER),GRAY,TRIM1#
sub58510-89432
main58510-89434-04i198904-199108
W(REAR HEATER & AIR CONDITIONER),BLUE,TRIM8#
sub58510-89432
main58510-89434-06i198904-199108
W(REAR HEATER & AIR CONDITIONER),BROWN,TRIM4#
sub58510-89432
main58510-89436-02i198908-199108
RED,TRIM3#
sub58510-89415
sub58510-35860
main58510-89436-02i198908-199108
W(REAR HEATER),RED,TRIM3#
sub58510-89415
sub58510-35860
main58510-89436-03i198908-199207
GRAY,TRIM1#
sub58510-89415
sub58510-35860
main58510-89436-03i198908-199207
W(REAR HEATER),GRAY,TRIM1#
sub58510-89415
sub58510-35860
main58510-89436-04i198908-199207
BLUE,TRIM8#
sub58510-89415
sub58510-35860
main58510-89436-04i198908-199207
W(REAR HEATER),BLUE,TRIM8#
sub58510-89415
sub58510-35860
main58510-89436-06i199008-199108
BROWN,TRIM4#
sub58510-89415
sub58510-35860
main58510-89436-06i199008-199108
W(REAR HEATER),BROWN,TRIM4#
sub58510-89415
sub58510-35860
main58510-89436-06i198908-199008
W(REAR HEATER),BROWN,TRIM3#
sub58510-89415
sub58510-35860
main58510-89436-06i198908-199008
BROWN,TRIM3#
sub58510-89415
sub58510-35860
main58510-89436-E1i199108-199207
TAN,TRIM4#
sub58510-89415
sub58510-35860
main58510-89436-E1i199108-199207
W(REAR HEATER),TAN,TRIM4#
sub58510-89415
sub58510-35860
main58510-89437-02i198908-199108
W(AIR CONDITIONER),RED,TRIM3#
sub58510-89415
sub58510-35850
main58510-89437-03i198908-199207
W(AIR CONDITIONER),GRAY,TRIM1#
sub58510-89415
sub58510-35850
main58510-89437-04i198908-199207
W(AIR CONDITIONER),BLUE,TRIM8#
sub58510-89415
sub58510-35850
main58510-89437-06i198908-199108
W(AIR CONDITIONER),BROWN,TRIM4#
sub58510-89415
sub58510-35850
main58510-89437-E1i199108-199207
W(AIR CONDITIONER),TAN,TRIM4#
sub58510-89415
sub58510-35850
main58510-89438-02i198908-199108
W(REAR HEATER & AIR CONDITIONER),RED,TRIM3#
sub58510-89415
sub58510-35870
main58510-89438-03i198908-199207
W(REAR HEATER & AIR CONDITIONER),GRAY,TRIM1#
sub58510-89415
sub58510-35870
main58510-89438-04i198908-199207
W(REAR HEATER & AIR CONDITIONER),BLUE,TRIM8#
sub58510-89415
sub58510-35870
main58510-89438-06i198908-199108
W(REAR HEATER & AIR CONDITIONER),BROWN,TRIM4#
sub58510-89415
sub58510-35870
main58510-89438-E1i199108-199207
W(REAR HEATER & AIR CONDITIONER),TAN,TRIM4#
sub58510-89415
sub58510-35870
main58510-89449-02i199008-199108
W(CUT PILE CARPET & SEPARATE SEAT),RED,TRIM3#
sub58510-3D060
main58510-89449-03i199008-199108
W(CUT PILE CARPET & SEPARATE SEAT),GRAY,TRIM1#
sub58510-3D060
main58510-89449-04i199008-199108
W(CUT PILE CARPET & SEPARATE SEAT),BLUE,TRIM8#
sub58510-3D060
main58510-89449-06i199008-199108
W(CUT PILE CARPET & SEPARATE SEAT),BROWN,TRIM4#
sub58510-3D060
58511MAT, FLOOR, FRONT
main58510-35080-B0i199108-199201
GRAY,TRIM1#
sub58510-35140
main58510-35080-J0i199108-199201
BLUE,TRIM8#
sub58510-35140
main58510-35100-B0i199108-199501
W(REAR JUMP SEAT),GRAY,TRIM1#
sub58510-35140
main58510-35100-B0i199108-199408
W(SPLIT SEAT),GRAY,TRIM1#
sub58510-35140
main58510-35100-J0i199108-199501
W(REAR JUMP SEAT),BLUE,TRIM8#
sub58510-35140
main58510-35100-J0i199108-199408
W(SPLIT SEAT),BLUE,TRIM8#
sub58510-35140
main58510-35120-B0i199108-199501
W(REAR JUMP SEAT),GRAY,TRIM1#
sub58510-89373
main58510-35120-B0i199108-199408
W(SPLIT SEAT),GRAY,TRIM1#
sub58510-89373
main58510-35120-J0i199108-199501
W(REAR JUMP SEAT),BLUE,TRIM8#
sub58510-89373
main58510-35120-J0i199108-199408
W(SPLIT SEAT),BLUE,TRIM8#
sub58510-89373
main58510-35150-B0i199108-199501
GRAY,TRIM1#
sub58510-35140
main58510-35150-B0i199108-199201
W(SEPARATE SEAT),GRAY,TRIM1#
sub58510-35140
main58510-35150-J0i199108-199501
BLUE,TRIM8#
sub58510-35140
main58510-35150-J0i199108-199201
W(SEPARATE SEAT),BLUE,TRIM8#
sub58510-35140
main58510-89340-02i198808-199108
W(SEPARATE SEAT),RED,TRIM3#
sub58510-89340
sub58510-35140
main58510-89340-02i198808-199108
RED,TRIM3#
sub58510-89340
sub58510-35140
main58510-89340-03i198808-199010
W(SEPARATE SEAT),GRAY,TRIM1#
sub58510-89340
sub58510-35140
main58510-89340-03i198808-199010
GRAY,TRIM1#
sub58510-89340
sub58510-35140
main58510-89340-04i198808-199108
BLUE,TRIM8#
sub58510-89340
sub58510-35140
main58510-89340-04i198808-199108
W(SEPARATE SEAT),BLUE,TRIM8#
sub58510-89340
sub58510-35140
main58510-89340-06i198808-199010
BROWN,TRIM4#
sub58510-89340
sub58510-35140
main58510-89340-06i198808-199010
W(SEPARATE SEAT),BROWN,TRIM4#
sub58510-89340
sub58510-35140
main58510-89340-B0i199010-199108
MEDIUM GRAY,TRIM1#
sub58510-89340
sub58510-35140
main58510-89340-B0i199010-199108
W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
sub58510-89340
sub58510-35140
main58510-89340-E0i199010-199108
W(SEPARATE SEAT),BROWN,TRIM4#
sub58510-89340
sub58510-35140
main58510-89340-E0i199010-199108
BROWN,TRIM4#
sub58510-89340
sub58510-35140
main58510-89355-02i198808-199108
RED,TRIM3#
sub58510-35140
main58510-89355-03i198808-199108
GRAY,TRIM1#
sub58510-35140
main58510-89355-04i198808-199108
BLUE,TRIM8#
sub58510-35140
main58510-89355-06i198808-199108
BROWN,TRIM4#
sub58510-35140
main58510-89356-02i198808-199108
RED,TRIM3#
sub58510-89373
main58510-89356-03i198808-199108
GRAY,TRIM1#
sub58510-89373
main58510-89356-04i198808-199108
BLUE,TRIM8#
sub58510-89373
main58510-89356-06i198808-199108
BROWN,TRIM4#
sub58510-89373
main58510-89359-03i199108-199203
GRAY,TRIM1#
sub58510-89359
sub58510-89373
main58510-89359-03i199108-199203
W(SEPARATE SEAT),GRAY,TRIM1#
sub58510-89359
sub58510-89373
main58510-89359-04i199108-199203
W(SEPARATE SEAT),BLUE,TRIM8#
sub58510-89359
sub58510-89373
main58510-89359-04i199108-199203
BLUE,TRIM8#
sub58510-89359
sub58510-89373
main58510-89359-B0i199203-199501
MEDIUM GRAY,TRIM1#
sub58510-89359
sub58510-89373
main58510-89359-B0i199203-199209
W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
sub58510-89359
sub58510-89373
main58510-89359-J0i199203-199501
MEDIUM BLUE,TRIM8#
sub58510-89359
sub58510-89373
main58510-89359-J0i199203-199209
W(SEPARATE SEAT),MEDIUM BLUE,TRIM8#
sub58510-89359
sub58510-89373
main58510-89370-03i199108-199203
GRAY,TRIM1#
sub58510-89370
sub58510-89373
main58510-89370-04i199108-199203
BLUE,TRIM8#
sub58510-89370
sub58510-89373
main58510-89370-B0i199203-199209
MEDIUM GRAY,TRIM1#
sub58510-89370
sub58510-89373
main58510-89370-J0i199203-199208
MEDIUM BLUE,TRIM8#
sub58510-89370
sub58510-89373
main58510-89373-02i198808-199108
W(SEPARATE SEAT),RED,TRIM3#
main58510-89373-02i198808-199108
RED,TRIM3#
main58510-89373-03i198808-199108
GRAY,TRIM1#
main58510-89373-03i198808-199108
W(SEPARATE SEAT),GRAY,TRIM1#
main58510-89373-04i198808-199108
BLUE,TRIM8#
main58510-89373-04i198808-199108
W(SEPARATE SEAT),BLUE,TRIM8#
main58510-89373-06i198808-199108
BROWN,TRIM4#
main58510-89373-06i198808-199108
W(SEPARATE SEAT),BROWN,TRIM4#
main58510-89409-02i199008-199108
W(SPLIT SEAT),RED,TRIM3#
main58510-89409-02i198808-199108
W(REAR JUMP SEAT),RED,TRIM3#
main58510-89409-03i198808-199108
W(REAR JUMP SEAT),GRAY,TRIM1#
main58510-89409-03i199008-199108
W(SPLIT SEAT),GRAY,TRIM1#
main58510-89409-04i198808-199108
W(REAR JUMP SEAT),BLUE,TRIM8#
main58510-89409-04i199008-199108
W(SPLIT SEAT),BLUE,TRIM8#
main58510-89409-06i198808-199108
W(REAR JUMP SEAT),BROWN,TRIM4#
main58510-89409-06i199008-199108
W(SPLIT SEAT),BROWN,TRIM4#
main58510-89410-02i198808-199108
W(REAR JUMP SEAT),RED,TRIM3#
main58510-89410-02i199008-199108
W(SPLIT SEAT),RED,TRIM3#
main58510-89410-03i198808-199108
W(REAR JUMP SEAT),GRAY,TRIM1#
main58510-89410-03i199008-199108
W(SPLIT SEAT),GRAY,TRIM1#
main58510-89410-04i199008-199108
W(SPLIT SEAT),BLUE,TRIM8#
main58510-89410-04i198808-199108
W(REAR JUMP SEAT),BLUE,TRIM8#
main58510-89410-06i199008-199108
W(SPLIT SEAT),BROWN,TRIM4#
main58510-89410-06i198808-199108
W(REAR JUMP SEAT),BROWN,TRIM4#
58540CMAT ASSY, FLOOR, REAR
main58540-35050-02i199008-199108
W(SEPARATE SEAT),RED,TRIM3#
main58540-35050-03i199008-199108
W(SEPARATE SEAT),GRAY,TRIM1#
main58540-35050-04i199008-199108
W(SEPARATE SEAT),BLUE,TRIM8#
main58540-35050-06i199008-199108
W(SEPARATE SEAT),BROWN,TRIM4#
main58540-35060-02i199008-199108
RED,TRIM3#
main58540-35060-03i199008-199108
GRAY,TRIM1#
main58540-35060-04i199008-199108
BLUE,TRIM8#
main58540-35060-06i199008-199108
BROWN,TRIM4#
main58540-35070-B0i199108-199209
GRAY,TRIM1#
main58540-35070-J0i199108-199209
BLUE,TRIM8#
main58540-35080-B0i199108-199209
W(SEPARATE SEAT),GRAY,TRIM1#
main58540-35080-J0i199108-199209
W(SEPARATE SEAT),BLUE,TRIM8#
main58540-89191-02i199008-199108
W(REAR JUMP SEAT),RED,TRIM3#
main58540-89191-03i199008-199408
W(REAR JUMP SEAT),GRAY,TRIM1#
main58540-89191-04i199008-199408
W(REAR JUMP SEAT),BLUE,TRIM8#
main58540-89191-06i199008-199108
W(REAR JUMP SEAT),BROWN,TRIM4#
main58540-89192-02i198808-199108
RED,TRIM3#
main58540-89192-03i198808-199501
GRAY,TRIM1#
main58540-89192-04i198808-199501
BLUE,TRIM8#
main58540-89192-06i198808-199108
BROWN,TRIM4#
main58540-89198-02i198808-199008
RED,TRIM3#
sub58540-35060
main58540-89198-03i198808-199008
GRAY,TRIM1#
sub58540-35060
main58540-89198-04i198808-199008
BLUE,TRIM8#
sub58540-35060
main58540-89198-06i198808-199008
BROWN,TRIM4#
sub58540-35060
main58540-89200-02i198808-198908
W(SEPARATE SEAT),RED,TRIM3#
sub58540-35050
main58540-89200-03i198808-198908
W(SEPARATE SEAT),GRAY,TRIM1#
sub58540-35050
main58540-89200-04i198808-198908
W(SEPARATE SEAT),BLUE,TRIM8#
sub58540-35050
main58540-89200-06i198808-198908
W(SEPARATE SEAT),BROWN,TRIM4#
sub58540-35050
main58540-89208-02i199008-199108
W(SPLIT SEAT & REAR JUMP SEAT),RED,TRIM3#
main58540-89208-02i198808-199108
W(REAR JUMP SEAT),RED,TRIM3#
main58540-89208-03i198808-199501
W(REAR JUMP SEAT),GRAY,TRIM1#
main58540-89208-03i199008-199408
W(SPLIT SEAT & REAR JUMP SEAT),GRAY,TRIM1#
main58540-89208-04i198808-199501
W(REAR JUMP SEAT),BLUE,TRIM8#
main58540-89208-04i199008-199408
W(SPLIT SEAT & REAR JUMP SEAT),BLUE,TRIM8#
main58540-89208-06i199008-199108
W(SPLIT SEAT & REAR JUMP SEAT),BROWN,TRIM4#
main58540-89208-06i198808-199108
W(REAR JUMP SEAT),BROWN,TRIM4#
67913PLATE, FRONT DOOR SCUFF, RH
main67913-89104-02i198808-199108
RED,TRIM3#
sub67913-89104
sub67913-89105
main67913-89104-03i198808-198901
GRAY,TRIM1#
sub67913-89104
sub67913-89105
main67913-89104-04i198808-198901
BLUE,TRIM8#
sub67913-89104
sub67913-89105
main67913-89104-06i198808-198901
BROWN,TRIM4#
sub67913-89104
sub67913-89105
main67913-89104-B0i198901-199501
MEDIUM GRAY,TRIM1#
sub67913-89104
sub67913-89105
main67913-89104-E0i198901-199108
BROWN,TRIM4#
sub67913-89104
sub67913-89105
main67913-89104-J0i198901-199501
MEDIUM BLUE,TRIM8#
sub67913-89104
sub67913-89105
main67913-89105-02i198808-199108
W(SEPARATE SEAT),RED,TRIM3#
sub67913-89105
main67913-89105-02i198808-199108
RED,TRIM3#
sub67913-89105
main67913-89105-03i198808-198901
W(SEPARATE SEAT),GRAY,TRIM1#
sub67913-89105
main67913-89105-03i198808-198901
GRAY,TRIM1#
sub67913-89105
main67913-89105-04i198808-198901
W(SEPARATE SEAT),BLUE,TRIM8#
sub67913-89105
main67913-89105-04i198808-198901
BLUE,TRIM8#
sub67913-89105
main67913-89105-06i198808-198901
W(SEPARATE SEAT),BROWN,TRIM4#
sub67913-89105
main67913-89105-06i198808-198901
BROWN,TRIM4#
sub67913-89105
main67913-89105-B0i198901-199501
W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
sub67913-89105
main67913-89105-B0i198901-199501
MEDIUM GRAY,TRIM1#
sub67913-89105
main67913-89105-E0i198901-199108
BROWN,TRIM4#
sub67913-89105
main67913-89105-E0i198901-199108
W(SEPARATE SEAT),BROWN,TRIM4#
sub67913-89105
main67913-89105-J0i198901-199501
MEDIUM BLUE,TRIM8#
sub67913-89105
main67913-89105-J0i198901-199501
W(SEPARATE SEAT),MEDIUM BLUE,TRIM8#
sub67913-89105
main67913-89106-02i198904-199108
RED,TRIM3#
sub67913-89106
main67913-89106-03i198904-199308
GRAY,TRIM1#
sub67913-89106
main67913-89106-04i198904-199308
BLUE,TRIM8#
sub67913-89106
main67913-89106-06i198904-199108
BROWN,TRIM4#
sub67913-89106
main67913-89106-E1i199108-199308
TAN,TRIM4#
sub67913-89106
main67913-89107-02i198904-199108
RED,TRIM3#
sub67913-89107
main67913-89107-03i198904-199511
GRAY,TRIM1#
sub67913-89107
main67913-89107-04i198904-199511
BLUE,TRIM8#
sub67913-89107
main67913-89107-06i198904-199108
BROWN,TRIM4#
sub67913-89107
main67913-89107-E1i199108-199308
TAN,TRIM4#
sub67913-89107
main67913-89107-E2i199308-199511
OAK,TRIM4#
sub67913-89107
67914PLATE, FRONT DOOR SCUFF, LH
main67914-89103-02i198808-199108
RED,TRIM3#
sub67914-89103
sub67914-89104
main67914-89103-03i198808-198901
GRAY,TRIM1#
sub67914-89103
sub67914-89104
main67914-89103-04i198808-198901
BLUE,TRIM8#
sub67914-89103
sub67914-89104
main67914-89103-06i198808-198901
BROWN,TRIM4#
sub67914-89103
sub67914-89104
main67914-89103-B0i198901-199501
MEDIUM GRAY,TRIM1#
sub67914-89103
sub67914-89104
main67914-89103-E0i198901-199108
BROWN,TRIM4#
sub67914-89103
sub67914-89104
main67914-89103-J0i198901-199501
MEDIUM BLUE,TRIM8#
sub67914-89103
sub67914-89104
main67914-89104-02i198808-199108
RED,TRIM3#
sub67914-89104
main67914-89104-02i198808-199108
W(SEPARATE SEAT),RED,TRIM3#
sub67914-89104
main67914-89104-03i198808-198901
GRAY,TRIM1#
sub67914-89104
main67914-89104-03i198808-198901
W(SEPARATE SEAT),GRAY,TRIM1#
sub67914-89104
main67914-89104-04i198808-198901
W(SEPARATE SEAT),BLUE,TRIM8#
sub67914-89104
main67914-89104-04i198808-198901
BLUE,TRIM8#
sub67914-89104
main67914-89104-06i198808-198901
BROWN,TRIM4#
sub67914-89104
main67914-89104-06i198808-198901
W(SEPARATE SEAT),BROWN,TRIM4#
sub67914-89104
main67914-89104-B0i198901-199501
MEDIUM GRAY,TRIM1#
sub67914-89104
main67914-89104-B0i198901-199501
W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
sub67914-89104
main67914-89104-E0i198901-199108
BROWN,TRIM4#
sub67914-89104
main67914-89104-E0i198901-199108
W(SEPARATE SEAT),BROWN,TRIM4#
sub67914-89104
main67914-89104-J0i198901-199501
W(SEPARATE SEAT),MEDIUM BLUE,TRIM8#
sub67914-89104
main67914-89104-J0i198901-199501
MEDIUM BLUE,TRIM8#
sub67914-89104
main67914-89105-02i198904-199108
RED,TRIM3#
sub67914-89105
main67914-89105-03i198904-199308
GRAY,TRIM1#
sub67914-89105
main67914-89105-04i198904-199308
BLUE,TRIM8#
sub67914-89105
main67914-89105-06i198904-199108
BROWN,TRIM4#
sub67914-89105
main67914-89105-E1i199108-199308
TAN,TRIM4#
sub67914-89105
main67914-89106-02i198904-199108
RED,TRIM3#
sub67914-89106
main67914-89106-03i198904-199511
GRAY,TRIM1#
sub67914-89106
main67914-89106-04i198904-199511
BLUE,TRIM8#
sub67914-89106
main67914-89106-06i198904-199108
BROWN,TRIM4#
sub67914-89106
main67914-89106-E1i199108-199308
TAN,TRIM4#
sub67914-89106
main67914-89106-E2i199308-199511
OAK,TRIM4#
sub67914-89106
9016745002
main90167-45002

6 parts on this diagram · 3 diagrams in section

FLOOR MAT & SILENCER PAD — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
