RADIATOR GRILLE

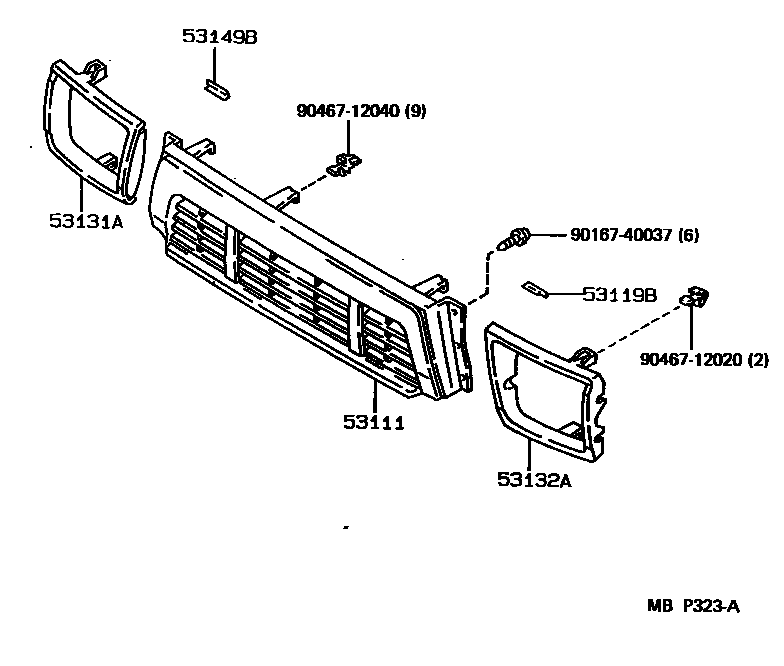

Parts diagram
53111GRILLE, RADIATOR
main53111-35130i199108-199501
NO PAINT REQ.
main53111-35140i199108-199501
NO PAINT REQ.
sub53111-35151
main53111-35150i199108-199402
PLATED
sub53111-35151
main53111-35151i199402-199501
PLATED
main53111-35160i199108-199511
NO PAINT REQ.
main53111-35170i199108-199308
PLATED
sub53111-35171
main53111-35171i199308-199511
PLATED
main53111-89137i198808-199108
NO PAINT REQ.
main53111-89138i198808-199108
PLATED
main53111-89143i198904-199108
NO PAINT REQ.
main53111-89144i198904-199108
PLATED
53119BPROTECTOR, RADIATOR GRILLE
main53119-35010i199108-199511
main53119-89105i198808-199108
53131ADOOR, HEADLAMP, RH
main53131-35050i199108-199501
main53131-35060i199108-199501
main53131-35070i199108-199402
CHROME PLATED PACKAGE
sub53131-35071
main53131-35071i199402-199501
CHROME PLATED PACKAGE
main53131-89118i198808-199108
main53131-89119i198808-199108
main53131-89121i198808-199108
CHROME PLATED PACKAGE
main53131-89126i198904-199108
CHROME PLATED PACKAGE
53132ADOOR, HEADLAMP, LH
main53132-35050i199108-199501
main53132-35060i199108-199501
main53132-35070i199108-199402
CHROME PLATED PACKAGE
sub53132-35071
main53132-35071i199402-199501
CHROME PLATED PACKAGE
main53132-89117i198808-199108
main53132-89118i198808-199108
main53132-89120i198808-199108
CHROME PLATED PACKAGE
main53132-89125i198904-199108
CHROME PLATED PACKAGE
53149BPROTECTOR, HEADLAMP DOOR, NO.3
main53149-35010i199108-199511
main53149-89101i198808-199108
9016740037
main90167-40037
9046712020
main90467-12020
9046712040
main90467-12040

8 parts on this diagram · 5 diagrams in section
