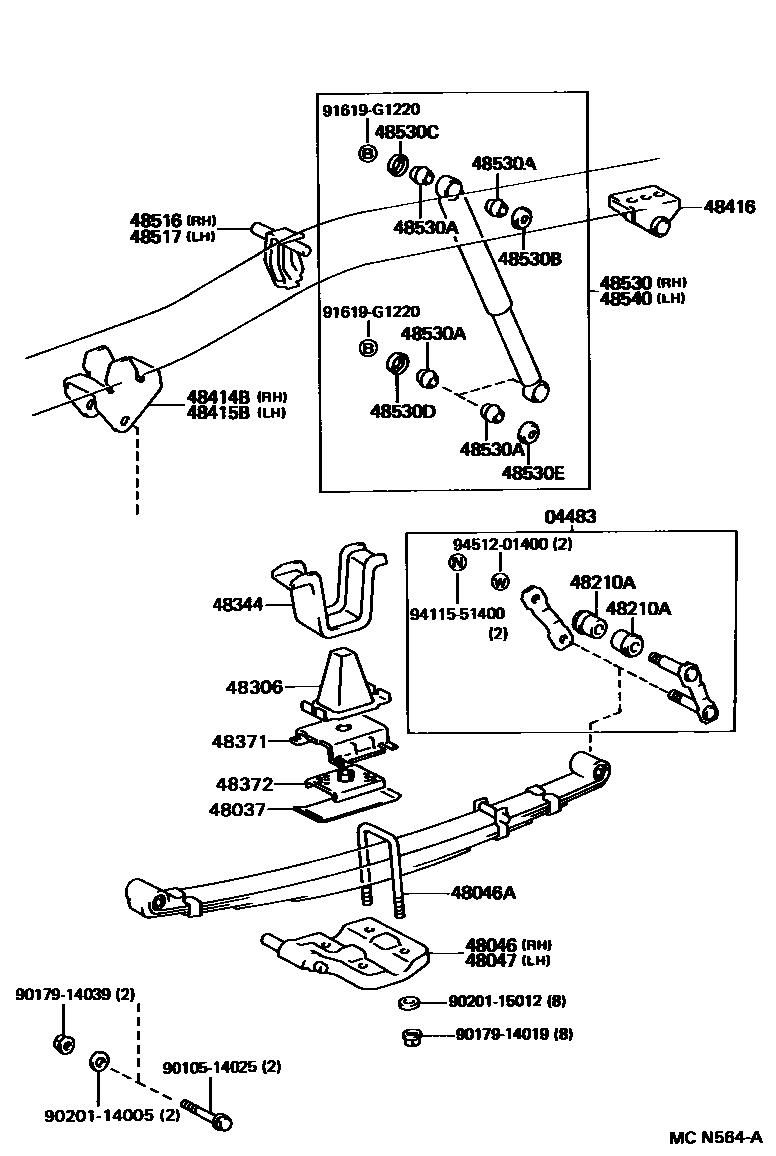

REAR SPRING & SHOCK ABSORBER
04483SHACKLE KIT, REAR SPRING
48037SPACER SUB-ASSY, REAR SPRING
48046SEAT SUB-ASSY, SPRING U BOLT, RH
48046ABOLT, U(FOR REAR SPRING)
L=155
L=171
48047SEAT SUB-ASSY, SPRING U BOLT, LH
48210ABUSH(FOR REAR SPRING SHACKLE UPPER)
48344STOPPER, BUMPER, REAR
48371RETAINER, REAR SPRING PAD
48372PAD, REAR SPRING
48414BBRACKET, SPRING, NO.3 RH
48415BBRACKET, SPRING, NO.3 LH
48416BRACKET, SPRING, NO.4
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
sub48531-80414
sub48531-80503
sub48531-80507
sub48531-80510
sub48531-80114
48530ABUSH(FOR REAR SHOCK ABSORBER)
W(GAS SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48540ABSORBER ASSY, SHOCK, REAR LH
sub48531-80503
sub48531-80507
sub48531-80510
sub48541-39155
sub48541-39235
9010514025
main90105-14025
9017914019
main90179-14019
9017914039
main90179-14039
9020114005
main90201-14005
9020115012
main90201-15012
91619G1220
main91619-G1220
9411551400
main94115-51400
9451201400
main94512-01400
31 parts on this diagram · 4 diagrams in section
