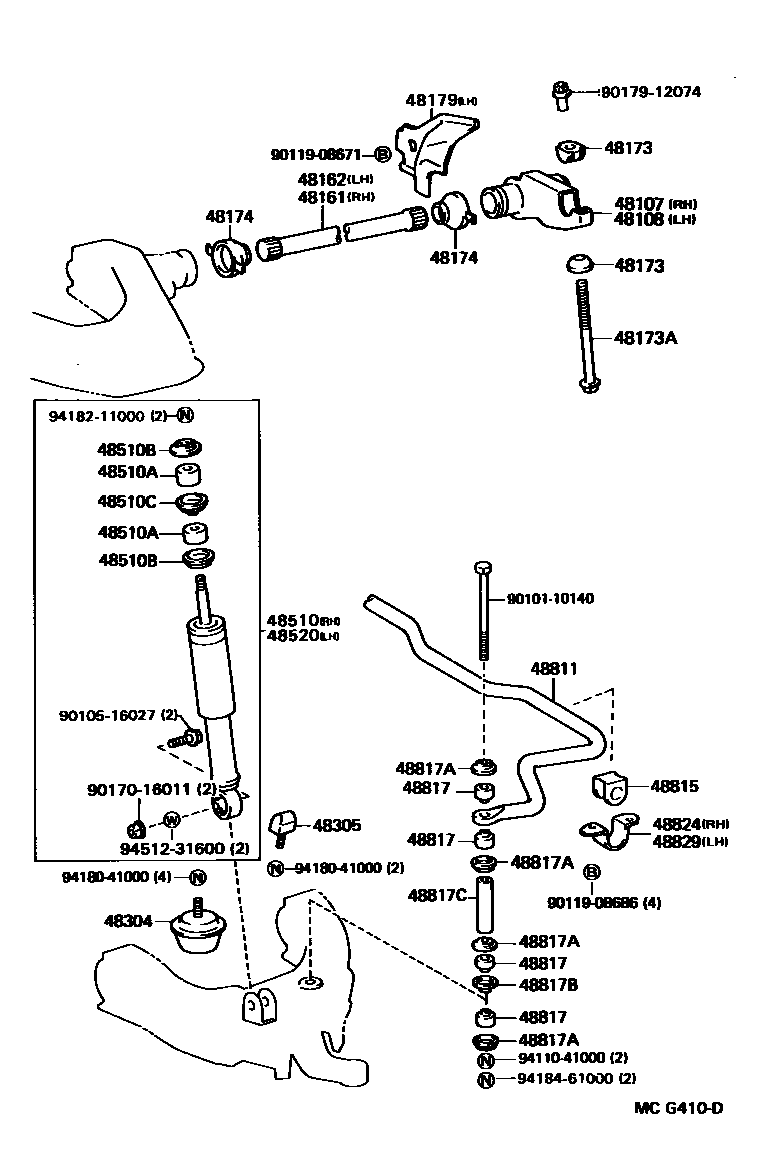

FRONT SPRING & SHOCK ABSORBER

0001 1 0003 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-35050iRN10#,110,13#,VZN10#,110,13#198808-199511

48108ARM SUB-ASSY, ANCHOR, LH

main48108-35050iRN10#,110,13#,VZN10#,110,13#198808-199511

48161SPRING, TORSION BAR, RH

main48161-35110iRN10#,110198808-199501

main48161-35130iVZN10#,110198808-198908

main48161-35250iRN13#198908-199208

main48161-35260iRN13#,VZN13#198904-199511

main48161-35260iVZN13#198908-199208

W(7JJX15 WHEEL)

48162SPRING, TORSION BAR, LH

main48162-35110iRN10#,110,VZN10#,110,13#198808-199501

main48162-35130iVZN10#,110198808-198908

main48162-35250iRN13#198908-199208

main48162-35260iVZN13#198908-199208

W(7JJX15 WHEEL)

main48162-35260iRN13#,VZN13#198904-199511

48173SEAT, ANCHOR ARM ADJUSTER

main48173-35010iRN10#,110,13#,VZN10#,110,13#198808-199511

LWR

main48173-35020iRN10#,110,13#,VZN10#,110,13#198808-199511

UPR

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12159iRN10#,110,13#,VZN10#,110,13#198808-199511

48174COVER, TORSION BAR DUST

main48174-26010iRN10#,110,13#,VZN10#,110,13#198808-199511

48179PROTECTOR, TORSION BAR DUST COVER, LH

main48179-35030iRN10#,110,13#,VZN10#,110,13#198808-199511

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-35120iRN10#,110,13#,VZN10#,110,13#198808-199511

48305BUMPER SUB-ASSY, FRONT SPRING, NO.2

main48305-35020iRN10#,110,13#,VZN10#,110,13#198808-199511

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-39615iRN10#,110198808-198810

sub48511-39645

main48511-39616iRN10#,110198810-198904

sub48511-39797

main48511-39625iVZN10#,110198808-198810

W(GAS SHOCK ABSORBER)

sub48511-39807

main48511-39626iVZN10#,110198810-198904

W(GAS SHOCK ABSORBER)

sub48511-39807

main48511-39715iVZN13#198908-199208

MARK 48511-35560,W(7JJX15 WHEEL)

sub48511-39716

main48511-39715iVZN13#198904-198908

MARK 48511-35560

sub48511-39716

main48511-39725iRN13#199108-199511

MARK 48511-35580

sub48511-39726

main48511-39725iRN13#198904-199108

MARK 48511-35580,W(GAS SHOCK ABSORBER)

sub48511-39726

main48511-39775iRN13#198904-199108

sub48511-39776

main48511-39795iRN10#,110198904-198908

sub48511-39796

main48511-39796iRN10#,110198908-199501

sub48511-39797

main48511-39805iVZN10#,110198904-198908

W(GAS SHOCK ABSORBER)

sub48511-39806

main48511-39806iVZN10#,110198908-199501

W(GAS SHOCK ABSORBER)

sub48511-39807

main48511-39885iVZN13#198908-199208

sub48511-39886

main48511-80014iVZN13#199208-199511

MARK 48511-35880

sub48511-80025

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003iRN10#,110,13#,VZN10#,110,13#198904-199511

L=15

main90948-01003iRN10#,110,VZN10#,110198808-198904

main90948-01045iRN10#,110,13#,VZN10#,110,13#198904-199511

L=21

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02002iRN10#,110,VZN10#,110198808-198904

main90948-02131iRN10#,110,13#,VZN10#,110,13#198904-199511

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02087iRN10#,110,VZN10#,110198808-198810

main90948-02119iRN10#,110,13#,VZN10#,110,13#198810-199511

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-39615iRN10#,110198808-198810

sub48511-39645

main48511-39616iRN10#,110198810-198904

sub48511-39797

main48511-39625iVZN10#,110198808-198810

W(GAS SHOCK ABSORBER)

sub48511-39807

main48511-39626iVZN10#,110198810-198904

W(GAS SHOCK ABSORBER)

sub48511-39807

main48511-39715iVZN13#198904-198908

MARK 48511-35560

sub48511-39716

main48511-39715iVZN13#198908-199208

MARK 48511-35560,W(7JJX15 WHEEL)

sub48511-39716

main48511-39725iRN13#198904-199108

MARK 48511-35580,W(GAS SHOCK ABSORBER)

sub48511-39726

main48511-39725iRN13#199108-199511

MARK 48511-35580

sub48511-39726

main48511-39775iRN13#198904-199108

sub48511-39776

main48511-39795iRN10#,110198904-198908

sub48511-39796

main48511-39796iRN10#,110198908-199501

sub48511-39797

main48511-39805iVZN10#,110198904-198908

W(GAS SHOCK ABSORBER)

sub48511-39806

main48511-39806iRN10#,110198908-199501

W(GAS SHOCK ABSORBER)

sub48511-39807

main48511-39885iVZN13#198908-199208

sub48511-39886

main48511-80014iVZN13#199208-199511

MARK 48511-35880

sub48511-80025

48811BAR, STABILIZER, FRONT

main48811-35320iRN10#,110,VZN10#,110198808-199501

main48811-35350iRN13#,VZN13#198908-199208

main48811-35360iVZN13#198908-199208

W(7JJX15 WHEEL)

main48811-35380iRN13#,VZN13#199208-199511

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14160iRN13#,VZN13#198908-199208

main48815-24020iRN10#,110,VZN10#,110198808-199501

main48815-24020iVZN13#198908-199208

W(7JJX15 WHEEL)

main48815-35070iRN13#,VZN13#199208-199511

48817CUSHION, FRONT STABILIZER

main90948-01002iRN10#,110,13#,VZN10#,110,13#198808-199511

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004iRN10#,110,13#,VZN10#,110,13#198808-199511

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02034iRN10#,110,13#,VZN10#,110,13#198808-199511

48817CCOLLAR(FOR STABILIZER BAR)

main90440-14003iRN10#,110,13#,VZN10#,110,13#198808-199501

48824BRACKET, STABILIZER, FRONT

main48824-35080iRN10#,110,13#,VZN10#,110,13#198808-199511

48829BRACKET, STABILIZER

main48829-35050iRN10#,110,13#,VZN10#,110,13#198808-199511

9010110140

main90101-10140

9010516027

main90105-16027

9011908671

main90119-08671

9011908686

main90119-08686

9017016011

main90170-16011

9017912074

main90179-12074

9411041000

main94110-41000

9418041000

main94180-41000

9418211000

main94182-11000

9418461000

main94184-61000

9451231600

main94512-31600

34 parts on this diagram · 2 diagrams in section
