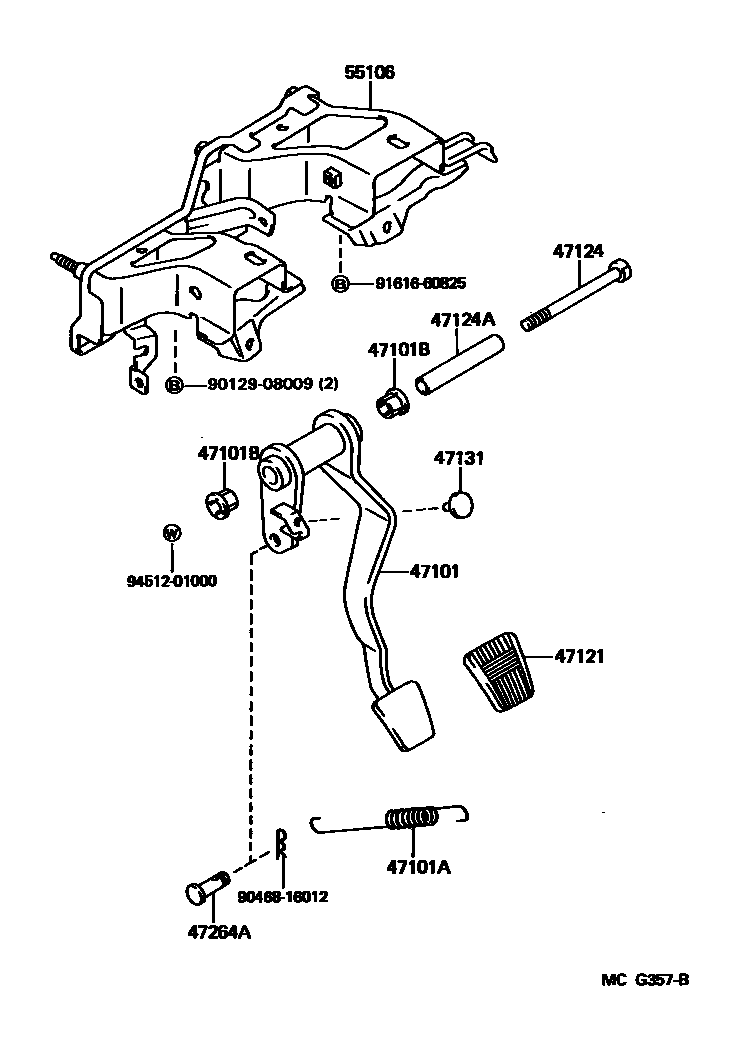

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-35280iRN10#,110,13#,VZN10#,110,13#..5F198808-199511

main47101-35330iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14020iRN10#,110,13#,VZN10#,110,13#198808-199206

main90507-18026iRN10#,110,13#,VZN10#,110,13#199206-199511

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iRN10#,110,13#,VZN10#,110,13#198808-199511

47121PAD, BRAKE PEDAL

main31321-14020iRN10#,110,13#,VZN10#,110,13#..5F198808-199511

main47121-12011iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

sub47121-12020

47124SHAFT, BRAKE PEDAL

main90101-10480iRN10#,110,13#,VZN10#,110,13#198808-199511

sub91552-81090

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-35030iRN10#,110,13#,VZN10#,110,13#198808-199511

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iRN10#,110,13#,VZN10#,110,13#198808-199005

main90541-06032iRN101,110,131,VZN110,13#..4FC199005-199410

sub90541-06036

main90541-06036iRN101,110,13#,VZN100,110,13#199408-199511

47264APIN(FOR PUSH ROD)

main47148-35010iRN10#,110,13#,VZN10#,110,13#199201-199511

main90249-10064iRN10#,110,13#,VZN10#,110,13#198808-199201

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-35050iVZN10#,110,13#..R199108-199511

main55106-35060iVZN13#..4FC199108-199511

main55106-89128iRN10#,110,13#..5F198808-199511

main55106-89129iRN101,110,13#,VZN110..4FC198808-199511

main55106-89130iVZN10#,110,13#..R198808-199108

sub55106-35050

9012908009

main90129-08009

9046816012

main90468-16012

9161660825

main91616-60825

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
