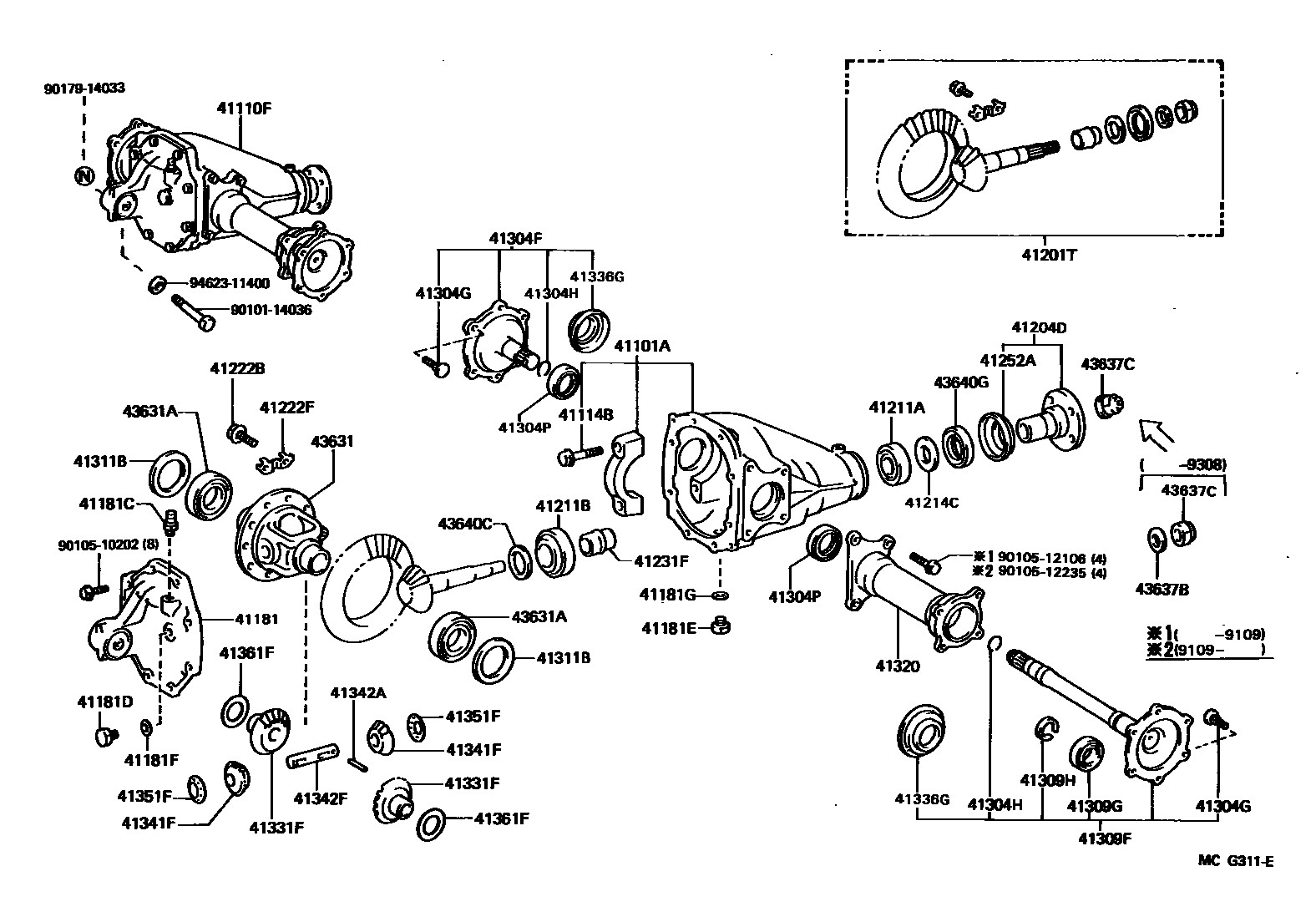

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1AUTOMATIC DISCONNECTING DIFF.0003 1 0004 1 0005 1 0006 1

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-35060iRN10#,110,13#,VZN10#,110,13#198808-199511

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-35350iVZN110..4FC..DLX;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA198808-199501

*FGR=41:10=4.100

main41110-35360iVZN10#,110..R..DLX..USA199108-199501

*FGR=43:10=4.300

main41110-35370iRN10#,110,13#..4FC198808-199511

*FGR=41:9=4.555

main41110-35380iVZN110..4FC..DLX199108-199501

*FGR=39:8=4.875

main41110-35440iVZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND199008-199108

*FGR=41:10=4.100,W(*ADD)

main41110-35440iVZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND198808-199511

*FGR=41:10=4.100

main41110-35450iVZN10#,110..R..DLX..USA199108-199501

*FGR=43:10=4.300,W(*ADD)

main41110-35450iVZN100,110,131..R..CND;VZN110,130..R..SR5..USA199108-199511

*FGR=43:10=4.300

main41110-35460iVZN110..4FC..DLX;RN101,110,13#..4FC198808-199511

*FGR=41:9=4.555

main41110-35460iRN110,13#..4FC..SR5198808-199511

*FGR=41:9=4.555,W(*ADD)

main41110-35470iVZN110..4FC..SR5199108-199501

*FGR=39:8=4.875,W(*ADD)

main41110-35470iVZN110..4FC..DLX199108-199511

*FGR=39:8=4.875

41114BBOLT, FRONT DIFFERENTIAL BEARING CAP

main90105-12053iRN10#,110,13#,VZN10#,110,13#198808-199511

41181COVER, FRONT DIFFERENTIAL CARRIER

main41108-35010iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199511

main41108-35020iRN110,13#..4FC..SR5198808-199511

W(*ADD)

41181CPLUG, BREATHER (FOR FRONT DIFFERENTIAL CARRIER COVER)

main90930-03031iRN10#,110,13#,VZN10#,110,13#198808-199511

41181DPLUG (FOR FRONT DIFFERENTIAL FILLER)

main90341-18006iRN10#,110,13#,VZN10#,110,13#198808-199511

41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)

main90341-18057iRN10#,110,13#,VZN10#,110,13#198808-199511

41181FGASKET (FOR FRONT DIFFERENTIAL FILLER PLUG)

main12157-10010iRN10#,110,13#,VZN10#,110,13#198808-199511

41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)

main12157-10010iRN10#,110,13#,VZN10#,110,13#198808-199511

41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-39716iVZN105,110,13#;RN10#,110,13#,VZN100..5F198808-199511

*FGR=41:10=4.100

sub41201-80110

main41201-39725iVZN10#,110,13#..R199108-199511

*FGR=43:10=4.300

sub41201-80004

main41201-39735iRN106,110,13#..4FC198808-198908

*FGR=41:9=4.556

sub41201-39736

main41201-39736iRN101,110,13#,VZN110,13#..4FC198908-199511

*FGR=41:9=4.556

sub41201-80015

main41201-39745iVZN110..4FC..DLX199108-199511

*FGR=39:8=4.875

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-35050iRN10#,110,13#,VZN10#,110,13#198808-199511

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-30022iRN10#,110,13#,VZN10#,110,13#198808-199511

sub90366-30078

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-35023iRN10#,110,13#,VZN10#,110,13#198808-199511

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-35020iRN10#,110,13#,VZN10#,110,13#198808-199511

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353iRN10#,110,13#,VZN10#,110,13#198808-199511

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35030iRN10#,110,13#,VZN10#,110,13#198808-199511

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iRN10#,110,13#,VZN10#,110,13#198808-199511

41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)

main41252-30010iRN10#,110,13#,VZN10#,110,13#198808-199511

41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41304-35010iRN110..4FC;RN101,110..W;RN106,VZN10#,110..DLX198808-198811

sub41304-35020

main41304-35020iRN101,110..G;VZN100,110..SR5198808-198811

W(*ADD)

main41304-35020iRN10#,110,13#,VZN10#,110,13#198811-199511

41304GBOLT, SERRATION (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90114-12011iRN10#,110,13#,VZN10#,110,13#198808-199511

41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90521-29002iRN101,110,13#..G;VZN100,110,13#..SR5198808-199511

W(*ADD)

41304PSEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90311-35018iRN10#,110,13#,VZN10#,110,13#198808-199511

sub90311-35032

41309FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH

main41309-35010iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199511

main41309-35020iRN101,110,13#..G;VZN100,110,13#..SR5198808-199405

W(*ADD)

sub41309-35H00

main41309-35021iVZN100,131..CND;VZN110,130..SR5;RN10#,110,13#..G;VZN110..R..DLX..CND199405-199511

W(*ADD)

41309GBEARING (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90369-36009iRN10#,110,13#,VZN10#,110,13#198808-199511

41309HRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90520-33008iRN101,110,13#..G;VZN100,110,13#..SR5198808-199511

OUTER

main90520-33008iRN101,110,13#..G;VZN100,110,13#..SR5198808-199511

W(*ADD),OUTER

main96152-00280iRN110,13#..4FC..SR5198808-199405

INNER

main96152-00280iRN101,110,13#..G;VZN100,110,13#..SR5198808-199405

W(*ADD),INNER

main96152-00300iVZN100,131..CND;VZN110,130..SR5;RN10#,110,13#..G;VZN110..R..DLX..CND199405-199511

INNER

main96152-00300iVZN100,131..CND;VZN110,130..SR5;RN10#,110,13#..G;VZN110..R..DLX..CND199405-199511

W(*ADD),INNER

41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)

main90201-50003iRN10#,110,13#,VZN10#,110,13#198808-199511

T=2.58

main90201-50003iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN10#,110..R..DLX..USA198808-199108

T=2.58,W(*ADD)

main90201-50004iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN10#,110..R..DLX..USA198808-199108

T=2.61,W(*ADD)

main90201-50004iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN10#,110..R..DLX..USA198808-199511

T=2.61

main90201-50005iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN10#,110..R..DLX..USA198808-199511

T=2.64

main90201-50005iRN101,110,13#..G;VZN100,110,13#..SR5198808-199108

T=2.64,W(*ADD)

main90201-50006iRN110,13#..4FC..SR5198808-199108

T=2.67,W(*ADD)

main90201-50006iRN110,13#..4FC..SR5198808-199511

T=2.67

main90201-50007iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN10#,110..R..DLX..USA198808-199108

T=2.70,W(*ADD)

main90201-50007iRN101,110,13#..G;VZN100,110,13#..SR5198808-199511

T=2.70

main90201-50008iVZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND198808-199108

T=2.73,W(*ADD)

main90201-50008iRN101,110,13#..G;VZN100,110,13#..SR5198808-199511

T=2.73

main90201-50009iRN101,110,13#..G;VZN100,110,13#..SR5198808-199108

T=2.76,W(*ADD)

main90201-50009iRN110,13#..4FC..SR5198808-199511

T=2.76

main90201-50010iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN10#,110..R..DLX..USA198808-199511

T=2.79

main90201-50010iVZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND198808-199108

T=2.79,W(*ADD)

main90201-50011iVZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND198808-199511

T=2.82

main90201-50011iRN110,13#..4FC..SR5198808-199108

T=2.82,W(*ADD)

main90201-50012iRN110,13#..4FC..SR5198808-199108

T=2.85,W(*ADD)

main90201-50012iRN110,13#..4FC..SR5198808-199511

T=2.85

main90201-50013iRN101,110,13#..G;VZN100,110,13#..SR5198808-199511

T=2.88

main90201-50013iVZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND198808-199108

T=2.88,W(*ADD)

main90201-50014iRN110,13#..4FC..SR5198808-199511

T=2.91

main90201-50014iRN101,110,13#..G;VZN100,110,13#..SR5198808-199108

T=2.91,W(*ADD)

main90201-50015iVZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND198808-199511

T=2.94

main90201-50015iRN101,110,13#..G;VZN100,110,13#..SR5198808-199108

T=2.94,W(*ADD)

main90201-50016iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN10#,110..R..DLX..USA198808-199108

T=2.97,W(*ADD)

main90201-50016iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN10#,110..R..DLX..USA198808-199511

T=2.97

main90201-50017iVZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND198808-199108

T=3.00,W(*ADD)

main90201-50017iVZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND198808-199511

T=3.00

main90201-50018iRN101,110,13#..G;VZN100,110,13#..SR5198808-199511

T=3.03

main90201-50018iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN10#,110..R..DLX..USA198808-199108

T=3.03,W(*ADD)

main90201-50019iRN110,13#..4FC..SR5198808-199511

T=3.06

main90201-50019iRN101,110,13#..G;VZN100,110,13#..SR5198808-199108

T=3.06,W(*ADD)

main90201-50020iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN10#,110..R..DLX..USA198808-199108

T=3.09,W(*ADD)

main90201-50020iRN110,13#..4FC..SR5198808-199511

T=3.09

main90201-50021iRN110,13#..4FC..SR5198808-199108

T=3.12,W(*ADD)

main90201-50021iRN10#,110,13#,VZN10#,110,13#198808-199511

T=3.12

main90201-50022iRN101,110,13#..G;VZN100,110,13#..SR5198808-199511

T=3.15

main90201-50022iRN101,110,13#..G;VZN100,110,13#..SR5198808-199108

T=3.15,W(*ADD)

main90201-50023iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN10#,110..R..DLX..USA198808-199108

T=3.18,W(*ADD)

main90201-50023iRN101,110,13#..G;VZN100,110,13#..SR5198808-199511

T=3.18

main90201-50024iRN110,13#..4FC..SR5198808-199108

T=3.21,W(*ADD)

main90201-50024iRN110,13#..4FC..SR5198808-199511

T=3.21

main90201-50025iRN101,110,13#..G;VZN100,110,13#..SR5198808-199511

T=3.24

main90201-50025iRN101,110,13#..G;VZN100,110,13#..SR5198808-199108

T=3.24,W(*ADD)

main90201-65007iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199108

T=2.58

main90201-65008iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199108

T=2.61

main90201-65009iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199108

T=2.64

main90201-65010iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199108

T=2.67

main90201-65011iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA198808-199108

T=2.70

main90201-65012iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199108

T=2.73

main90201-65013iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199108

T=2.76

main90201-65014iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199108

T=2.79

main90201-65015iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199108

T=2.82

main90201-65016iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199108

T=2.85

main90201-65017iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199108

T=2.88

main90201-65018iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199108

T=2.91

main90201-65019iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA198808-199108

T=2.94

main90201-65020iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA198808-199108

T=2.97

main90201-65021iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA198808-199108

T=3.00

main90201-65022iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199108

T=3.03

main90201-65023iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199108

T=3.06

main90201-65024iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199108

T=3.09

main90201-65025iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA198808-199108

T=3.12

main90201-65026iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199108

T=3.15

main90201-65027iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA198808-199108

T=3.18

main90201-65028iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA198808-199108

T=3.21

main90201-65029iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199108

T=3.24

41320TUBE ASSY, FRONT DIFFERENTIAL

main41320-35010iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA198808-199108

sub41320-35011

sub90105-12235

main41320-35011iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA199108-199511

main41320-35020iRN110,13#..4FC..SR5198808-199511

W(*ADD)

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-14040iRN10#,110,13#,VZN10#,110,13#198808-199511

sub41331-14041

41336GCOVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT)

main41336-22010iRN10#,110,13#,VZN10#,110,13#198808-199511

RH

main41336-28010iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199511

LH

main41336-35010iVZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND198808-199511

LH

main41336-35010iVZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND198808-199511

W(*ADD),LH

41341FPINION, FRONT DIFFERENTIAL

main41341-30020iRN10#,110,13#,VZN10#,110,13#198808-199511

sub41341-30050

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iRN10#,110,13#,VZN10#,110,13#198808-199511

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-22020iRN10#,110,13#,VZN10#,110,13#198808-199511

sub41342-22021

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-30060iRN10#,110,13#,VZN10#,110,13#198808-199511

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-30040iRN10#,110,13#,VZN10#,110,13#198808-199511

T=1.0

main41361-30050iRN10#,110,13#,VZN10#,110,13#198808-199511

T=1.1

main41361-30060iRN10#,110,13#,VZN10#,110,13#198808-199511

T=1.2

main41361-30070iRN10#,110,13#,VZN10#,110,13#198808-199511

T=1.3

main41361-30080iRN10#,110,13#,VZN10#,110,13#198808-199511

T=1.4

main41361-30090iRN10#,110,13#,VZN10#,110,13#198808-199511

T=1.5

main41361-30100iRN10#,110,13#,VZN10#,110,13#198808-199511

T=1.6

43631CASE, FRONT AXLE DIFFERENTIAL

main41311-22060iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199511

main41311-35060iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN10#,110..R..DLX..USA198808-199511

W(*ADD)

sub41311-34020

43631ABEARING, FRONT AXLE DIFFERENTIAL

main90364-33009iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN10#,110..R..DLX..USA198808-199511

INNER

main90364-33009iRN101,110,13#..G;VZN100,110,13#..SR5198808-199511

W(*ADD),INNER

main90368-50006iRN10#,110,13#,VZN10#,110,13#198808-199511

OUTER

main90368-50006iVZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA199108-199511

W(*ADD),OUTER

43637BWASHER, PLATE (FOR FRONT AXLE DRIVE PINION)

main90201-18485iRN10#,110,13#,VZN10#,110,13#198808-199308

43637CNUT, CASTLE (FOR FRONT AXLE DRIVE PINION)

main90179-18001iRN10#,110,13#,VZN10#,110,13#198808-199308

main90179-18020iRN10#,110,13#,VZN100,110,13#199308-199511

43640CSPACER OR WASHER, FRONT AXLE DRIVE PINION THRUST

main90201-35396iRN10#,110,13#,VZN10#,110,13#198808-199511

T=2.36,MARK 05

main90201-35397iRN10#,110,13#,VZN10#,110,13#198808-199511

T=2.39,MARK 06

main90201-35398iRN10#,110,13#,VZN10#,110,13#198808-199511

T=2.42,MARK 07

main90201-35399iRN10#,110,13#,VZN10#,110,13#198808-199511

T=2.43,MARK 08

main90201-35400iRN10#,110,13#,VZN10#,110,13#198808-199511

T=2.48,MARK 09

main90201-35401iRN10#,110,13#,VZN10#,110,13#198808-199511

T=2.51,MARK 10

main90201-35402iRN10#,110,13#,VZN10#,110,13#198808-199511

T=2.54,MARK 11

main90201-35403iRN10#,110,13#,VZN10#,110,13#198808-199511

T=2.57,MARK 12

main90201-35404iRN10#,110,13#,VZN10#,110,13#198808-199511

T=2.60,MARK 13

main90201-35434iRN10#,110,13#,VZN10#,110,13#198808-199309

T=2.24,MARK 01

sub90201-35515

main90201-35435iRN10#,110,13#,VZN10#,110,13#198808-199309

T=2.27,MARK 02

sub90201-35516

main90201-35436iRN10#,110,13#,VZN10#,110,13#198808-199309

T=2.30,MARK 03

sub90201-35517

main90201-35437iRN10#,110,13#,VZN10#,110,13#198808-199309

T=2.33,MARK 04

sub90201-35518

main90201-35438iRN10#,110,13#,VZN10#,110,13#198808-199511

T=2.63,MARK 14

main90201-35439iRN10#,110,13#,VZN10#,110,13#198808-199511

T=2.66,MARK 15

main90201-35440iRN10#,110,13#,VZN10#,110,13#198808-199511

T=2.69,MARK 16

main90201-35441iRN10#,110,13#,VZN10#,110,13#198808-199511

T=2.72,MARK 17

main90201-35515iRN10#,110,13#,VZN100,110,13#199309-199511

OD=47,T=2.24,MARK 01

main90201-35516iRN10#,110,13#,VZN100,110,13#199309-199511

OD=47,T=2.27,MARK 02

main90201-35517iRN10#,110,13#,VZN100,110,13#199309-199511

OD=47,T=2.30,MARK 03

main90201-35518iRN10#,110,13#,VZN100,110,13#199309-199511

OD=47,T=2.33,MARK 04

43640GSEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)

main90311-38134iRN10#,110,13#,VZN10#,110,13#198808-199511

sub90311-38047

9010114036

main90101-14036

9010510202

main90105-10202

9010512106

main90105-12106

9010512235

main90105-12235

9017914033

main90179-14033

9462311400

main94623-11400

46 parts on this diagram · 6 diagrams in section
