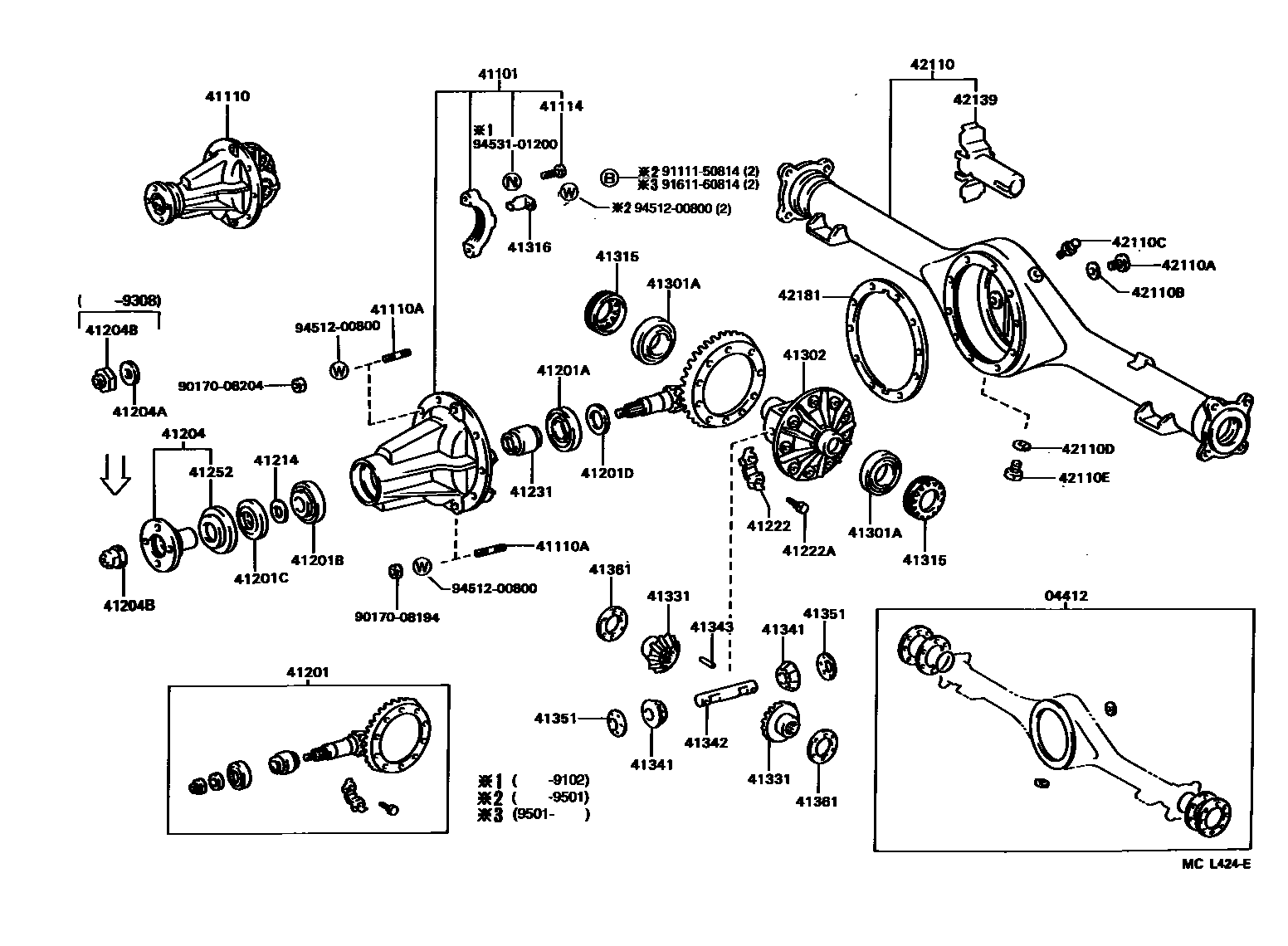

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-25060iRN10#,110,13#,VZN10#,110,13#¥850198808-199108

main04412-35120iRN10#,110,13#,VZN10#,110,13#¥4,180199108-199511

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-35030iRN10#,110,13#¥45,900198808-198905

sub41101-35031¥45,800

sub90116-08329¥100

main41101-35031iRN10#,110,13#¥45,800198905-199511

main41101-35070iVZN10#,110,13#¥45,900198808-198905

sub41101-35071¥44,300

sub90116-08329¥100

sub90116-08334¥120

main41101-35071iVZN13#¥44,300199308-199511

W(4 WHEEL *66)

sub41101-35170¥46,400

main41101-35071iVZN10#,110..DLX¥44,300198905-199501

sub41101-35170¥46,400

main41101-35090iRN101,110,13#..SR5¥44,300198908-199511

W(2 WHEEL *66)

main41101-35100iVZN100,110,13#..SR5¥44,300198908-199511

main41101-35100iVZN10#,110..DLX¥44,300199008-199501

W(2 WHEEL *66)

main41101-35120iVZN110..4FC..SR5¥46,500199108-199511

W(7JJX15 DISC WHEEL)

main41101-35120iVZN110..4FC..SR5¥46,500199108-199501

W(2 WHEEL *66 & 7JJ DISC WHEEL)

main41101-60061iVZN110..4FC..DLX¥44,300199108-199501

W(7JJX15 DISC WHEEL)

sub41101-60160¥44,000

main41101-60061iVZN13#..4FC¥44,300199308-199511

W(4 WHEEL *66 & 7JJ DISC WHEEL)

sub41101-60160¥44,000

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-26161iVZN13#..R¥184,000199308-199511

*FGR=43:10=4.300,W(4 WHEEL *66)

sub41110-3D020¥186,000

main41110-26161iVZN10#,110..R..DLX¥184,000199108-199501

*FGR=43:10=4.300

sub41110-3D020¥186,000

main41110-35201iRN10#,110,13#..5F¥178,000198808-198905

*FGR=41:10=4.100

sub41110-35202¥179,000

sub90116-08329¥100

main41110-35202iRN10#,110,13#..5F¥179,000198905-199511

*FGR=41:10=4.100

sub41110-26430¥179,000

main41110-35221iRN106,110,13#..4FC¥178,000198808-198905

*FGR=41:9=4.555

sub41110-35222¥178,000

sub90116-08329¥100

main41110-35222iRN10#,110,13#..4FC¥178,000198905-199511

*FGR=41:9=4.555

sub41110-3D260¥179,000

main41110-35390iVZN10#,110,13#¥211,000198808-198905

*FGR=41:10=4.100

sub41110-35391¥184,000

sub90116-08329¥100

sub90116-08334¥120

main41110-35391iVZN10#,110..DLX¥184,000198905-199108

*FGR=41:10=4.100

sub41110-26150¥184,000

main41110-35490iVZN10#,110,13#¥185,000198808-198905

*FGR=41:9=4.555

sub41110-35491¥184,000

sub90116-08329¥100

main41110-35491iVZN10#,110..R..DLX¥184,000198905-199501

*FGR=41:9=4.555

sub41110-3D090¥186,000

main41110-35491iVZN13#..4FC¥184,000199308-199511

*FGR=41:9=4.555,W(4 WHEEL *66)

sub41110-3D090¥186,000

main41110-35560iRN10#,110,13#..5F¥176,000198908-199511

*FGR=41:10=4.100,W(2 WHEEL *66)

main41110-35570iRN110,13#..4FC..SR5¥176,000198908-199511

*FGR=41:9=4.555,W(2 WHEEL *66)

main41110-35580iVZN100,110,13#..SR5¥184,000198908-199108

*FGR=41:10=4.100

main41110-35580iVZN10#,110..DLX¥184,000199008-199108

*FGR=41:10=4.100,W(2 WHEEL *66)

main41110-35590iVZN13#..R¥184,000198908-199511

*FGR=41:9=4.555

sub41110-35591

main41110-35590iVZN10#,110..DLX¥184,000199008-199501

*FGR=41:9=4.555,W(2 WHEEL *66)

sub41110-35591

main41110-35660iVZN110,13#..R..SR5¥174,000199108-199511

*FGR=43:10=4.300

sub41110-35661¥174,000

main41110-35660iVZN10#,110..R..DLX¥174,000199108-199501

*FGR=43:10=4.300,W(2 WHEEL *66)

sub41110-35661¥174,000

main41110-35680iVZN110..4FC..DLX¥184,000199108-199501

*FGR=39:8=4.875,W(2 WHEEL *66)

main41110-35680iVZN110..4FC..SR5¥184,000199108-199511

*FGR=39:8=4.875

main41110-60380iVZN110..4FC..DLX¥184,000199108-199501

*FGR=39:8=4.875

sub41110-60690¥186,000

main41110-60380iVZN13#..4FC¥184,000199308-199511

*FGR=39:8=4.875,W(4 WHEEL *66)

sub41110-60690¥186,000

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08233iRN10#,110,13#,VZN10#,110,13#¥100198808-199511

S=14 & 14,L=42

main90116-08235iRN10#,110,13#,VZN10#,110,13#¥230198808-198905

S=12 & 15,L=34

sub90116-08418¥90

main90116-08329iRN10#,110,13#,VZN10#,110,13#¥100198905-199511

S=17 & 12,L=37

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053iRN10#,110,13#,VZN10#,110,13#¥260198808-199511

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29536iRN10#,110,13#..4FC¥66,700198808-199511

*FGR=41:9=4.556

sub41201-29537¥69,100

sub41204-35081¥5,900

sub41214-26011¥280

main41201-29855iVZN10#,110,13#..R¥68,300199108-199305

*FGR=43:10=4.300

sub41201-29856¥68,600

main41201-29856iVZN100,110,13#..R¥68,600199305-199511

*FGR=43:10=4.300

sub41201-80104¥68,600

main41201-39676iRN10#,110,13#..5F¥66,700198808-199511

*FGR=41:10=4.100

sub41201-39677¥69,100

sub41204-35081¥5,900

sub41214-26011¥280

main41201-39755iVZN10#,110,13#¥66,200198808-199108

*FGR=41:10=4.100

sub41201-39756¥68,300

sub41204-35081¥5,900

sub41214-26011¥280

main41201-69285iVZN110..4FC..SR5¥68,300199108-199511

*FGR=39:8=4.875

sub41201-80183¥68,900

sub41204-35081¥5,900

sub41214-26011¥280

main41201-80011iVZN13#..R¥68,300198808-199501

*FGR=41:9=4.556

sub41201-80059¥68,300

main41201-80059iVZN110..R..SR5¥68,300199305-199511

*FGR=41:9=4.556

sub41201-80105¥68,600

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35028iVZN10#,110,13#¥4,460198808-199511

sub90366-35087¥3,500

main90366-35044iRN10#,110,13#¥2,550198808-199511

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iRN10#,110,13#¥1,850198808-199511

sub90366-30078¥2,200

main90366-30025iVZN10#,110,13#¥1,860198808-199511

sub90366-30067¥2,970

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38035iRN10#,110,13#¥420198808-199511

sub90311-38047¥450

main90311-38133iVZN10#,110,13#¥430198808-199511

sub90311-38047¥450

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iRN10#,110,13#,VZN10#,110,13#¥180198808-199511

OD=47,T=1.70

main90201-35498iRN10#,110,13#,VZN10#,110,13#¥180198808-199511

OD=47,T=1.73

main90201-35499iRN10#,110,13#,VZN10#,110,13#¥180198808-199511

OD=47,T=1.76

main90201-35500iRN10#,110,13#,VZN10#,110,13#¥180198808-199511

OD=47,T=1.79

main90201-35501iRN10#,110,13#,VZN10#,110,13#¥180198808-199511

OD=47,T=1.82

main90201-35502iRN10#,110,13#,VZN10#,110,13#¥180198808-199511

OD=47,T=1.85

main90201-35503iRN10#,110,13#,VZN10#,110,13#¥180198808-199511

OD=47,T=1.88

main90201-35504iRN10#,110,13#,VZN10#,110,13#¥180198808-199511

OD=47,T=1.91

main90201-35505iRN10#,110,13#,VZN10#,110,13#¥180198808-199511

OD=47,T=1.94

main90201-35506iRN10#,110,13#,VZN10#,110,13#¥180198808-199511

OD=47,T=1.97

main90201-35507iRN10#,110,13#,VZN10#,110,13#¥180198808-199511

OD=47,T=2.00

main90201-35508iRN10#,110,13#,VZN10#,110,13#¥180198808-199511

OD=47,T=2.03

main90201-35509iRN10#,110,13#,VZN10#,110,13#¥180198808-199511

OD=47,T=2.06

main90201-35510iRN10#,110,13#,VZN10#,110,13#¥180198808-199511

OD=47,T=2.09

main90201-35511iRN10#,110,13#,VZN10#,110,13#¥180198808-199511

OD=47,T=2.12

main90201-35512iRN10#,110,13#,VZN10#,110,13#¥180198808-199511

OD=47,T=2.15

main90201-35513iRN10#,110,13#,VZN10#,110,13#¥180198808-199511

OD=47,T=2.18

main90201-35514iRN10#,110,13#,VZN10#,110,13#¥180198808-199511

OD=47,T=2.21

main90201-35515iRN10#,110,13#,VZN10#,110,13#¥120198808-199511

OD=47,T=2.24,MARK 01

main90201-35516iRN10#,110,13#,VZN10#,110,13#¥120198808-199511

OD=47,T=2.27,MARK 02

main90201-35517iRN10#,110,13#,VZN10#,110,13#¥120198808-199511

OD=47,T=2.30,MARK 03

main90201-35518iRN10#,110,13#,VZN10#,110,13#¥120198808-199511

OD=47,T=2.33,MARK 04

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35040iRN10#,110,13#,VZN10#,110,13#¥7,200198808-199511

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-20005iRN10#,110,13#,VZN10#,110,13#¥170198808-199308

41204BNUT (FOR REAR DRIVE PINION)

main90179-20001iRN10#,110,13#,VZN10#,110,13#¥380198808-199308

main90179-20018iRN10#,110,13#,VZN100,110,13#¥220199308-199511

OD=37

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iRN10#,110,13#,VZN10#,110,13#¥460198808-199511

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020iRN10#,110,13#,VZN10#,110,13#¥200198808-199511

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iRN10#,110,13#,VZN10#,110,13#¥120198808-199511

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iVZN10#,110,13#¥640198808-199511

main41231-40011iRN10#,110,13#¥3,160198808-199511

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-35010iRN10#,110,13#,VZN10#,110,13#¥3,580198808-199303

sub41252-35020¥2,370

main41252-35020iRN10#,110,13#,VZN100,110,13#¥2,370199303-199511

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50007iVZN10#,110,13#¥2,690198808-199511

main90368-45066iRN10#,110,13#¥2,360198808-199511

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-35020iVZN10#,110,13#¥23,900198808-199511

sub41302-26010¥18,100

main41311-40020iRN10#,110,13#¥21,600198808-199511

sub41311-40021¥28,300

sub90105-11063¥100

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-35010iRN10#,110,13#¥520198808-199511

main41315-35020iVZN10#,110,13#¥370198808-199511

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iRN10#,110,13#¥110198808-199305

main41316-35010iVZN10#,110,13#¥90198808-199511

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-35011iRN10#,110,13#¥3,630198808-199511

main41331-35040iVZN10#,110,13#¥5,700198808-199511

sub41039-34060¥26,300

sub41039-34080¥16,600

41341PINION, REAR DIFFERENTIAL

main41341-30020iVZN100,110,13#¥2,830199408-199511

sub41341-30050¥2,830

main41341-35010iVZN10#,110,13#¥2,690198808-199408

sub41341-14041¥2,130

main41341-35020iRN10#,110,13#¥1,690198808-199511

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-39610iRN10#,110,13#¥810198808-199511

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06085iRN10#,110,13#¥110198808-199511

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30052iRN10#,110,13#¥140198808-199511

main41351-30060iVZN10#,110,13#¥140198808-199511

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-24010iVZN10#,110,13#¥410198808-199509

T=0.90

sub41361-60E10¥430

main41361-24020iVZN10#,110,13#¥410198808-199509

T=1.00

sub41361-60E50¥430

main41361-24030iVZN10#,110,13#¥410198808-199509

T=1.10

sub41361-60E90¥440

main41361-24040iVZN10#,110,13#¥410198808-199509

T=1.20

sub41361-60F30¥450

main41361-24050iVZN10#,110,13#¥410198808-199509

T=1.30

sub41361-60F70¥510

main41361-35310iVZN13#¥250199509-199511

T=0.9

main41361-35320iVZN13#¥250199509-199511

T=1.0

main41361-35330iVZN13#¥270199509-199511

T=1.1

main41361-35340iVZN13#¥310199509-199511

T=1.2

main41361-35350iVZN13#¥330199509-199511

T=1.3

main41361-40021iRN10#,110,13#¥380198808-199511

T=1.6

main41362-40021iRN10#,110,13#¥380198808-199511

T=1.7

main41363-40021iRN10#,110,13#¥380198808-199511

T=1.8

42110HOUSING ASSY, REAR AXLE

main42110-35421iRN110,VZN110¥68,500198808-199501

main42110-35430iRN10#,VZN10#¥68,200198808-199501

main42110-35450iRN13#,VZN13#¥80,300198904-199511

main42110-35520iRN130,VZN13#¥68,200199308-199511

W(4 WHEEL *66)

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iRN10#,110,13#,VZN100,110,13#¥180199406-199511

main90341-18049iRN10#,110,13#,VZN10#,110,13#¥260198808-199406

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iRN10#,110,13#,VZN10#,110,13#¥100198808-199511

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iRN10#,110,13#,VZN10#,110,13#¥370198808-199511

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iRN10#,110,13#,VZN10#,110,13#¥100198808-199511

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iRN10#,110,13#,VZN10#,110,13#¥350198808-199511

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42139-40010iRN10#,110,13#,VZN10#,110,13#¥10,200198808-199511

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-60020iRN10#,110,13#,VZN10#,110,13#¥170198808-199511

9017008194

main90170-08194¥130

9017008204

main90170-08204¥170

9111150814

main91111-50814¥180

9161160814

main91611-60814¥100

9451200800

main94512-00800¥80

9453101200

main94531-01200¥80

42 parts on this diagram · 2 diagrams in section
